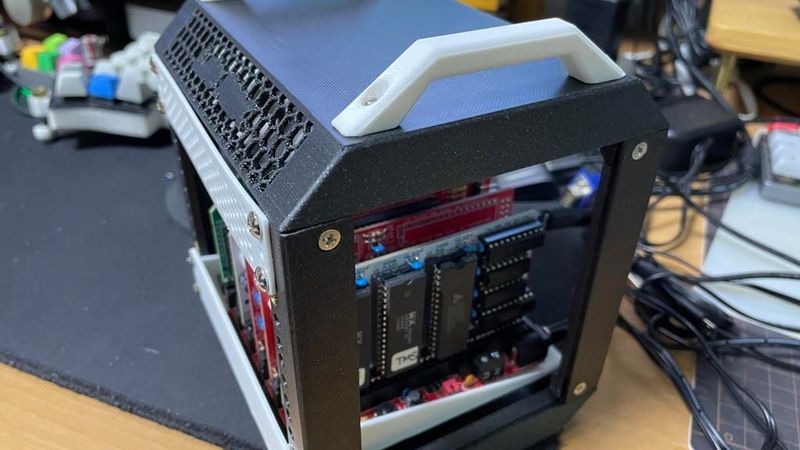

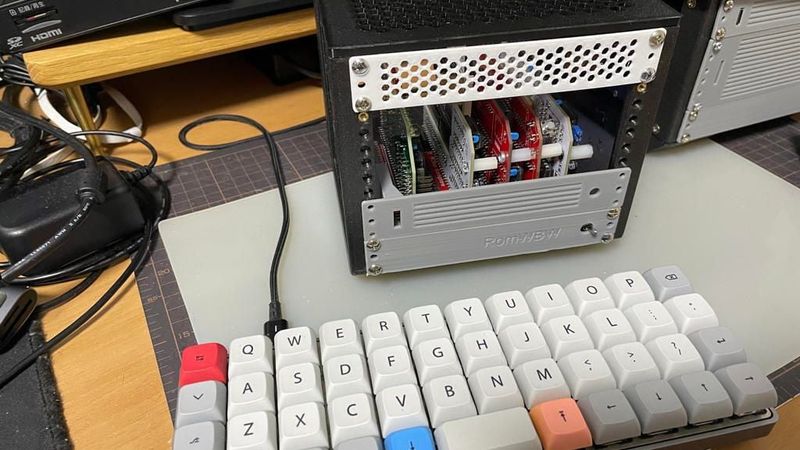

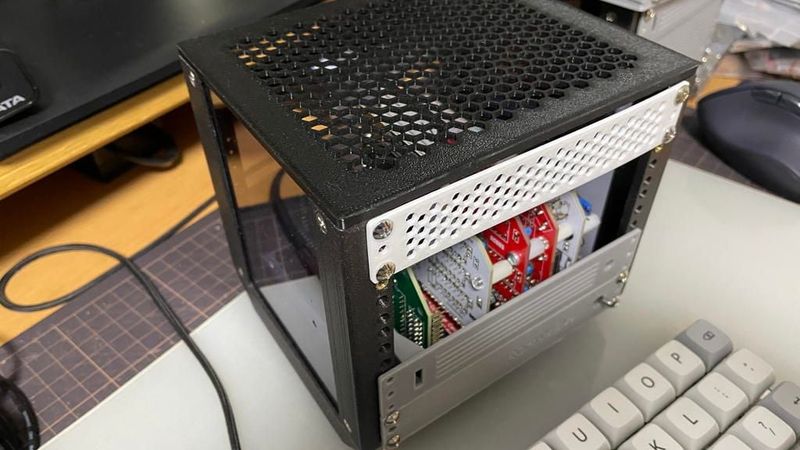

SC Series Modular Rack Case (5" Rack Compatible)

This is a modular rack-mount case designed for the SC Series retro computers published by Small Computer Central.

The design is compatible with the 5" portable rack system created by The DIY Life:

https://the-diy-life.com/i-built-a-5-portable-raspberry-pi-homelab/

The original top cover and base plate from that system can also be used with this design.

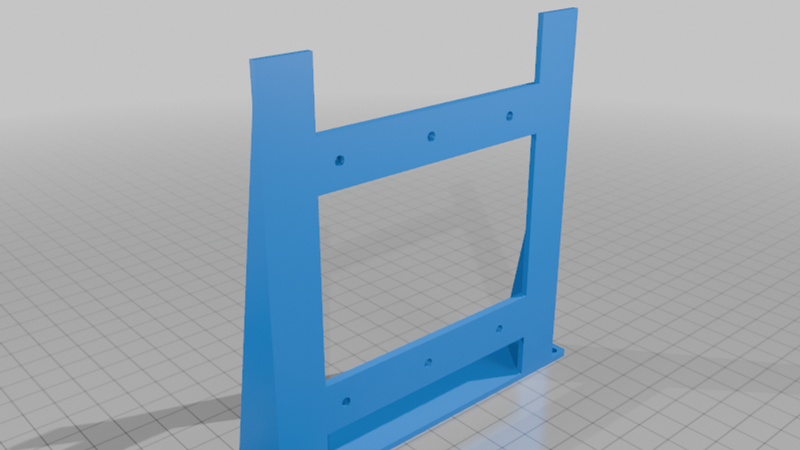

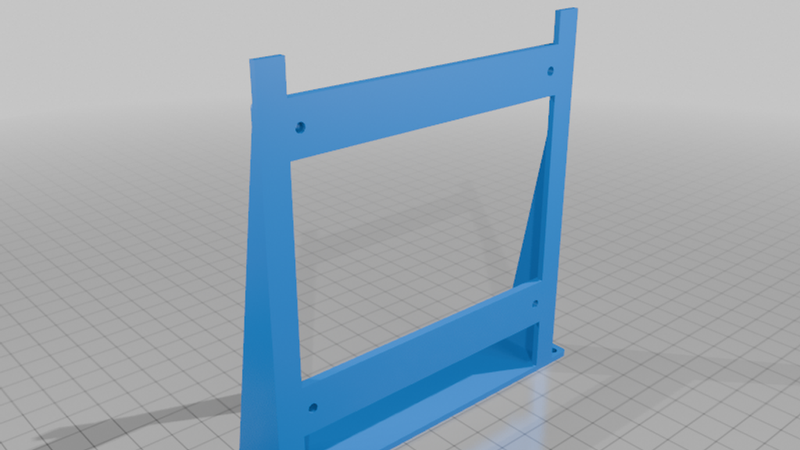

The rack frame dimensions and mounting style are compatible with the original system, but all front and rear panels were newly designed for SC Series retro computer configurations.

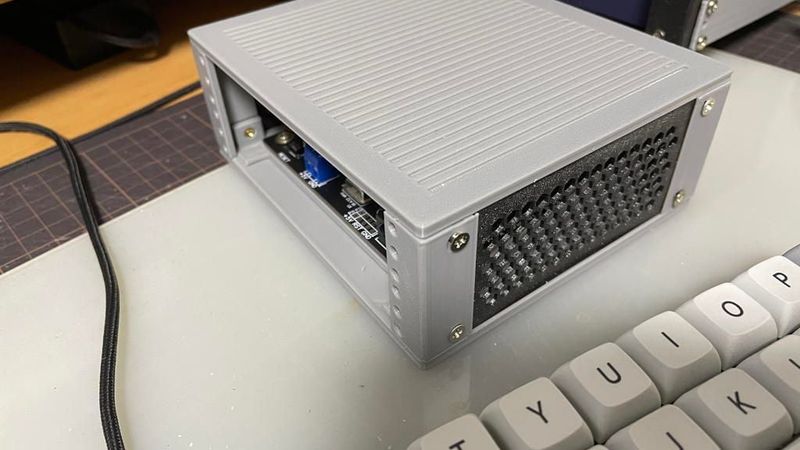

To reduce overall height and improve flexibility, several new top panel variations were created:

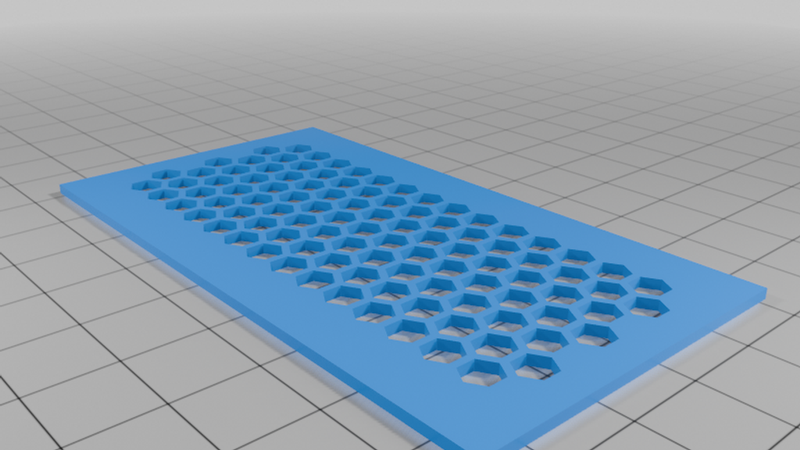

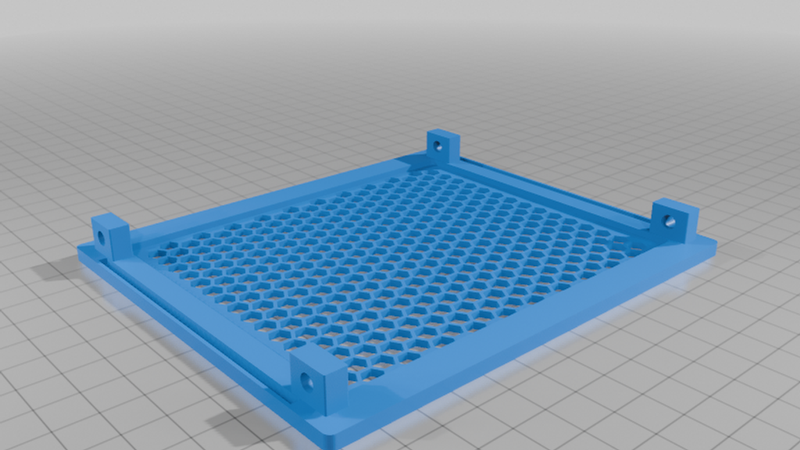

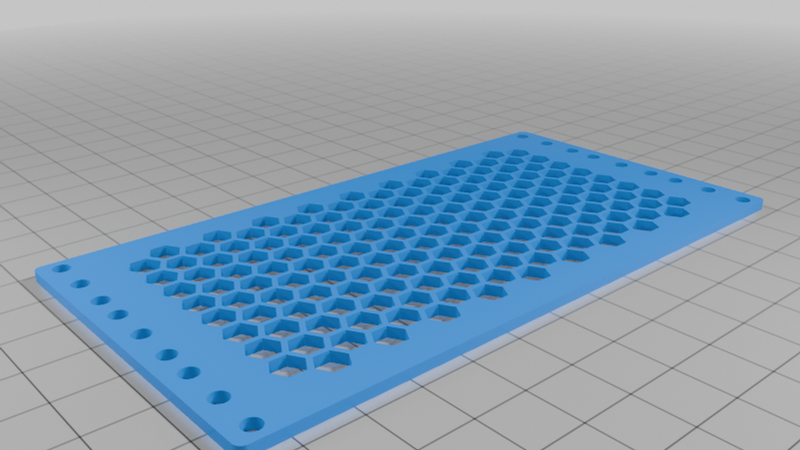

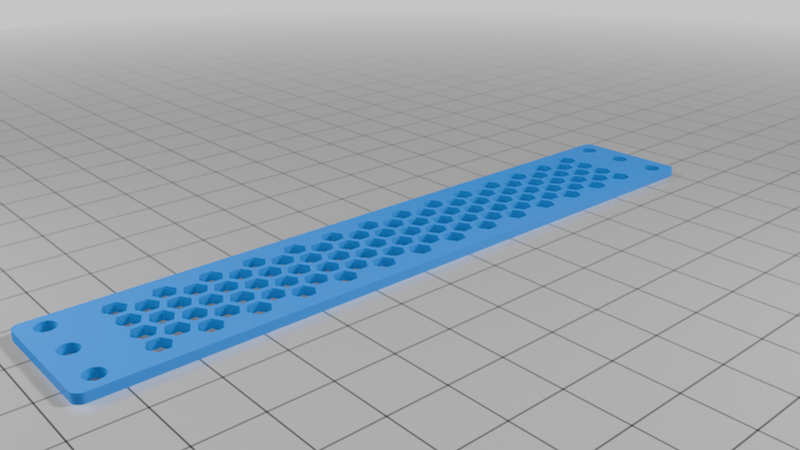

• Honeycomb style

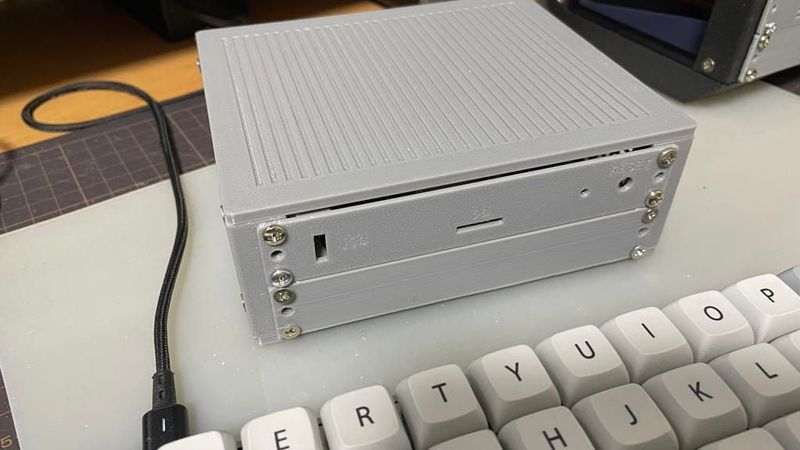

• Frog Design-inspired style
• Minimal frame-only style

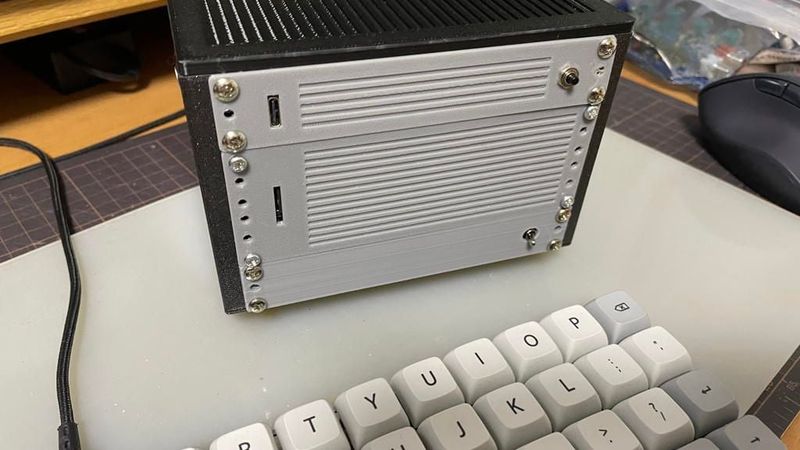

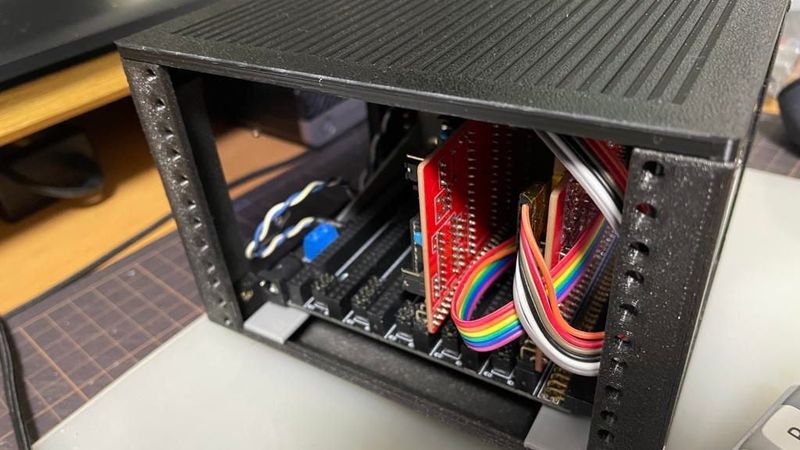

By changing the front and rear panels, the same chassis can support a variety of SC Series / RCBus system configurations and expansions.

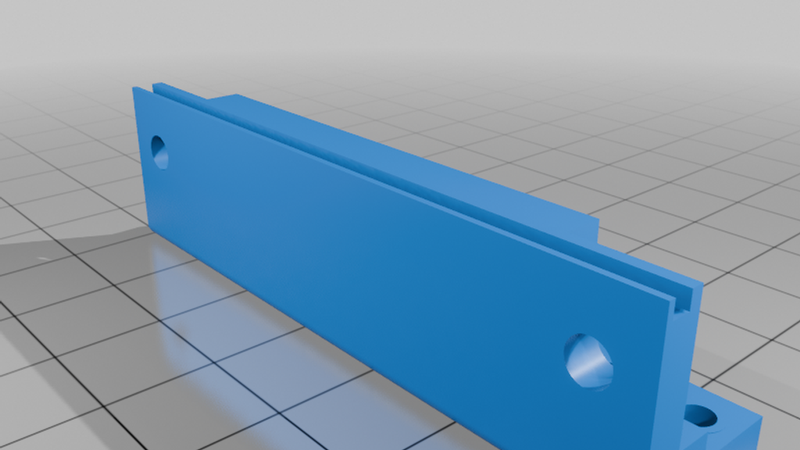

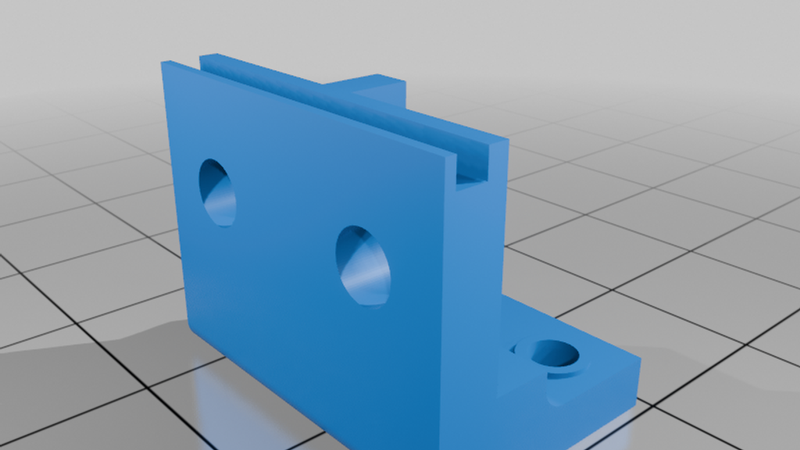

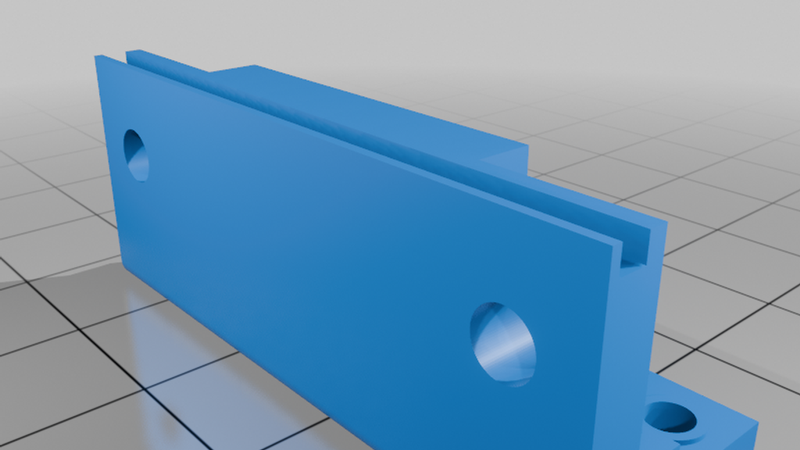

Vertical_Post parts are available in sizes from 1U to 5U.

Additional custom Vertical_Post versions are also included, allowing direct use of M3 screws without threaded inserts.

Features:

• Modular rack-mount design
• Compatible with The DIY Life 5" rack system
• Newly designed custom panels for SC Series systems
• Compatible with the original top and base plates
• Alternative low-profile top panel designs
• Replaceable front and rear panels
• Vertical_Post options from 1U to 5U
• Optional direct M3 screw mounting design
• Flexible configuration for different retro computer builds
• Designed for easy customization and expansion

The models were designed in OpenSCAD, and the source files are included.

You can use them as references for creating your own custom panels and modifications.

This project was created to provide a clean and flexible enclosure solution for homebrew retro computing enthusiasts.

Printing Notes:

• PLA or PETG recommended
• Some parts may require supports depending on orientation
• Panels can be modified to match your hardware configuration

SC Series retro computer projects:

https://smallcomputercentral.com/

Original inspiration:

https://the-diy-life.com/i-built-a-5-portable-raspberry-pi-homelab/

If you create additional panel variations or improvements, feel free to share them!
