Parametric GT2 Timing Belt Generator (STEP, Customizable, CNC & 3D Printing)

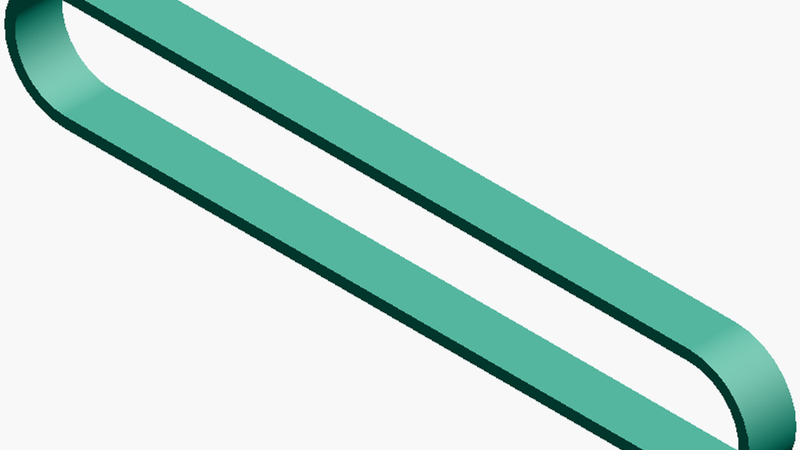

This is a parametric GT2 timing belt system model generated using an automated CAD system.

Unlike fixed models, this belt is not a one-off design — it is generated based on a two-pulley configuration.

Specifications of this model:

Pulley 1 teeth : [X]

Pulley 2 teeth: [X]

Center distance : [X] mm

Belt width : [X] mm

Pitch: 2 mm (GT2 standard)

Tooth profile: Rounded GT2 profile for precise engagement

Use cases:

Belt-driven motion systems

3D printers

CNC machinery

Robotics

Linear motion mechanisms

⚙️ Generate your own GT2 timing belt (any parameters):

https://meta-matic.com/en/3d/gt2-timing-belt/

You can freely adjust:

Pulley 1 teeth (z1)

Pulley 2 teeth (z2)

Center distance (C)

Belt width (w)

and instantly download a STEP file.

Why this matters:

Most models here are static.

This system generates a belt that matches your actual pulley configuration.

Note:

The belt length is automatically determined from pulley teeth counts and center distance.

GT2 belts use a 2 mm pitch and rounded tooth geometry for precise, low-backlash motion.
