Description

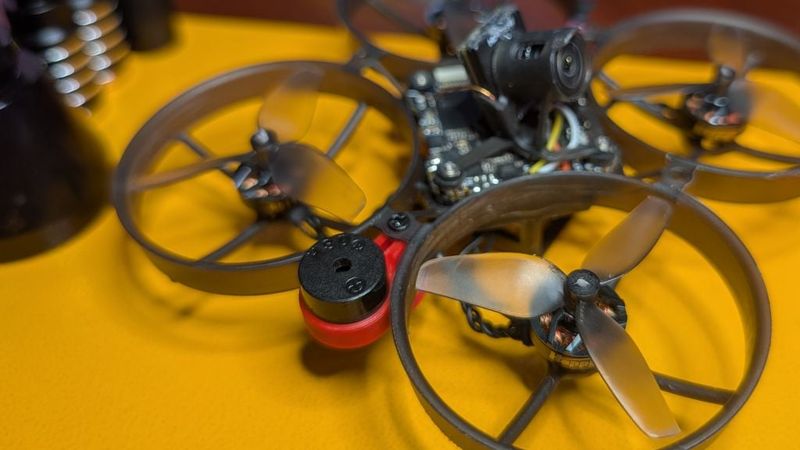

Parametric buzzer mount for a tiny whoop. Pictured is my HDZero M8.

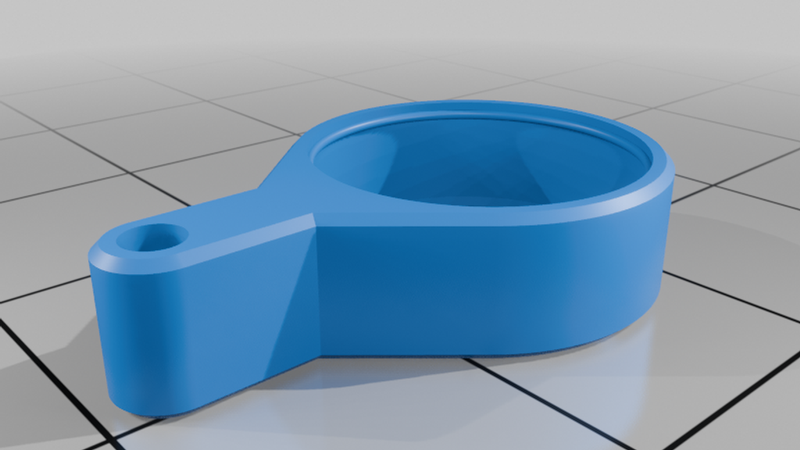

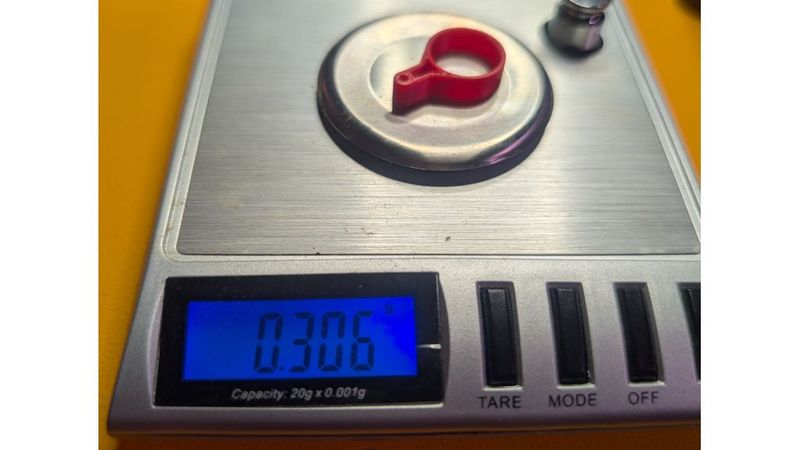

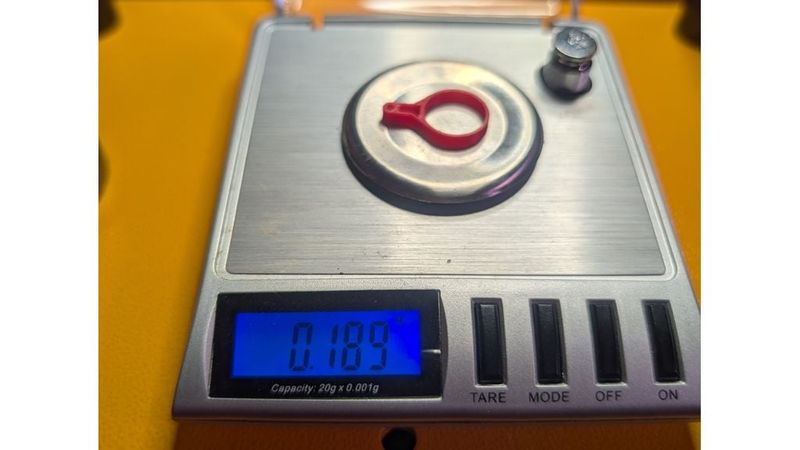

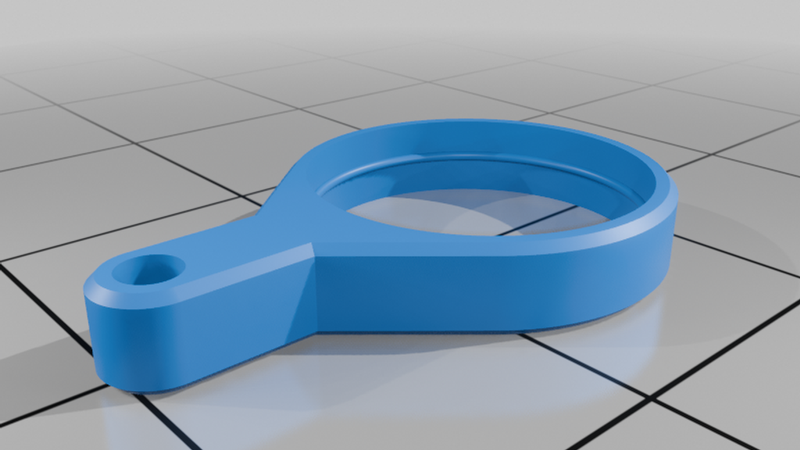

The groove of the buzzer is used to hold it in place. Many parameters are adjustable and two different bracket styles are provided. If you really wanted to, you can get it lighter than pictured, but durability will suffer.

Customiztion Instructions

Web

Click on customize to generate your own!

Local

1. Download the latest OpenSCAD Development Snapshot. OpenSCAD is free software.

2. Launch it and open the attached *.scad

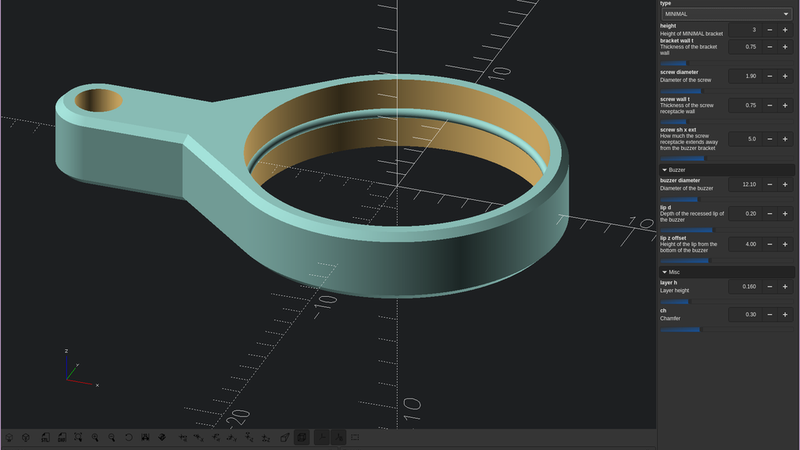

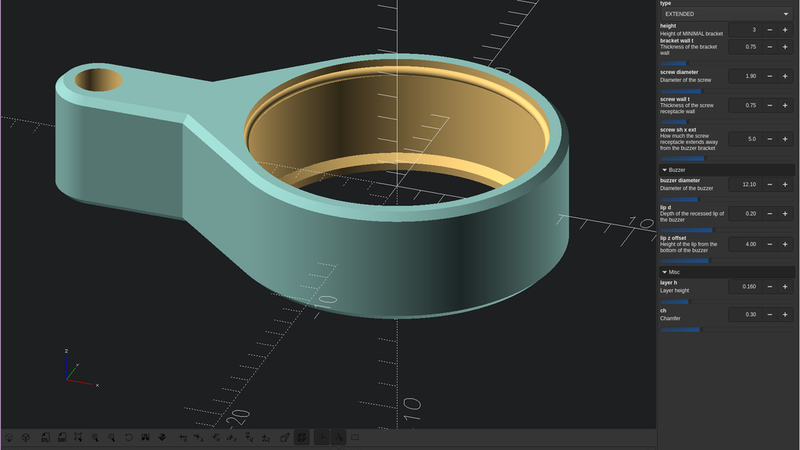

3. If you do not see the "Customizer" pane click on Window -> Hide Customizer

4. Adjust whatever parameters you want

5. Press F6 or Design -> Render

6. Press F7 or File -> Export -> Export as STL

Printing Instructions

Use the provided print profiles.

Alternatively:

* Layer height: 16

* Top shell layers: 0

* Bot shell layers: 0

* Infill: 0%
