Safety clip for ABUS Bordo 6000 series bike lock mounts

k_mos
1 File
stl Format

Description

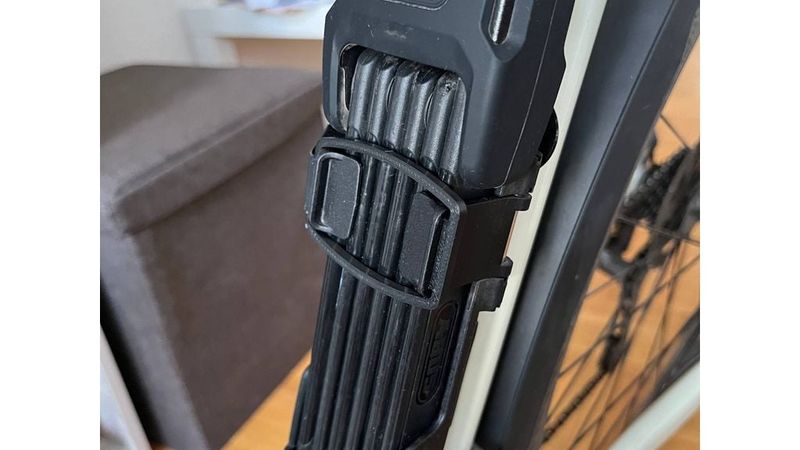

In my experience, on rough terrain the stock mount for ABUS Bordo 6000 / 6000K bike locks does not hold the lock in place well enough. I had the lock fall out of its cradle several times. Here is a clip that helps to keep the latches in place.

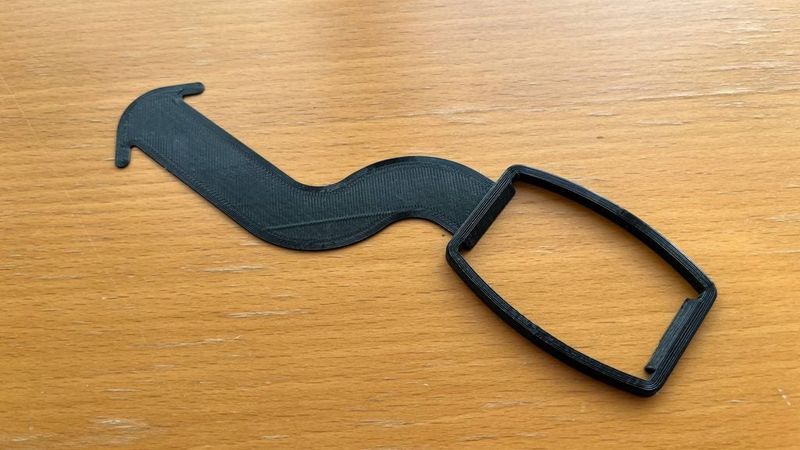

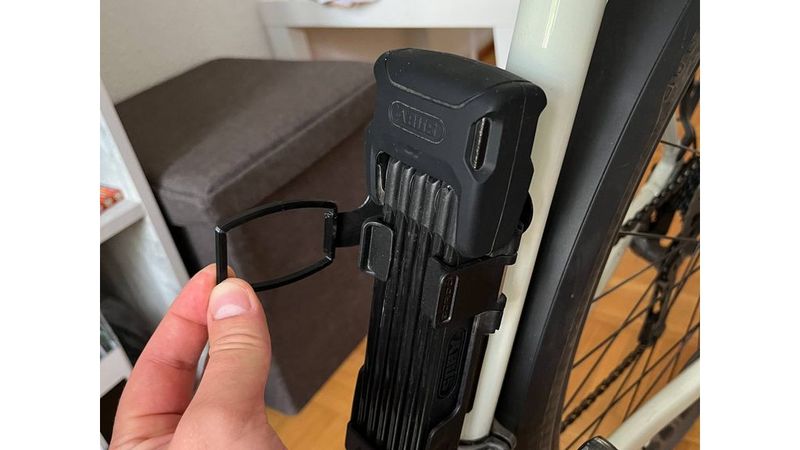

The clip is flexible and should be squeezed by the rounded sides to take it off easily.

See video: https://youtube.com/shorts/g82BZ3-2u3A

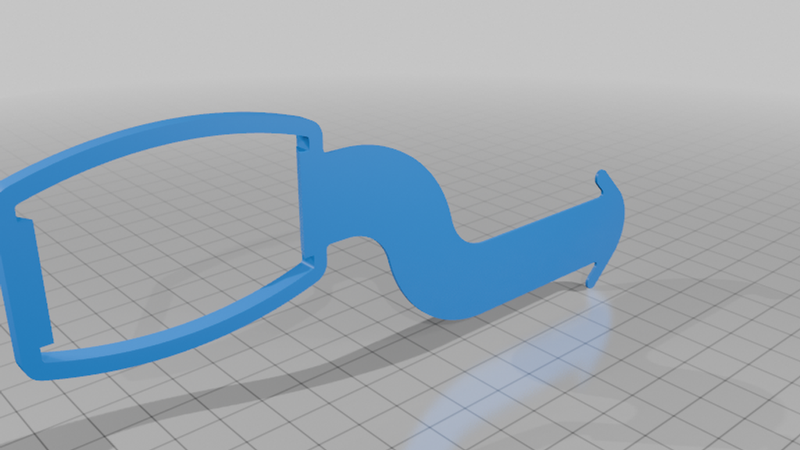

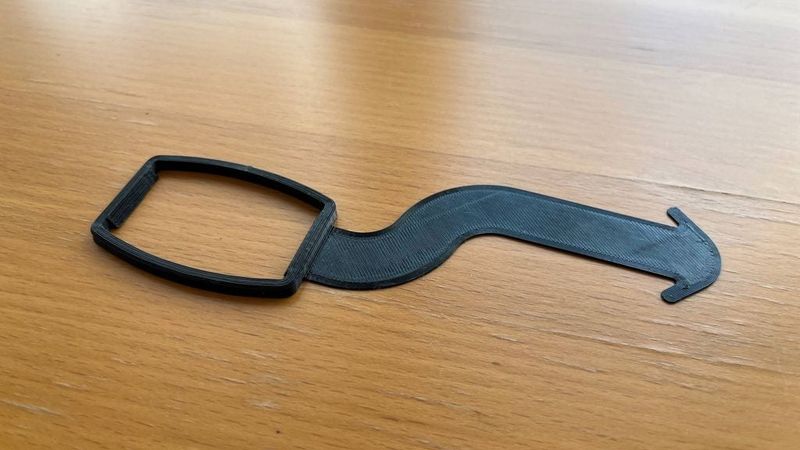

I found it more convenient to also have the clip attached to the bike by a flexible strap. This could be cut away if not needed.

My print settings (yours may differ):

Material: PETG

Layer height: 0.3 mm

Infill: concentric 100% density

Outer perimeters: 4 or more (for the rounded clip sides and the strap arrowhead latches to be printed concentrically without infill)

Bottom layers: 2 layers rectilinear strategy (for the strap body to have criss-cross infill)

Top layers: none

Downloads

Locker_v2.0_Leashed.STL
842.5 KB
