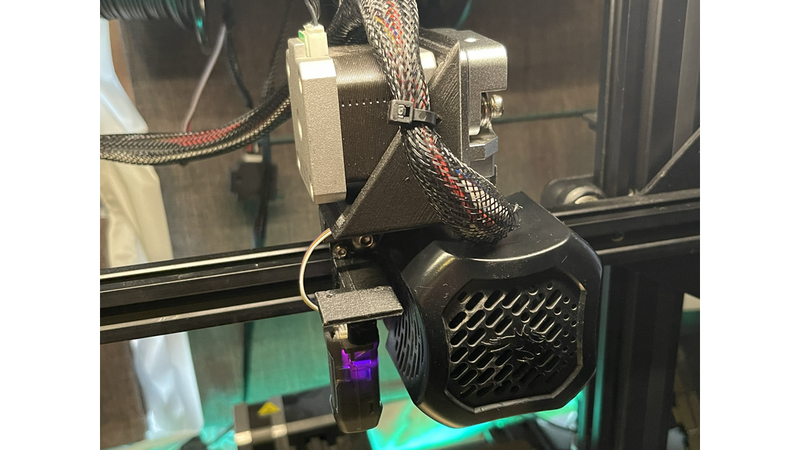

ENDER3V2 Direct Drive + Ceramic Hotend + BL Touch Upgrade for $30

drewbiefab
drewbiefab
6 Files
stl, stp Formats

Description

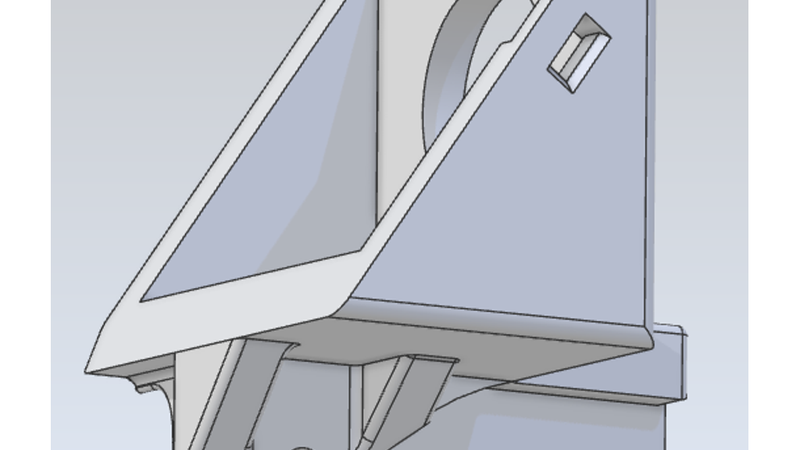

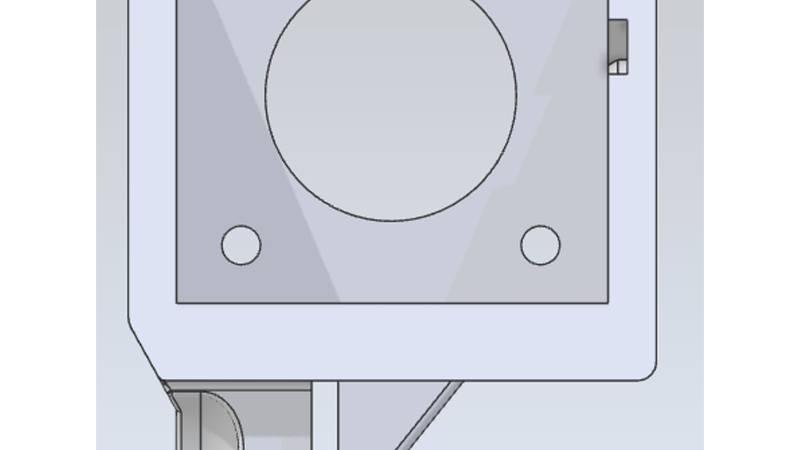

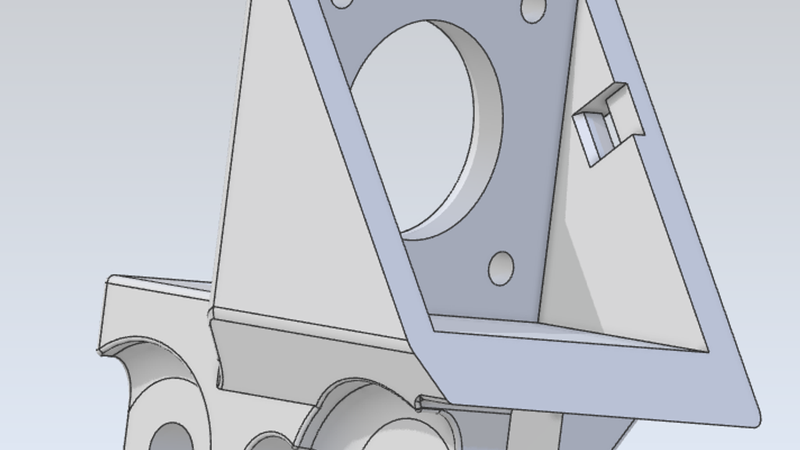

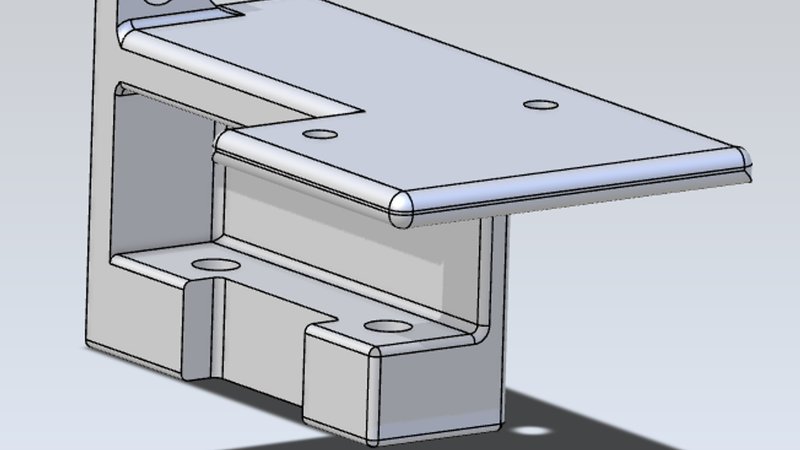

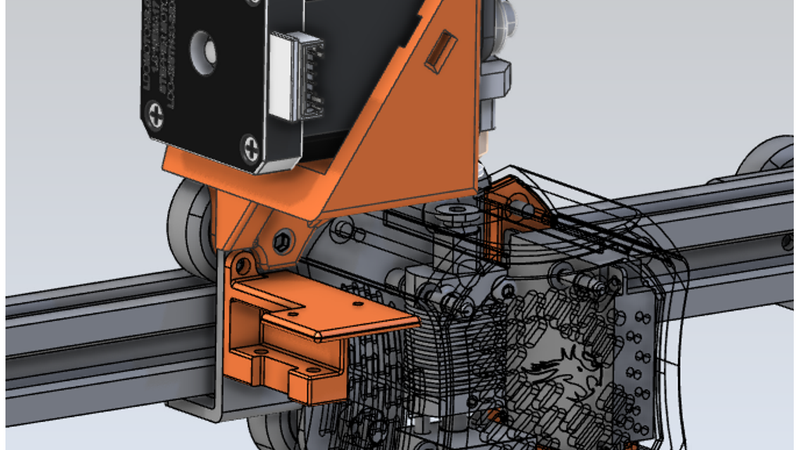

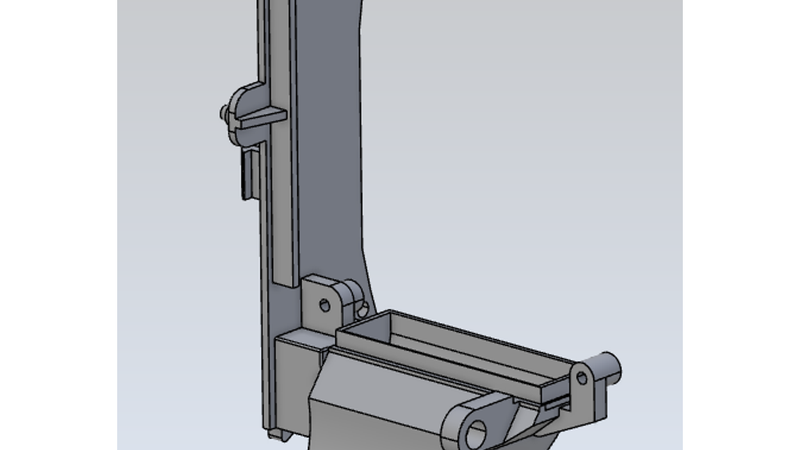

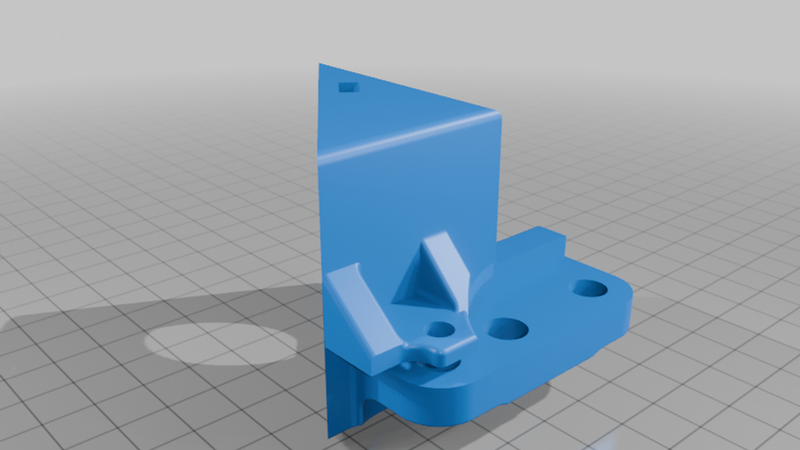

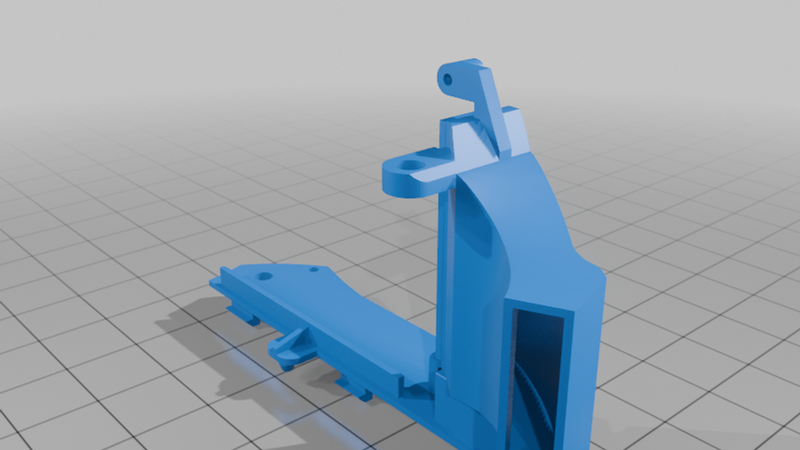

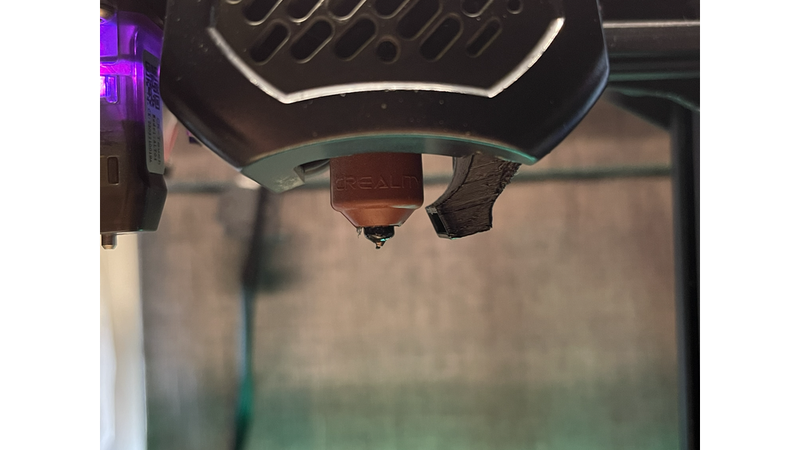

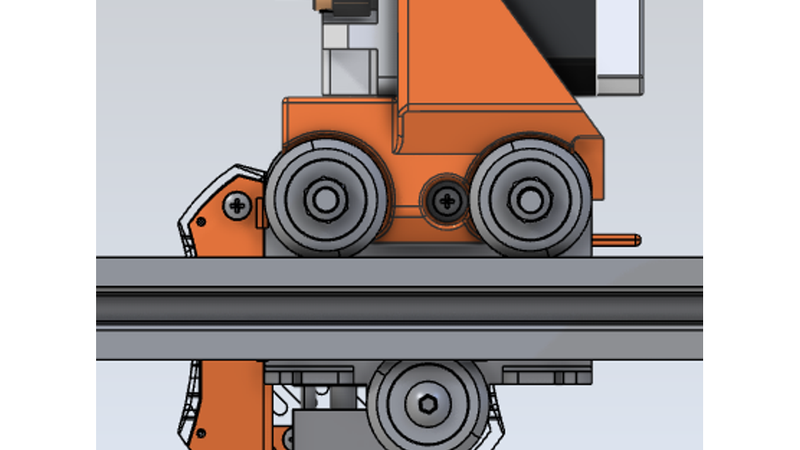

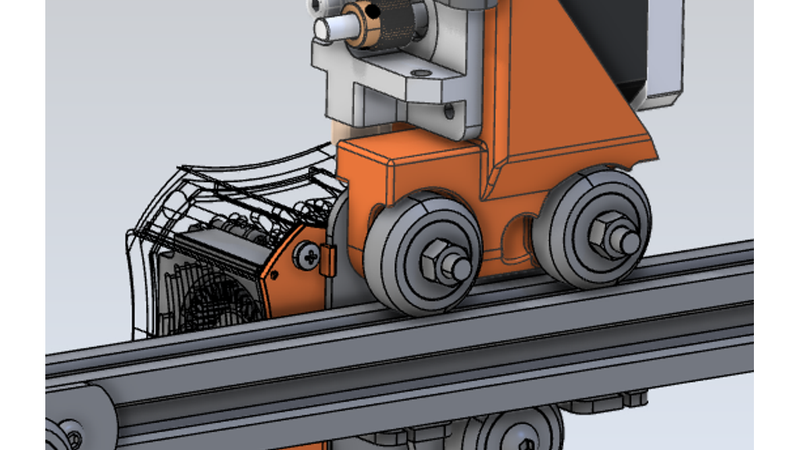

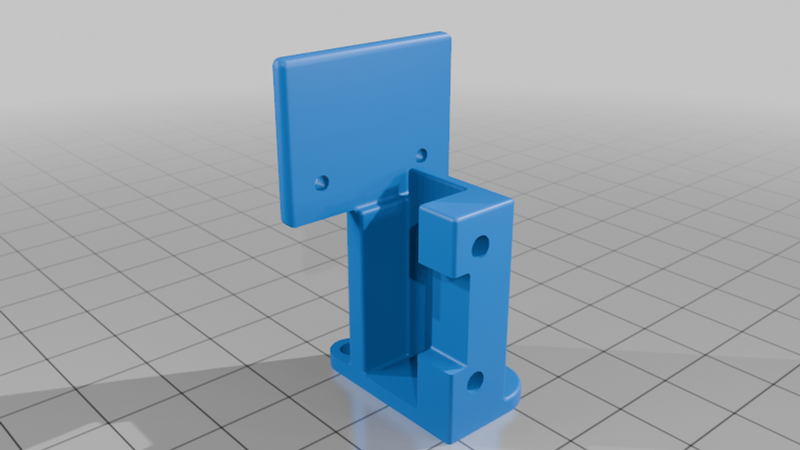

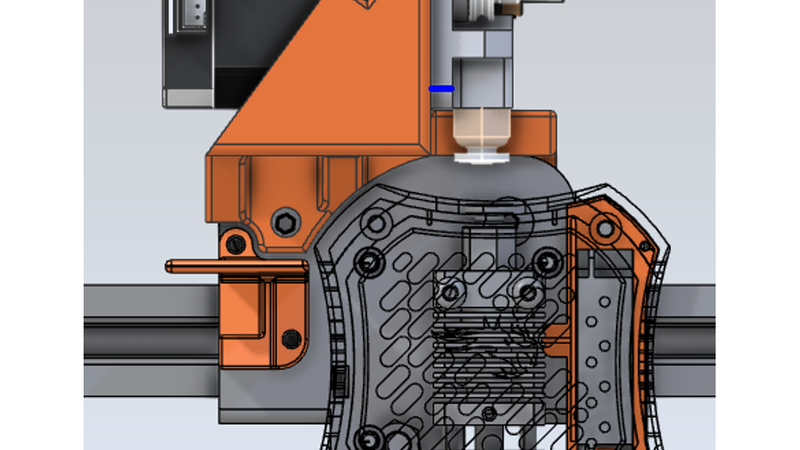

Print flexible filaments like TPU as well as high temp and abrasive filaments like PA12-CF and PETG-CF with an Ender3V3 KE Ceramic Hotend and hardened nozzle. Longer hot end requires an extended fan shroud, and a direct drive mount that is specifically made for the ceramic hot end on the Ender3v2. BL Touch mount also has two holes for a G sensor if you have a Sonic Pad with acceleration control.

Parts required:

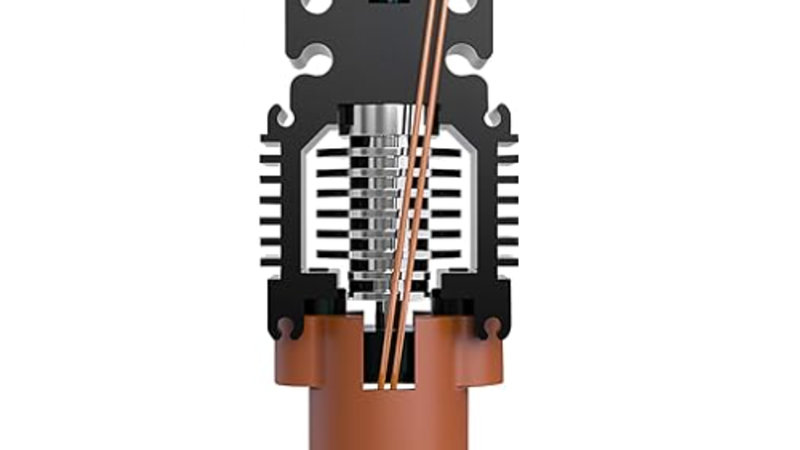

Ender 3V3 KE Ceramic Hot End

BL Touch Sensor

Longer M3 Pan Head, Countersunk, and Counterbore screws for thicker motor mount

Downloads

EXTENDEDFANSHROUDV2.stl
7.2 MB
Ender3v2DirectDrivewithCeramicHotend.stl
15.2 MB
Ender3v2DirectDrivewithCeramicHotend.stp
476.2 KB
EXTENDEDFANSHROUDV2.stp
729.5 KB
NEW_G_Sensor_Mount_with_BL_Touch.stp
145.4 KB
NEW_G_Sensor_Mount_with_BL_Touch.stl
4.0 MB
