IP2368 PD 100W bi-directional module panel mount

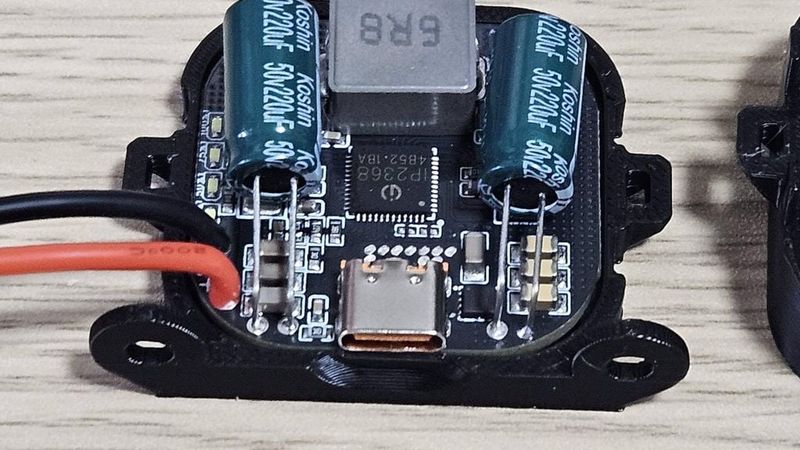

Panel mount for IP2368 100w bidirectional buck-boost module. I've created this with enough space to install heat-sink on bottom of the board.

Even with heat-sink, the module get very hot when I set it to 60w so for higher wattage active cooling is needed.

The design was a bit tricky because the board didn't have any mount point or screw holes, but this worked for me.

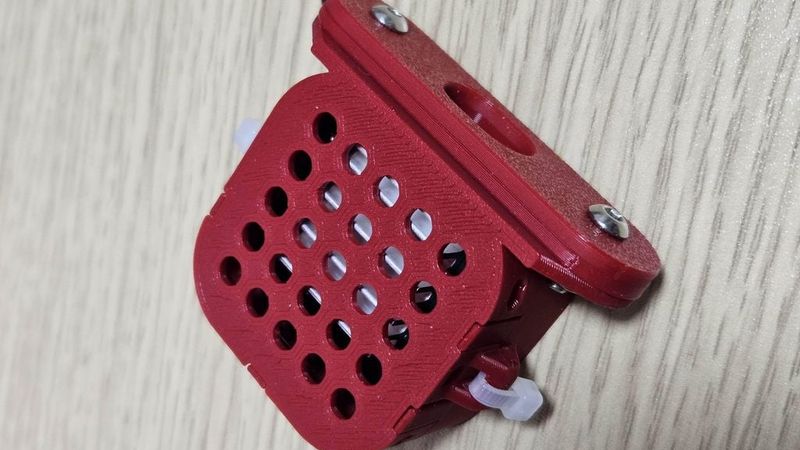

There are 4 models included:

• Bottom cradle
• Top cradle

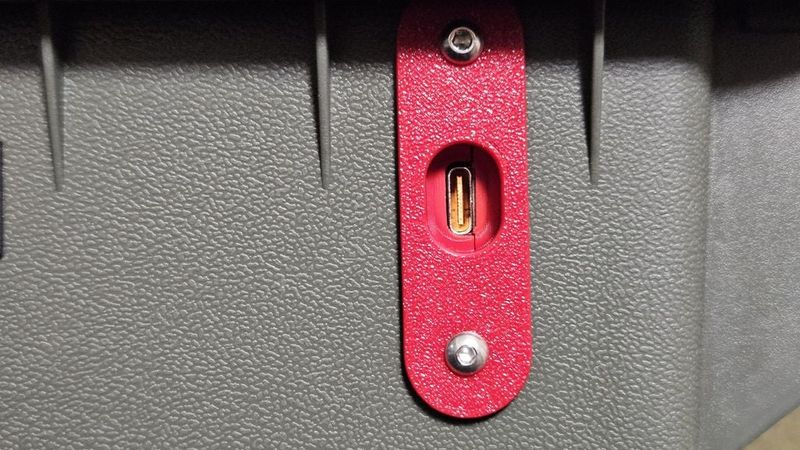

• Outer panel for presentation
• Cutout template to help draw lines on the panel you need to cut

To install the board on the cradle you'll need 2 zip-ties, and for mounting to your panel you'll need 2 M3x8 or longer machine screw with 2 M3 nuts.
