Divesoft Liberty HUD Mount Hanger

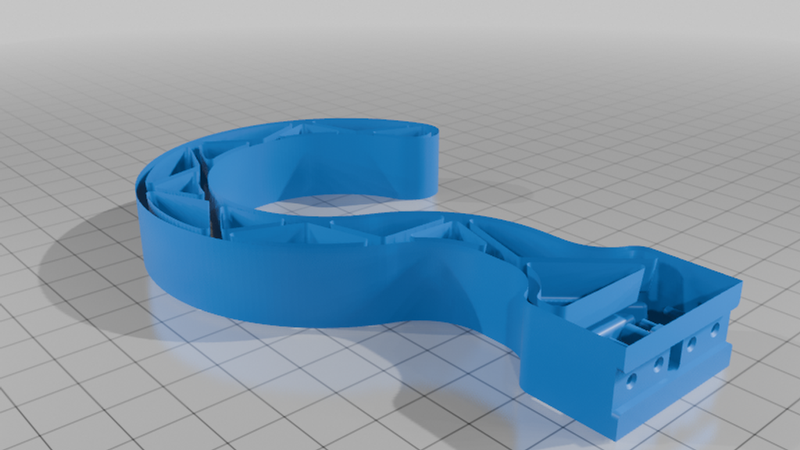

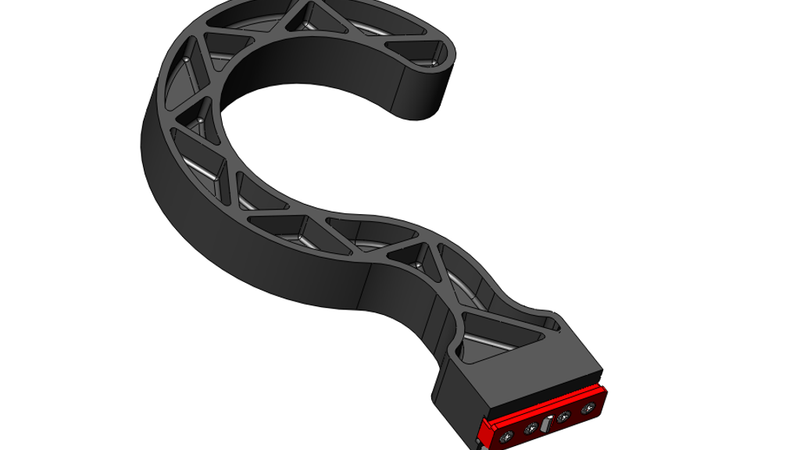

The HUD mount of the Divesoft Liberty rebreather will support the weight of the loop. I wouldn’t abuse it but for normal hanging to dry it works. Thus was born a hanger that slides into this dovetail connection. It should be compatible with the DSV or BOV of other rebreathers that have the same connection such as those from Dive Rite.

Cleanup of support in the area of the spring/screws. I found you don’t really need the spring and “pawl” component. I also found some shrinkage depending on material can generate a tight fit of the dovetail into the mate on the mouthpiece. It’s the nature of printing so DON’T force anything. You may need a little sanding or cleanup of the 3d print surface to avoid damaging the POM parts.

This is only the Hanger. You must purchase or make from solid material the HUD Rail. Divesoft Part# 1326. It’s not an expensive part to buy, don’t be cheap. Your whole loop will fall and break if you cut corners here.

I utilized the settings below to generate this component. Final results will vary based on your individual 3D printer, material, and settings. These are only a guide.

Material: PETG, ABS/ASA, or engineering materials

First Layer Height: 0.24mm

Layer Height: 0.16

Walls: 3

Infill Percentage: 30%

Infill Pattern: Gyroid

Top Surface Pattern: Concentric

Bottom Surface Pattern: Concentric

Supports: Yes

Support Type: Trees work well

Brim/Ears: No

Base Plate: PEI Textured

Print Orientation: Bottom on the build plate

Estimated Print Time using Bambu Slicer: Varies

Estimated Print Time using Prusa Slicer:

Total Estimated Material Used (g): 35g

Maximum Exterior Dimensions (LxWxH):

Additional Required Parts:

-Divesoft HUD Rail #1321 (do not attempt to make a 3d printed version, it will break and your loop will fall)

-4x M2x12 flat head screws, Divesoft #2245 or Mcmaster Car # 93395A147 or

91801A520 as examples

-and optional is the spring Divesoft #1326 and Pawl #1624

Multiple Pieces, Requiring Adhesive Assembly: Glue won’t stick to POM but if you are using the hanger without heat press inserts you might consider epoxy in the screw threads or some other method.

Heat Press Threaded Inserts: 4x M2 suggested though there is a model for those who don’t want to use them
