Logitech Brio 101 Filter Mount for 58mm filters and close-up lenses

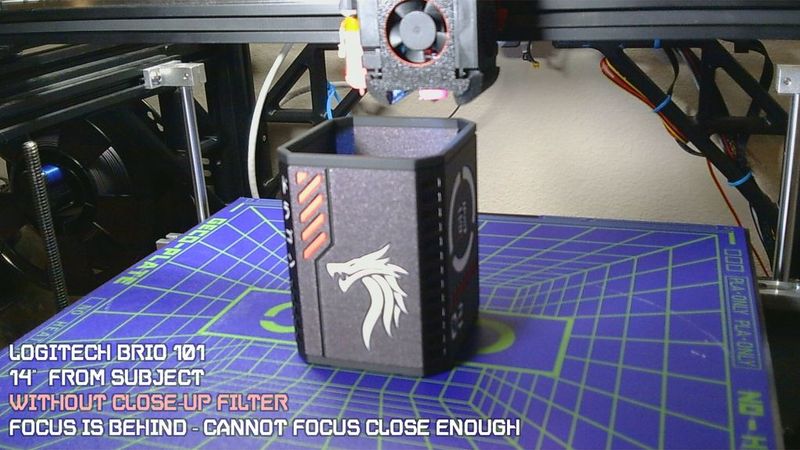

I was looking for an affordable webcam to use with Klipper on my Ender 5 Plus. This camera (Logitech Brio 101) works very well for the price and very compatible with Klipper, however it doesnt focus close enough based on the distance I needed to mount it (about 14" from center of build plate).

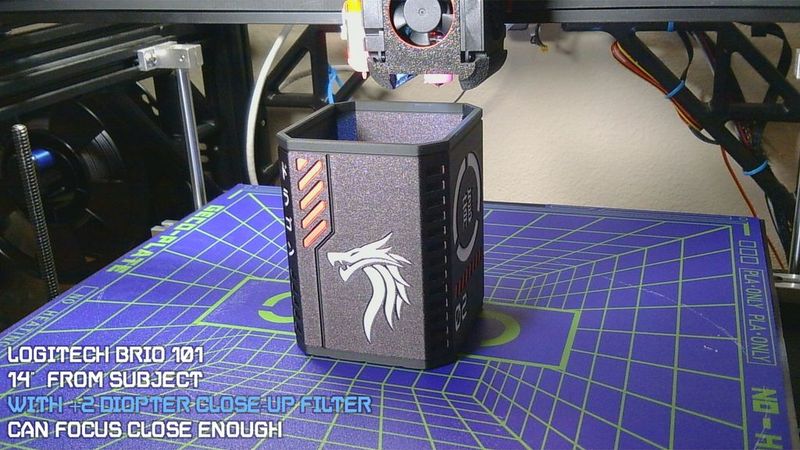

From my photography experience, an easy fix for this is a close up diopter filter. I tested an existing set I had and found +2 diopter was perfect. So I just needed a mount.

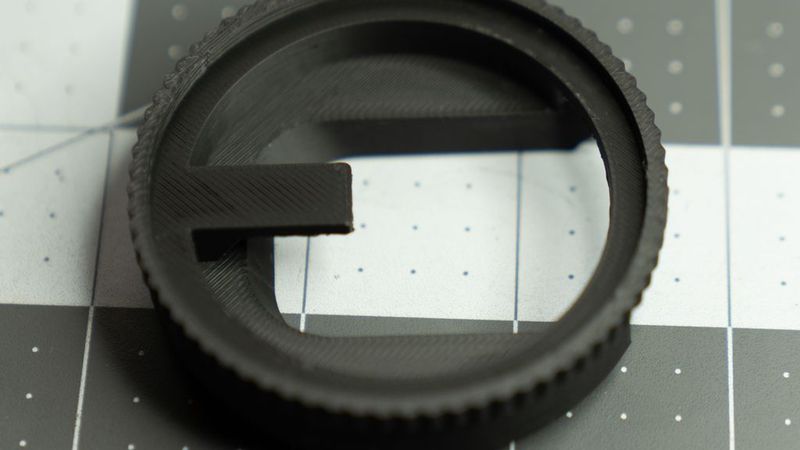

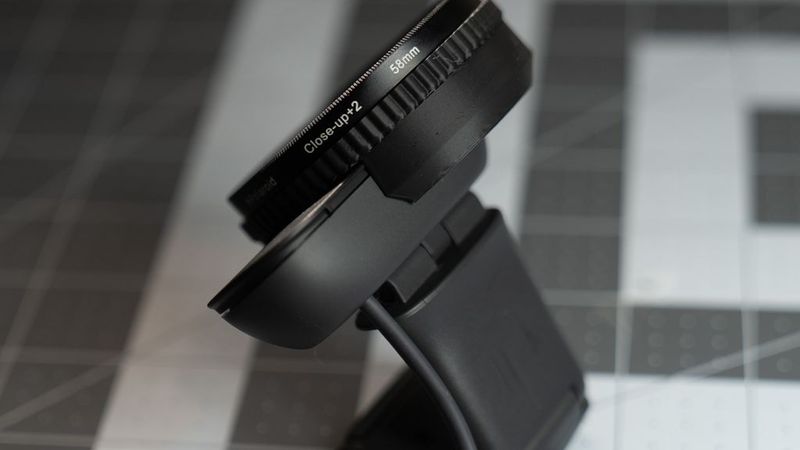

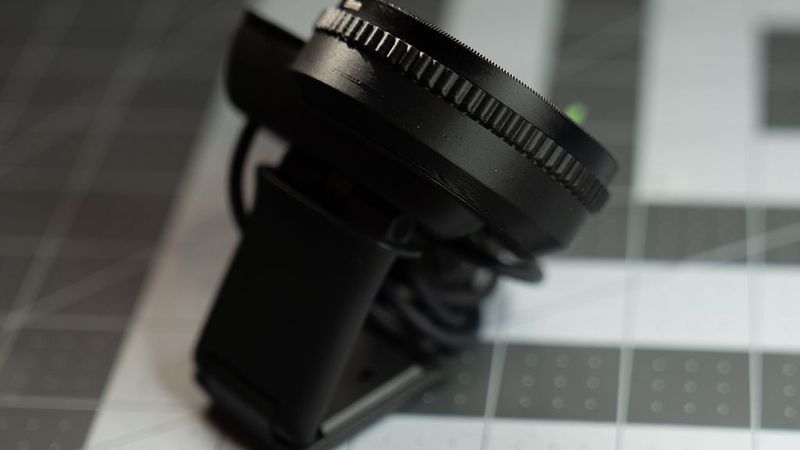

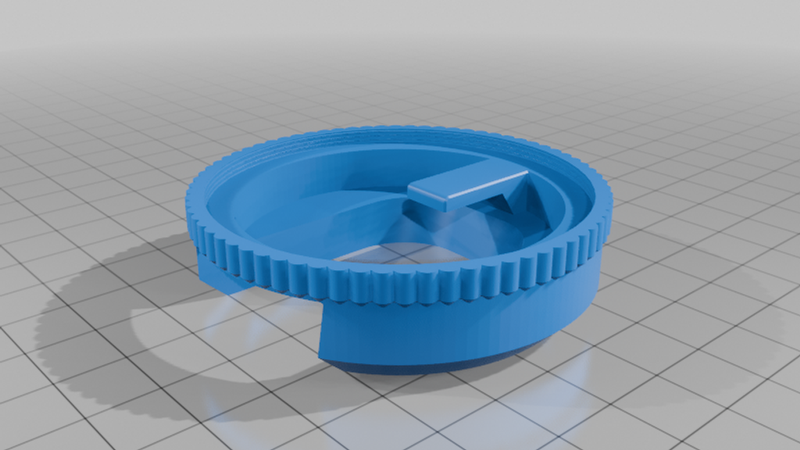

This model takes an existing threaded adapter for 58mm filter threads and adapts a snug slide on mount for the camera.

• The mount does not impede/impact the rear mounting system and you can use other mount replacements based on your needs. I use magic arms with c clamps, so the existing mount is fine.

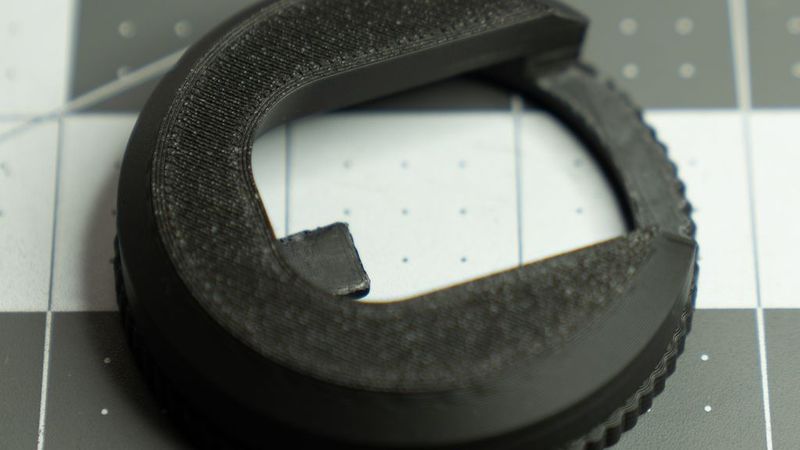

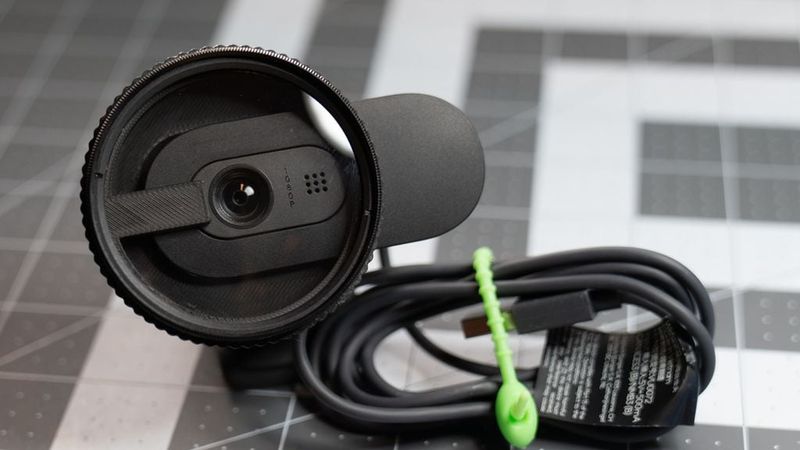

• There is a feature on the inside that blocks the activity light and serves as an alignment guide. Blocking this activity light is important because without it the light will reflect on the inside of the filter you mount and appear as glare in the image.

For printing, I recommend organic tree supports and use some kind of interface layer that allows for zero top z gap and smooth surface. I have provided the STL but also a snapmaker orca file for the U1 that specifics PLA for the body and Support for PLA for the interface layer with all those settings.
