AOS 7 v5 DJI O3 and O4 Front Antenna Mount

The missing piece to the AOS 7 v5 puzzle... As the frame is so long, you can't fit the stock DJI O3 or O4 system without installing it in the front of the frame as either the Camera cable is too short, or the Antenna cables are too short. The provided SMA holes in the Frame only allowed for you to have to buy SMA U.FL cables and new 5.8 GHZ antennas to make it work | OR | you had to to buy a longer camera cable. Both of which is annoying when living in a stupid 3rd word country. They are expensive and have to wait for ever for them to arrive.

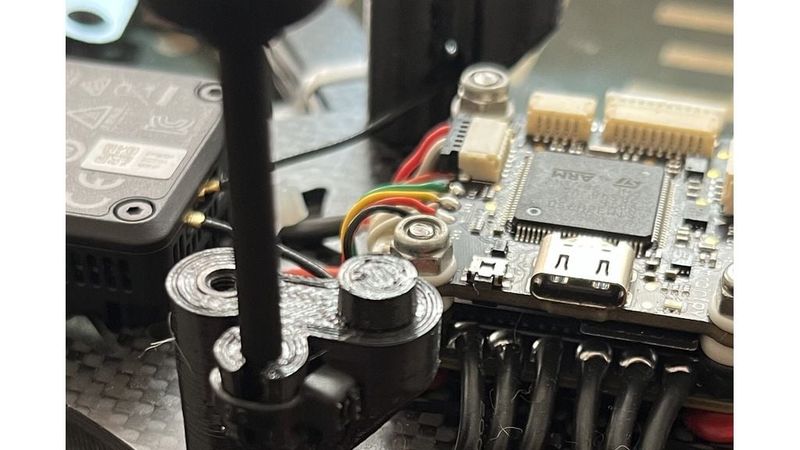

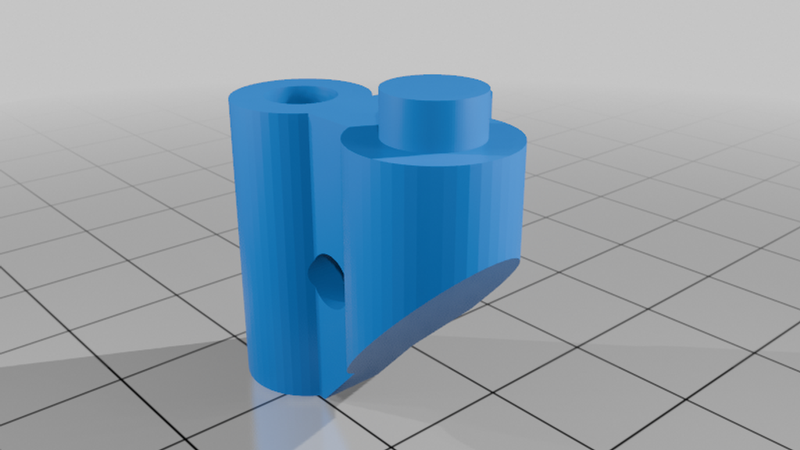

I came up with a left and right design that utilizes the SMA hole and standoff to create a nice and tough front antenna mount for the stock DJI O3 and O4 systems.

Print which ever side you would like for the O3 system.

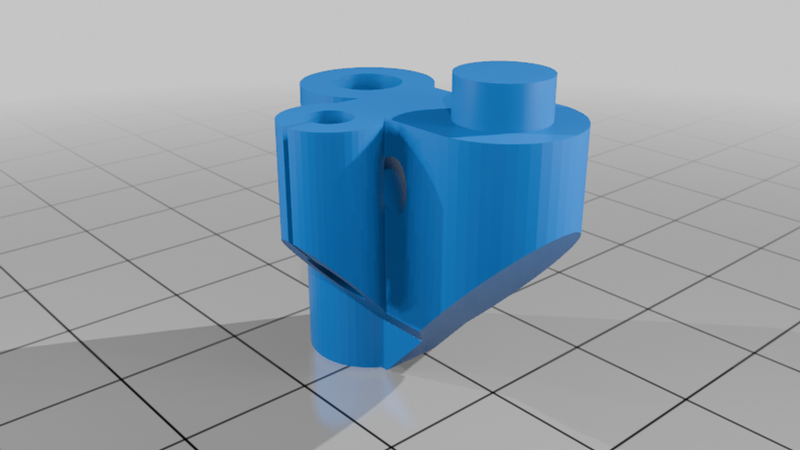

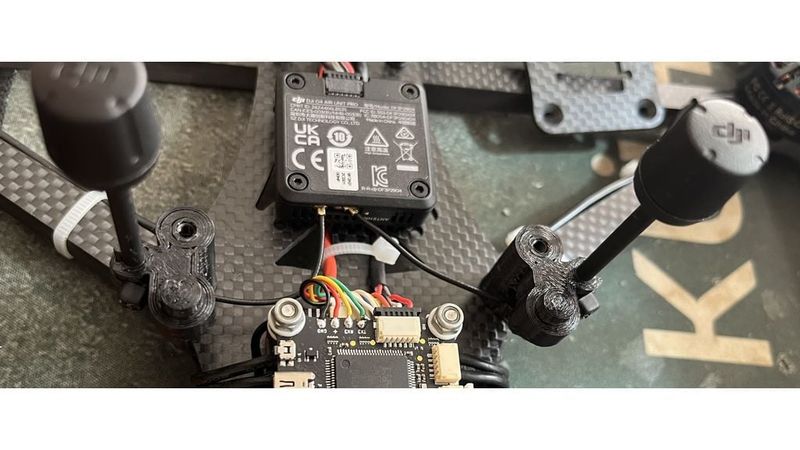

Print the Left and Right for the O4 system.

Feed the antenna cables through the print.

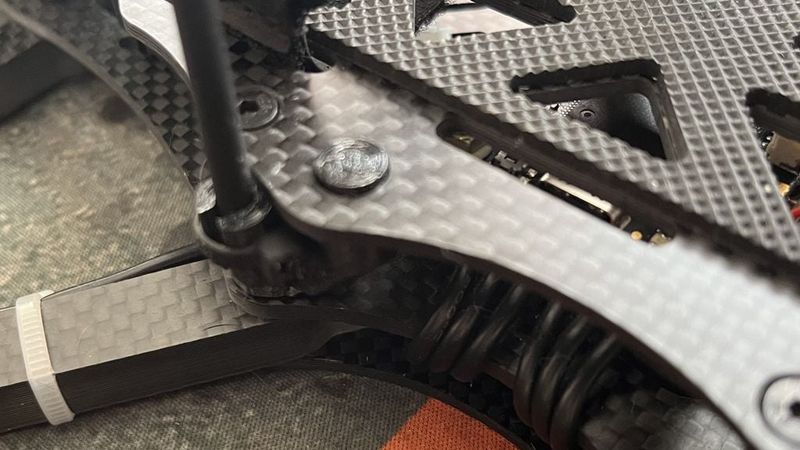

Press onto the standoff and secure in place using the top plate.

Use a cable tie to secure the antenna to the print.

ENJOY!!!

Printed in TPU 95A

0.2mm layer height

100% Infill

Supports are optional.
