10" Rack Shelf V1.0

Fits 10" racks (depth = 10″ / 254mm). 5-piece modular shelf: 5mm solid base + 4 mounting ears.

M6 bolts from the side → keeps front and rear panels fully accessible (RJ45 keystones, fans, patch panels).

Tested to 5kg in PETG (100% infill), but real 1U server gear rarely exceeds 1kg.

Fully demountable → also means it prints on smaller beds (≥250×250 mm). No need for a large-format printer.

Why this shelf is different

Most 3D printed shelves hang from the front rack ears, blocking access to flush-mounted connectors.

➡ This one mounts from the side, leaving RJ45 ports, fiber couplers, or rear fans completely free.

✅ Less demanding on build plate size

A 250×250 mm bed is enough. Print each ear flat, print the base diagonally or split logically — no large-format printer required.

🧩 Construction

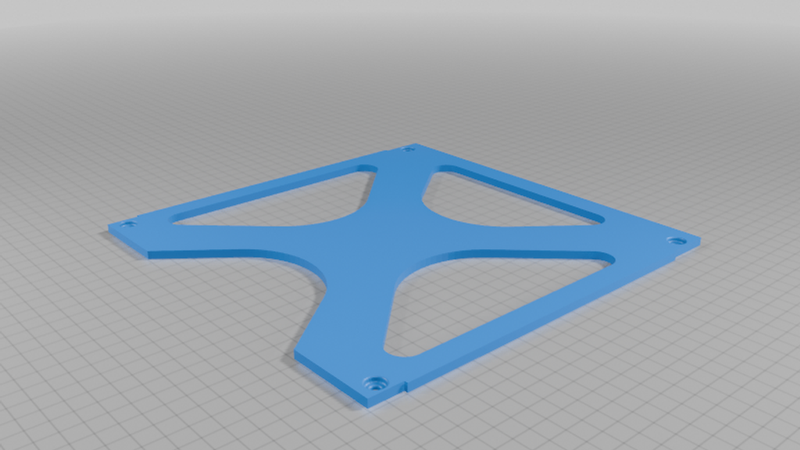

1x base – 5mm thick, full 10″ depth (254mm / 10 inches)

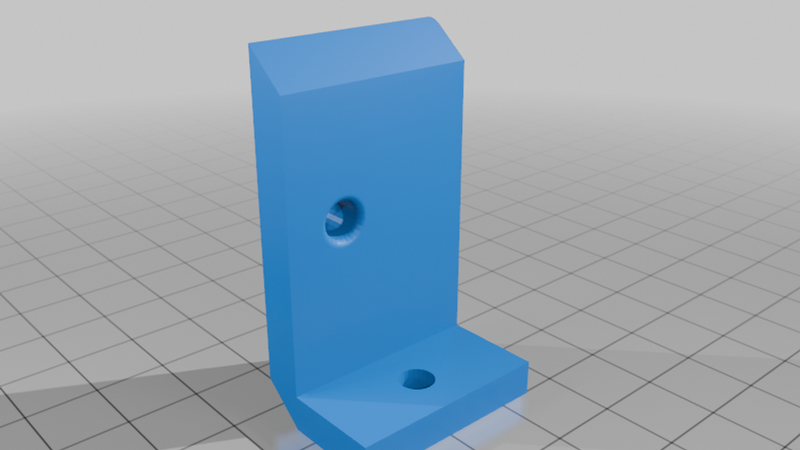

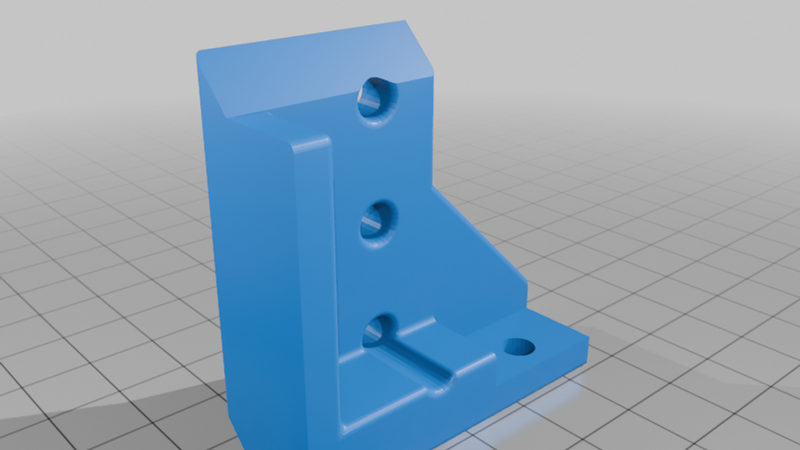

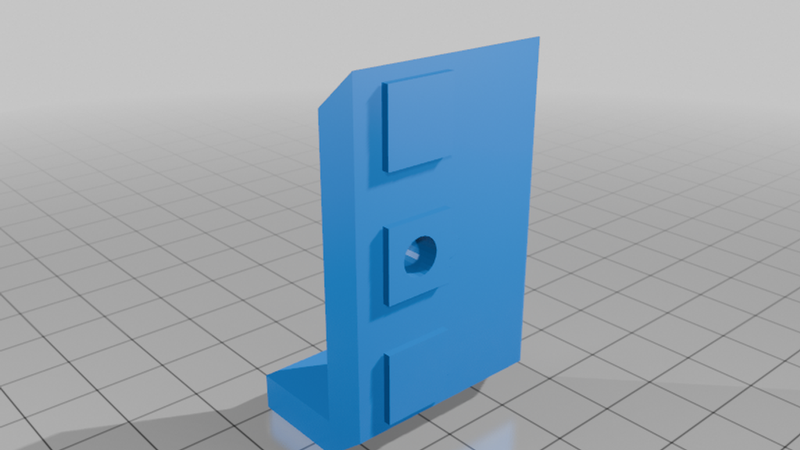

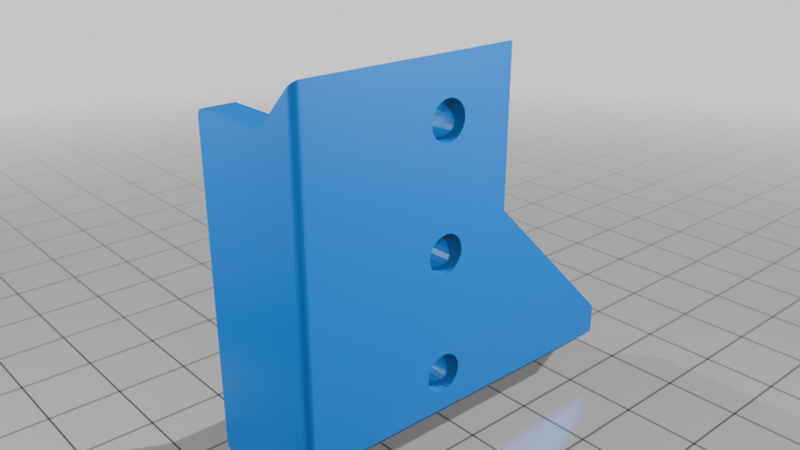

4x ears – printed separately, bolt to the base

100% demountable – disassembles flat for transport or reprinting

🔩 Mounting system (important)

M6 bolts (standard 10‑32 or M6×8…10mm)

Bolts go into the side of the ears → nothing protrudes into front/rear openings

✅ Perfect for:

1U routers, switches, firewalls

Raspberry Pi clusters

Mini PCs & 10" patch panels

Thin cient, as HP T630, Lenovo M73 etc.

🛠 Print settings (as tested)

Material - PETG (as tested)

Layer - 0.2 mm

Infill - 100% (why: strength for side bolts)

Perimeters -4+ (ears) / 4+ (base)

Supports - ❌ none
