USB-C Hub Adapter Mount for Cerise Two Pro Wired (EZQuest Slim 6-in-1)

<h2>🇬🇧 English</h2>

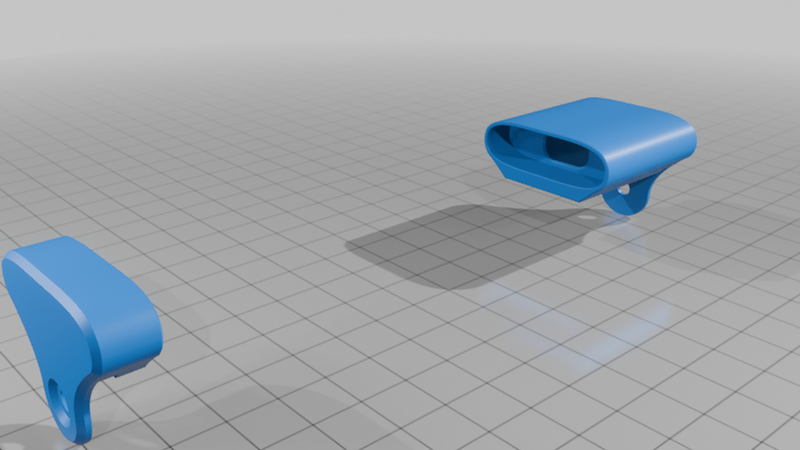

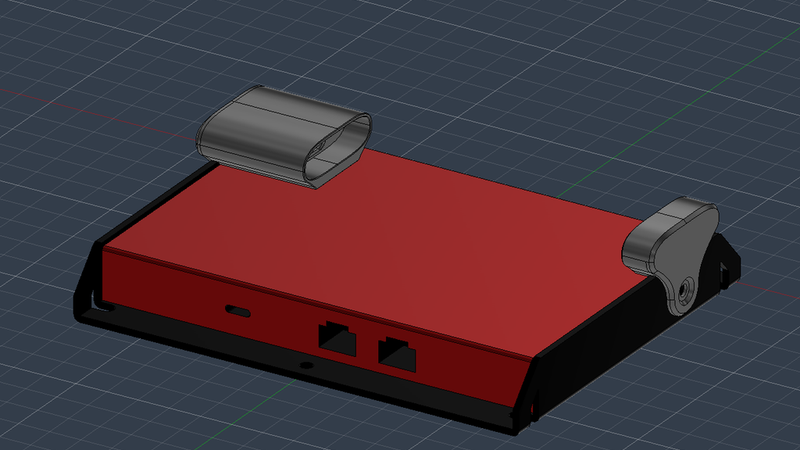

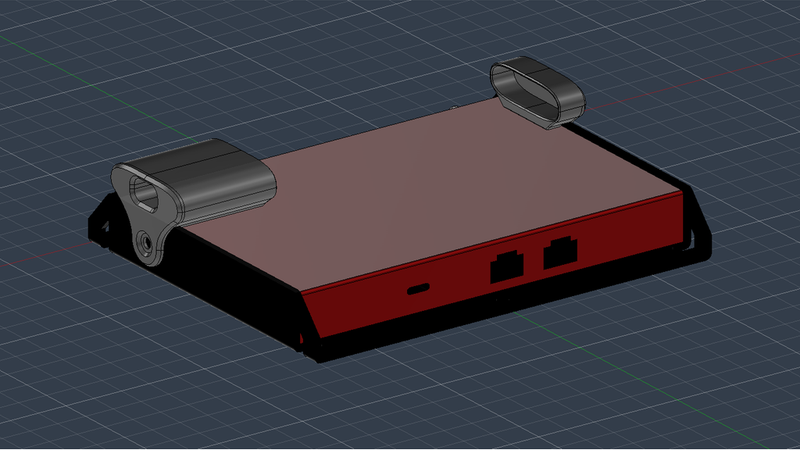

<p>This 3D-printed bracket allows you to mount an <strong>EZQuest USB-C Slim Gen 2 Hub 6-in-1</strong> onto the <strong>Doppro Cerise Two Pro Wired</strong> desktop stand, turning it into a clean, all-in-one hub solution.</p>

<h3>Why this exists</h3>

<p>The Cerise Two Pro Wired has a built-in USB-C dock cable that is too thick to route through this adapter's slot. The piece is designed to work with a thinner replacement cable (Amazon B0FN3BVN47), which fits the cable slot perfectly.</p>

<h3>What you'll need</h3>

<ul>

<li>🔧 <strong>2 screws to remove</strong> from the Cerise Two Pro Wired — use a <strong>3mm hex key (Allen wrench)</strong></li>

<li>🔌 <strong>Replacement cable:</strong> <a href="https://www.amazon.fr/dp/B0FN3BVN47">Amazon FR – B0FN3BVN47</a> <em>(the original cable is too thick and will not fit)</em></li>

<li>🖥️ <strong>Compatible hub:</strong> <a href="https://www.amazon.fr/dp/B0D71ZPBK6">EZQuest USB-C Slim Gen 2 Hub 6-in-1</a> — <a href="https://ezq.com/usb-c-slim-gen-2-hub-adapter-6-in-1-details.html">Official product page</a></li>

<li>🛒 <strong>Stand:</strong> <a href="https://doppro.com/products/cerise-two-pro-wired">Doppro Cerise Two Pro Wired</a></li>

</ul>

<hr>

<h2>🇫🇷 Français</h2>

<p>Cette pièce imprimée en 3D permet de fixer un hub USB-C slim (<strong>EZQuest USB-C Slim Gen 2 Hub 6-en-1</strong>) sur le support de bureau <strong>Doppro Cerise Two Pro Wired</strong>, pour une installation propre et tout-en-un.</p>

<h3>Pourquoi cette pièce existe</h3>

<p>Le Cerise Two Pro Wired possède un câble USB-C intégré trop épais pour passer dans la fente de cet adaptateur. La pièce est conçue pour fonctionner avec un câble de remplacement plus fin (Amazon B0FN3BVN47), qui s'insère parfaitement.</p>

<h3>Ce dont vous aurez besoin</h3>

<ul>

<li>🔧 <strong>2 vis à démonter</strong> sur le Cerise Two Pro Wired — utiliser une <strong>clé hex de 3mm</strong></li>

<li>🔌 <strong>Câble de remplacement :</strong> <a href="https://www.amazon.fr/dp/B0FN3BVN47">Amazon FR – B0FN3BVN47</a> <em>(le câble d'origine est trop épais et ne passera pas)</em></li>

<li>🖥️ <strong>Hub compatible :</strong> <a href="https://www.amazon.fr/dp/B0D71ZPBK6">EZQuest USB-C Slim Gen 2 Hub 6-en-1</a> — <a href="https://ezq.com/usb-c-slim-gen-2-hub-adapter-6-in-1-details.html">Fiche produit officielle</a></li>

<li>🛒 <strong>Support :</strong> <a href="https://doppro.com/products/cerise-two-pro-wired">Doppro Cerise Two Pro Wired</a></li>

</ul>

<hr>

<h2>🖨️ Print Settings</h2>

<h3>Material</h3>

<ul>

<li>Printed in <strong>PA-GF</strong> (Glass-Filled Nylon) for maximum rigidity and durability</li>

<li><strong>Minimum recommended: PETG</strong> — the part sits outside the stand and is exposed to UV over time. PLA will degrade and warp.</li>

<li>PA-CF or PA-GF if you want the stiffest result possible</li>

</ul>

<h3>Supports</h3>

<ul>

<li><strong>Recommended:</strong> Enable supports for a cleaner finish, but the part will still work without them</li>

</ul>

<h3>Other settings</h3>

<ul>

<li>0.2mm layer height</li>

<li>2+ perimeters / walls</li>

<li>15% infill minimum — <strong>Gyroid</strong> recommended</li>

</ul>
