Bike Trailer Rail Mount – TPU Flexible Mount for Uneven Surfaces

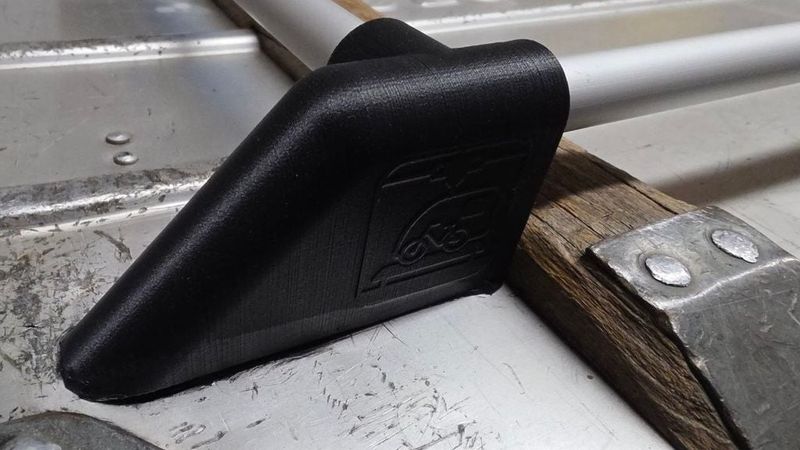

This is a modular rail mount system designed for mounting a railing or rail structure onto a bike trailer.

The parts were specifically developed to compensate for uneven surfaces (e.g. dented aluminum boxes) and to provide a durable, vibration-resistant connection.

The design is optimized for flexible materials like TPU, which allows the mount to adapt to imperfect surfaces without introducing excessive stress into the parts.

Features:

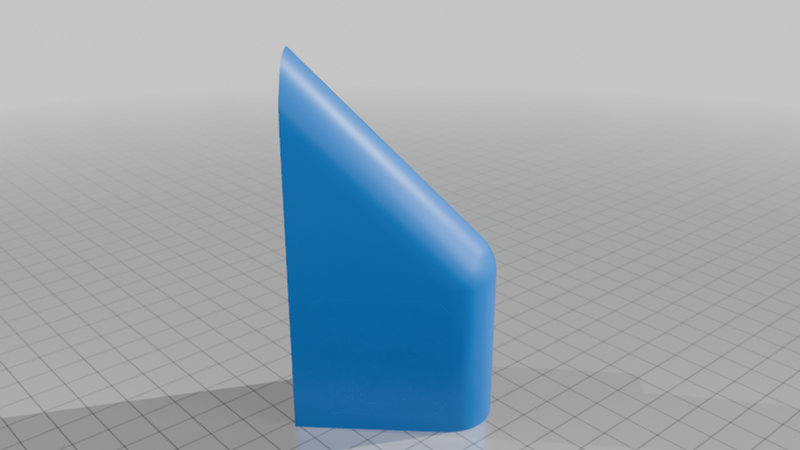

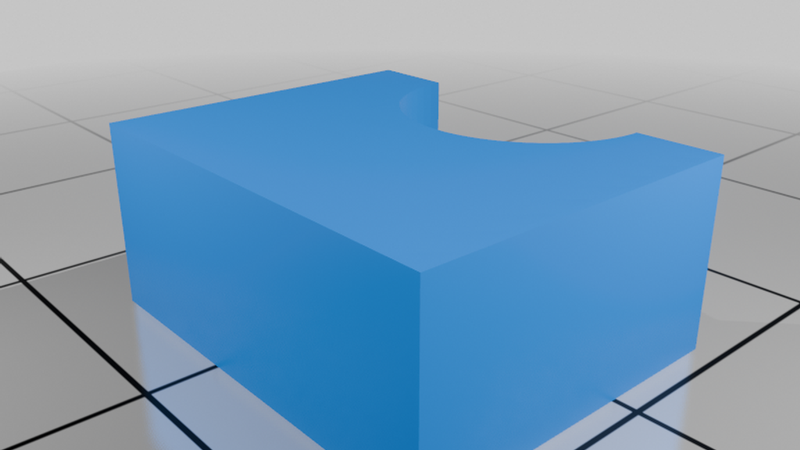

• Modular design (body + locking part)
• TPU-optimized geometry
• Tolerant to uneven or dented surfaces
• High durability under dynamic load (vibration, movement)

Printing:

• Material: TPU recommended
• Walls: 5 perimeters
• Wall thickness: ~2 mm
• Infill: ~20% (3D honeycomb or similar)

3MF file includes optimized print settings (for BambuLab A1).

Notes:

Originally printed in ASA-CF, but long-term stress due to uneven mounting surfaces caused potential failure risks. TPU solved this issue by providing flexibility and stress relief.

Use case:

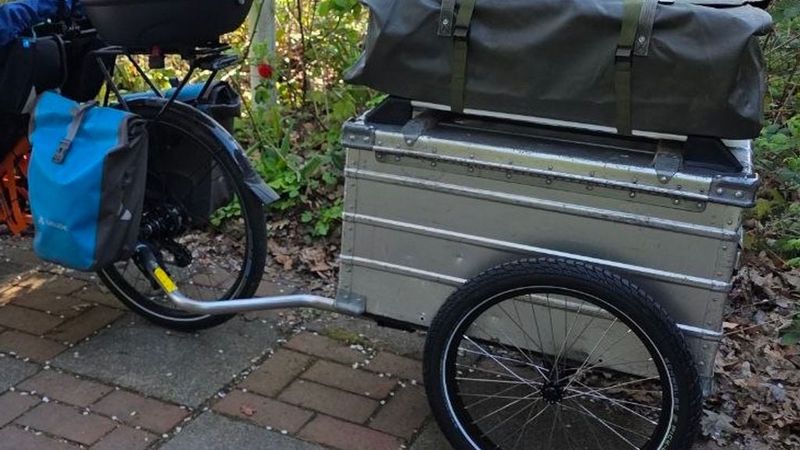

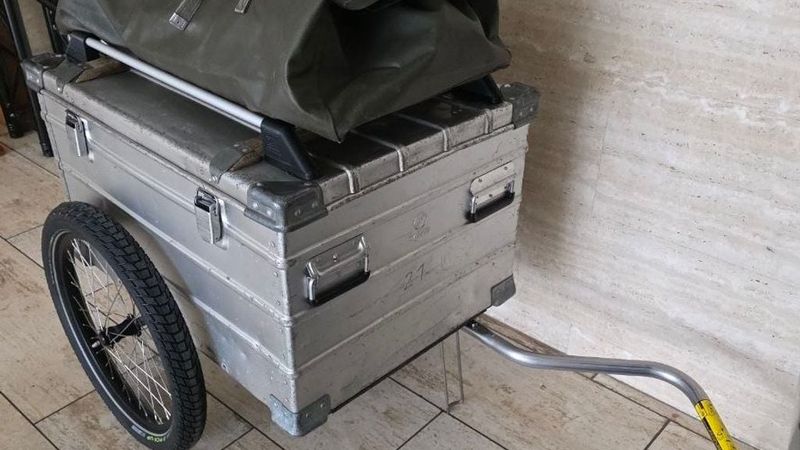

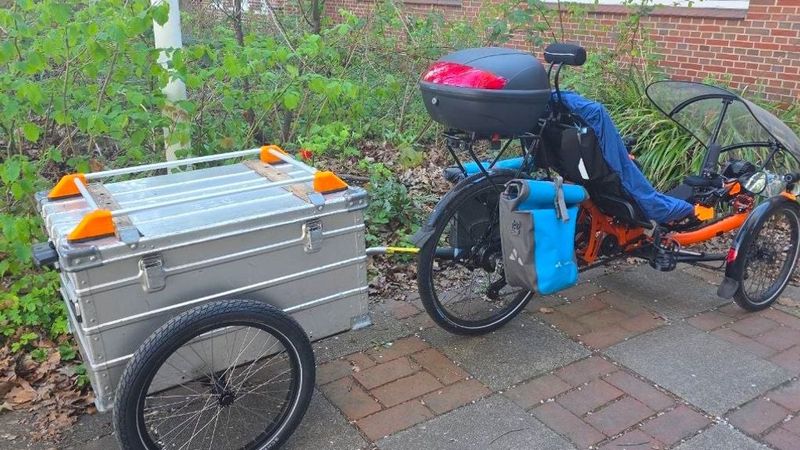

Designed for a custom-built bike trailer with an aluminum box and railing system.

IF YOU USE IT, I'D LOCE TO SEE YOUR SETUP!

Remixes are welcome – I'd love to see improvements or adaptations.

Please keep attribution (camping-druck and/or logo).

Disclaimer:

This is a functional part intended for real-world use. Always test under your specific conditions before relying on it in safety-relevant situations.
