Corrugated roof magnetic solar panel mounting pads

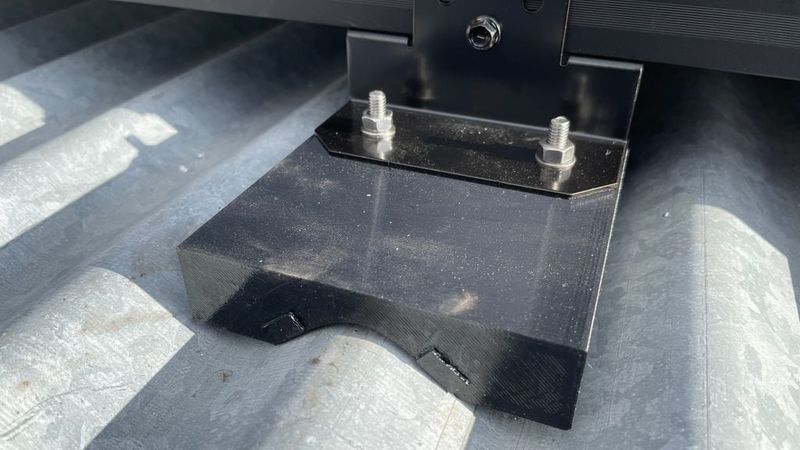

Pads to magnetically mount solar panels to metal corrugated roofs.

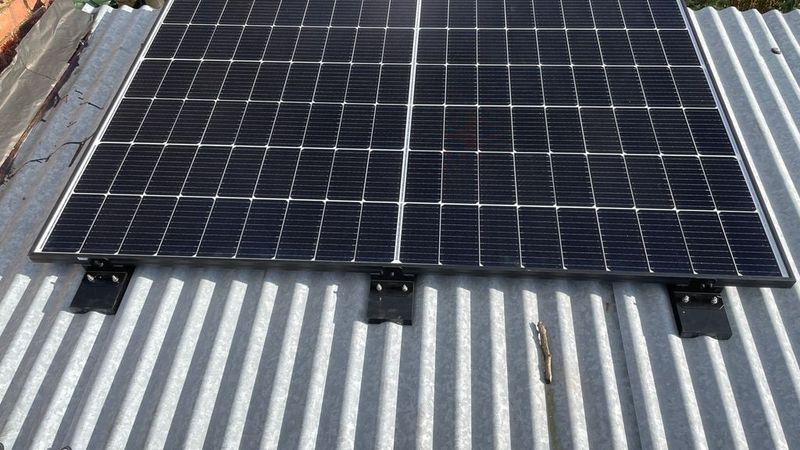

I used 6 pads for a ~450w panel, and 9 for 2 panels in line with the roof direction 'H' layout, as the brackets can be doubled up facing both directions on the pad.

I used stainless M6 bolts and nuts.

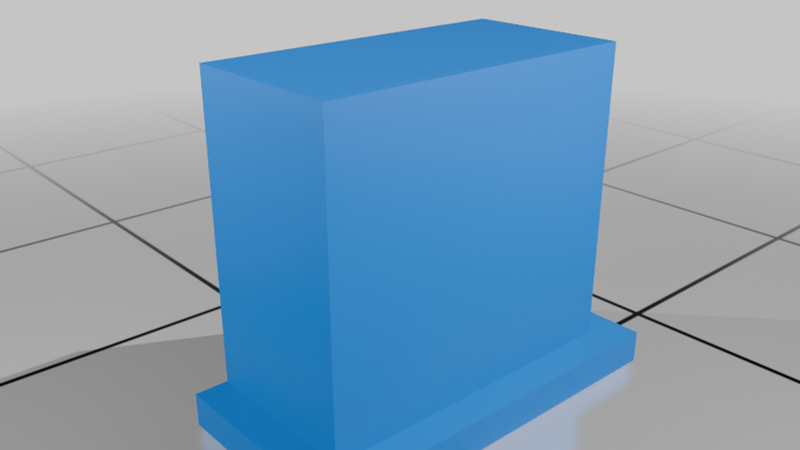

Magnet pocket cap included, glue into place after fitting the magnet.

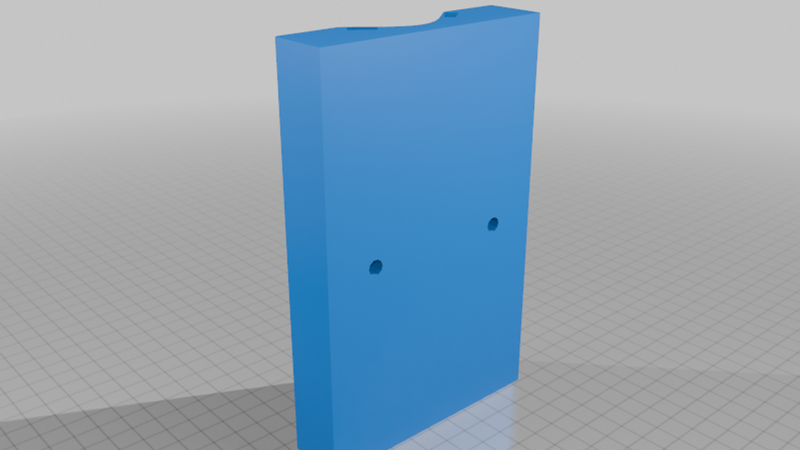

These accept 4x 60 x 10 x 5 mm neodymium magnets, I used these: https://www.amazon.co.uk/dp/B0B4G3CDRS

The accept these brackets, which can be screwed to the sides of the panels: https://www.bimblesolar.com/solar/mounting/black-aluminium-mounts

The profile of the corrugated shape can be changed in the OpenSCAD file, included.
