CNC CYD Dial Pendant with FluidDial RJ12 connector - REMIX

This is a remix from https://www.printables.com/model/1224921-fluidnc-cyd-pendant-case-jc2432w328c-capacitive-to

Thank you for the original design !

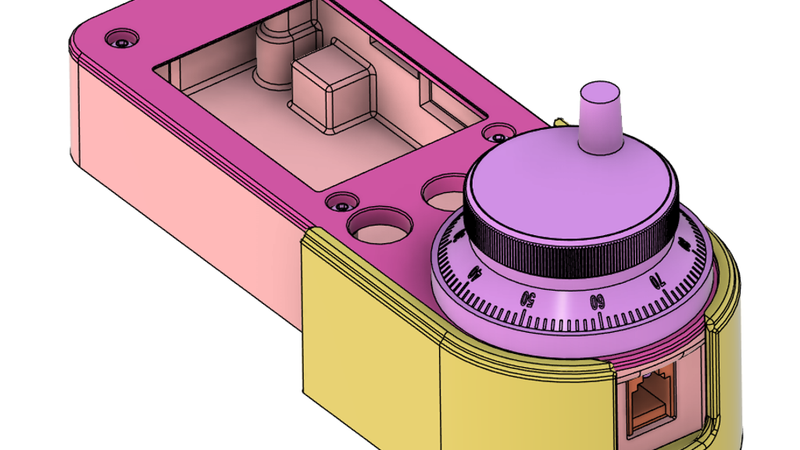

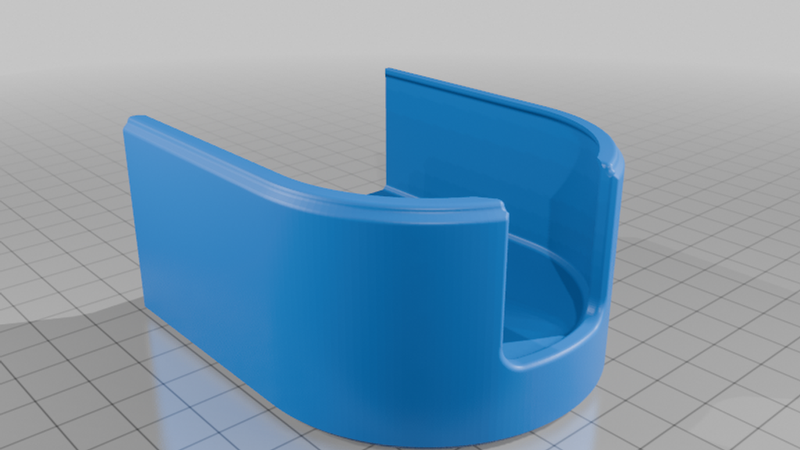

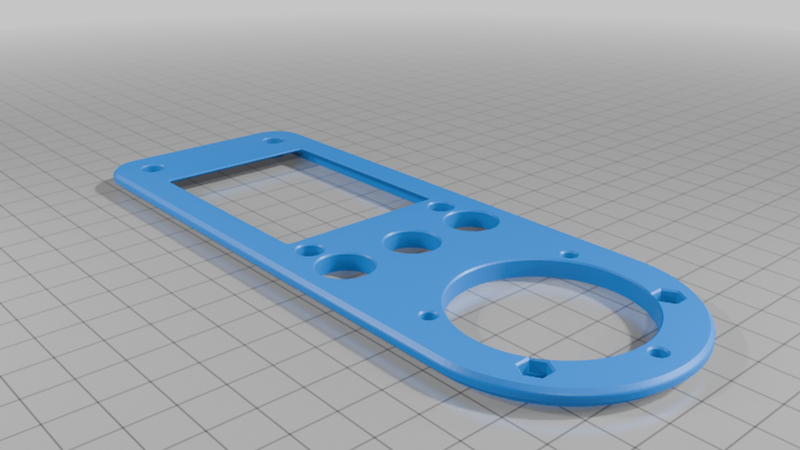

Pendant with 60mm Dial Encoder wheel, 3 buttons and an ESP32 LCD touche screen. Resources here :

https://oshwlab.com/bdring/fluiddial-rj11-adapter

WARNING

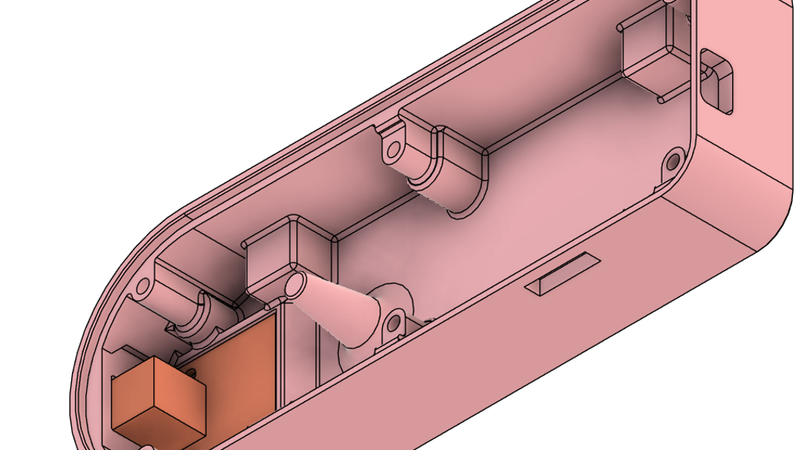

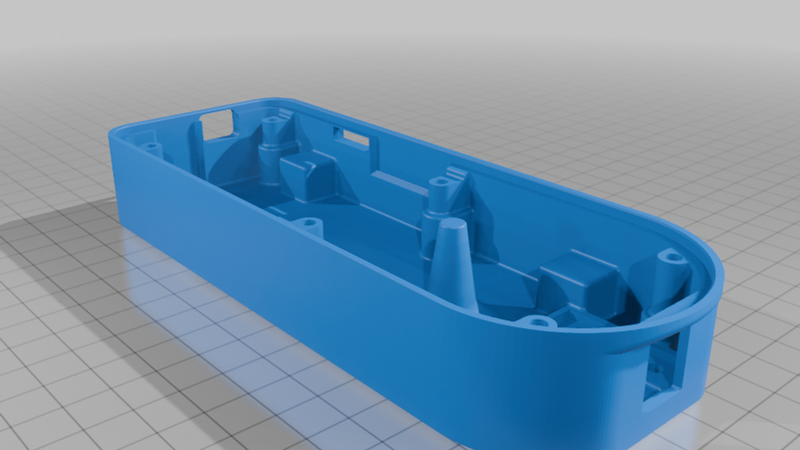

This is a remix of the CYD Pendant to accept the FluidDial RJ12 break board (https://www.elecrow.com/fluiddial-rj12-wiring-kit.html?srsltid=AfmBOopuCDEpwXyD7My8f71pIJXGS1YM78zEYLmAnbK3FwTDw9uZFbLh).

It'is not usually a direct compatible break board, you'll have to make a special jumper cable from JST-PAP 2.0mm pitch to JST 1.25mm pitch for a 4 wires. I've made mine from the included jumper from the ESP32 LCD screen : I have keep the 4p-1.25mm pitch connector for the LCD, then I've cut the wires at the other end and crimp a 4P-PAP 2.0mm pitch connector.

You could also cut jumpers from the ESP31 LCD and the one included with FluidDial RJ12 adapter and solder them together.

So why the hassle ? Well I've made a mistake and was stuck with the part... That's all !

I'm sharing this in case someone made the same mistake...

===================
