10" Modular 6U Server Rack (3D Printable, Creality K1 Friendly)

10" Modular 6U Server Rack (3D Printable, Creality K1 Friendly)

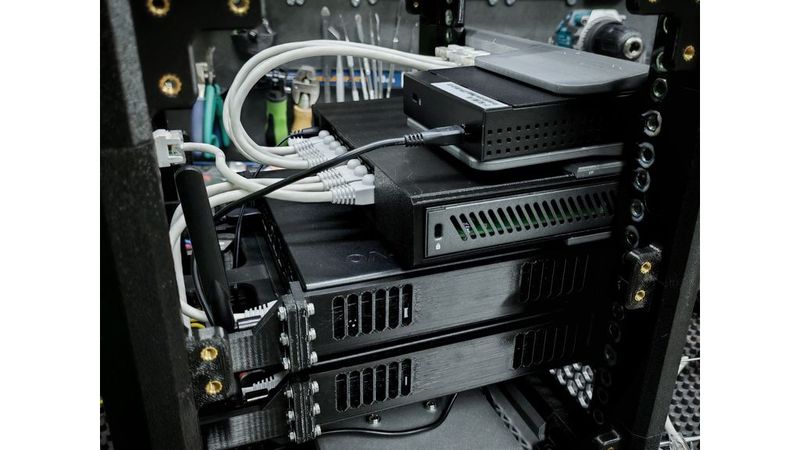

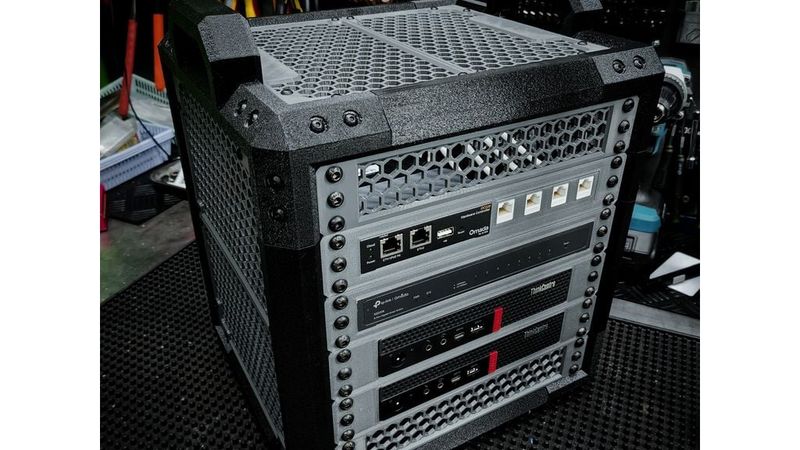

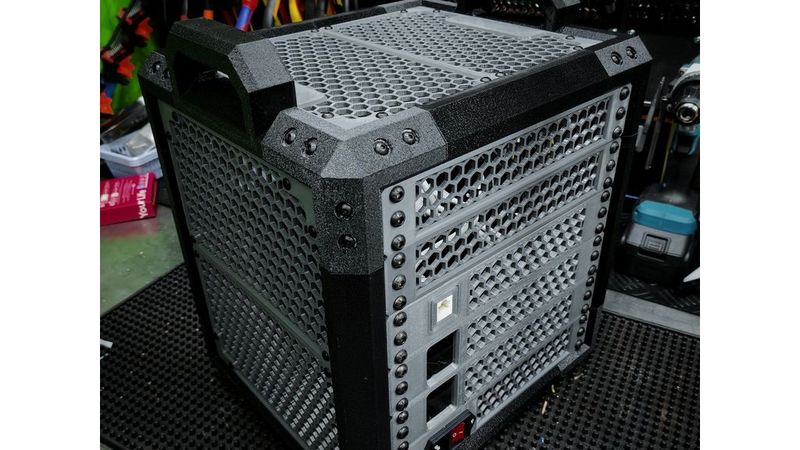

This is a fully modular 10-inch server rack designed for home lab setups. The project was created to fit a specific use case: two mini servers, a network switch, a network controller, and reserved space for a future NAS.

All parts are designed to fit within the build volume of a Creality K1 (220×220×250 mm), so no large-format printer is required and no complex part splitting is needed.

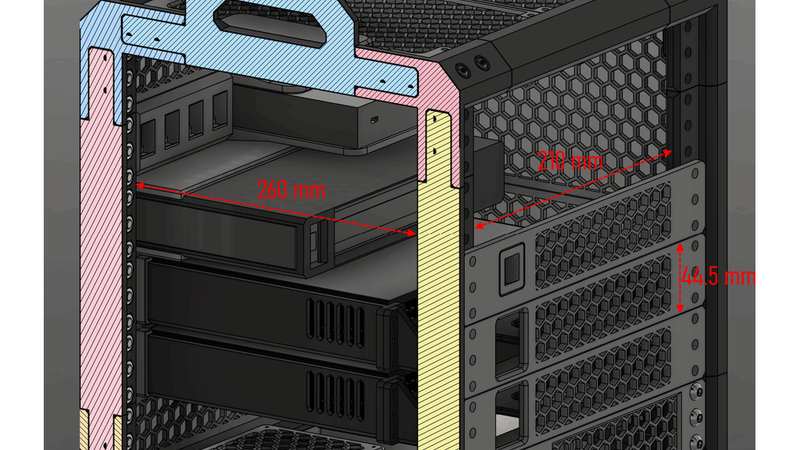

The rack supports up to 6U and is compatible with devices up to 210 × 260 × 44.5 mm (W×D×H).

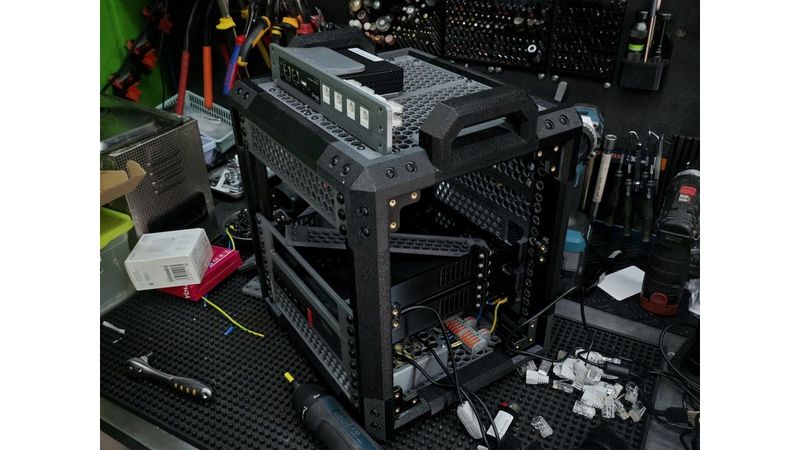

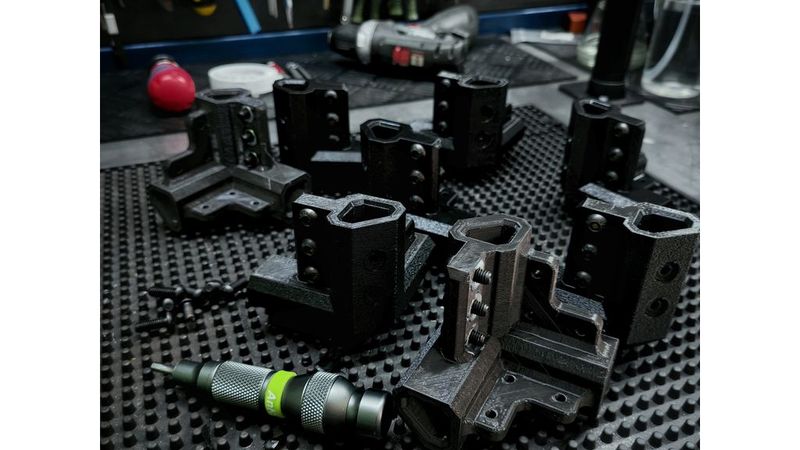

The construction is fully modular and assembled using screws and heat-set threaded inserts. This allows easy customization - you can adjust height, depth, or spacing with minimal changes to the model.

While the design can still be improved (rigidity, mounting options, cable management), it already serves as a solid and practical base for a compact home lab.

Features:

• 10" rack format
• 6U capacity
• Modular design
• Optimized for 220×220×250 mm build volume
• Assembly with screws and heat-set inserts
• Easy to modify and extend

Assembly:

• Uses standard screws and heat-set threaded inserts
• Basic tools required (soldering iron for inserts recommended)

Notes:

• Designed primarily for lightweight home lab equipment
• Can be reinforced depending on your load requirements
