Checkmate 1500 Case Backplate for PiStorm CM4 Ports PCB

Description

This PCB holder is intended for the rear port slot in the Checkmate 1500 case and provides space and retaining for the FPC attached ports PCB of a PiStorm32-lite (maybe other PiStorms too, dunno)

Note that I know exactly nothing about CAD, this model can likely be improved and I even encourage everyone to do that.

In the files you will find, besides the STL, also the source model in KCL, OBJ and STEP formats. The native format of this model is KCL - everything else is just an export.

Transparency / AI Note

This was created with Zoo Studio, so while it was created based on my measurements and trial & error testing this is still AI created work.

Usage / PCB Install

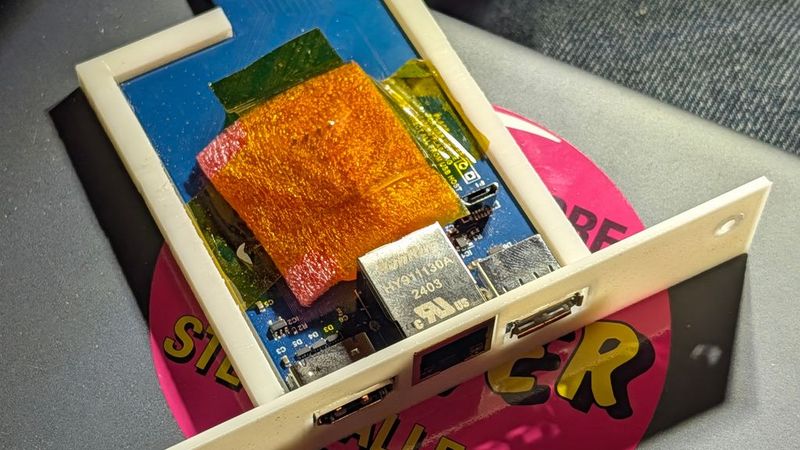

Just fit the ports into their holes, the PCB should fit into the holder nicely without further fixation and still be easily insert- and removable. If you plan to travel with the machine, or for moving, you maybe want to secure it additionally.

Suggested print settings

• Wallcount = 4
• Infill = 40% Gyroid
• Support = Treesupport when printed like intended (with the ports down)

You may want to fiddle with them a bit, I guess you can easily use less infill. I wouldn't reduce the wallcount thought, for stability reasons.

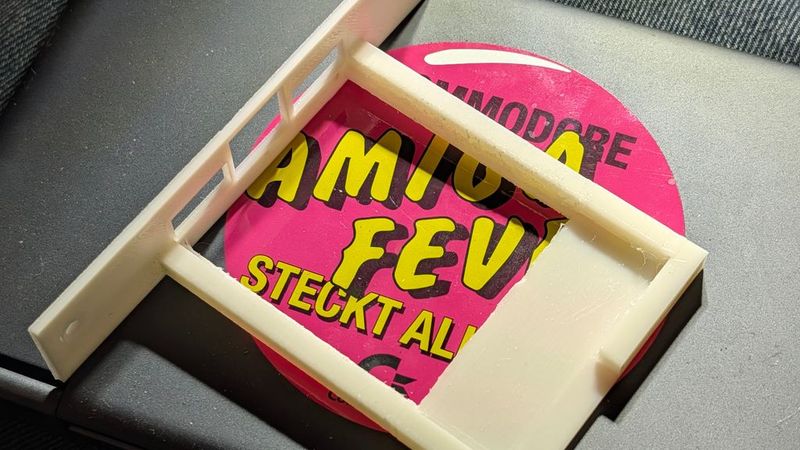

Note about the preview images

I'm having quite a stringing issue currently when printing, so I had to postprocess it with a knife to get rid of all the strings. On a proper printer it will look better lol.
