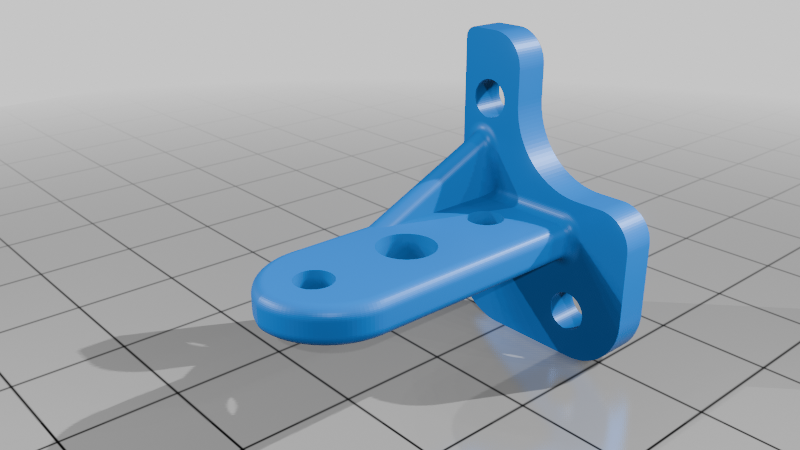

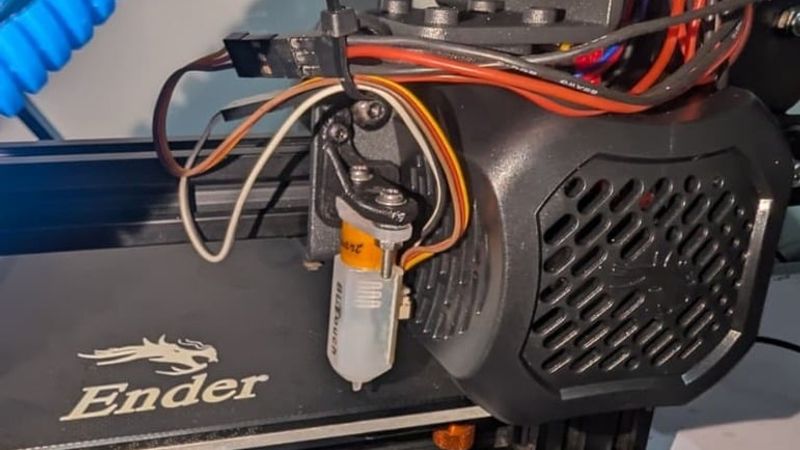

BLTouch Direct Drive Mount

This is a BLTouch Mount for common direct drive upgrade purchased from Aliexpress or Shopee

Some samples of the BL Touch mount did not account for the V-Slot Bolt slot spacing. Therefore I redesigned the mount specifically for this type of direct-drive plate.

Offset for Probe from Nozzle:

x-axis: -42.5

y-axis: -7.5

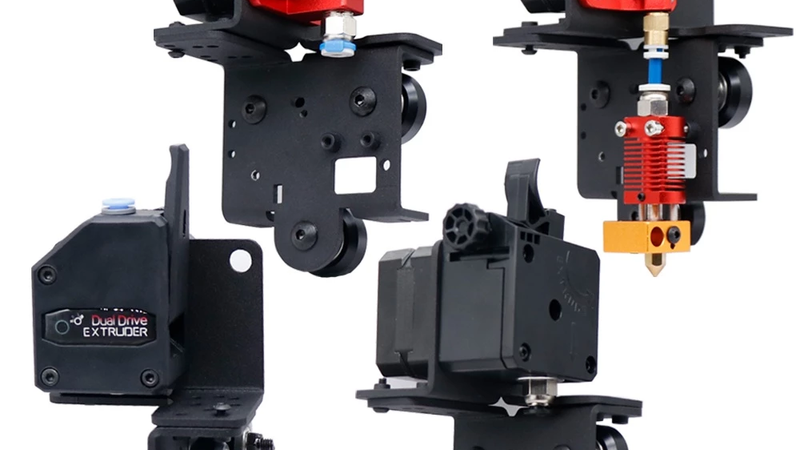

Reference to the backplate below;

https://shopee.com.my/Upgrade-Direct-Drive-Kit-Conversion-Bracket-for-Ender-3-V2-Pro-Compatible-With-Dual-Drive-Extruder-Metal-Bowden-Titan-Extrude-i.704982018.24854584059
