104archit. TPU Complete Set for Bahamut / Bahamut REX (Camera Mount / VTX Antenna Mount / Rain Guard / Turtle Fin / Strap Stopper)

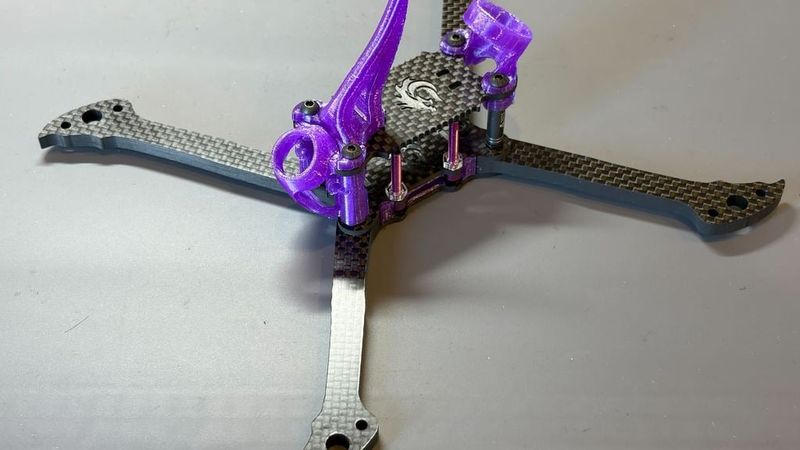

Complete TPU parts set designed for the 104archit. Bahamut and Bahamut REX frames.

This set includes all essential TPU components to enhance protection, stability, and performance for FPV racing.

Compatible with both Bahamut (Gen1) and Bahamut REX (some parts may be version-specific).

Included parts:

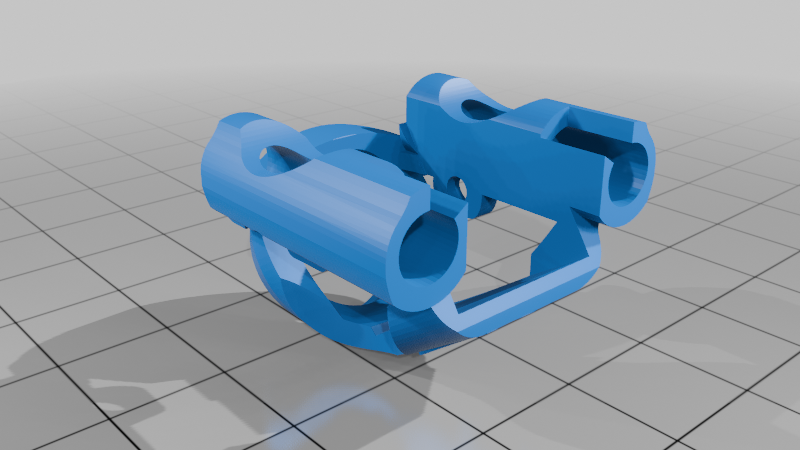

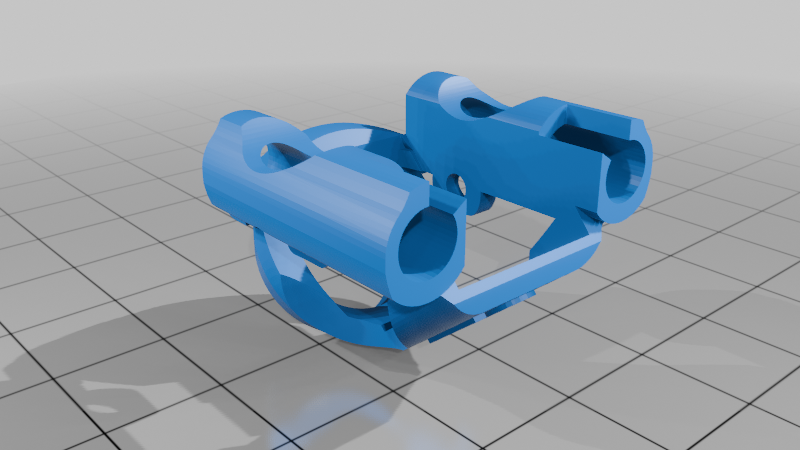

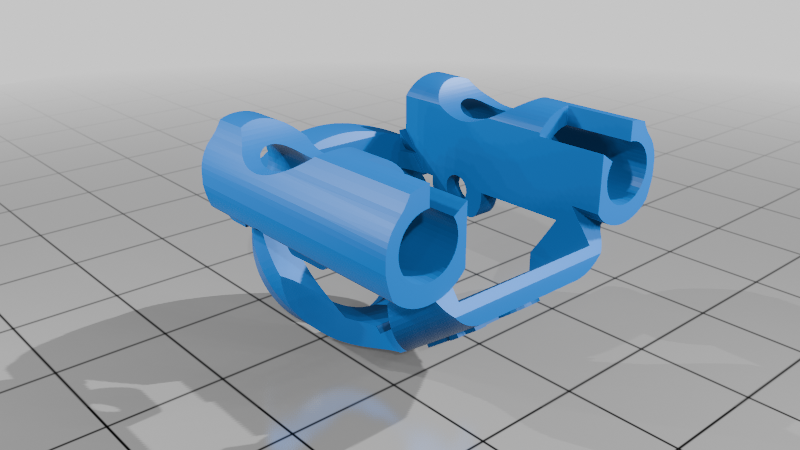

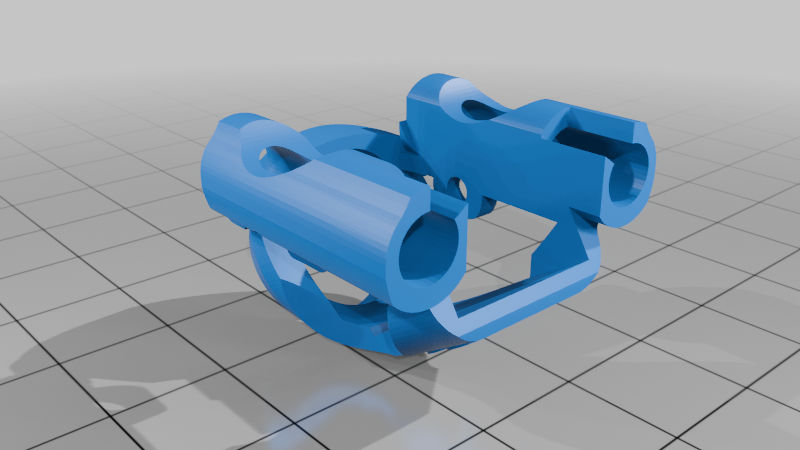

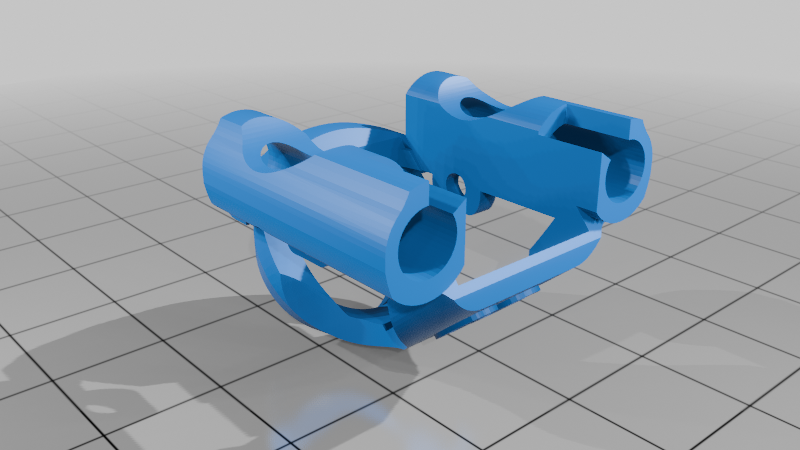

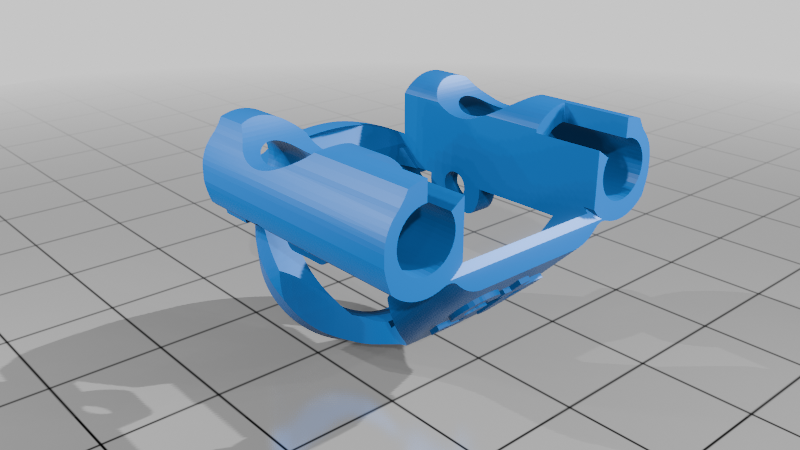

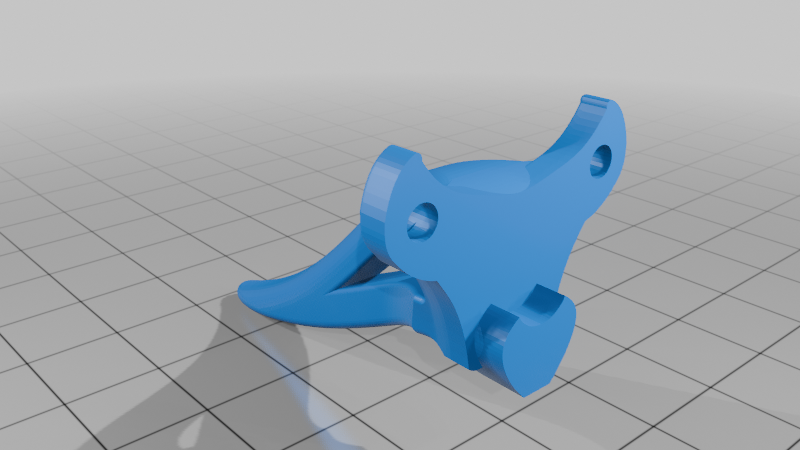

• Camera Mount (multiple angles available)

Provides secure camera positioning with excellent angle retention and airflow design.

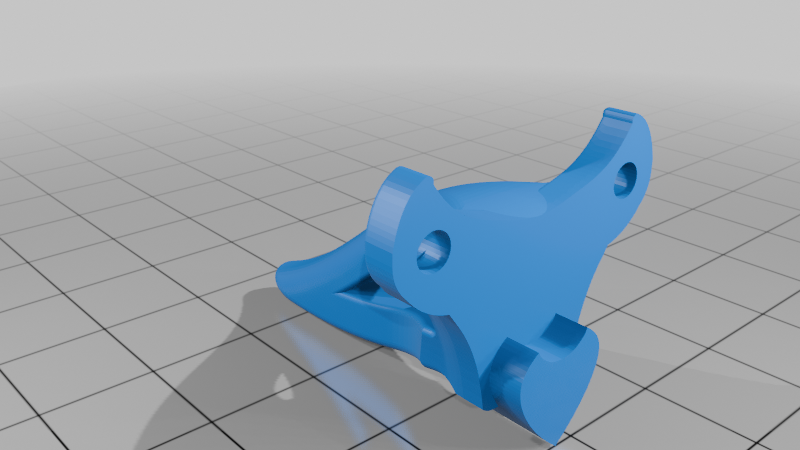

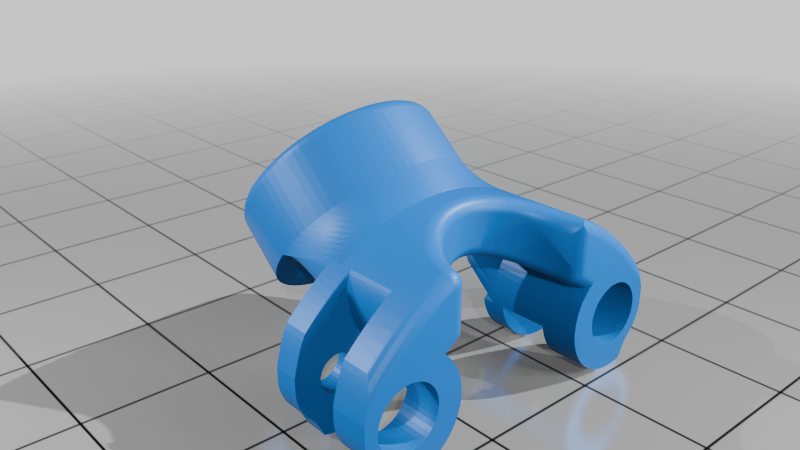

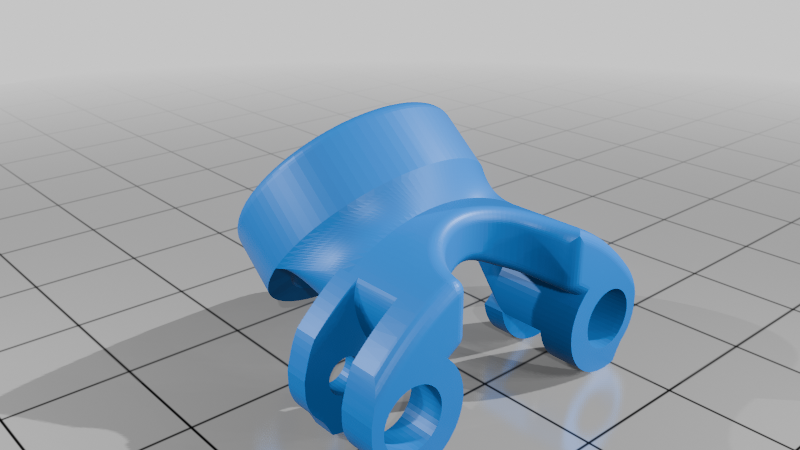

• VTX Antenna Mount

Minimizes antenna movement to reduce vibration and includes a recessed pocket for capacitor clearance and protection.

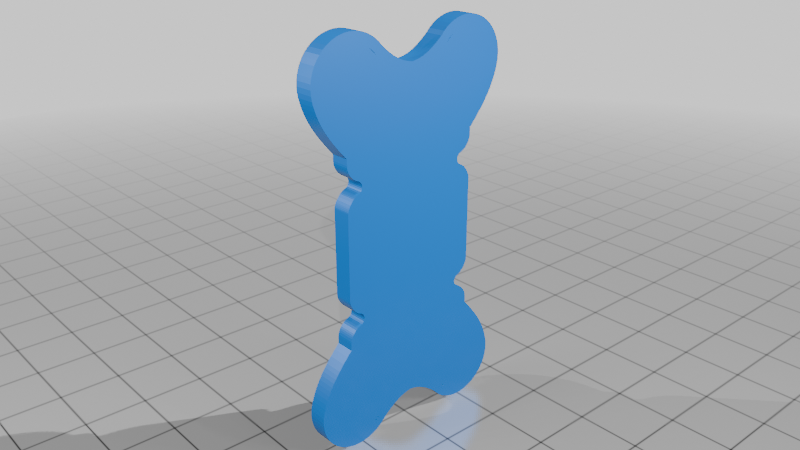

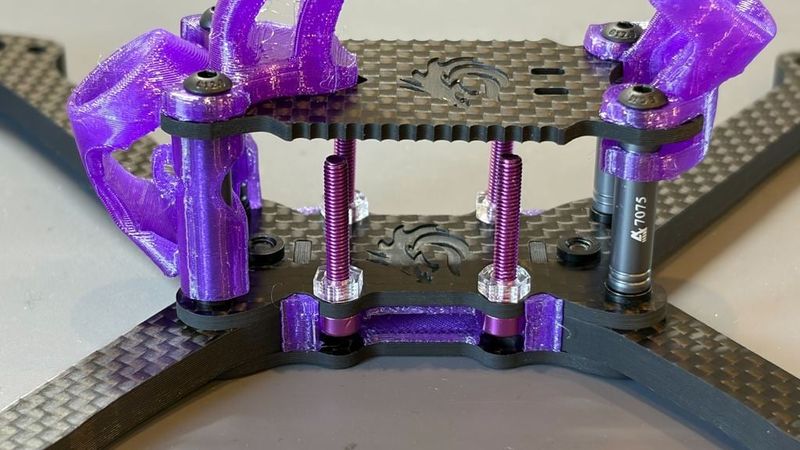

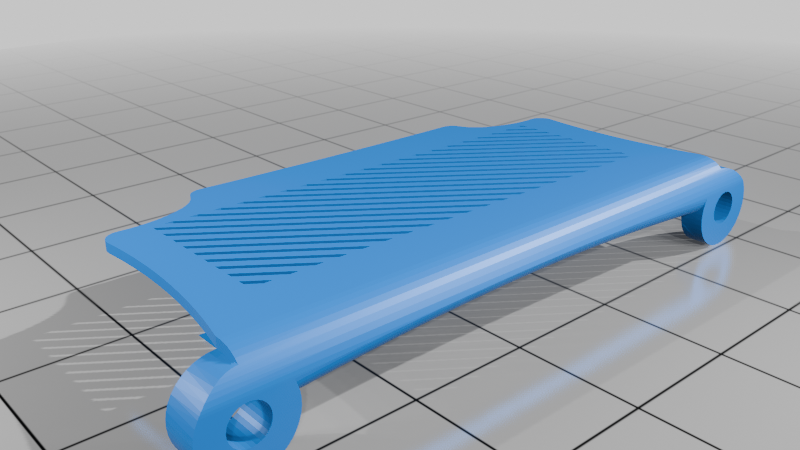

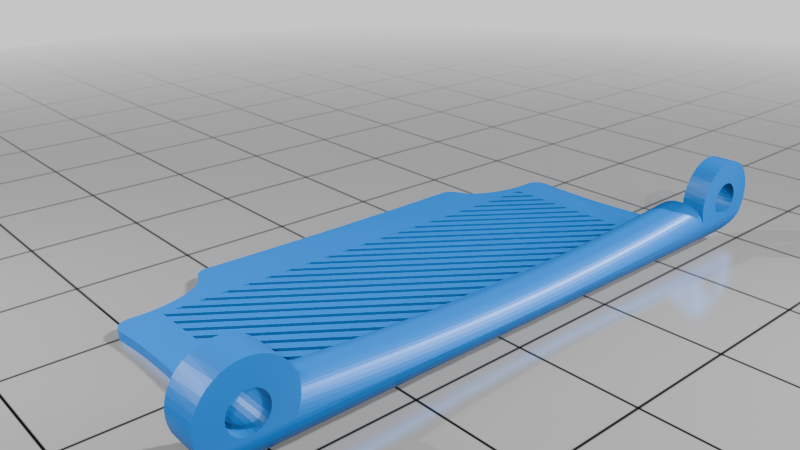

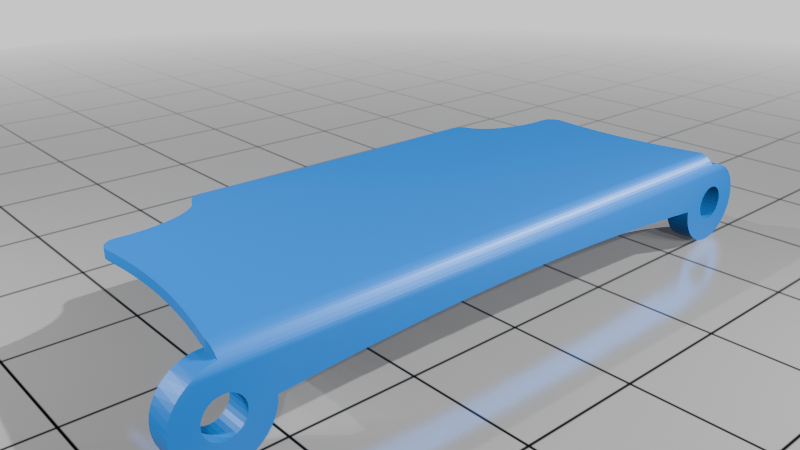

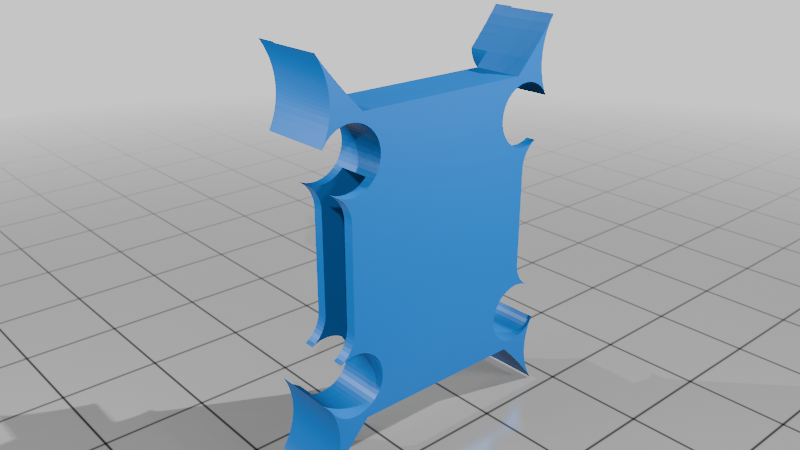

• Side Rain Guard

Protects FC, ESC, and VTX from mud, sand, water, and debris while also providing impact protection during crashes.

• Turtle Fin (Long / Short)

Improves crash recovery (turtle mode) and adds rear support during impacts.

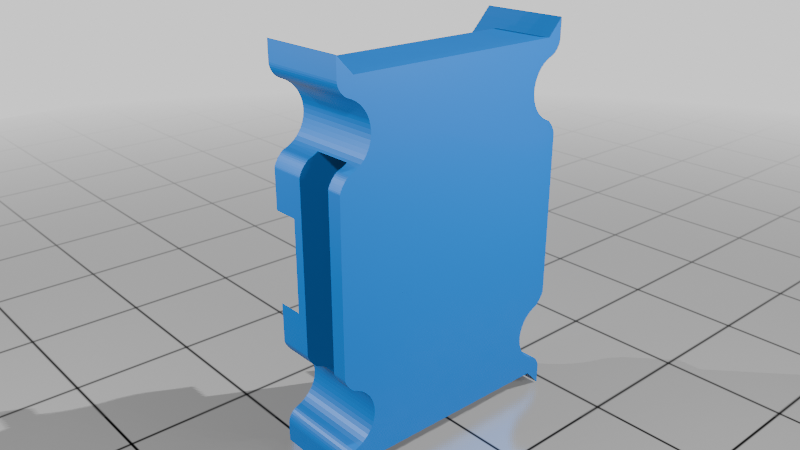

• Battery Strap Stopper

Prevents battery movement and improves overall stability during aggressive flight and crashes.

Key features:

• Fully integrated design

All parts are designed together with the frame for a clean and consistent structure.

• Racing-focused performance

Each component is optimized for real racing conditions, balancing weight, durability, and functionality.

• Enhanced protection

Improves resistance against impacts, debris, and environmental conditions.

Print recommendations:

• Material: TPU (95A recommended)
• Nozzle: 0.4 mm
• Layer height: 0.2 mm
• Speed: 20–40 mm/s

Print orientation is important for durability.

Notes:

• Some parts are frame-version specific (Gen1 / REX).
• Minor fitting adjustment may be required depending on printer and material.
• Designed for racing use (prioritizes performance over maximum durability).

Brand:

104archit. FPV Racing Frame Design

Designed by akikabo_fpv
