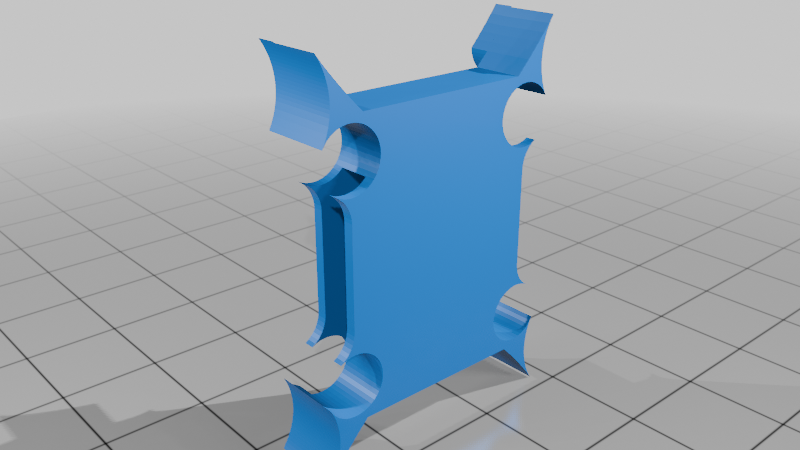

TPU Battery Strap Stopper for 104archit. Bahamut REX

Battery strap stopper designed for the 104archit. Bahamut REX frame.

This part prevents the battery strap from sliding forward during crashes or aggressive racing, improving battery retention and overall stability.

In addition, the TPU material allows the part to sit tightly against the carbon frame, helping to reduce vibration during flight.

⚠️ Compatibility:

Designed for Bahamut REX only.

NOT compatible with Bahamut (Gen1).

Design concept:

Redesigned specifically for the updated Bahamut REX end plate.

The structure integrates with the middle plate, providing improved rigidity and a more secure mounting.

This part is designed together with the carbon frame, ensuring a consistent and integrated design.

Lightweight structure with controlled flexibility to absorb impact.

The stopper is designed to deform slightly on crash to reduce stress on the frame.

Print recommendations:

• Material: TPU (95A recommended)
• Nozzle: 0.4 mm
• Layer height: 0.2 mm
• Speed: 20–40 mm/s

Print orientation is important for durability.

Notes:

• Minor fitting adjustment may be required depending on printer and material.
• Designed for racing use (prioritizes weight and performance over maximum durability).

Brand:

104archit. FPV Racing Frame Design

Designed by akikabo_fpv
