SOLID MODELPower & Batteries14-Apr-2026

Case for Heltec V4 portable

MadProfi
MadProfi
3 Files
stl Format

Description

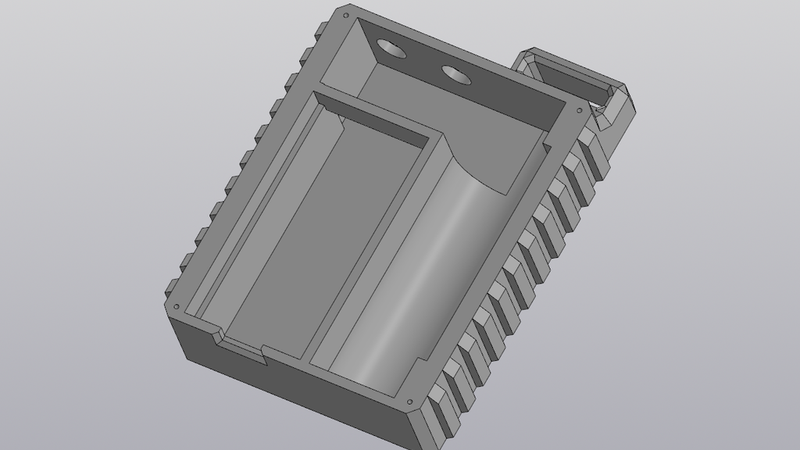

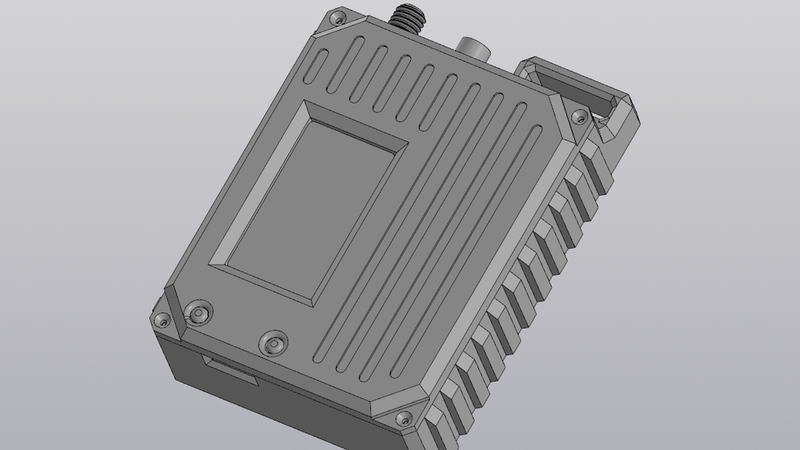

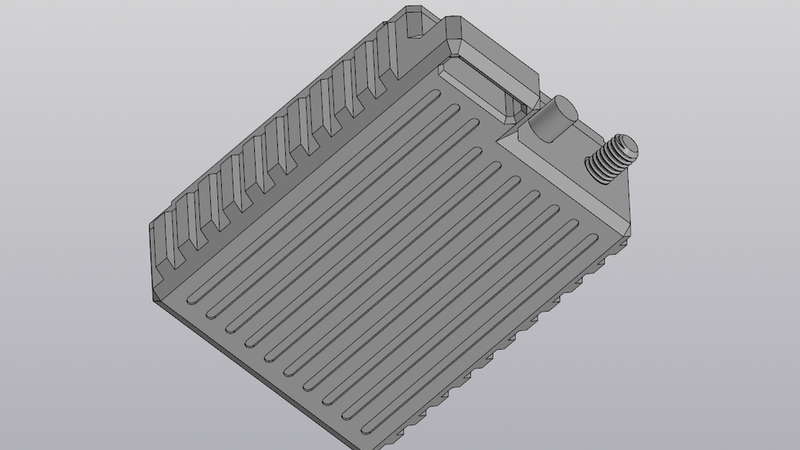

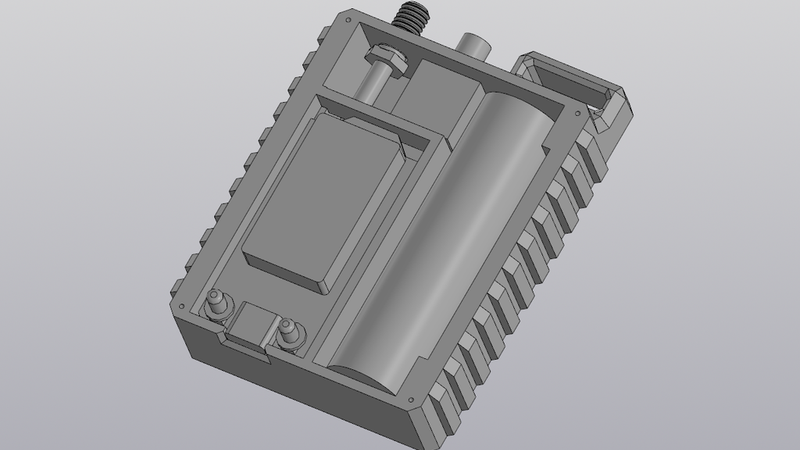

I decided to make my own version of the node. I printed it with a 15% fill factor. To assemble it, you will need M1.7 self-tapping screws. I used an 18650 battery with a BMS, a BME280, and the node itself. There is also space for a toggle switch. When you turn off the node by holding down the button on the node, it doesn't completely turn off but enters a sleep mode, but it still consumes power.

Downloads

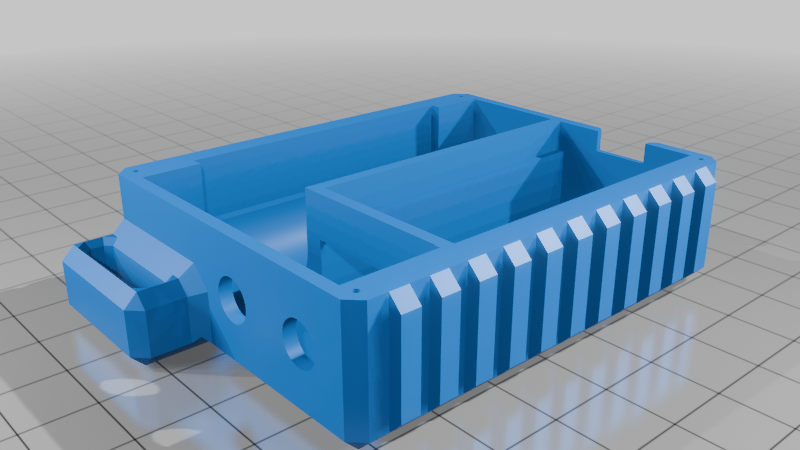

внутренняя_рамка_18650.stl
281.2 KB

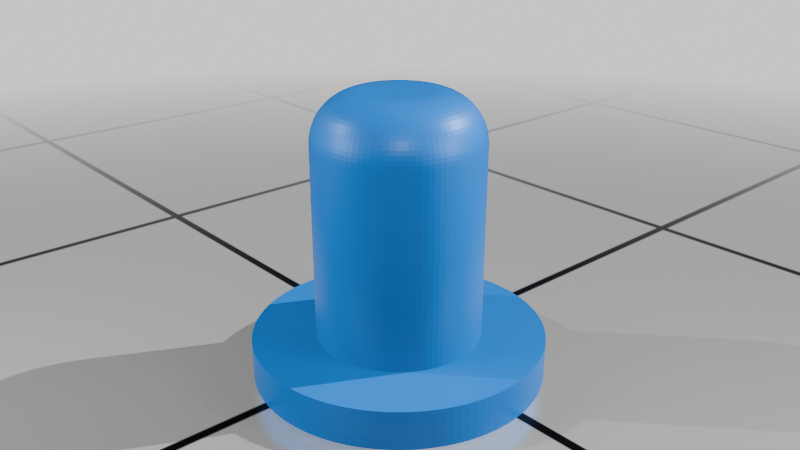

кнопка-1.stl
200.2 KB

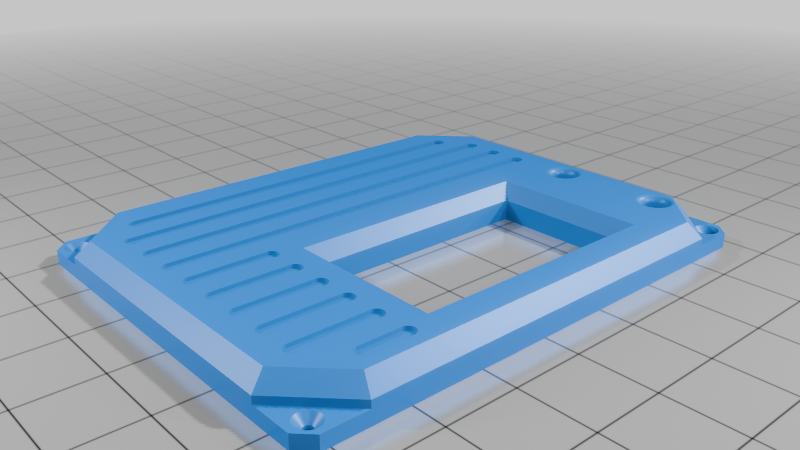

крышка_18650_v2.stl
762.2 KB
