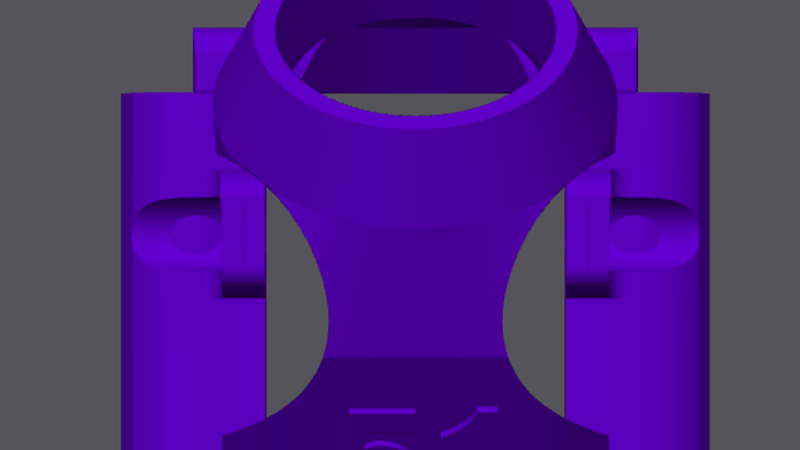

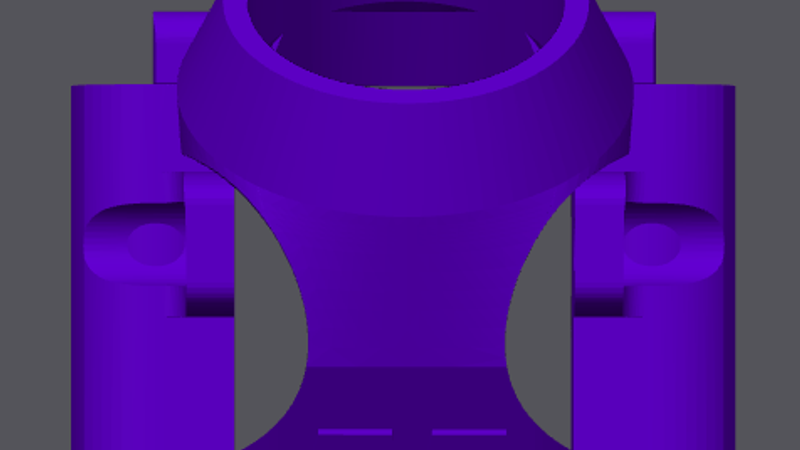

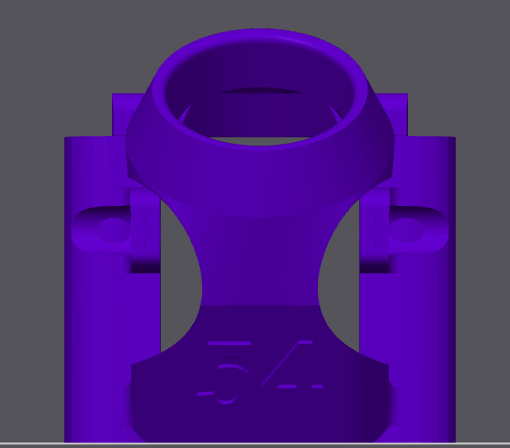

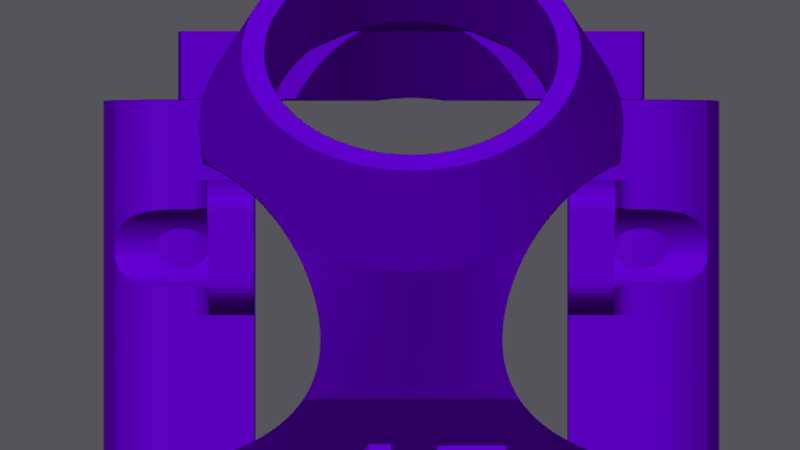

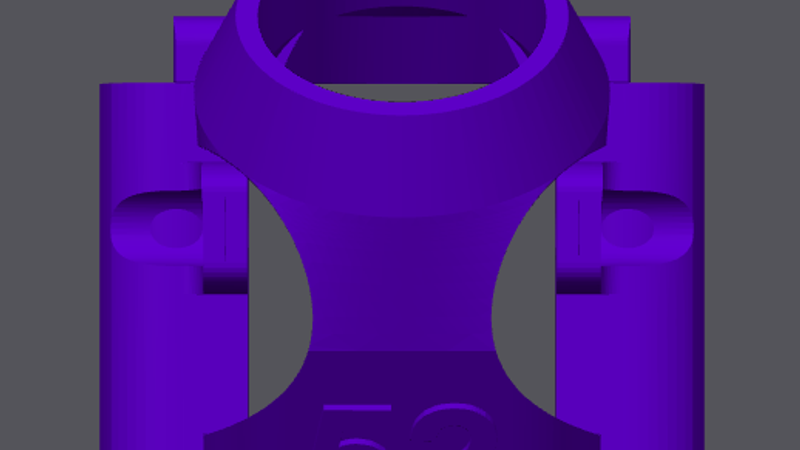

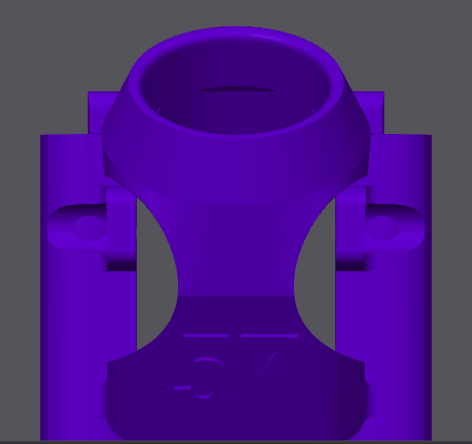

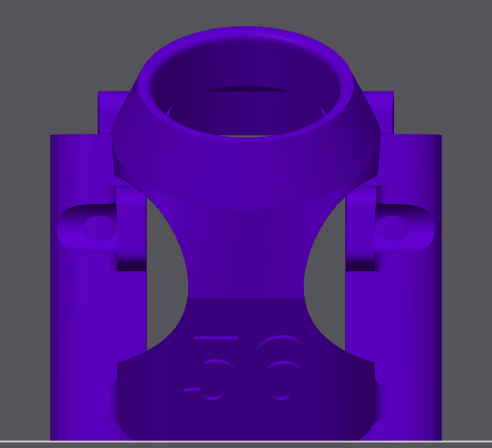

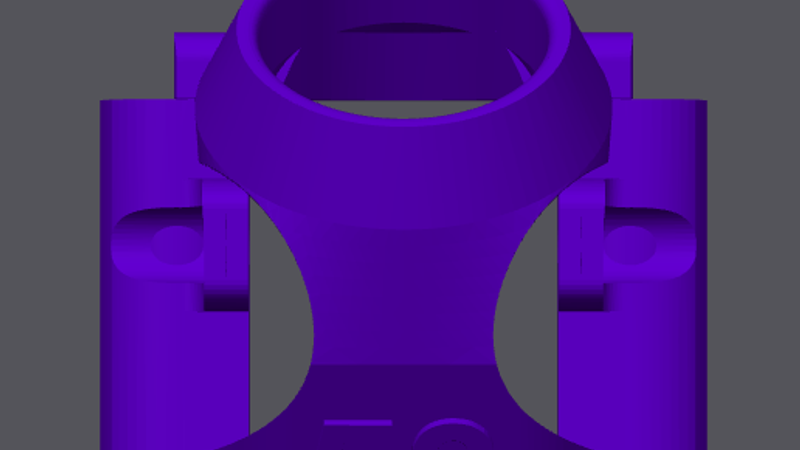

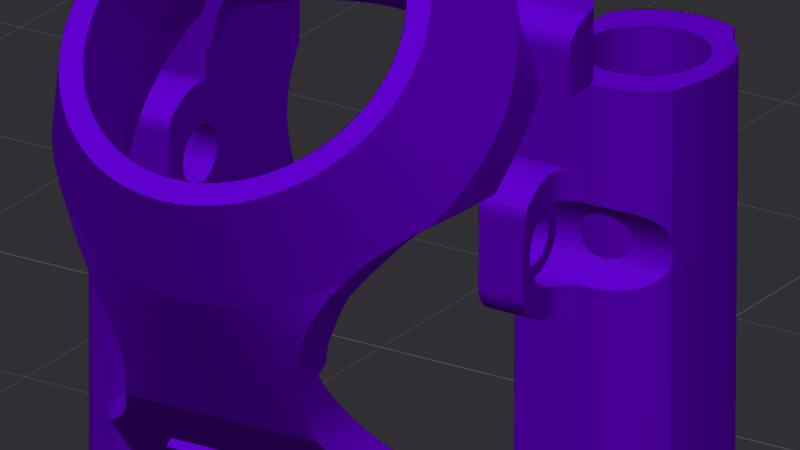

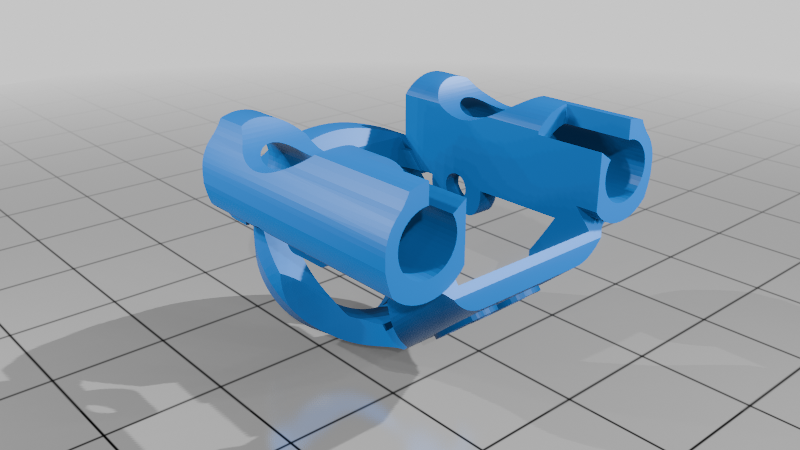

104archit. TPU Camera Mount for Bahamut / Bahamut REX (45°–58° | HDZero Nano90 V2 / Foxeer Predator V5)

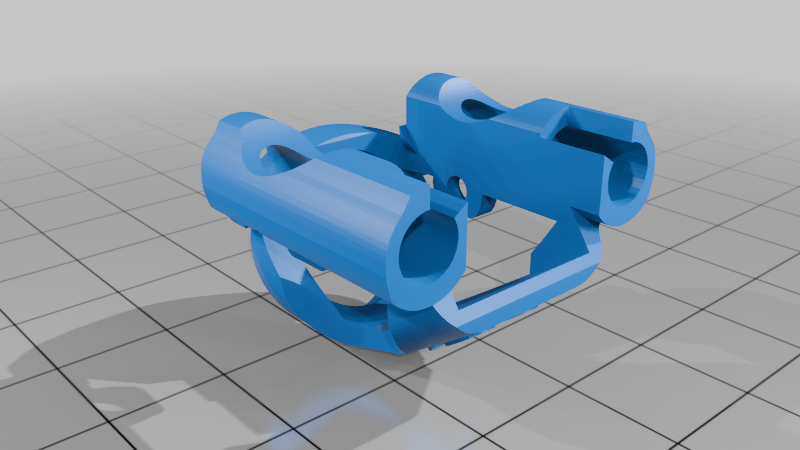

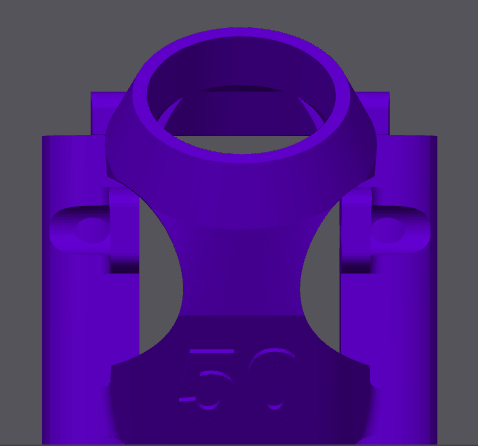

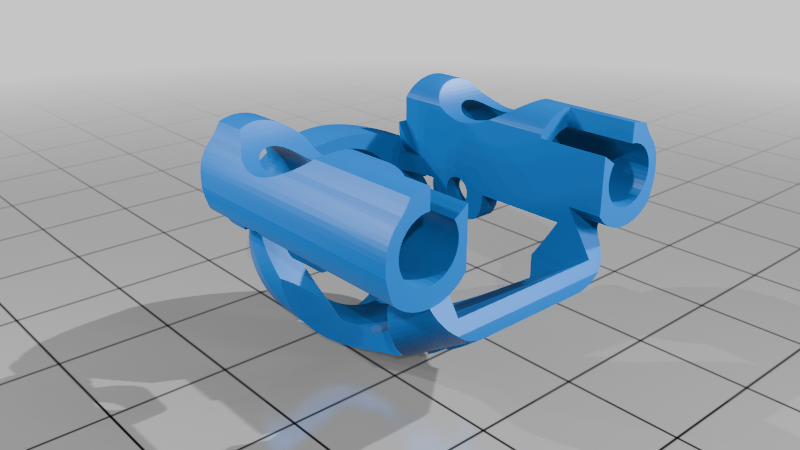

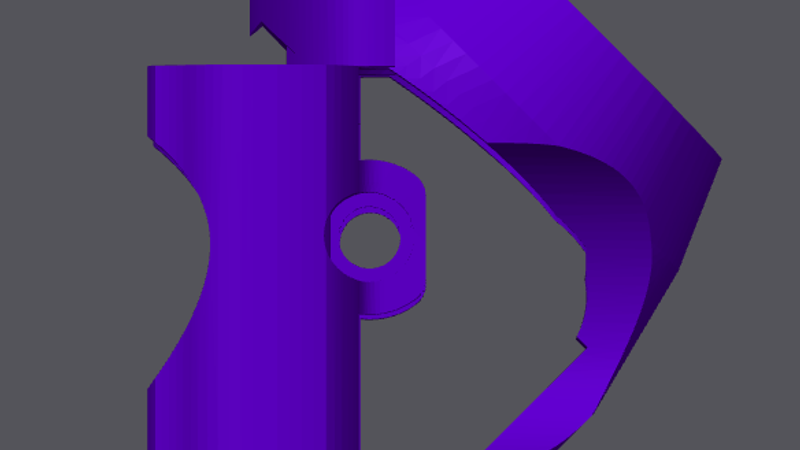

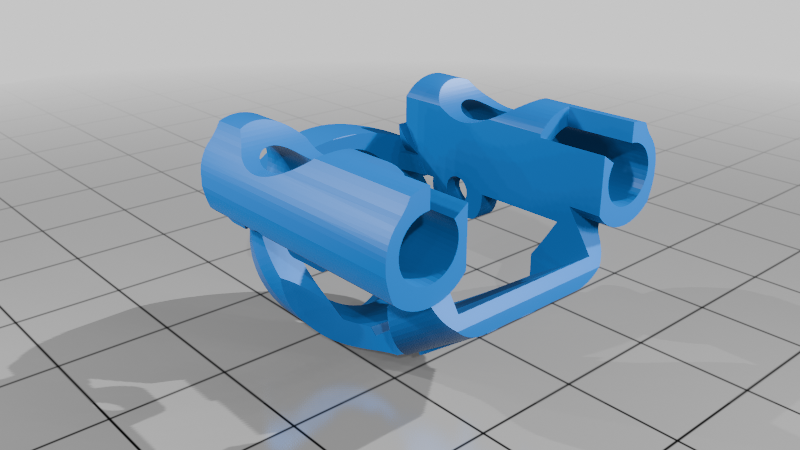

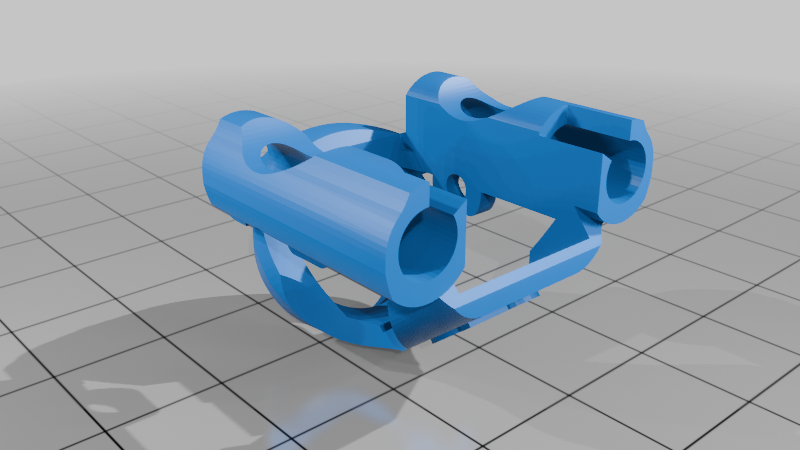

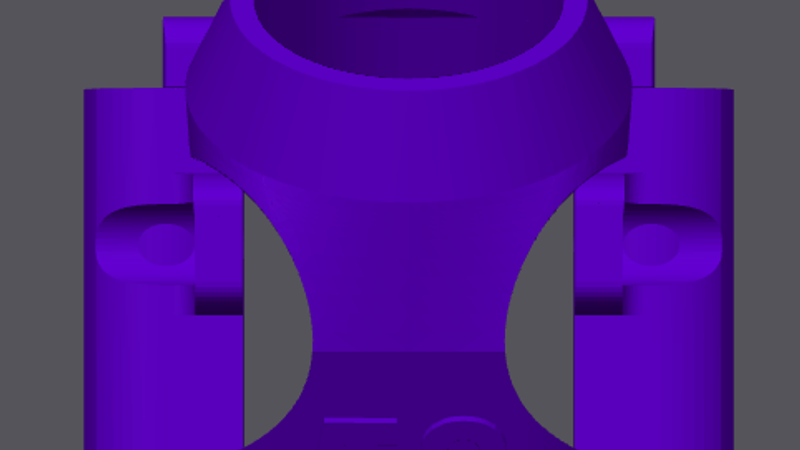

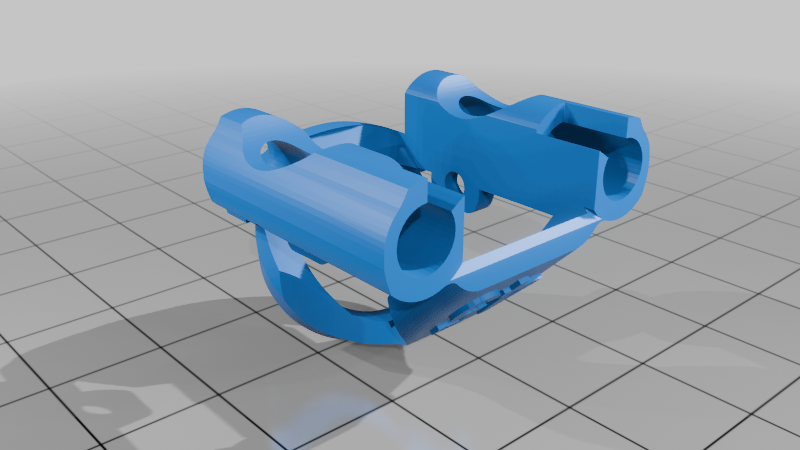

TPU camera mount designed for the 104archit. Bahamut and Bahamut REX frames.

Compatible with:

• HDZero Nano90 V2
• Foxeer Predator V5

Key features:

• Secure camera angle retention

The structure is designed to hold camera angle firmly, reducing unwanted movement during crashes or racing.

• Lightweight yet durable

Optimized geometry provides a balance between weight reduction and impact resistance.

• Integrated cooling design

Airflow slots allow air to pass through the mount, helping to cool FC, ESC, and VTX components.

• Frame-integrated design

Designed together with the frame for a consistent and clean overall structure.

Print recommendations:

• Material: TPU (95A recommended)
• Nozzle: 0.4 mm
• Layer height: 0.2 mm
• Speed: 20–40 mm/s

Print orientation is important for durability.

Notes:

• Minor fitting adjustment may be required depending on printer and material.
• Designed for racing use (prioritizes performance over maximum durability).

Brand:

104archit. FPV Racing Frame Design

Designed by akikabo_fpv
