ThinkNode M2 Case

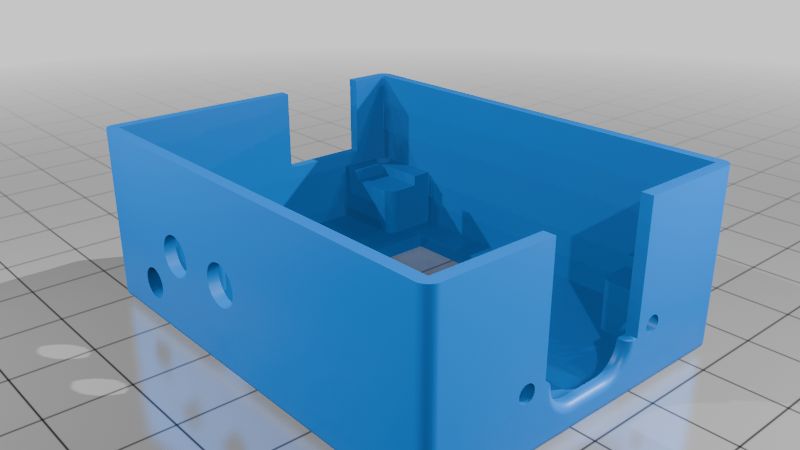

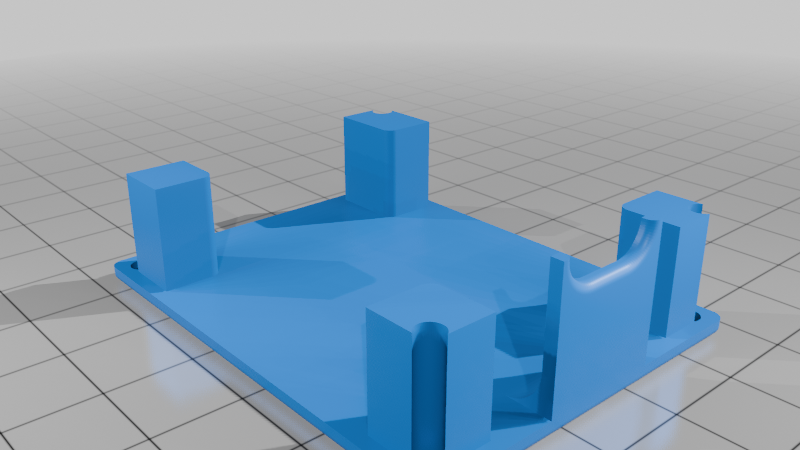

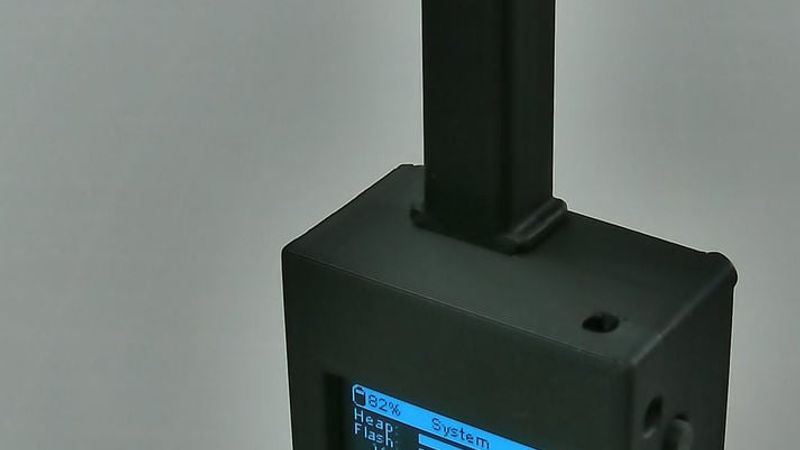

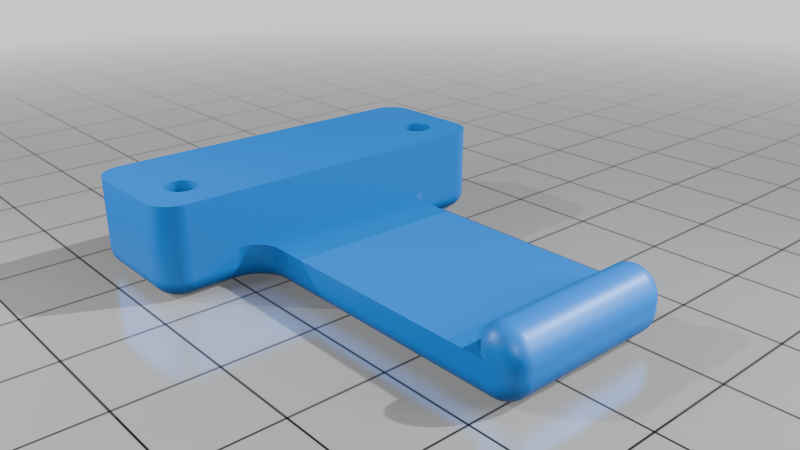

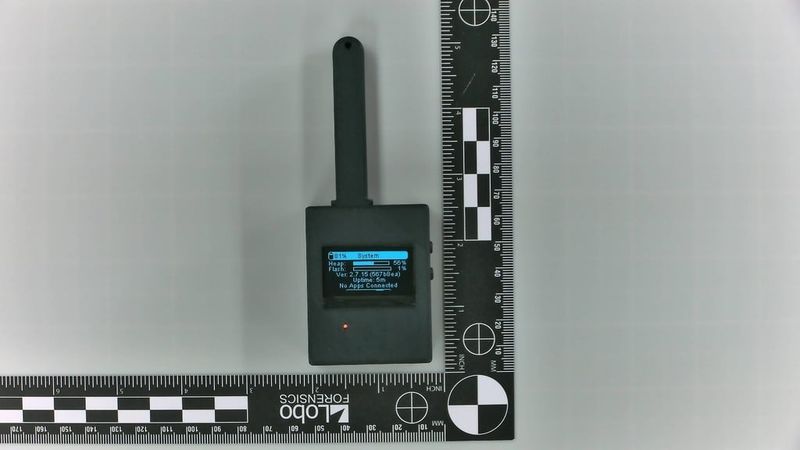

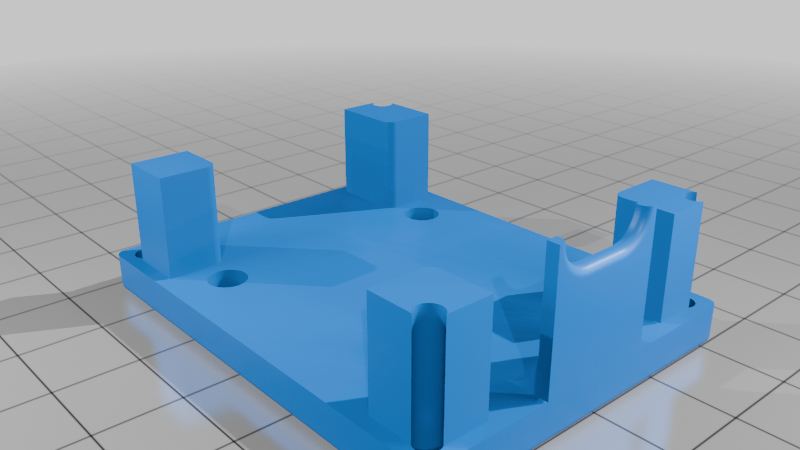

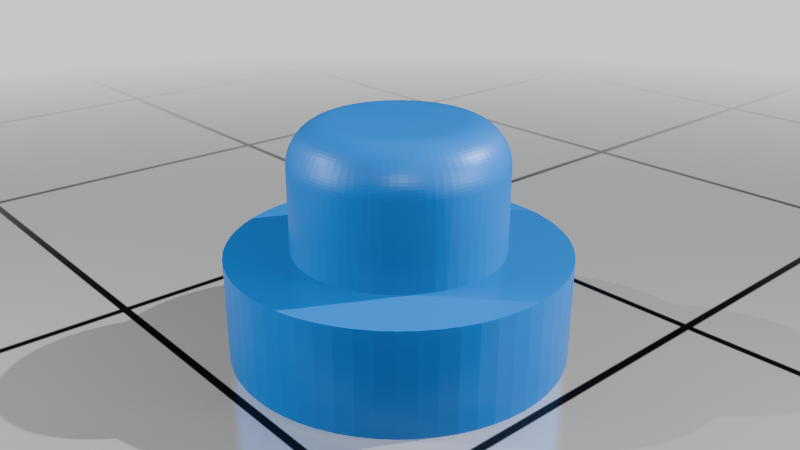

This is a full featured ThinkNode M2 case I designed which will allow changing antennas from the included adhesive mount to a higher performing SMA mount antenna. (The design includes provisions for both). I also didn't like the button design on the only other case I could find so it has been improved here. Since I also abhor 3D printed designs which require supports, this case was designed such that none are required. The case includes a pass-through tunnel for lanyard attachment. Note also there are two different backplates with one specifically designed to accept M3x4x5 threaded inserts for a belt or strap clip.

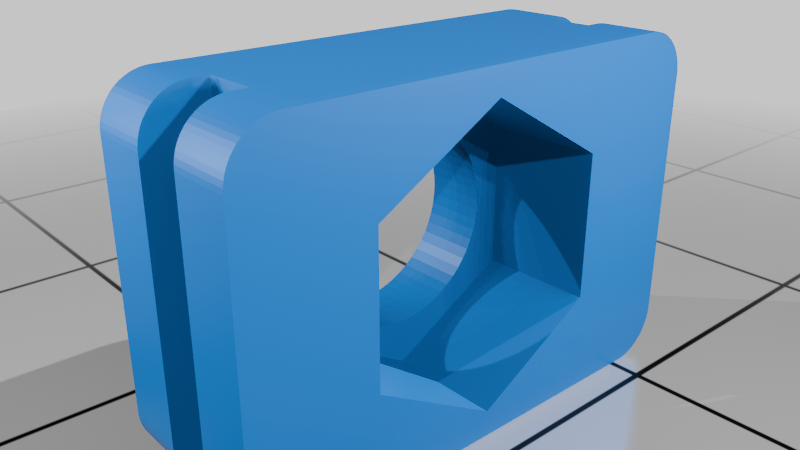

Note that the case assembly requires 4 x #4x1" flat head screws (for the case itself) and 1 x #4x3/8" flat head screws (for the antenna enclosure). If you decide to use an SMA attached antenna (using the provided insert) you will not need the antenna screw.
