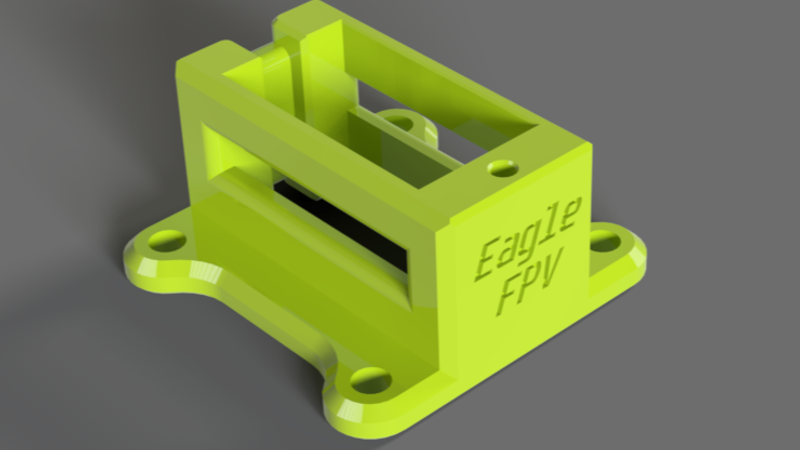

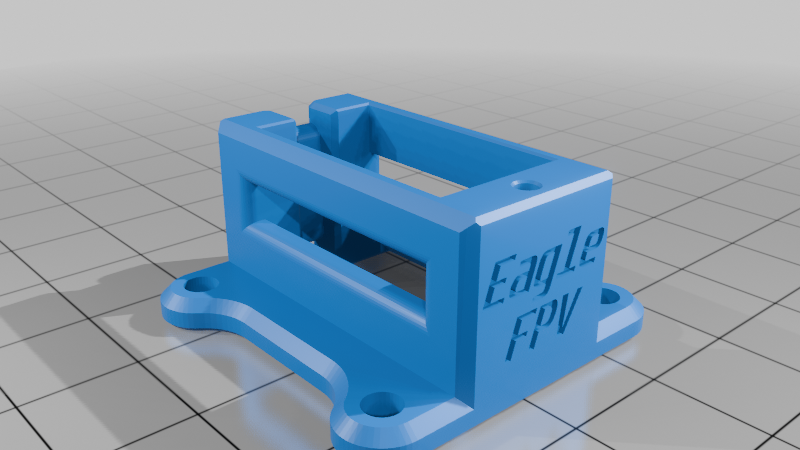

Vertical 9g Servo Holder for Pan and Tilt M3 25.5x25.5

Features:

• M3 mounting holes, 25.5x25.5 mounting pattern

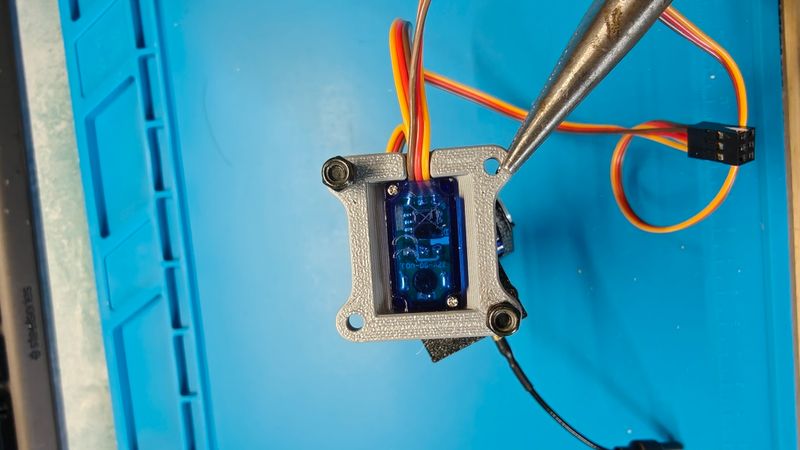

• 1 screw to hold the servo
• cable routing for 2 servos that leads to the bottom for a super clean setup.
• big chamfer on the bottom side for reinforcing the servo with hot glue if necessary, although if your printer is tuned well, the fit is snug and the screw keeps it in place very well
• cool slits on the sides to reduce weight? and make it look cooler ofc

I didn't like any of the existing models so I made my own vertical servo holder to go with painless360's pan and tilt setup ( which I also needed to remodel to fit my servos, and may upload the remodelled version if anyone needs it). here is the original pan and tilt: https://www.thingiverse.com/thing:5150262

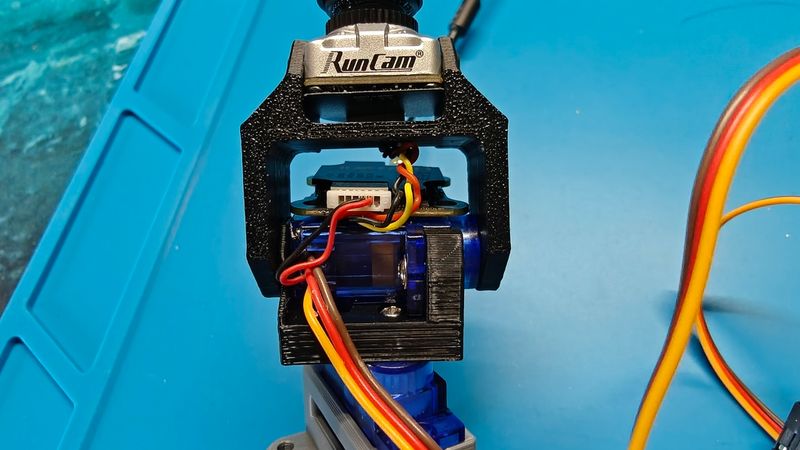

I designed it in a way that it keeps the wiring as clean as possible, so I just have the servo wiring coming out, the camera is powered by the vtx and the vtx is wired up to the servo below it so it shares the same power wires.

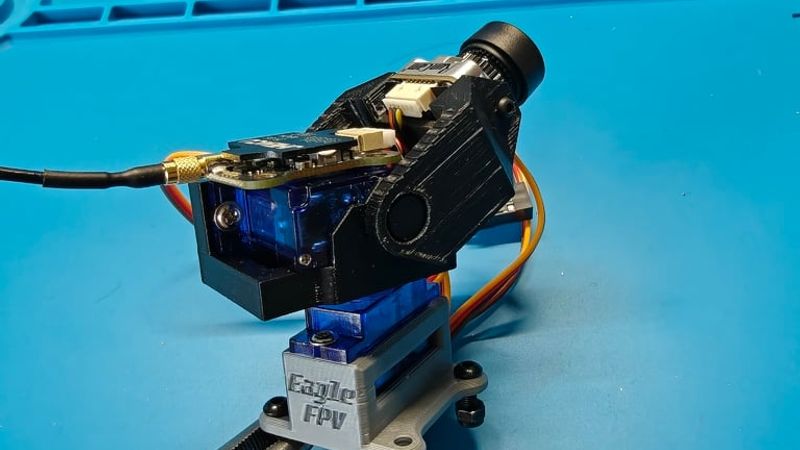

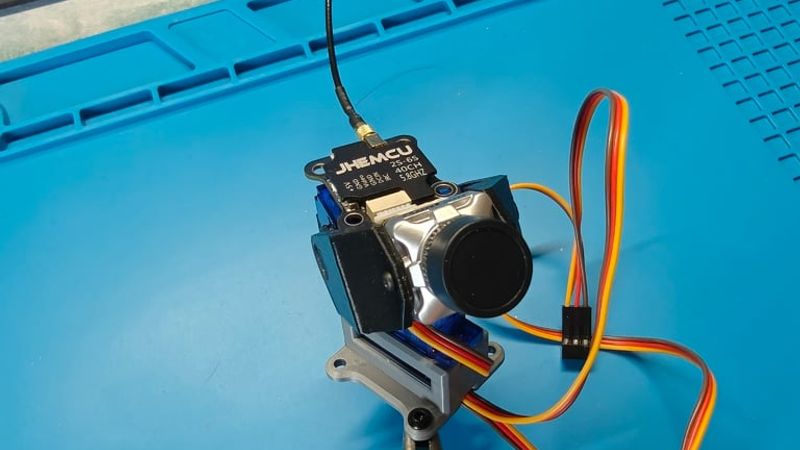

This is overall the best and most compact 2 axis pan and tilt I could make using cheap 9g servos to fit cheap analog kit I had laying around. I have yet to mount it to an rc car but will do so. the mounting is 25.5x25.5 so it will also fit fpv drone AIO FC holes, you could get pretty creative...
