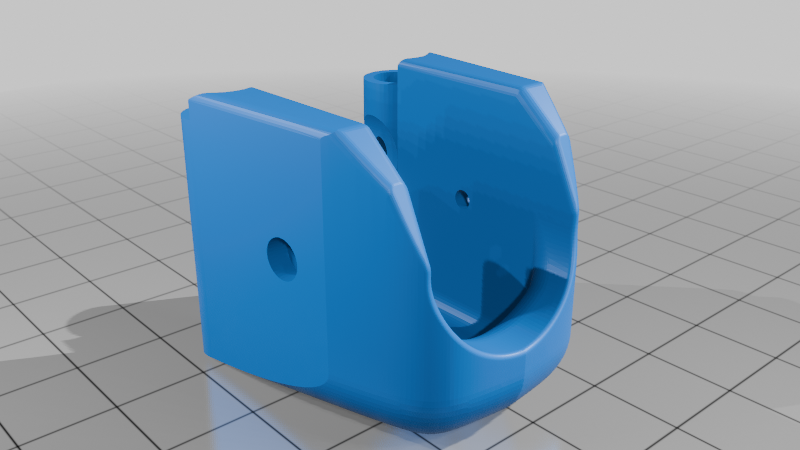

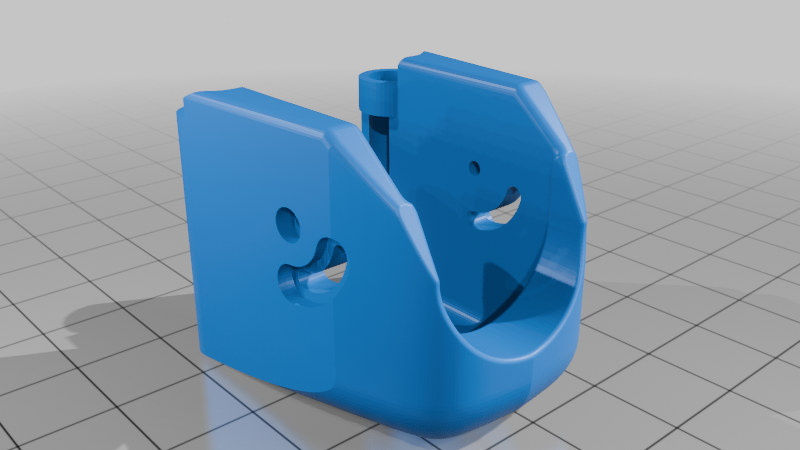

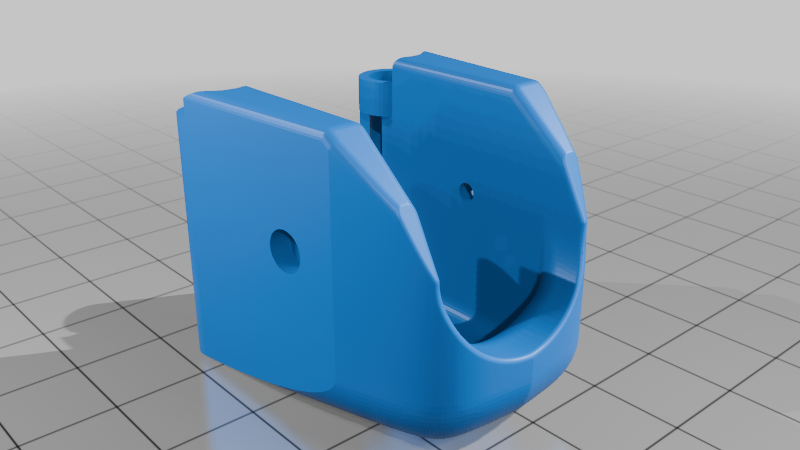

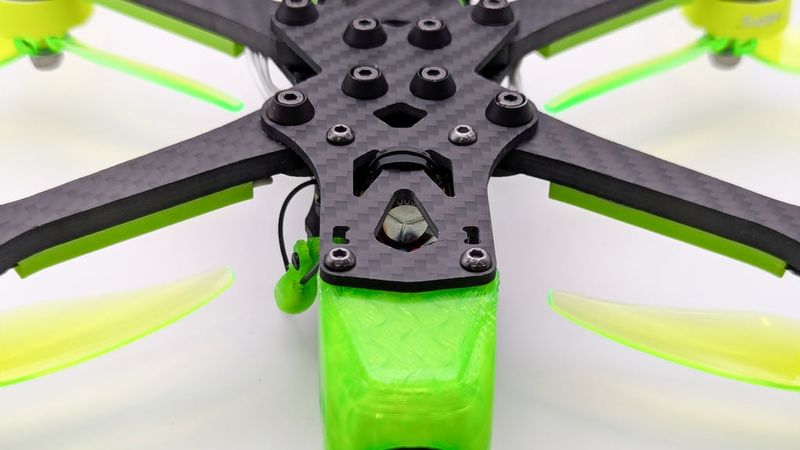

ImpulseRC Apex Bumper + FPV Camera Mount (analog, Walksnail, DJI o3 and others)

This is a camera mount-bumper for the legendary ImpulseRC Apex, adaptating it to modern standarts, adding more space inside, protecting the camera and partially removing the props out of the view.

Unlike other mounts, it doesn't require any modification to the frame, and uses stock standoffs for mounting, which not only is easier, but also frees internal space, allowing you for easier assembly and cleaner cable management, as well as using standart mounts for GoPro or GPS on the front.

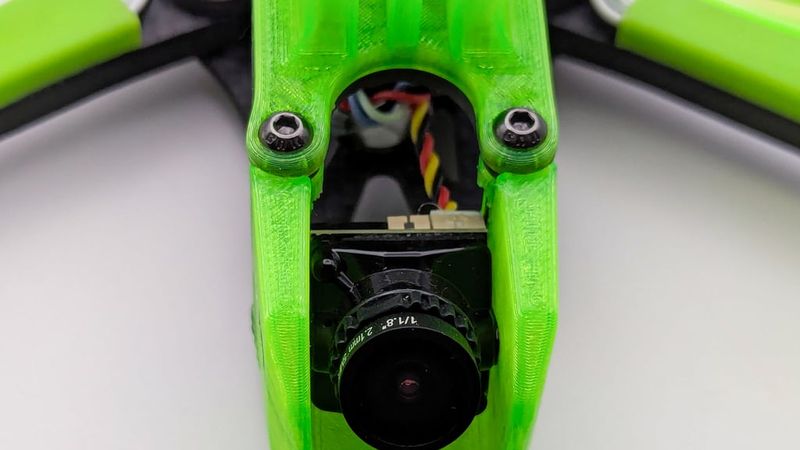

It's super simple to print and install, and it should fit any standart 19x19mm cameras, so that includes most of the micro analog cameras, Walksnail, DJI o3, new digital systems like ascent should also fit fine. I include shorter and longer (as well as o3) versions depending on the size of the camera, so make sure to print the correct one.

3D printing settings

Print with TPU or other flexible material

Supports aren't required, but you can use them for better overhangs

3 walls and 15-25% gyroid infill worked for me, but you might want to print it differently depending on your application
