Stevenson screen case for weather related sensors

daria_robbie208
daria_robbie208
4 Files
stl Format

Description

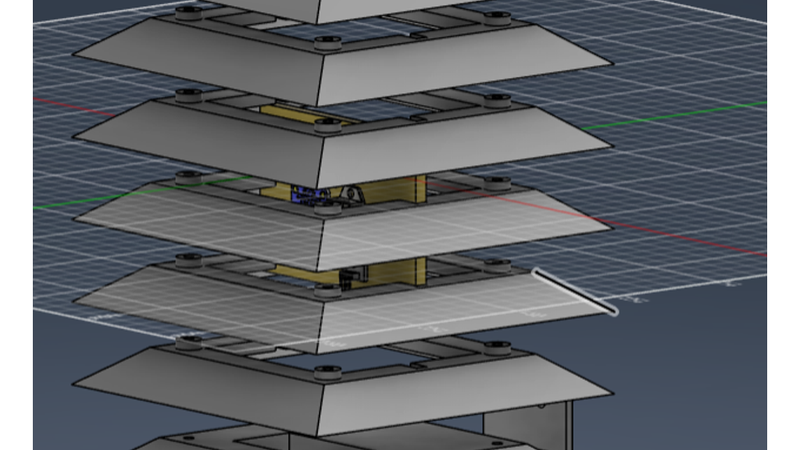

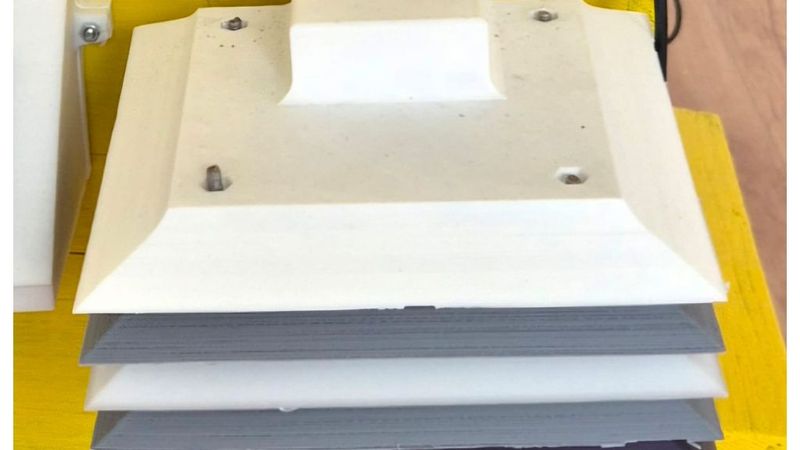

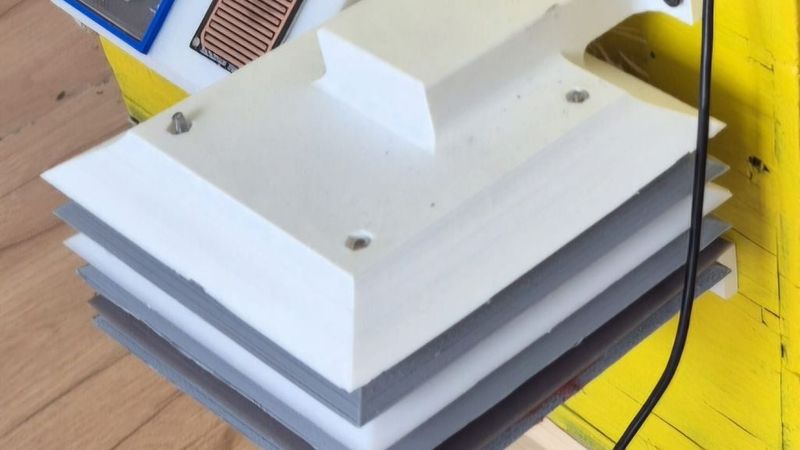

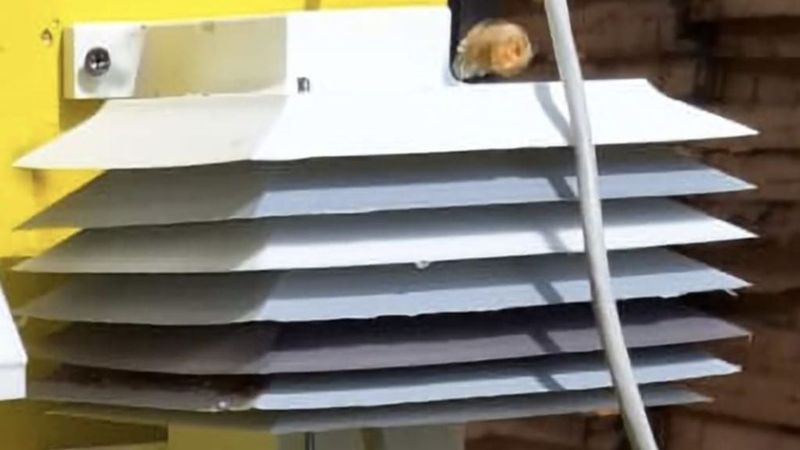

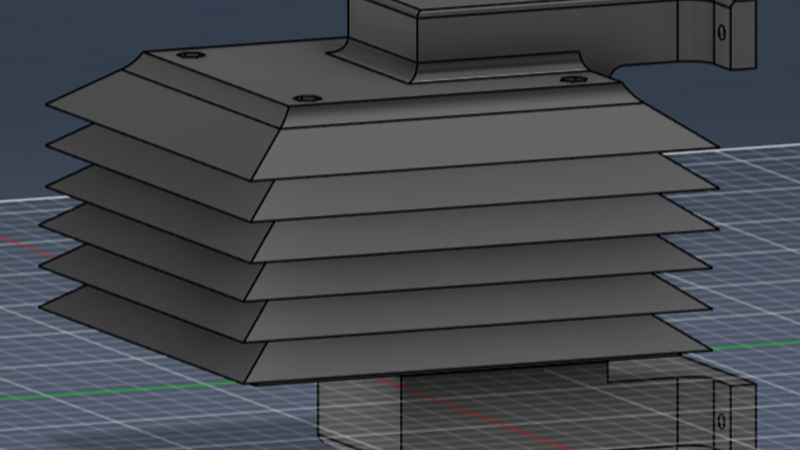

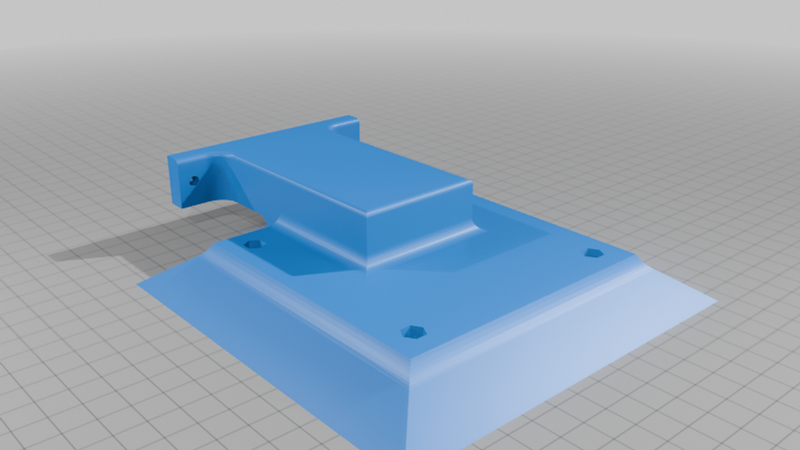

This is a case made out of multiple parts, which combined create a Stevenson screen-like structure (used for meteorological instruments that might be sensitive to external factors like rain). The components are held together by 4 m4 threaded rods and m4 hex nuts. The case itself can be placed anywhere, since it also has 2 supports with screw holes. The sensor themselves can be fit on a small plank (the components that make up the Stevenson screen have grooves to accommodate for said plank).

Downloads

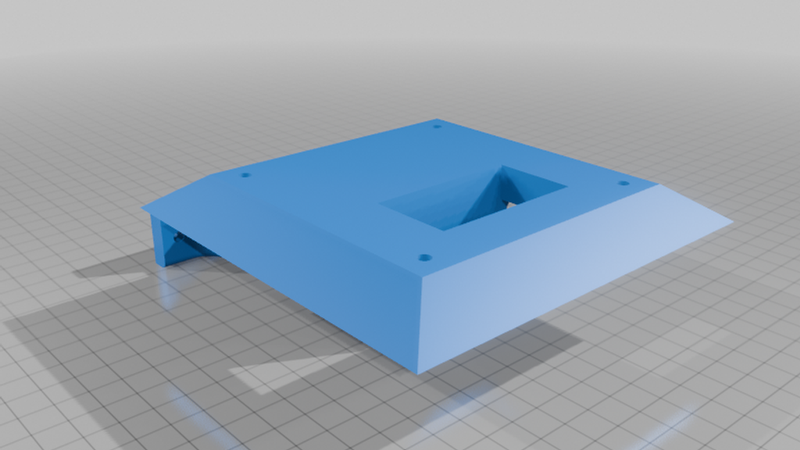

Stevenson_screen_lower_component.stl
80.1 KB

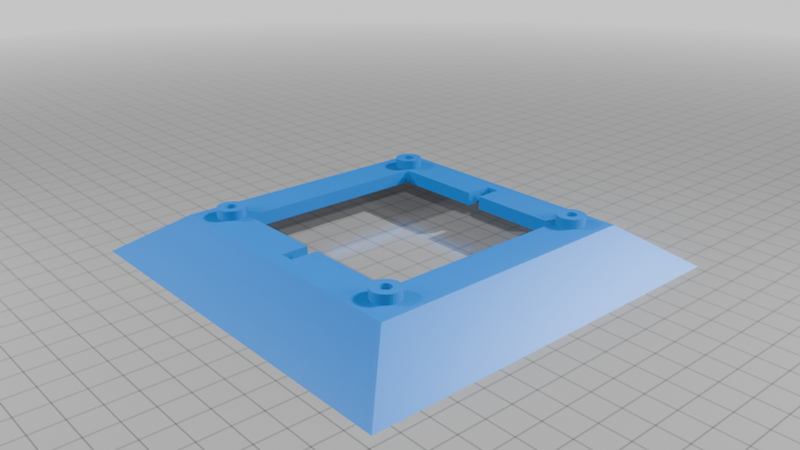

Stevenson_screen_middle_component.stl
50.1 KB
Stevenson_screen_upper_component.stl
123.7 KB

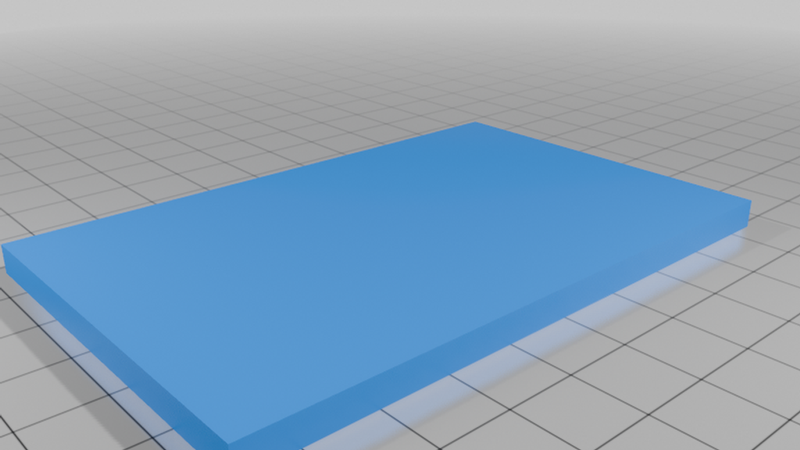

plank.stl
0.7 KB
