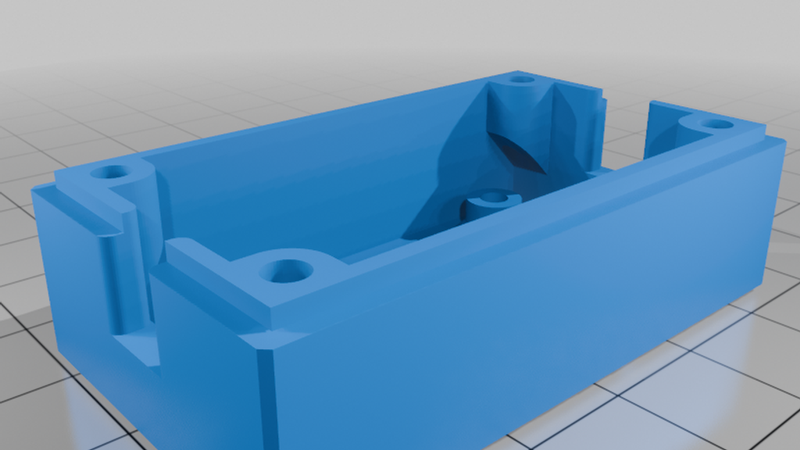

Customizable simple PCB and module case

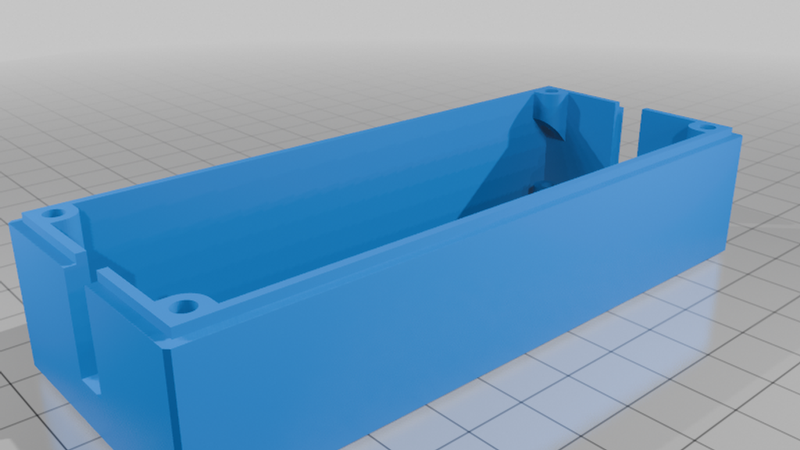

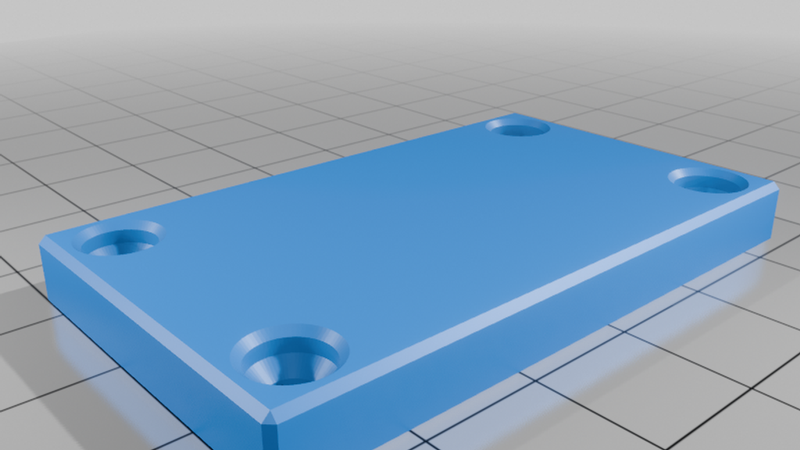

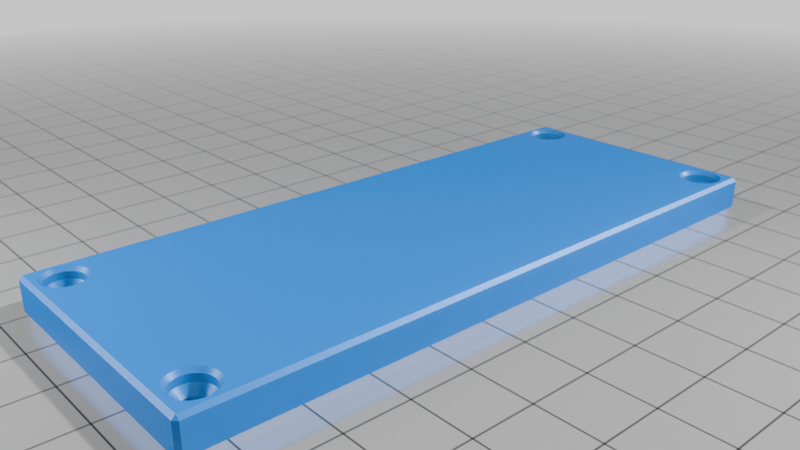

A simple Fusion360 parametric enclosure for PCB or modules that have 2 or 4 screws holes.

Features:

• Print without support
• Have input and output opening for wires

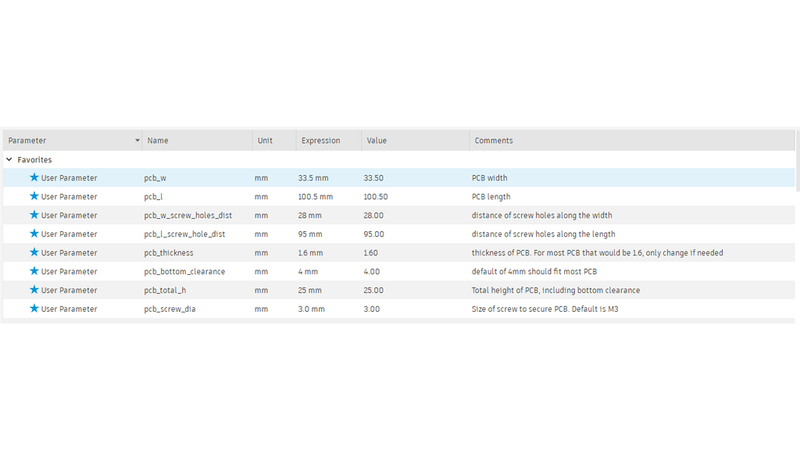

• Can be customized to fit any PCB or modules with mounting holes, using only 6 parameters at a minimum

Hardware required:

• 2 to 4 M3x6 screws for securing PCB.
• 2 to 4 M3x6 screws for the case itself. Depending on how tall the PCB is, 6 to 12mm can be used.

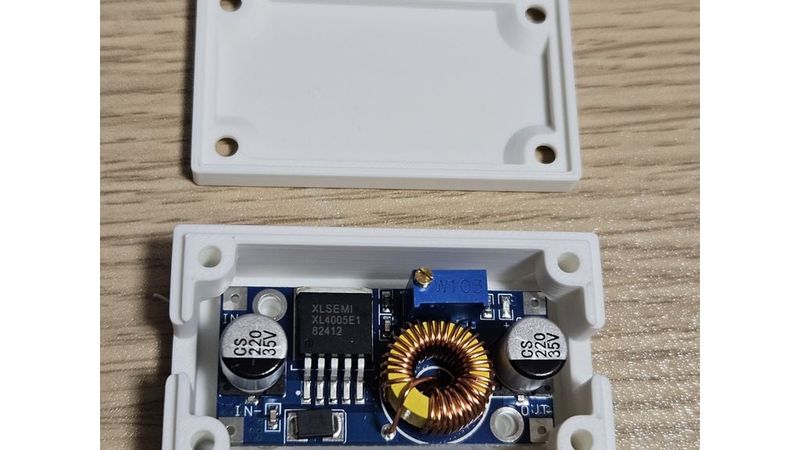

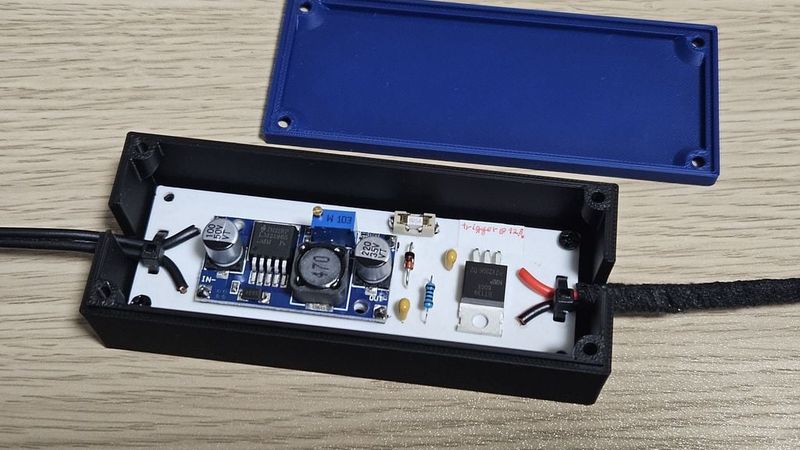

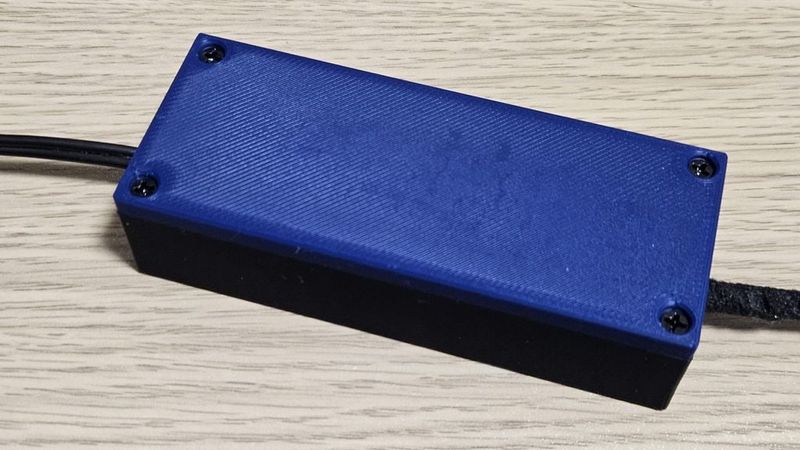

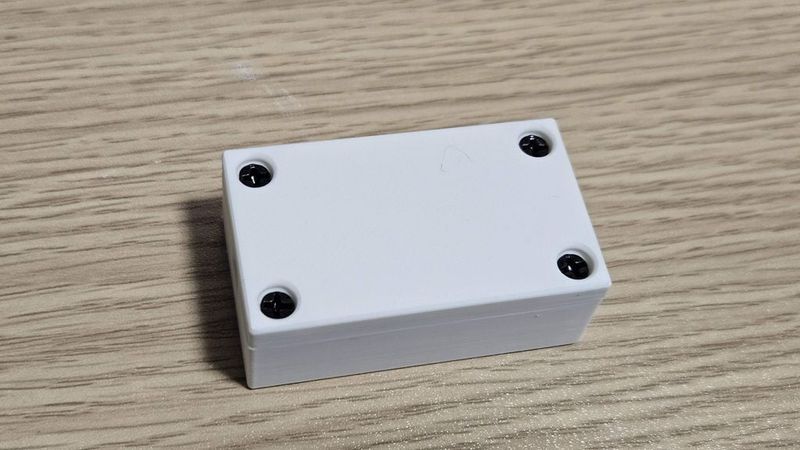

The attached profiles are sample case for my own 33.5x100.5mm PCB which hardly fit anything, and an XL4005 module. Please customize to fit your own need.
