Parametric Bevel Gear Generator (STEP, Customizable, CNC & 3D Printing)

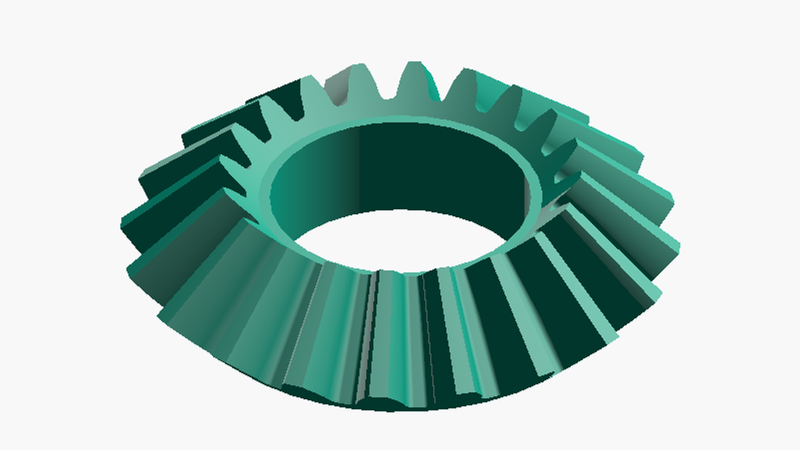

This is a parametric bevel gear model generated using an automated CAD system.

Unlike fixed models, this gear is not a one-off design — it can be regenerated with different parameters.

Specifications of this model:

Module: [X]

Number of teeth (gear): [X]

Number of teeth (pinion): [X]

Shaft angle: [X]° (typically 90°)

Pressure angle: 20°

Geometry: Straight bevel gear (conical pitch surface)

Use cases:

Right-angle power transmission

Gearboxes

CNC machining

3D printing

Mechanical design prototyping

⚙️ Generate your own bevel gear (any parameters):

https://meta-matic.com/en/3d/bevel-gear/

You can freely adjust:

Module

Number of teeth (gear & pinion)

Shaft angle

Face width

Bore diameter

and instantly download a STEP file.

Why this matters:

Most models here are static.

This system allows you to generate exactly what you need.

Note:

Bevel gears require precise parameter relationships to mesh correctly.

The geometry is based on conical pitch surfaces for intersecting shafts.
