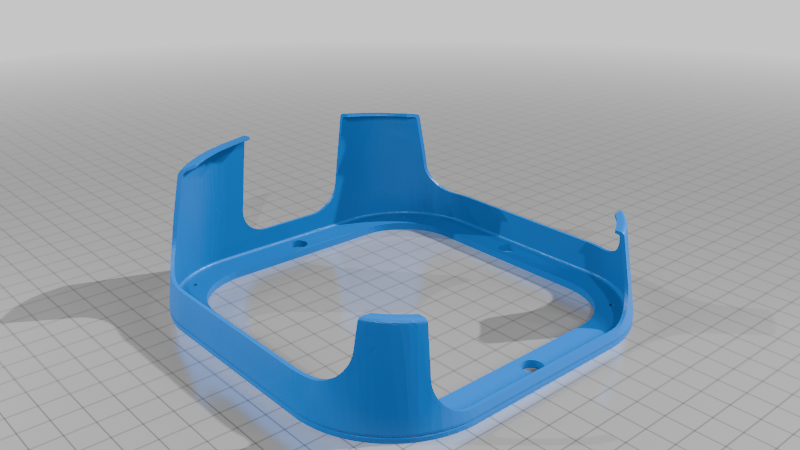

Eero 6E Pro Mount + Bases

Use Case: Rapid deployment of wirelessly daisy-chained eero 6E pro mesh routers to enable 6GHZ wireless backhaul across the distance of softball and baseball fields; ensure high bandwidth cameras have the network capacity and speed with minimal latency to stream multi-cam angles of sporting events.

Remix Changes to Original

• pilot holes for screw on bases
• 1.5mm base depth (accept M2.6mm x 6mm Screw)
• dowel openings for glue together base options

Bases

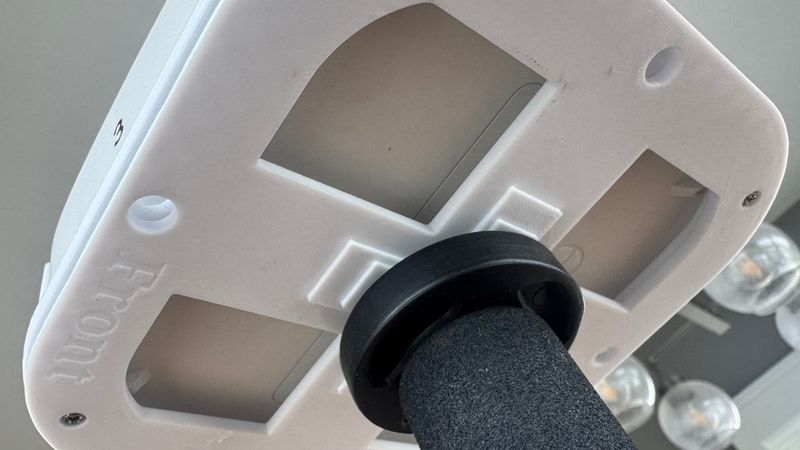

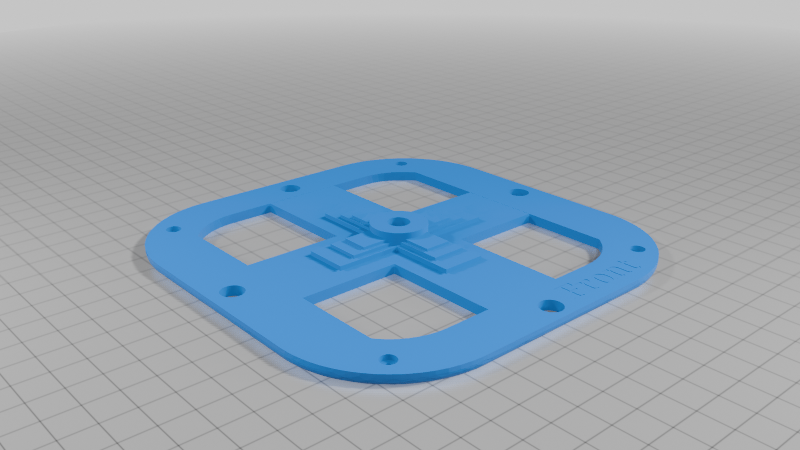

Tripod Base

• 4 x countersunk pilot holes for M2.6 x 6mm Screw
• "Front" label for alignment
• 7.8mm opening for heat pressed 1/4"-20 UNC female brass insert (camera/tripod mount)
• Cross member support

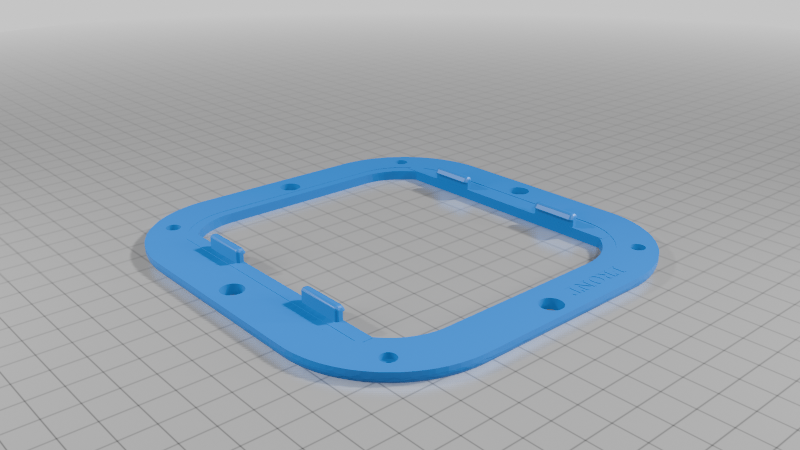

T-Mobile Arcadyan KVD21 Top of Modem Base

• 4 x locking tabs (snap into top of modem)
• 4 x countersunk pilot holes for M2.6 x 6mm Screw
• "Front" label for alignment
