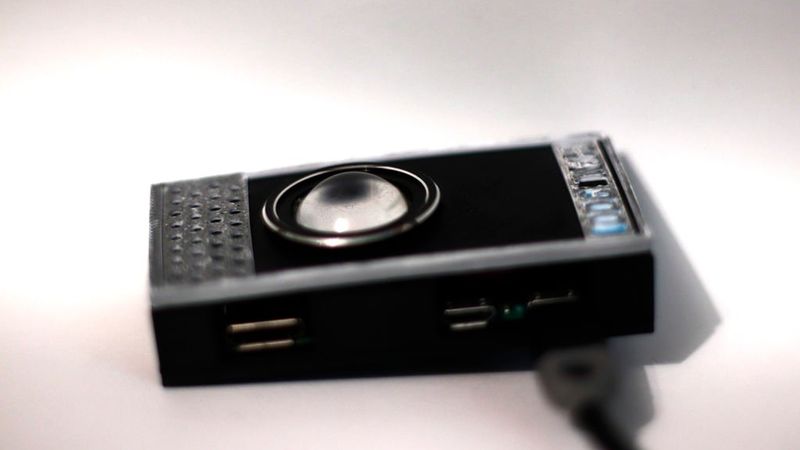

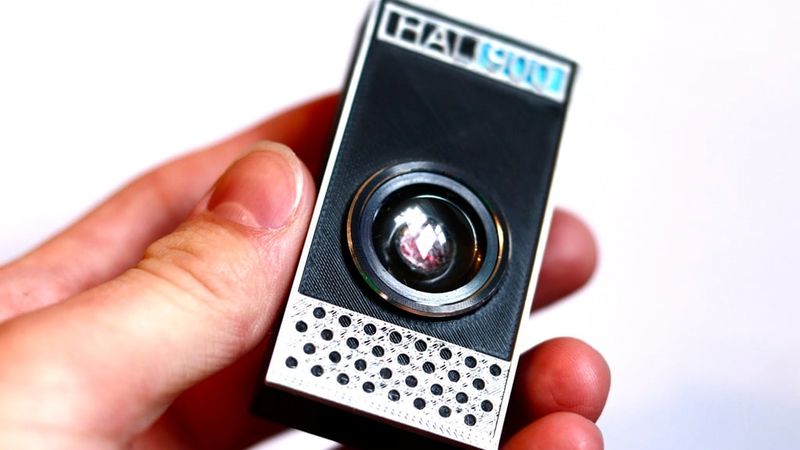

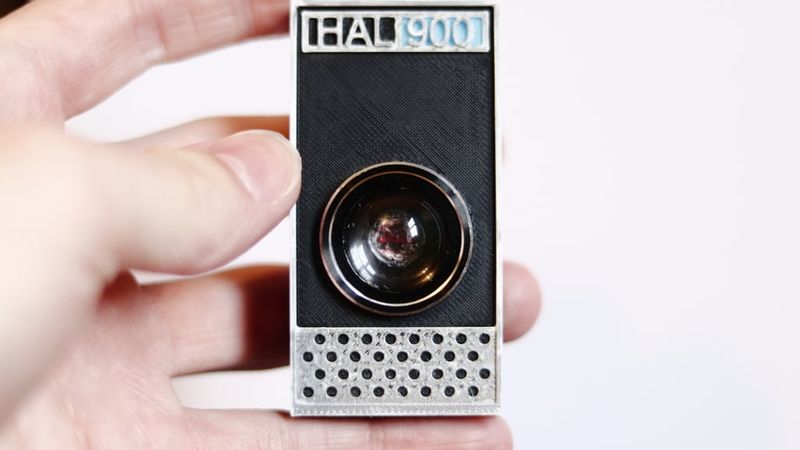

Raspberry Pi Zero 2 W hal 9000 case

leocherry1
leocherry1
11 Files
stl, step, 3mf Formats

Description

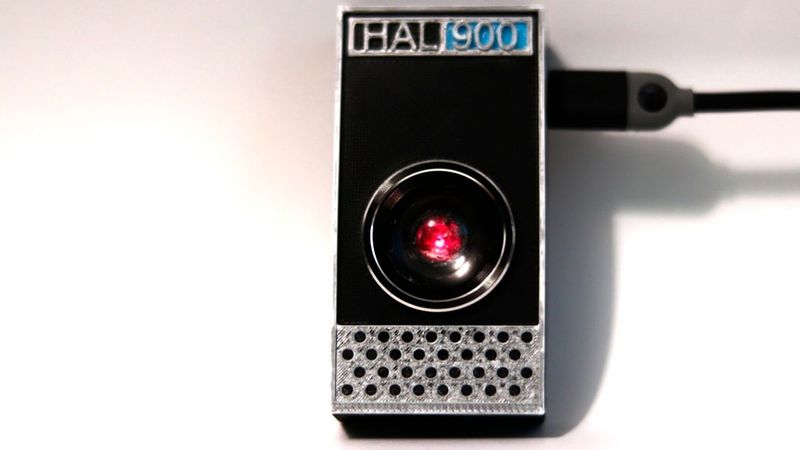

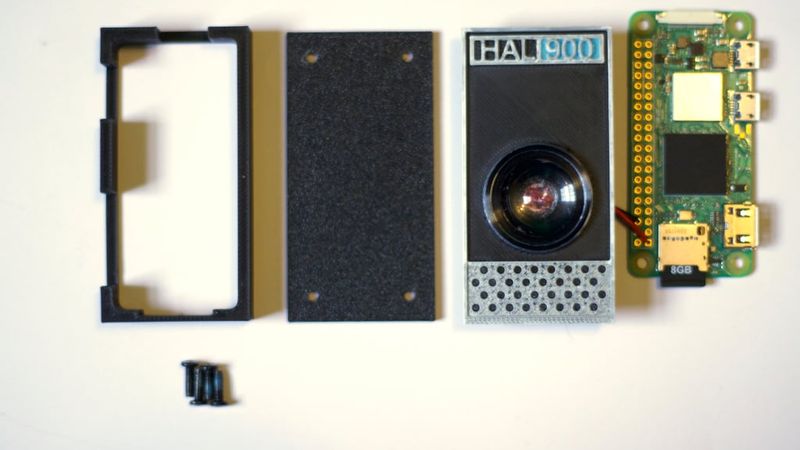

this is a hal 9000 case for the raspberry pi zero 2 w. to get the led to work i soldiered it to pin 1 and pin 6, i recommend putting a breadboard jumper wire so you can swap led's because i burned out several before getting it working. i used parts from an old flashlight but i found the amazon link to the lens and i made the 'lens cover' and 'lens backing' so only the lens is nessesary.

lens:

https://www.amazon.com/PATIKIL-Diameter-Condenser-Flashlight-Transparent/dp/B0BR5Q6FN8?crid=7UTO2YAMNFFA&dib=eyJ2IjoiMSJ9.2uX1OF6J-YPD2_GIBSImvz83Ae8QgIFWKtGsZOVDEPjEYklz1PJG4D05x4FdYXjBg58bSYMbsPf-I2rq19sBerflhOyrWw7vXBrv3vxjLo93C03hPgOX4mMFMK4T9sOe3qBjNAkO1LxMjzBGKGGSrtDH6P3KUygma37FpaJvipE2pwzk5Rh4Teou0YBPR64CiIwSRKgV-x1EaURz5xpS8j7OCQgzbDBnunVx2sA_z_w.yaVIjblYeKhZFMo1jAjKaFa8XvTImD2BW-Jte-lTJ-w&dib_tag=se&keywords=plastic%2Blens%2B20%2Bmm&qid=1775230241&sprefix=plastic%2Blens%2B20%2Bmm%2Caps%2C132&sr=8-4&th=1

Downloads

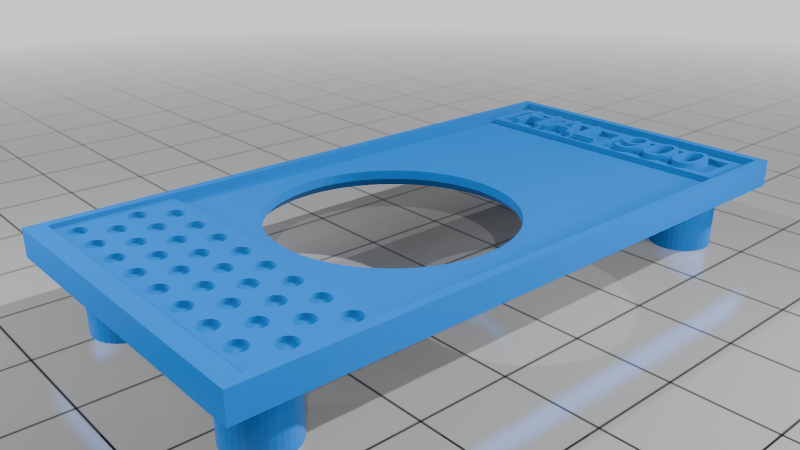

hal_top.stl
302.9 KB

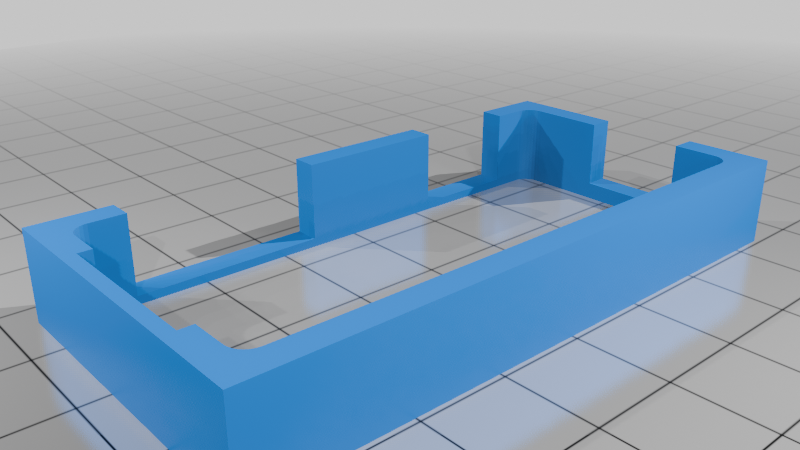

hal_mid.stl
10.2 KB

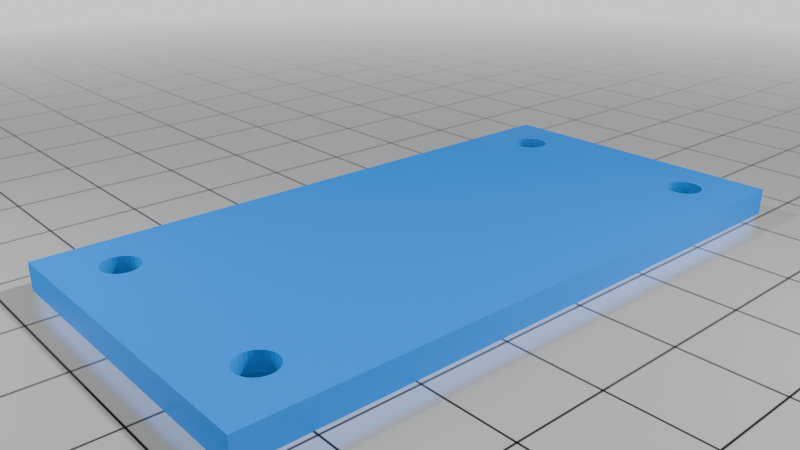

hal_low.stl
42.1 KB

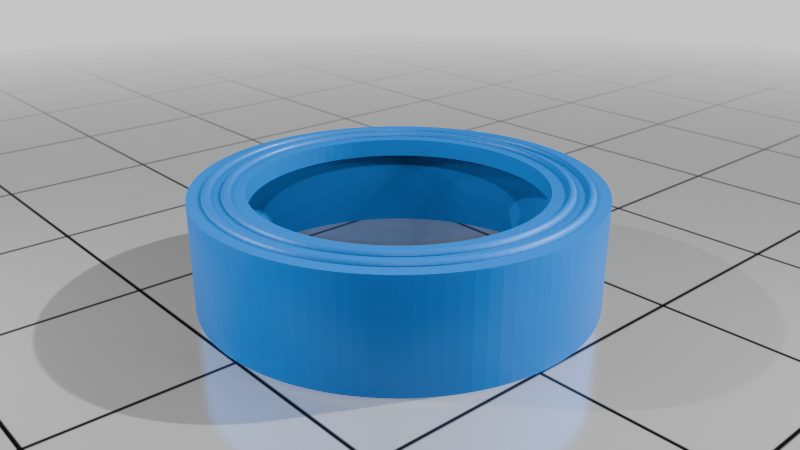

lens_cover.stl
306.8 KB

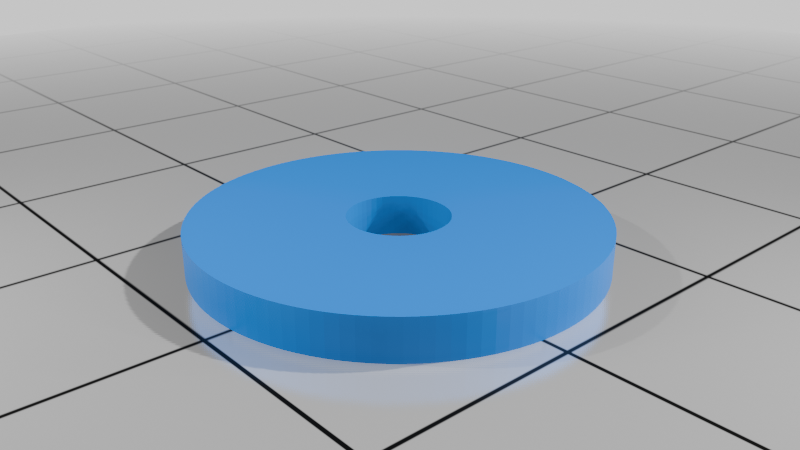

lens_backing.stl
30.9 KB
hal_top.step
432.1 KB
hal_mid.step
38.2 KB
hal_low.step
21.7 KB
lens_cover.step
13.0 KB
lens_backing.step
7.0 KB
hal_top_in_color.3mf
93.8 KB
