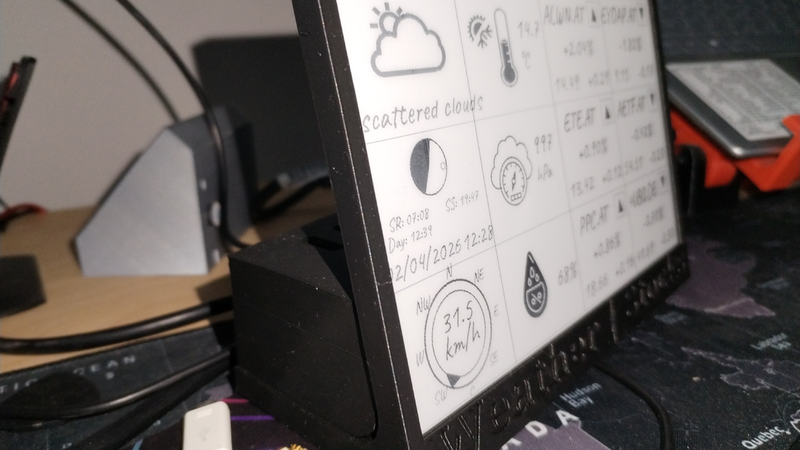

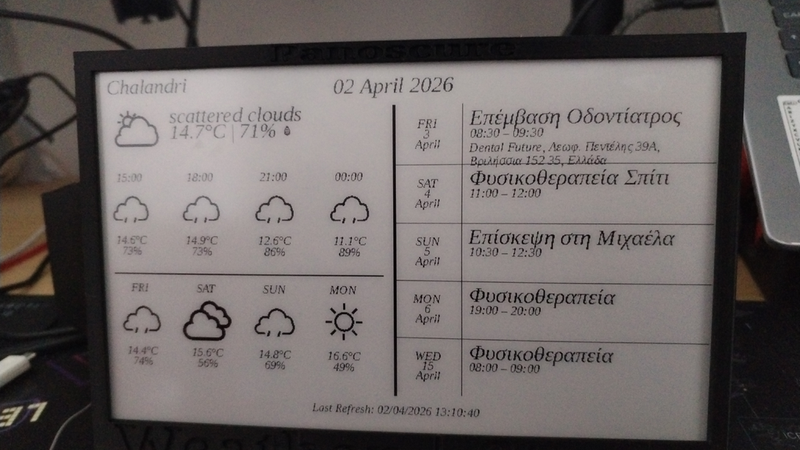

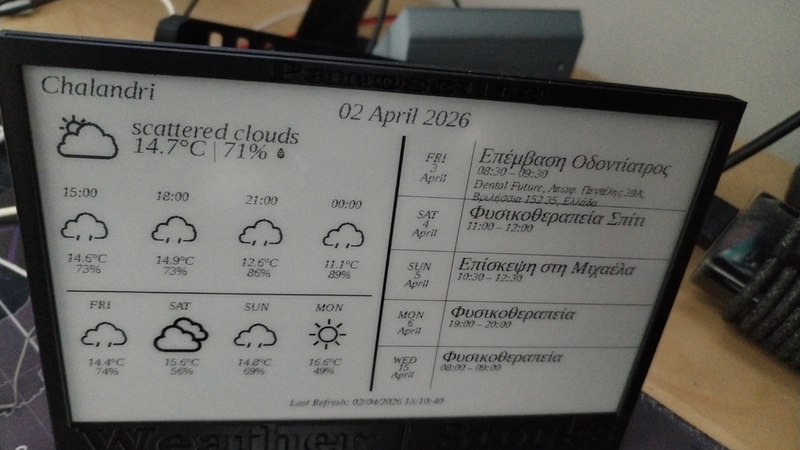

Enclosure for 7.5" E-Paper Display + Raspberry Pi Zero W

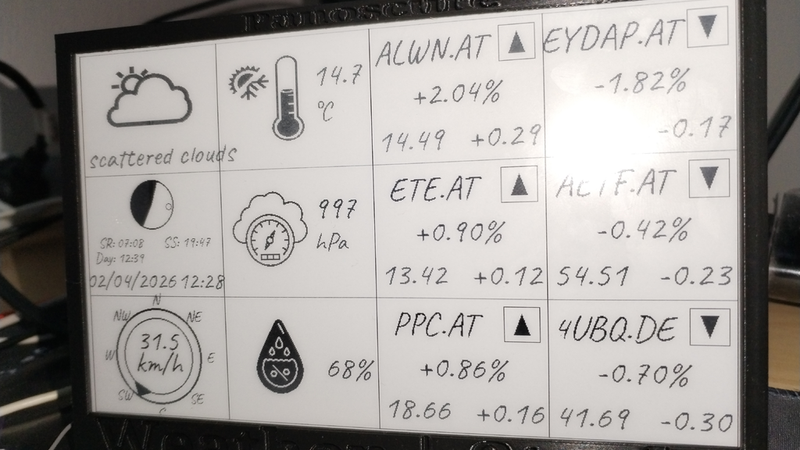

A slim, wall-mountable case that protects your DIY weather & stock dashboard.

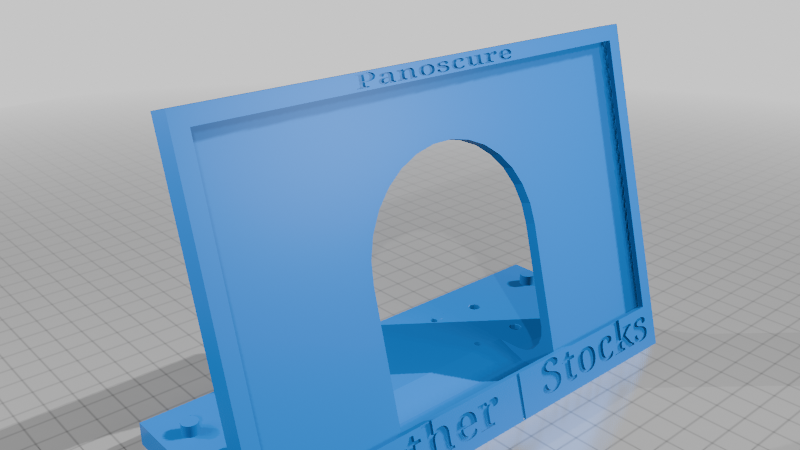

I designed this enclosure to perfectly fit a 7.5 inch Waveshare e‑Paper display (HAT version) and a Raspberry Pi Zero W (or Zero 2 W). The case leaves the microUSB power port accessible and allows the display to be seen through a clean front cutout. There’s also space for the GPIO header and the flat ribbon cable.

Features

Snug fit – no rattling or loose parts.

Cutouts for:

MicroUSB power (on the Pi Zero).

Optional access to the display’s 4‑pin header (for manual reset).

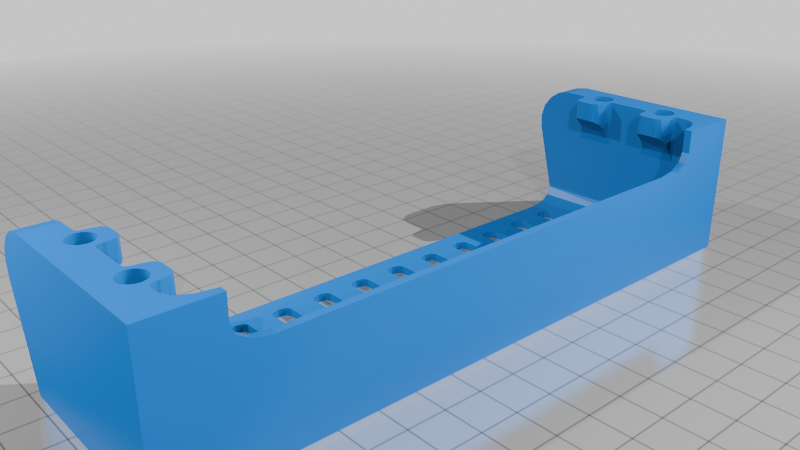

Cooling vents (small slots on the back).

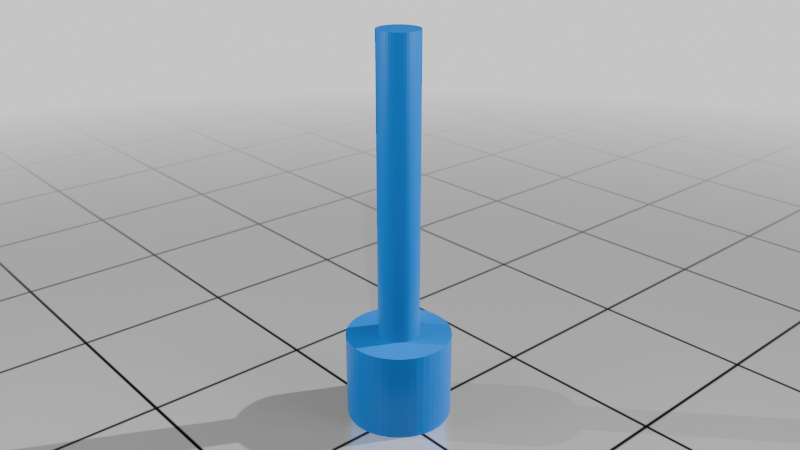

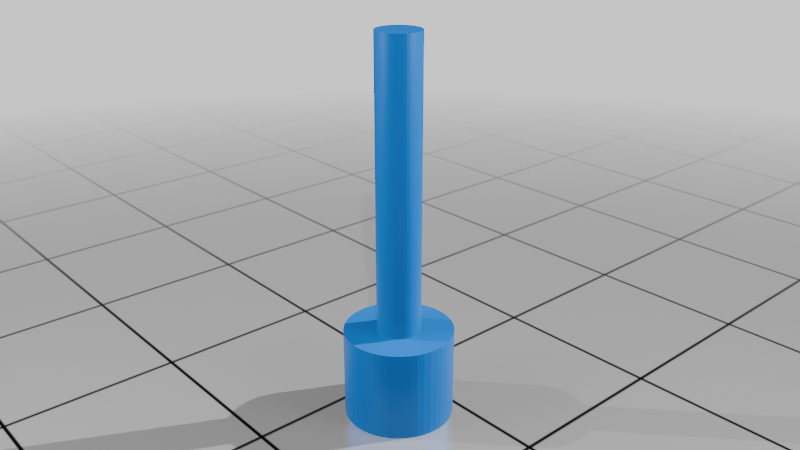

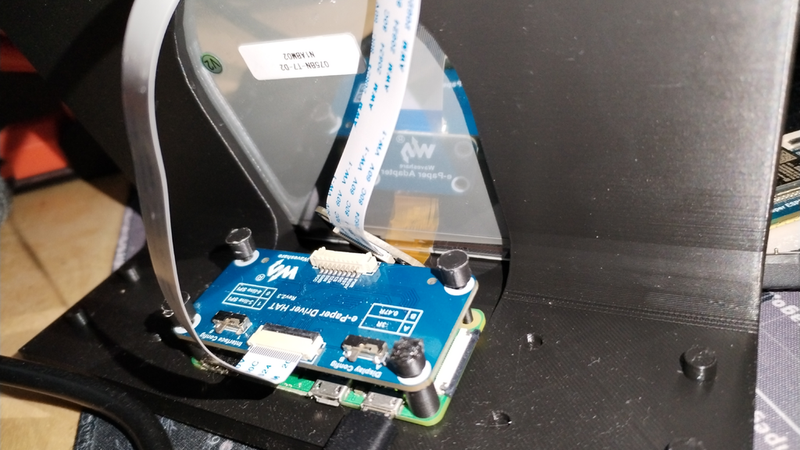

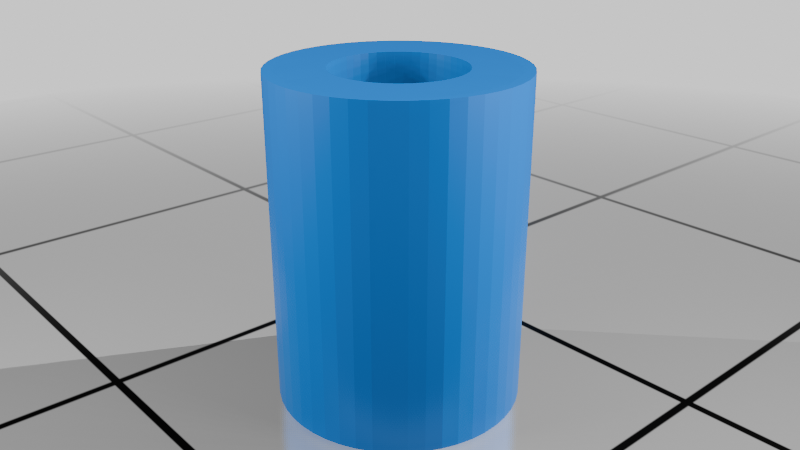

Easy assembly – the display and Pi are held by internal standoffs (no glue needed).

Hardware compatibility

Display: 7.5 inch E‑Paper HAT (Waveshare, 800×480) – Amazon link

Raspberry Pi: Pi Zero W or Pi Zero 2 W (with soldered GPIO header)

Connector: 40‑pin female header (already on the display HAT – no extra parts needed)

Print instructions

Setting Value

Material PLA or PETG (PLA works fine for indoor use)

Layer height 0.2 mm

Infill 20% (gyroid or grid)

Supports Yes for main body

Brim Not needed if your bed adhesion is good

Full Project: https://github.com/panoscure/e-paper-Raspberry-stocks-weather/
