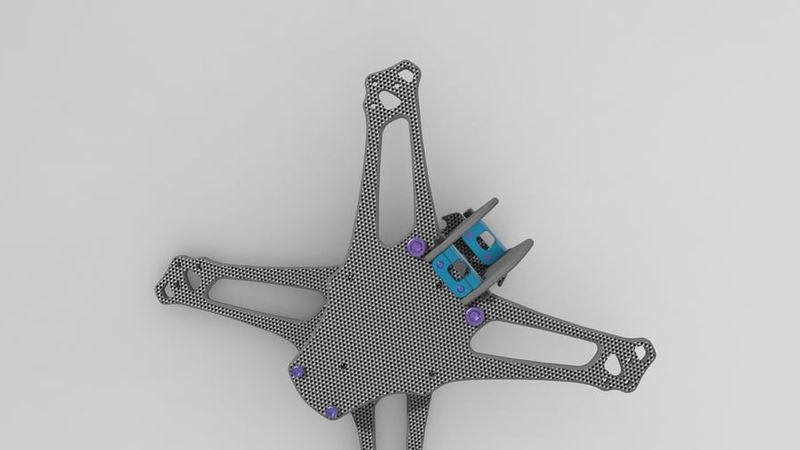

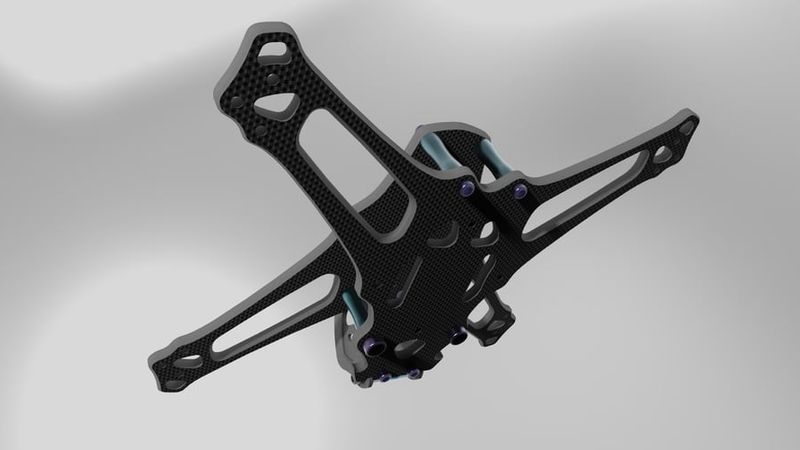

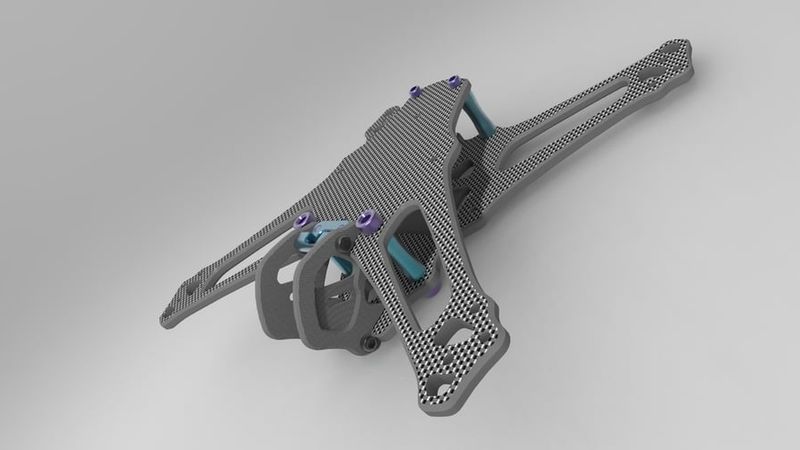

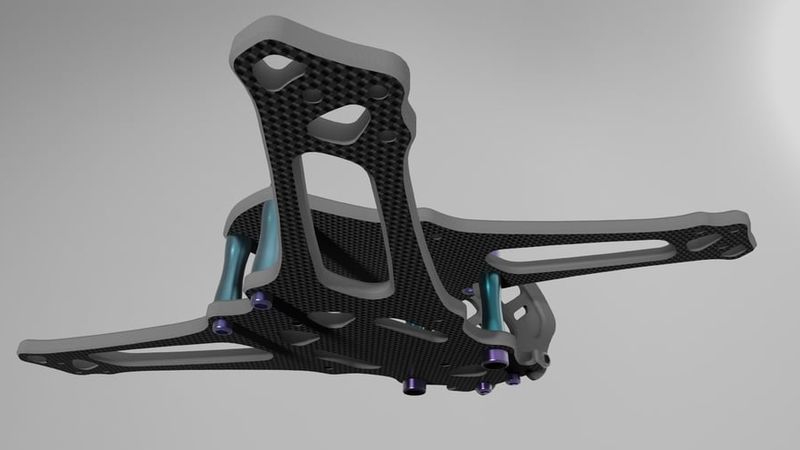

Chaser 3 Lite 3-inch FPV Drone Frameset

WARNING:The design of the Vertical converter haven't tested yet.

The Chaser3 Lite might not the best FPV frameset you've ever seen , but may be one of the ODDEST one!

The frame is designed for those who want to make their drones more SPECIAL.

With enhanced protection of electronic components (including motors,AIOs,Cameras) ,the frame is absolutely suitable for daily practice flight.

Basic informations:

Basic structure:[email protected]/Wide X/Support up to 3inch propellers

Flight tower support:25.5mm M2 AIO(Maximum height@14mm)

Motor Support:M2 9mm 4Holes

Camera support:Maximum Width@14mm (Analog/O4Lite with single hole modification kits)

Weight:about 35 grams

Other components you need to built the frame:

Studs:

M2 14mm x2

M3 14mm

Screws:

M2 6mm x12

M3 6mm x4

Converter:

14mm converter x2

Included in the files.Recommend to make it with CNC.(Remenber to tap the M2 holes)

Hope you'll like it:D
