SOLID MODELRobotic Arms & Automation29-Mar-2026

ExoSkeleton XT Battery pack - By Skeleton Army

SkeletonArmy23644
SkeletonArmy23644
6 Files
stl, step Formats

Description

ExoSkeleton XT is a system designed to improve the experience of using batteries in FIRST's FTC Robotics League.

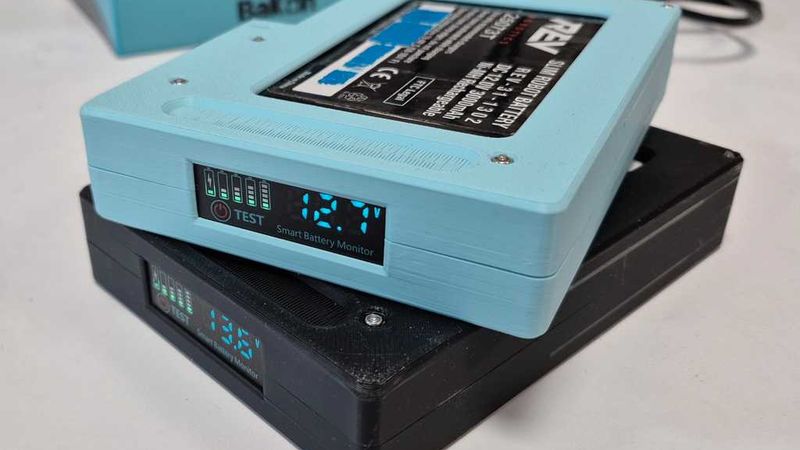

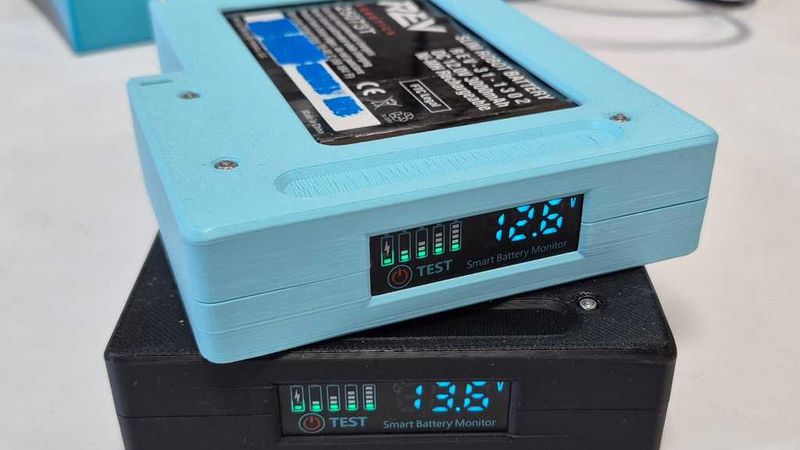

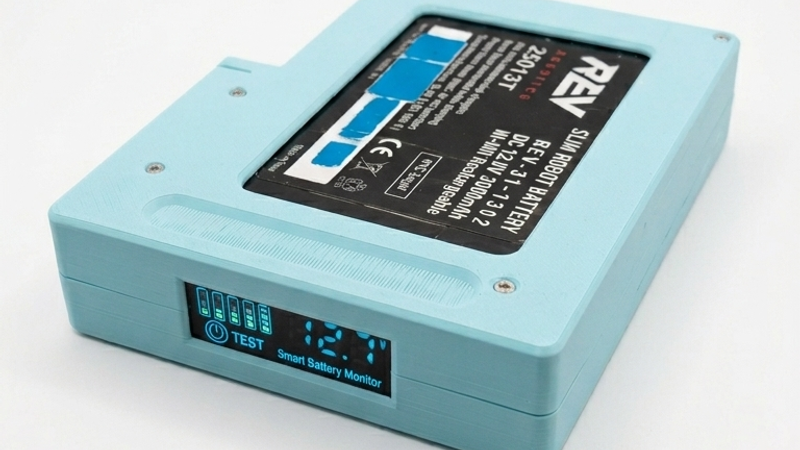

The system includes a hard pack for the battery that allows quick connection and removal, as well as includes a voltage meter that shows battery’s status at all times, without the need for an additional device.

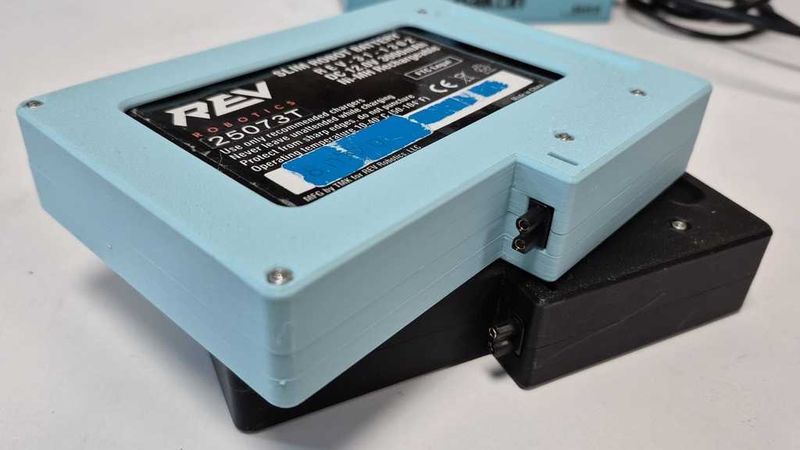

The battery pack goes into the dock installed in the robot, and thus connects to the robot easily, without the need for connecting wires.

advantages of the solution:

Hard pack that protects the battery and wires, which are nested inside the case and are not vulnerable to damage or breakage

Easy connection and removal, even with one hand

Battery status display at any given moment, which allows better management of your batteries

Instructions:

English - https://drive.google.com/file/d/1Yf3X6h2efgDxAOd8tXMwm9fyBrd3Enb9/view

Hebrew - https://drive.google.com/file/d/1XC1xUtMlFPU_271jF_W68Xi_zDUIsDP-/view

More info in our YouTube video: https://youtu.be/-_e1Wc2y-nY

Skeleton Army #23644

Downloads

Battery_Case_-_Part_A_V01.STL
440.8 KB
Battery_Case_-_Part_B_V01.STL
398.8 KB
Battery_Dock_-_Body_V01.STL
175.7 KB
Battery_Dock_-_Lid_V01.STL
38.6 KB
Battery_dock_V01.STEP
384.2 KB
Battery_dock_V01_with_fixture.STEP
344.5 KB
