DJI O4 Pro camera mount for Raxus 2.5 cinewhoop

SodiumFree
SodiumFree
2 Files
stl Format

Description

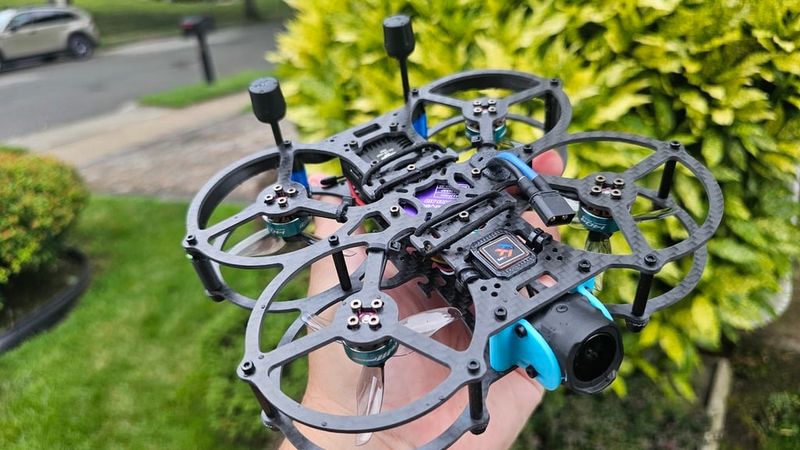

These are adjustable camera plates for the Raxus 2.5" cinewhoop for the DJI O4 and O4 Pro cameras.

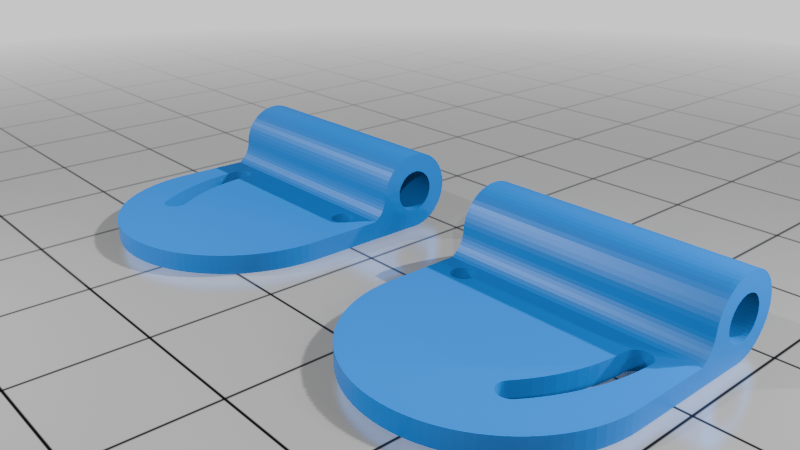

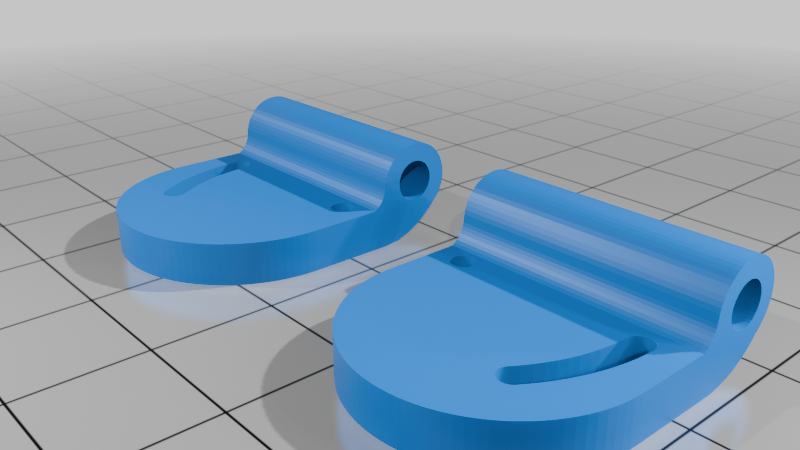

The V2 version of the mount is thinner and lighter, but does "pull in towards the camera when you tighten them down. The V3 version is almost the same, but each side is 2mm thicker to better space the camera. Both have been super durable and had no problems with the hardware pulling out of either mount.

I printed them out with a P1S using Sainsmart 95A TPU and have had good results.

This will probably also work on some of the similar frames that use M2 hardware and standoffs.

Downloads

Raxus_v3_O4_pro_mount.stl
135.0 KB
Raxus_v2_O4_Pro_Mount.stl
135.0 KB
