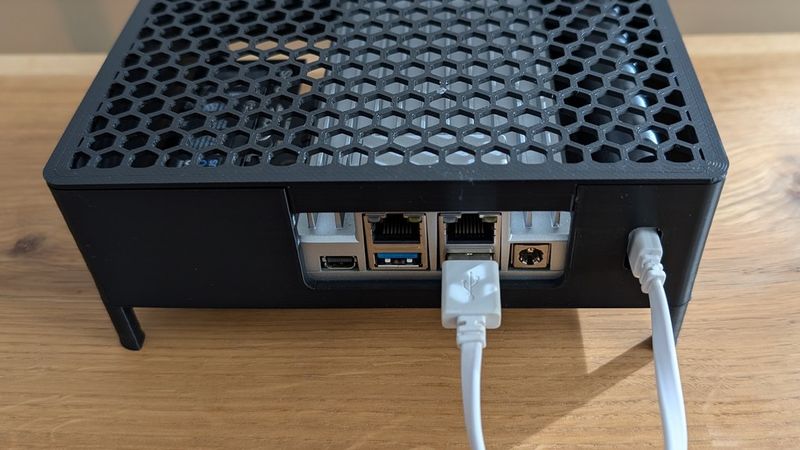

Zimaboard 2 Case with a breathable design

Zimaboard 2 Case with a breathable design

Features

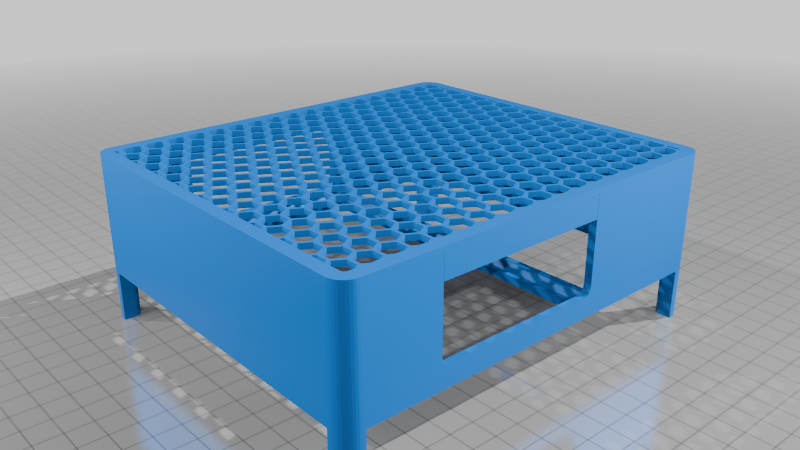

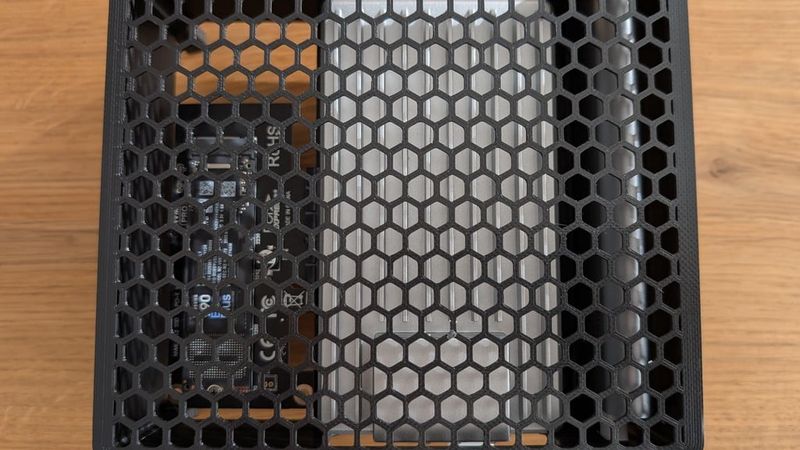

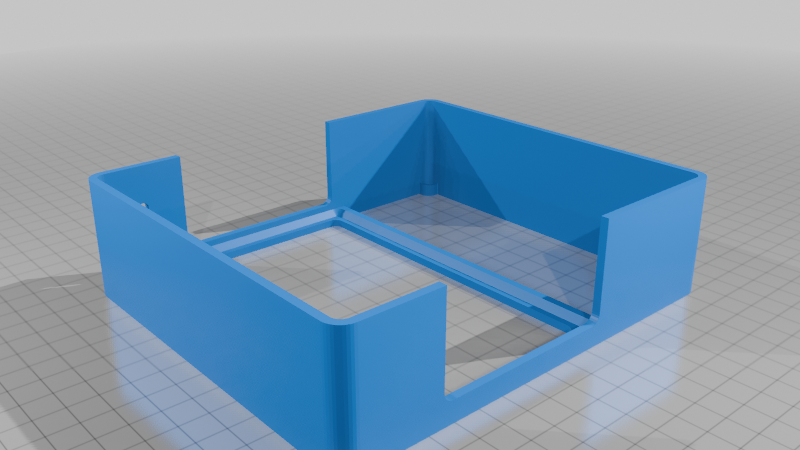

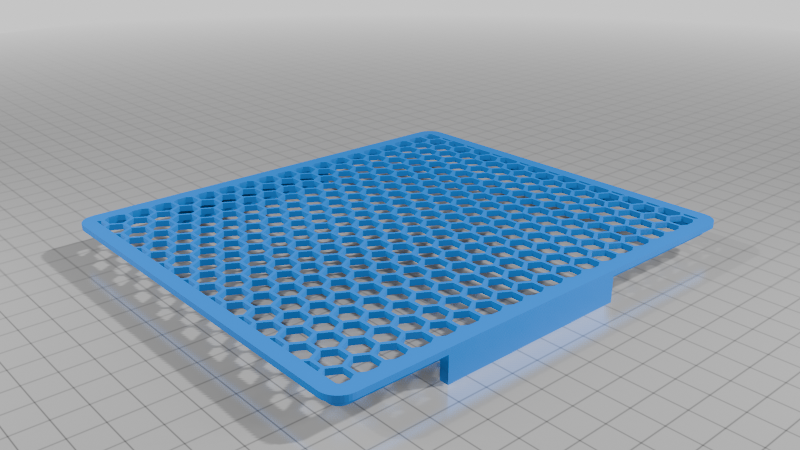

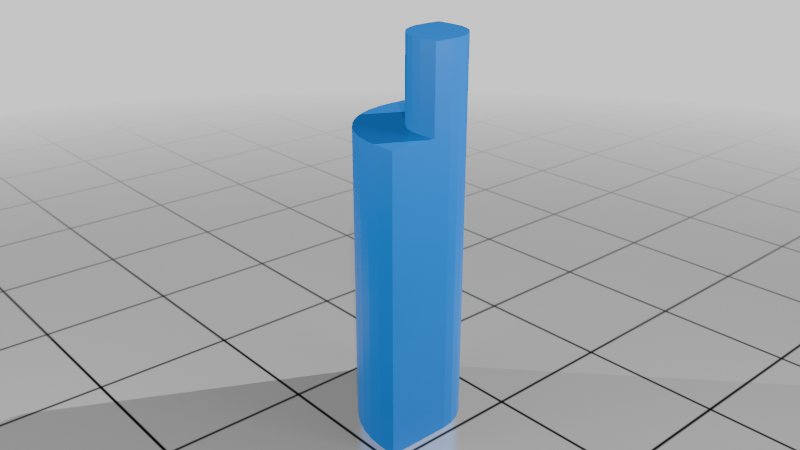

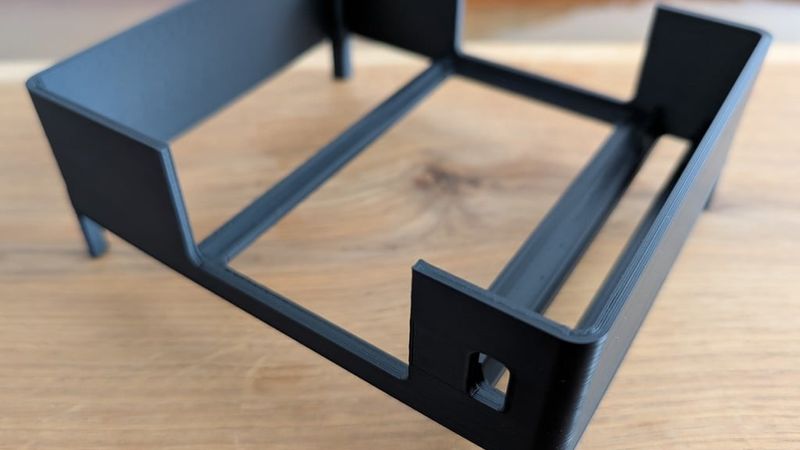

• Easy assembly of the individual printed parts (main housing, top cover, 4 feet).

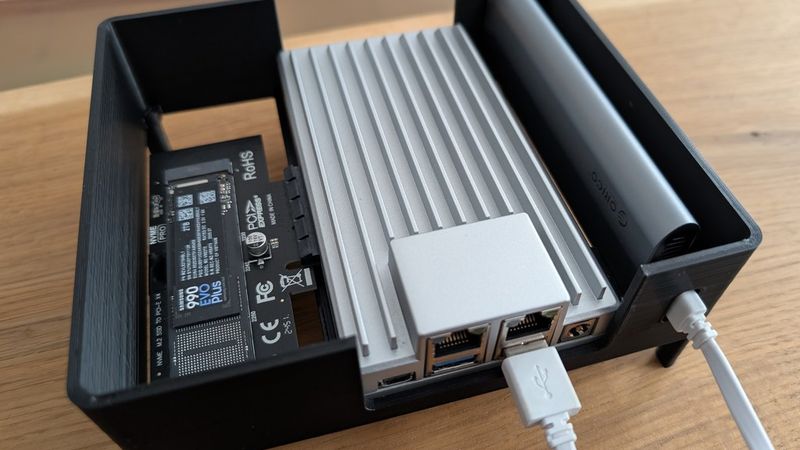

• Designed to fit a PCIe adapter and an external M.2 enclosure.

Required Hardware

• Zimaboard 2 (https://shop.zimaspace.com/de/products/zimaboard2-single-board-server)
• SSD Enclosure: NVMe/SATA SSD Enclosure (e.g. ORICO M.2 NVMe SATA SSD Enclosure https://www.amazon.com/-/en/ORICO-Enclosure-Tool-Free-Protective-Aluminium-gray/dp/B0CXXKNZTC or https://aliexpress.com/item/1005006859590660.html)
• PCIe Adapter: NVME SSD to PCIe Adapter Card (e.g. JEYI M.2 NVME SSD to PCIE Adapter Card https://aliexpress.com/item/1005005924920287.html)

Print Settings & Assembly

• Material: PETG or ABS recommended (for better heat resistance), but PLA works as well.
• Layer Height: 0.3 mm for the main housing and top cover; 0.2 mm for the 4 feet.
• Supports: No
• Infill: 10%
