Miniware DS212 Oscilloscope Encoder Alternative

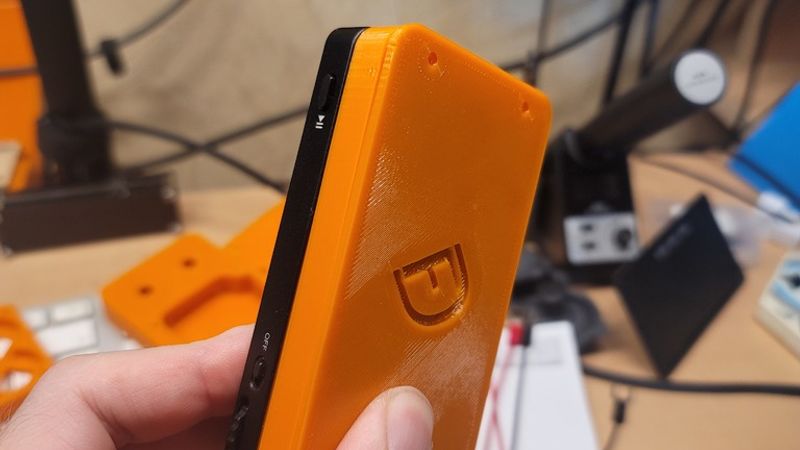

This project is a custom enclosure redesign for the Miniware DS212 oscilloscope, focused on improving both user interaction and battery life.

The stock DS212 has limited control ergonomics and relatively small battery capacity. This mod addresses both issues by integrating a rotary encoder for more precise input control and redesigning the internal layout to accommodate a larger battery.

🔧 Key features:

* Rotary encoder support (replaces or complements original controls)

* Increased battery capacity for extended runtime

* Optimized internal layout for better component fitment

* Improved ergonomics and usability

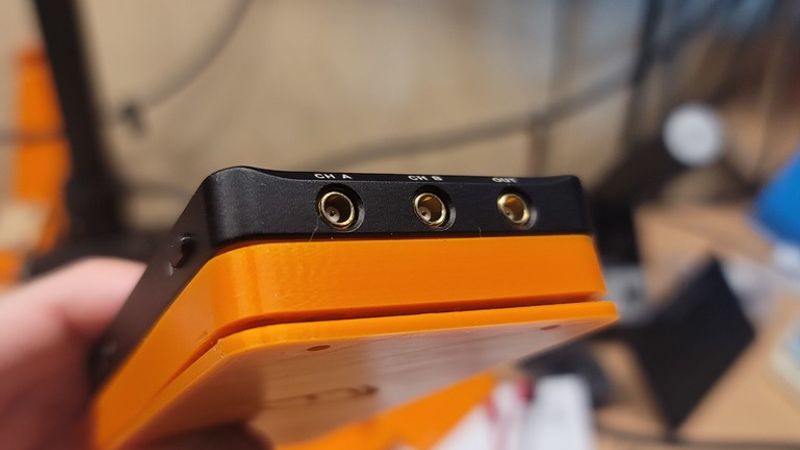

* Maintains overall compact form factor

⚙️ Design goals:

* Keep the device portable while significantly improving usability

* Avoid complex modifications to the original electronics

* Make the enclosure 3D-print friendly

* Ensure accessibility for DIY enthusiasts

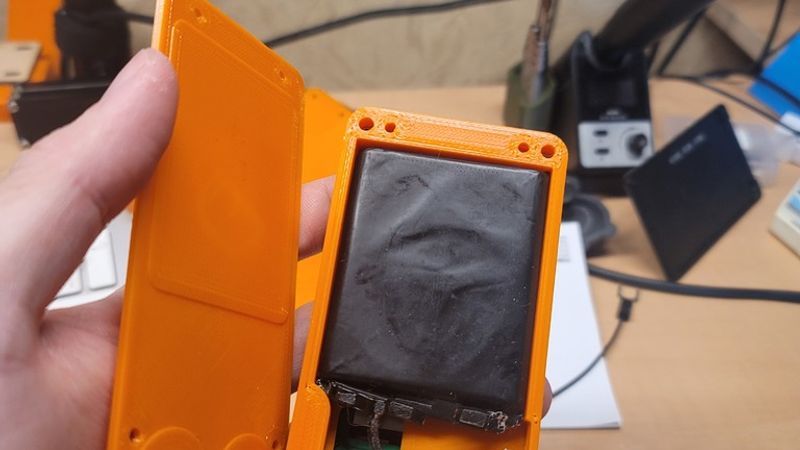

🔋 Battery upgrade:

The enclosure provides additional space for a higher-capacity Li-ion cell, significantly increasing operating time compared to the stock configuration. Exact battery choice may vary depending on availability and user preference.

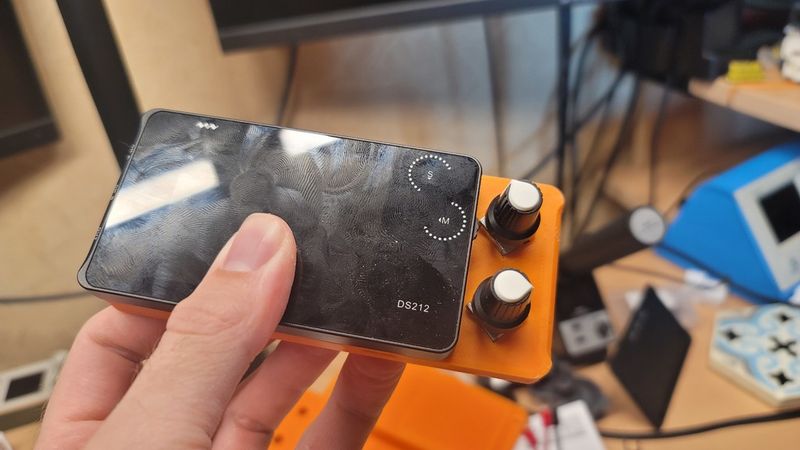

🎛 I value my sanity (and my hair), so this design completely eliminates the problematic input module and replaces it with a reliable rotary encoder.

With the new encoder, input becomes precise, consistent, and actually enjoyable to use. No more accidental jumps or fighting the interface — the system responds exactly as expected.

Depending on firmware support, the encoder can be used for menu navigation, scaling, and parameter adjustment.

.

🧩 Assembly:

* Some disassembly of the original DS212 is required

* Minor soldering may be needed for encoder integration

* No irreversible modifications are required (depending on implementation)

⚠️ Notes:

* This is a hardware mod intended for experienced users

* Battery modifications should be done with proper safety precautions

📦 What’s included:

* STL files for the enclosure

* Mounting features for encoder and battery

If you build or improve this design, feel free to share your version!
