Raspberry Pi 5 with Geekworm X1001 Rack Mount for 1U Decora Bracket

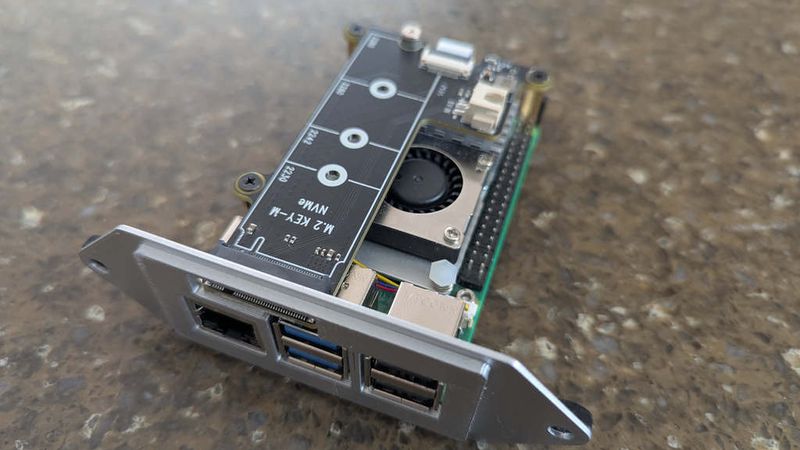

This is a new face plate for the Raspberry Pi Rack Mount for 1U Decora Bracket series, designed to accommodate a Raspberry Pi 5 with the Geekworm X1001 PCIe to M.2 Key-M NVMe HAT, https://www.amazon.com/dp/B0CPPGGDQT, installed.

NVMe drives aren't cheap right now, so this may be a niche use case. If you have an older M.2 drive lying around, pairing it with the X1001 is a great way to put it to use on a Pi 5.

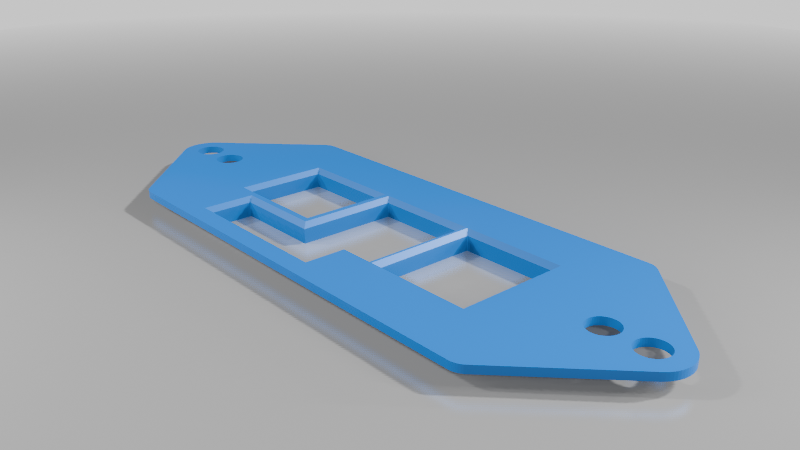

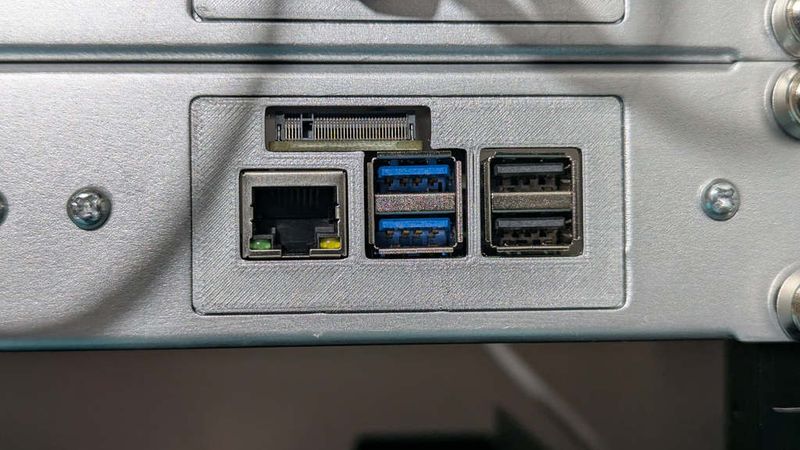

The X1001 extends far enough toward the port side of the Pi that the original face plate doesn't leave enough clearance. It really only needs an extra 1-2mm of room, but this plate adds a separate slot to accommodate the PCB edge. I only had one sample to work with, so I extended the slot all the way through the plate rather than try to dial in the minimum depth.

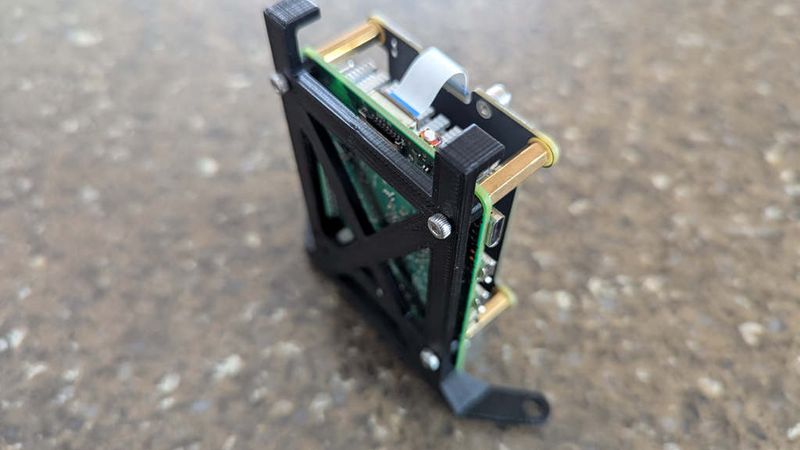

The Pi and HAT assembly mounts to the existing base from the original thing or the remix base using three M2.5 bolts threaded up from the bottom of the base into the standoffs that ship with the Geekworm adapter. I used M2.5 x 16mm, which are a bit long but work fine. I first tried M2.5 x 10mm and found they were too short.

This is part of a series - see the original at https://www.thingiverse.com/thing:4167265.
