33mm Laser Mount for CNC3018 (52mm Spindle)

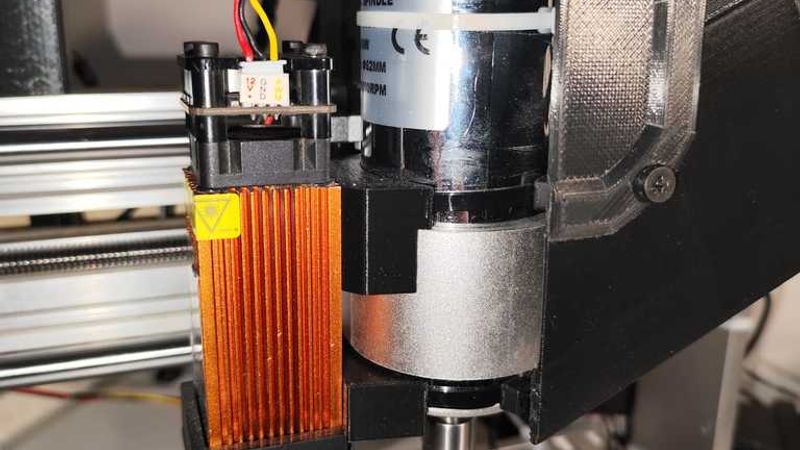

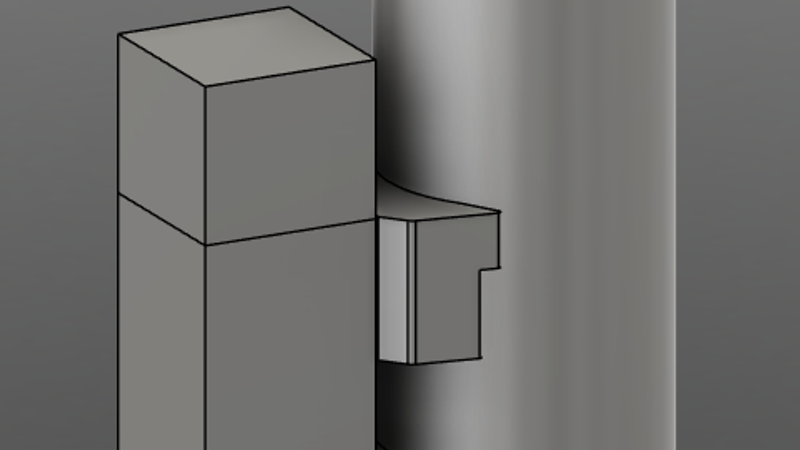

Mount designed to install a 33mm × 33mm laser module onto a 52mm diameter spindle motor of a CNC3018.

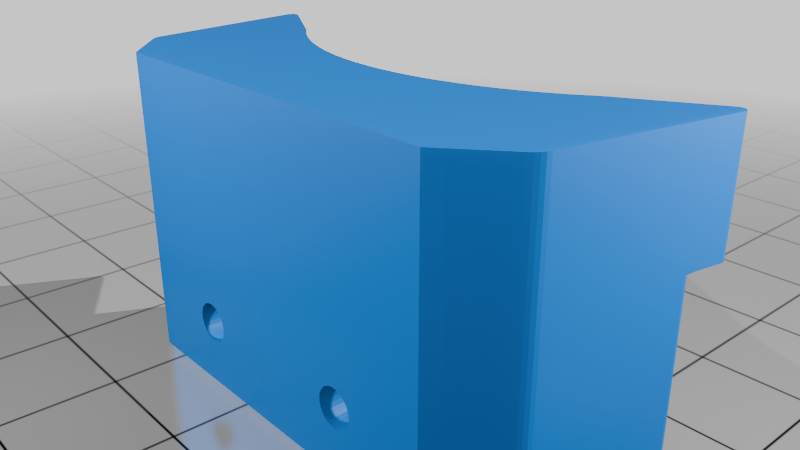

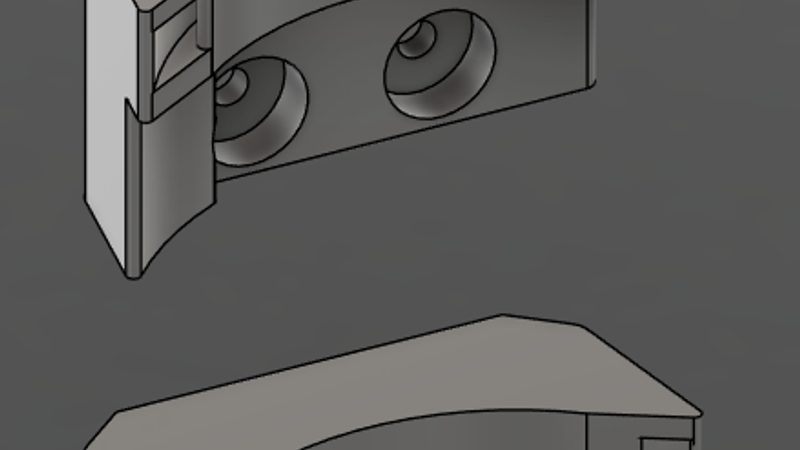

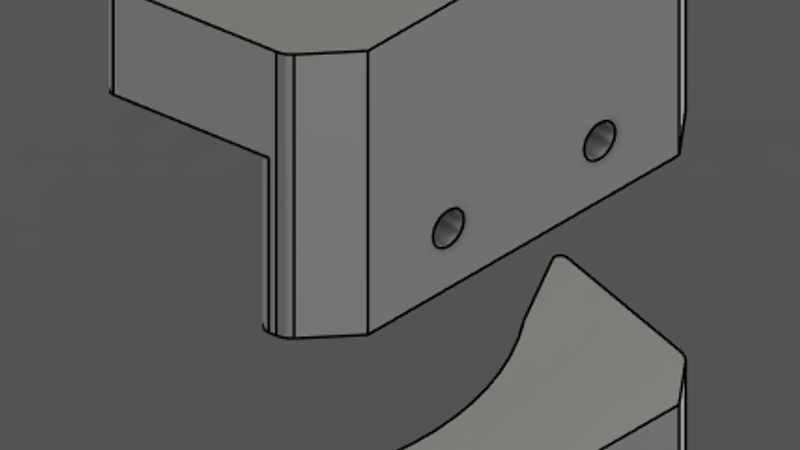

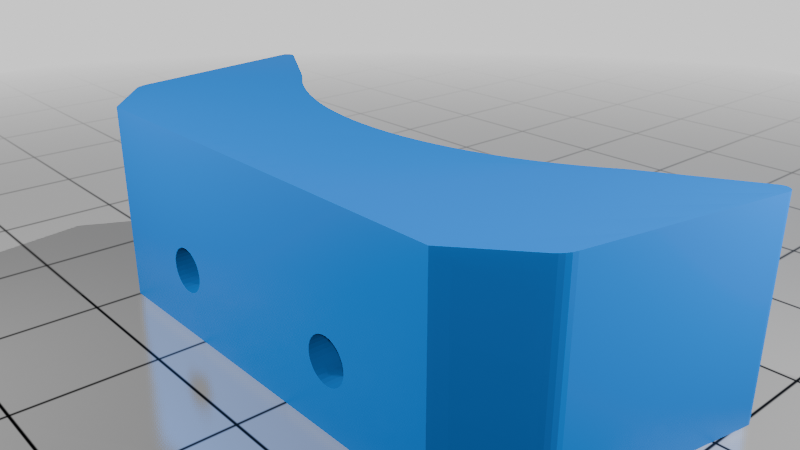

The supports are secured to the spindle using 5mm wide nylon zip ties (length >250mm), providing strong and vibration-resistant fastening. The laser module is fixed to the supports with 4x M3 screws (10mm length) for stable alignment.

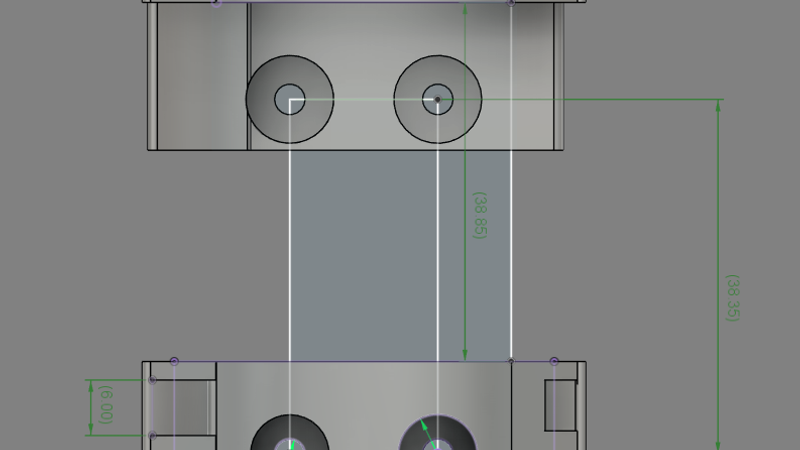

To ensure compatibility, compare your laser module dimensions with the measurements shown in the provided image.

If you’re interested in other CNC mods, check out my profile.

Links

• Pan head screws: Aliexpress Link
• 5mm (4.6) zip ties Aliexpress Link
