CR 10 / Ender 3 Direct drive + Filament sensor Assembly

fresh_lobster
fresh_lobster
2 Files
stl Format

Description

I took the base model from https://www.thingiverse.com/thing:3589452

and added the following modifications:

  • Slightly widened channel for X axis chassis
  • Hole for screw adjustment of drive feed spring
  • Removal of material to allow space for bed level sensor mount
  • Raised inline run out sensor mount with holes for M4 screws

These modifications were made based on hand fitting that I did after printing the original design by filing and drilling it. The runout sensor mount was added because I wanted it to be a solid part of the assembly, but it can be removed if you want, I just put it in for my use case.

Downloads

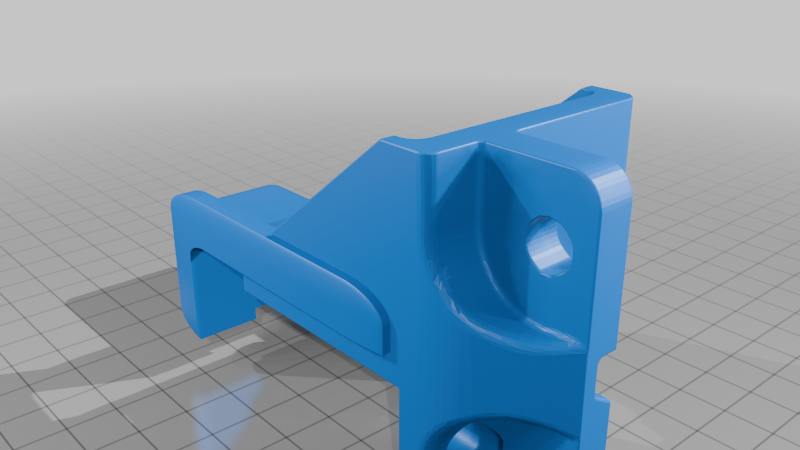

direct_drive_F_sensor_E_body.stl
1.4 MB

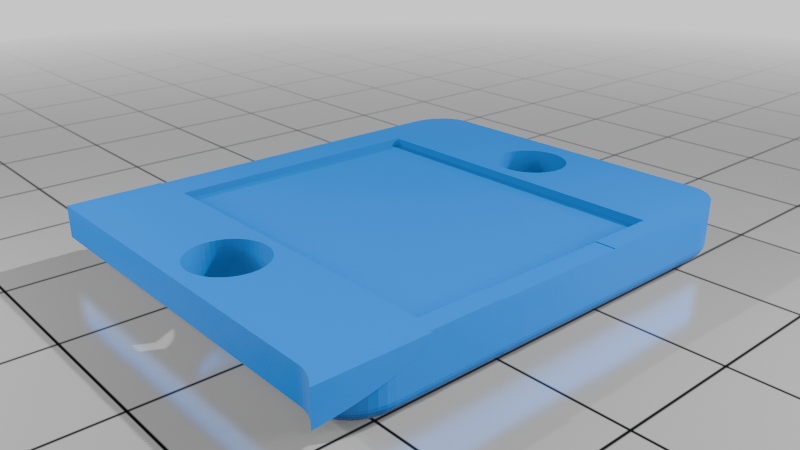

direct_drive_F_sensor_cover_fixed.stl
84.1 KB
