FNIRSI 2D15P Portable Oscilloscope Wall Mount
Description

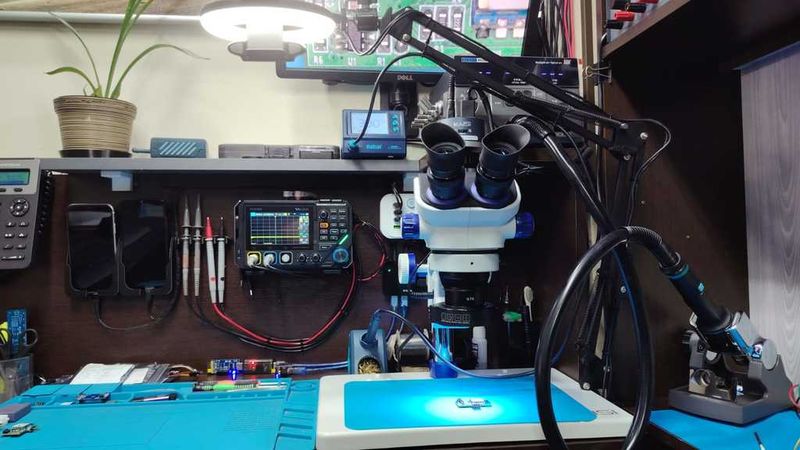

This is a wall-mounting bracket (suspended and fixed from behind) for the wonderful FNIRSI 2D15P benchtop oscilloscope.

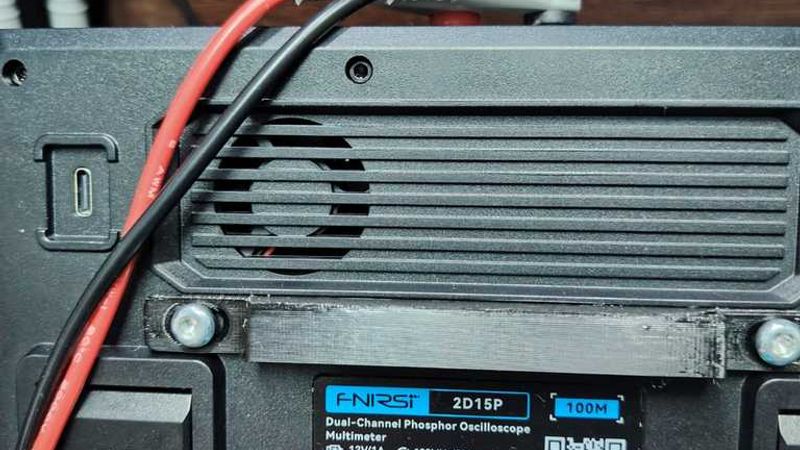

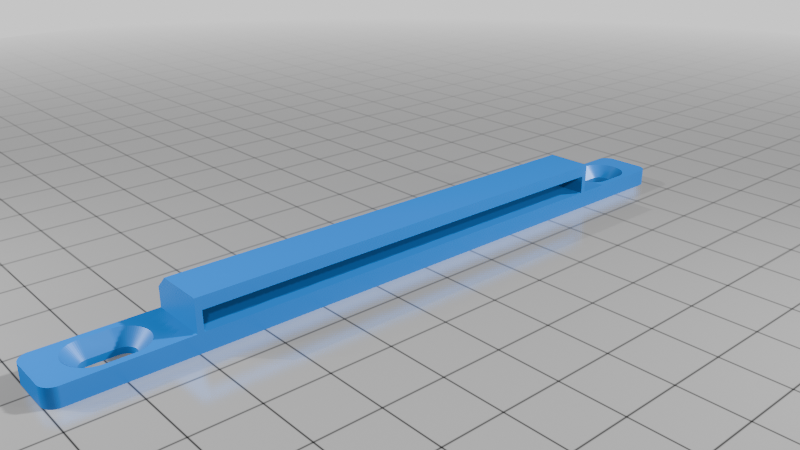

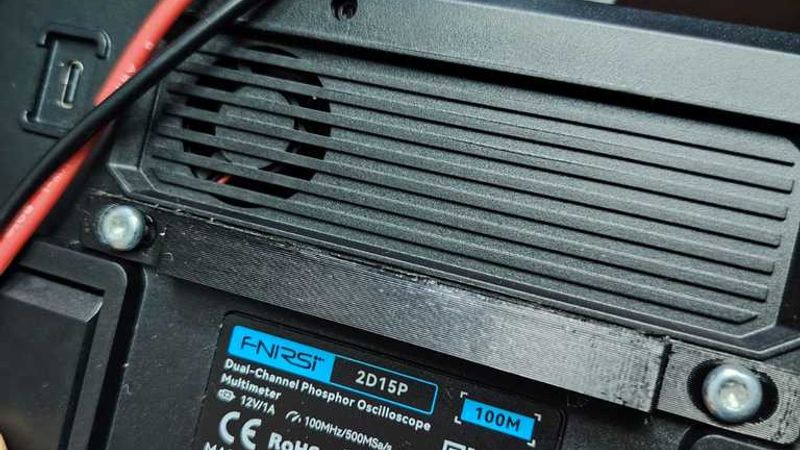

Since this device has two holes for mounting on an overhead bracket, I designed a very simple two-piece assembly: one piece to attach to the oscilloscope with screws, and another to attach to the wall, also using screws.
The advantage of this stand is that the oscilloscope is held in place simply by gravity, so to remove it at any time you just need to move it slightly upwards. Re-attaching it is also very easy, so it remains versatile.

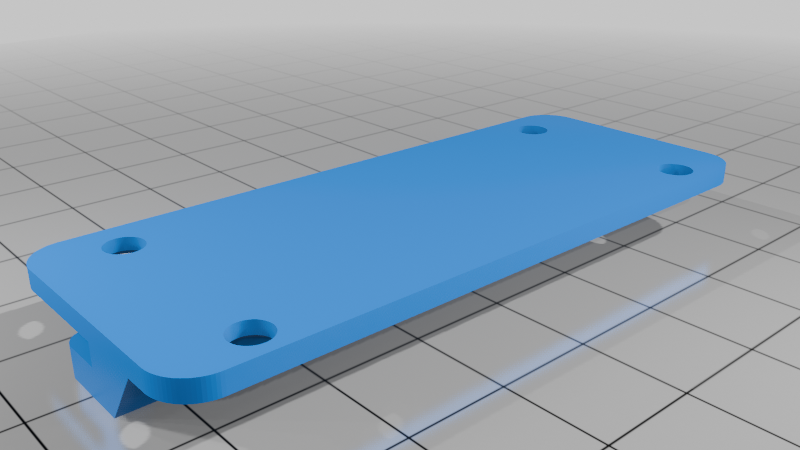

* The wall mount has 4 holes for fixing it, but only use the two bottom holes, as the top ones make it difficult to fit the oscilloscope.

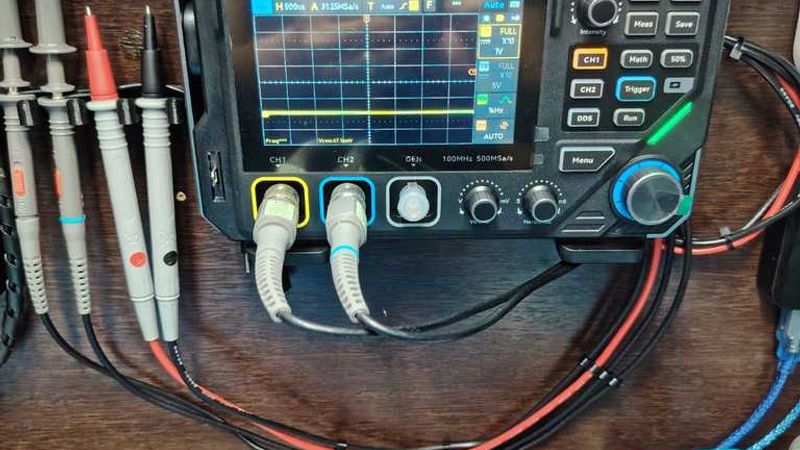

The probe holder I used was this one, and it worked perfectly for the two oscilloscope probes plus the two multimeter probes from this device:
