45° Support Bracket for 3030 Aluminum Profiles

45° Support Bracket for 3030 Aluminum Profiles (Z–Y Axis Reinforcement)

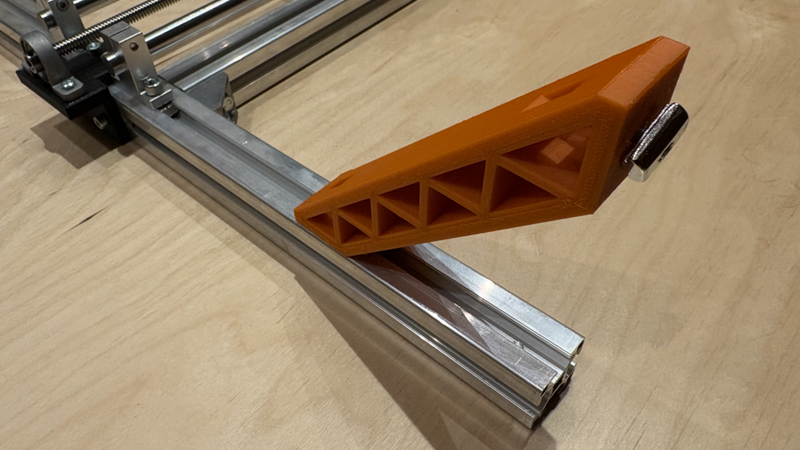

I designed this 45° support bracket for 3030 aluminum extrusion to reinforce the joint between two 90° profiles.

It helps reduce flex and better withstand spindle weight on the Z axis in small CNC / router style frames.

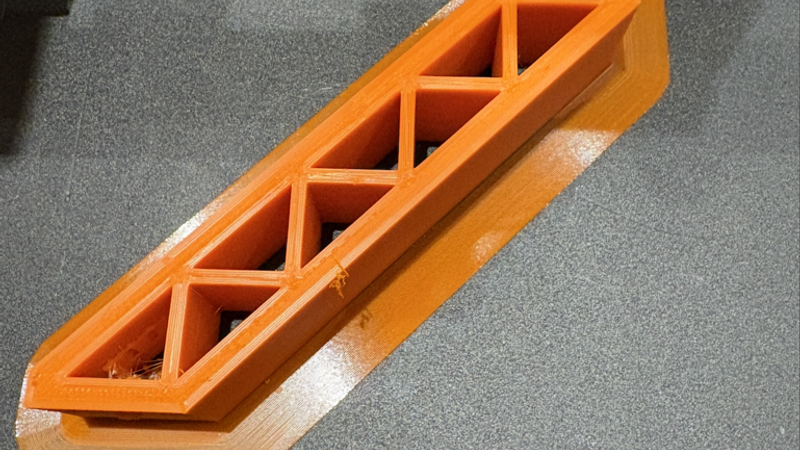

The bracket is lightweight with internal rib structure but still stiff enough for structural support.

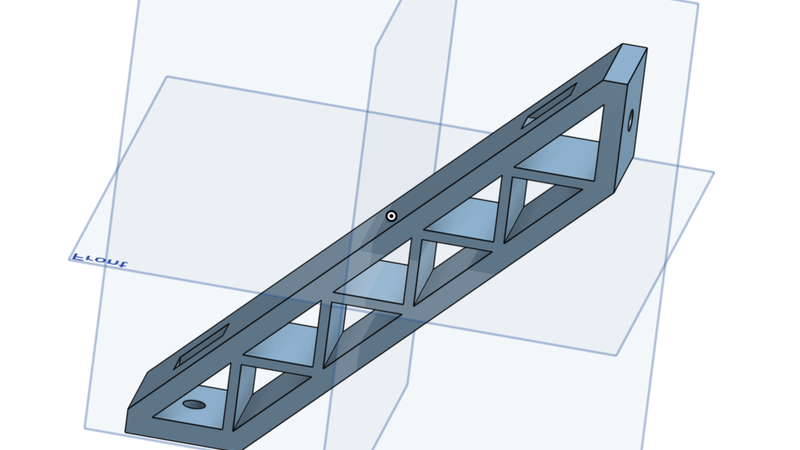

Public Onshape Model

https://cad.onshape.com/documents/0aefc8c82608e252734bc61f/w/649d3519f8434710db546d32/e/3ab149c12afd630e4508274e

Recommended Print Settings

• Printer: Creality Ender 3 S1
• Layer height: 0.28 mm
• Infill: 30%
• Supports: Yes
• Raft/Brim: Yes (recommended for better bed adhesion)
