WLED Lamp – Audio Reactive (ESP32 + WS2812B)

WLED AUDIO-REACTIVE LAMP WITH ESP32 (PCB + 3D PRINT + POWER BANK!)

Looking for a WOW desk project for your workshop or an RGB gaming setup? 🔥

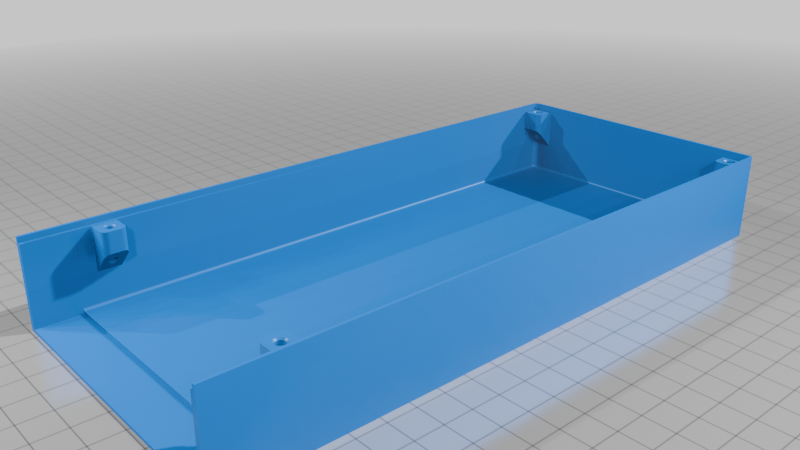

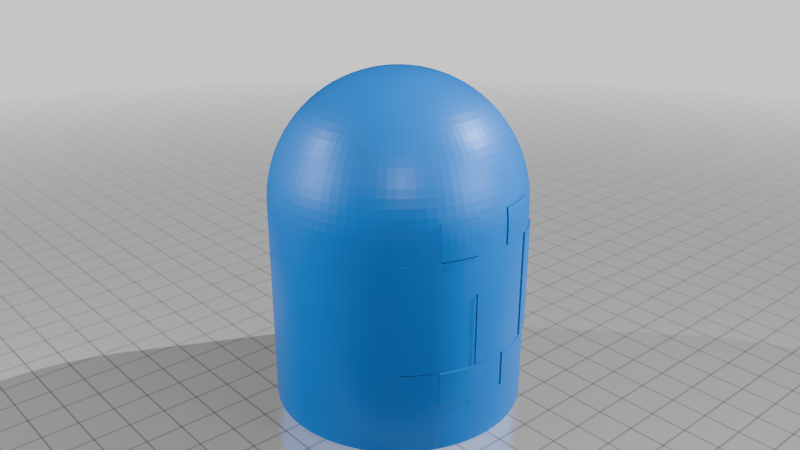

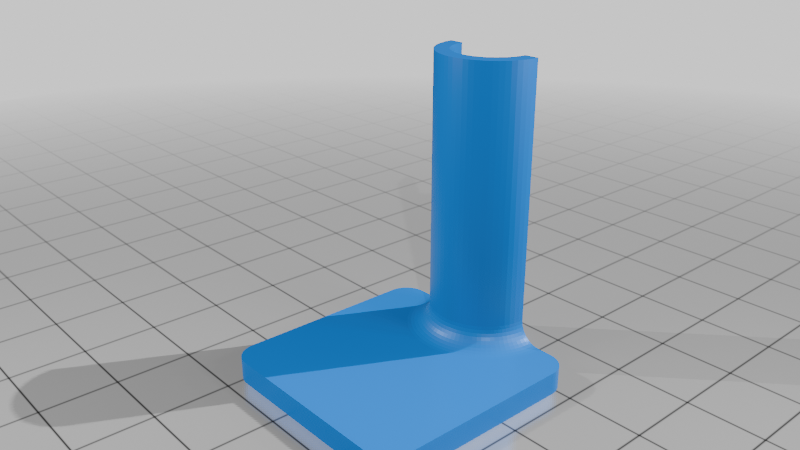

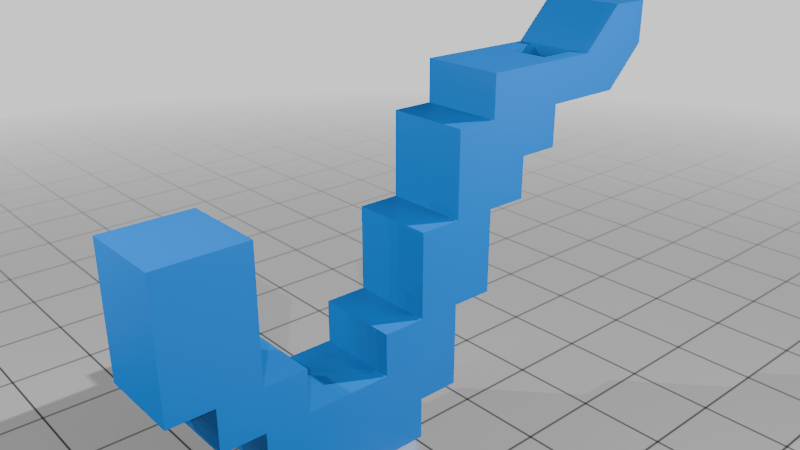

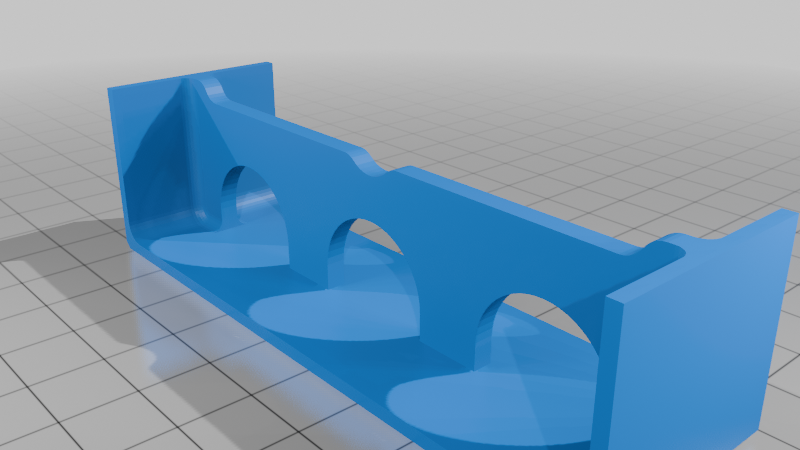

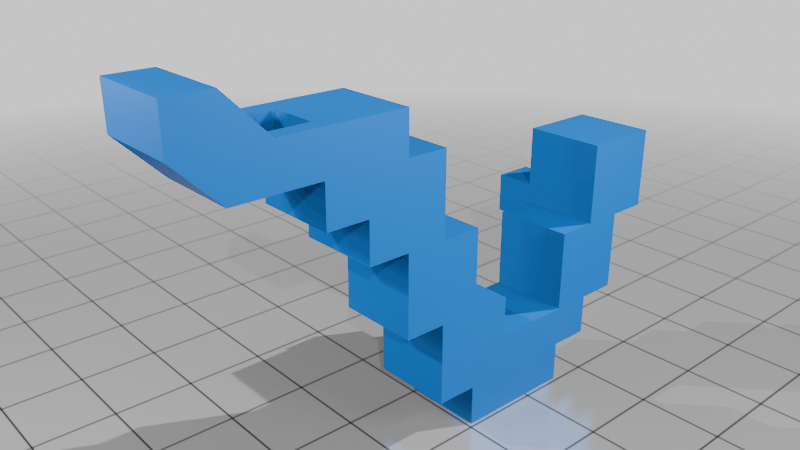

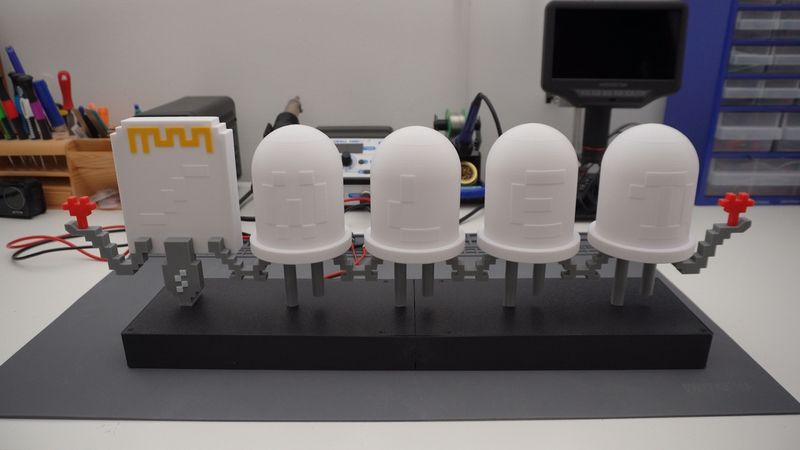

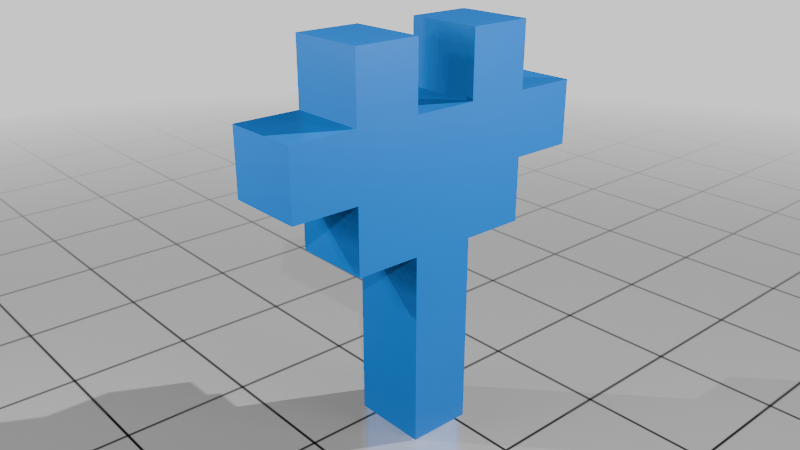

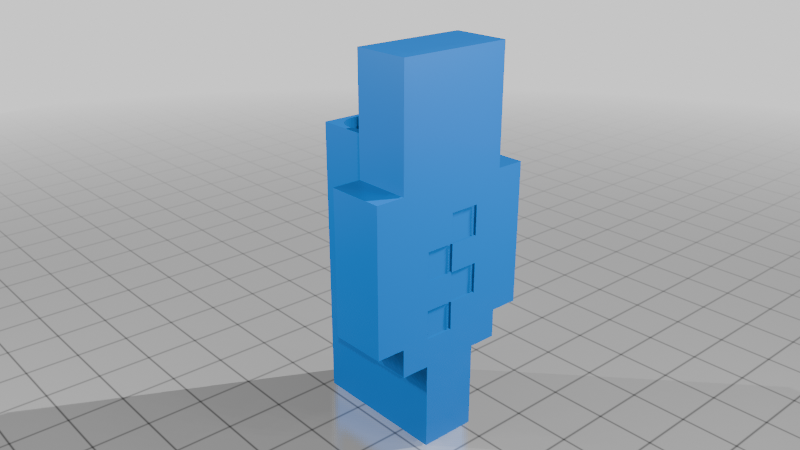

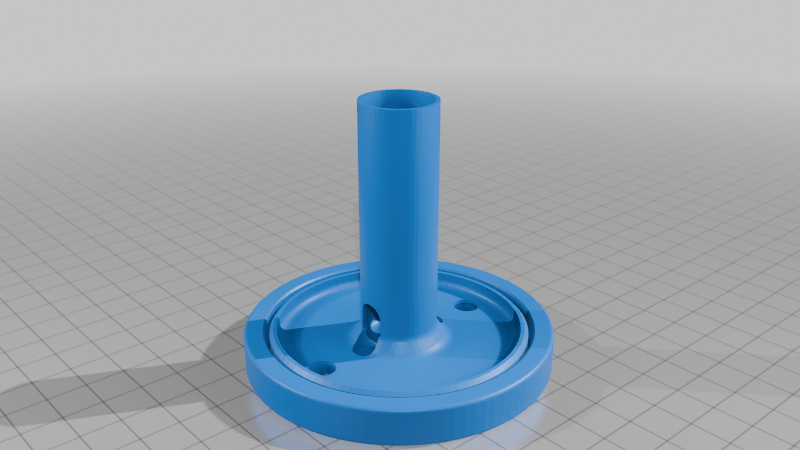

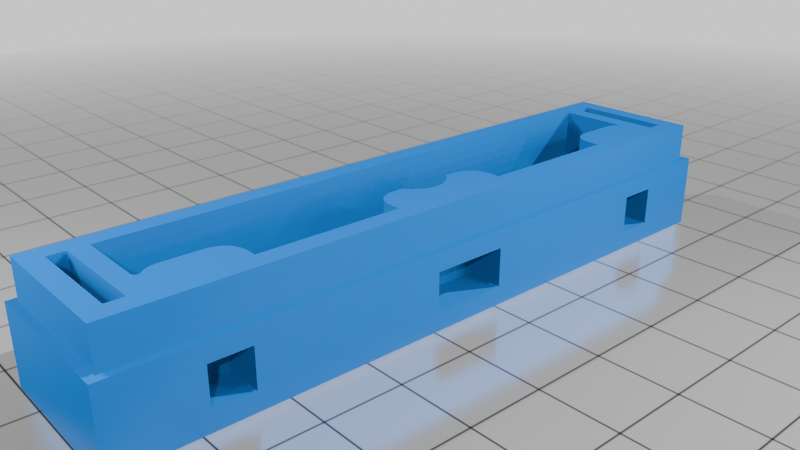

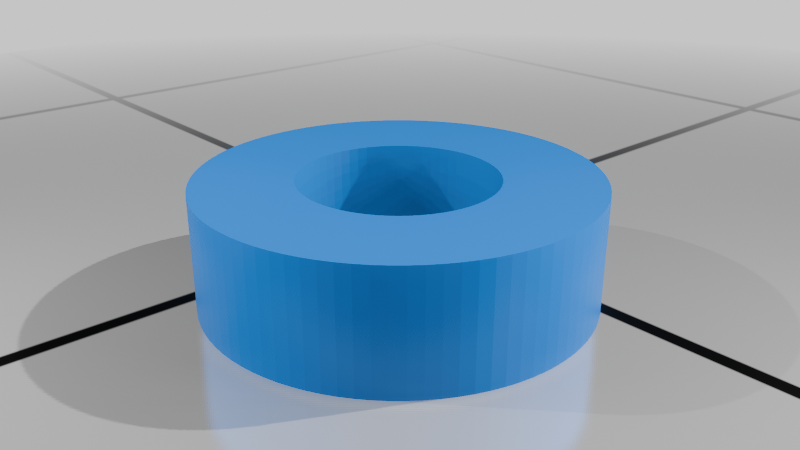

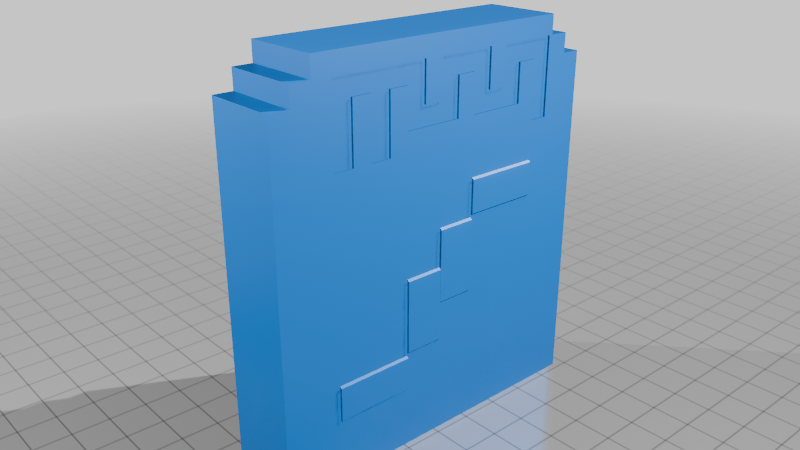

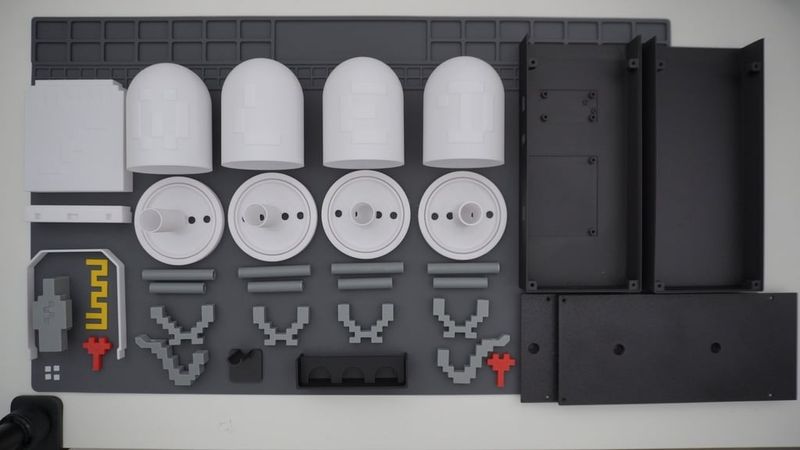

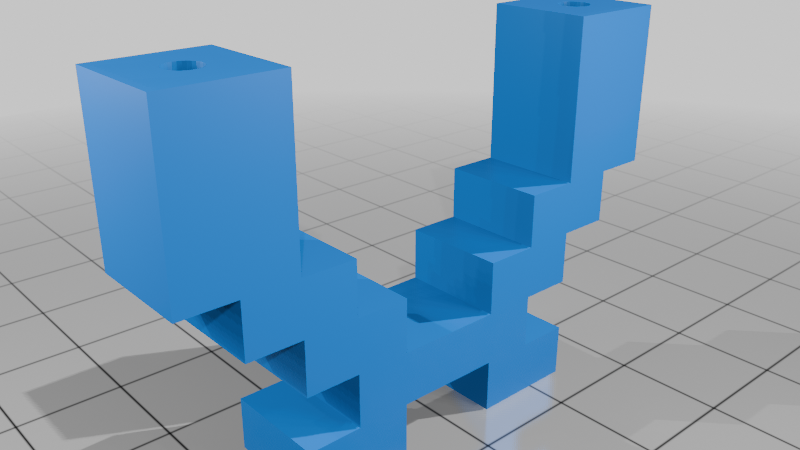

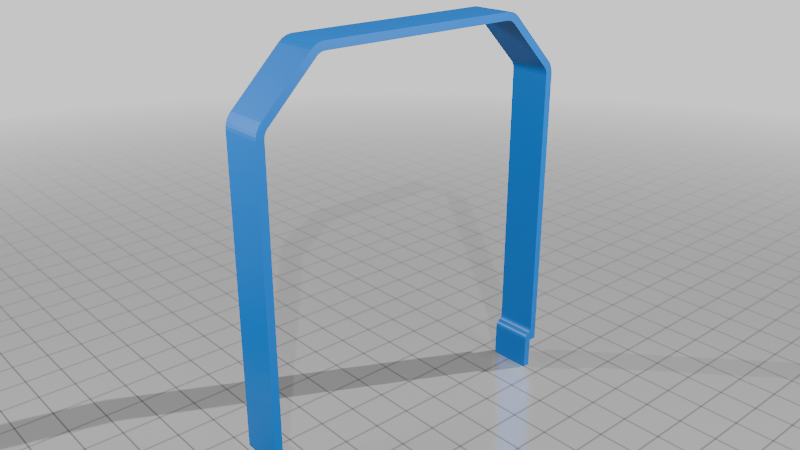

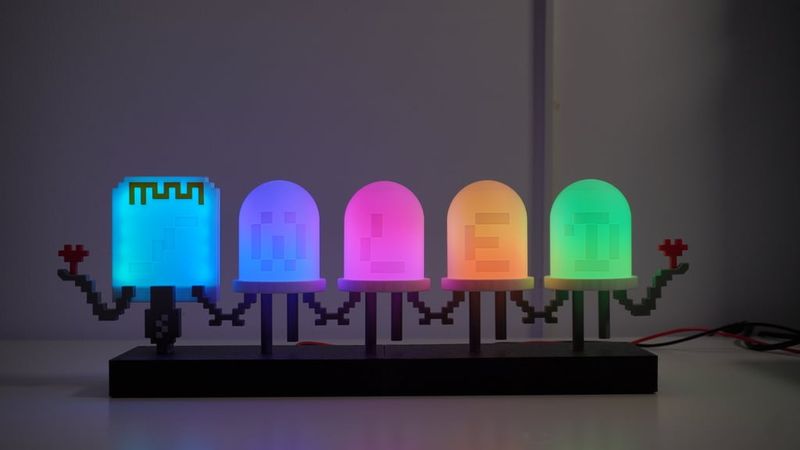

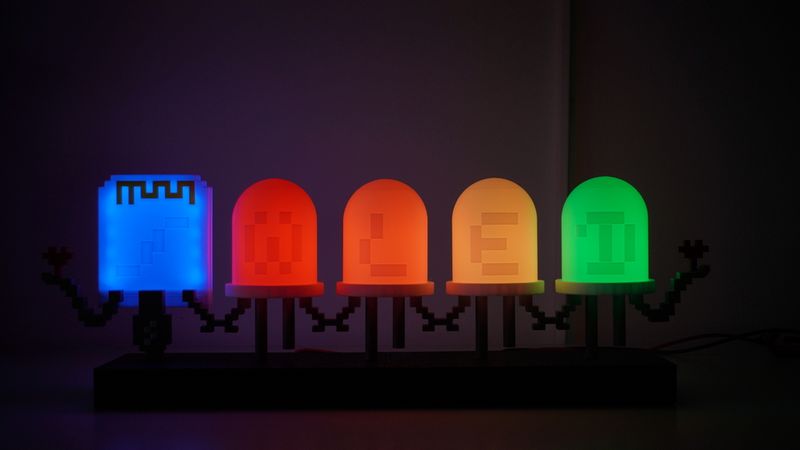

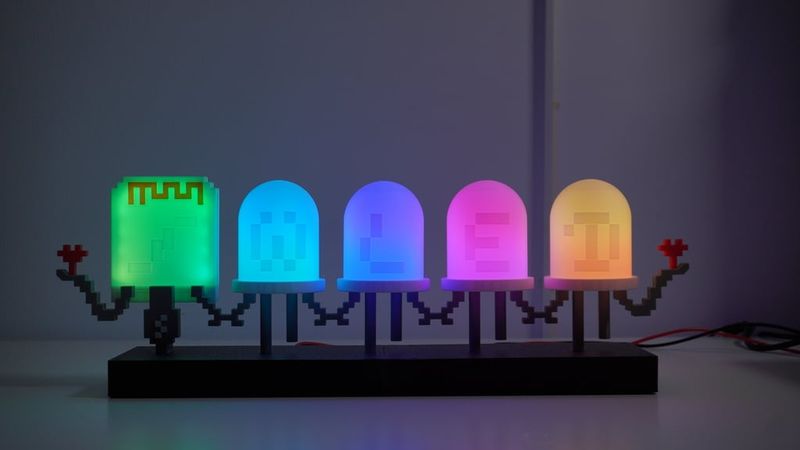

This build turns the iconic WLED logo into a fully functional 3D printed lamp, powered by ESP32 + WLED firmware.

The best part: it’s Audio Reactive 🎶✨

So your effects will move and react in real time with music or voice!

📌WATCH MY VIDEO: https://youtu.be/U6Z_Fl7wN8Q

✅ Features

Fully WLED compatible

Audio Reactive ready (digital microphone INMP441)

Uses WS2812B 5V addressable LEDs

Clean modular design with hidden cable routing

Works with many commercial WLED controllers

Optional Power Bank support 🔋

📌 What you need

📂 DOWNLOAD (Gerber + Project + Wiring)

✅ Gerber files + EasyEDA project: https://drive.google.com/drive/folders/1yCpqzLmkwIVQIUZAME1-pXP6uuj0noOM?usp=sharing

✅ Wiring diagram: https://drive.google.com/file/d/18hF_NODpRAy9nqmBmrpNmCUWAoS7xx5F/view?usp=sharing

✅ Instructables project:https://www.instructables.com/Audio-Reactive-WLED-LED-Lamp-ESP32-WS2812B-3D-Prin/

⚡Electronic components

🛒 1x ESP32 WROOM 30-Pin Type-C: https://s.click.aliexpress.com/e/_c3wRWuex

🛒 1x INMP441 Digital Microphone Module: https://s.click.aliexpress.com/e/_c3RlGSoJ

🛒 1x 5V 10A Single-Channel Relay Module: https://s.click.aliexpress.com/e/_c2JBgEA3

🛒 1x WS2812B LED Strip 5V – 60 LEDs/m (Total: 96 LEDs): https://s.click.aliexpress.com/e/_c4l0l5rp

🛒 1x SN74AHCT125N Logic Level Shifter: https://s.click.aliexpress.com/e/_c3rDI3EJ

🛒 1x DIP-14 IC Socket for Level Shifter: https://s.click.aliexpress.com/e/_c3KrUtdd

🛒 1x PCB Fuse Holder + 3A Fuse: https://s.click.aliexpress.com/e/_c4TFTTiR

🛒 1x (Optional) Standard 12V Fuse Kit: https://s.click.aliexpress.com/e/_c4NzyQI3

🛒 1x 1000µF 35V Electrolytic Capacitor: https://s.click.aliexpress.com/e/_c3O96mOj

🛒 1x 100nF Ceramic Capacitor: https://s.click.aliexpress.com/e/_c2xiUtqB

🛒 1x DC099 Female Power Jack 5.5×2.1mm: https://s.click.aliexpress.com/e/_c38ROhwn

🛒 2x 15-Pin Female Pin Header 2.54mm: https://s.click.aliexpress.com/e/_c3YCubxv

🛒 2x KF301 2-Pin Screw Terminal Connector: https://s.click.aliexpress.com/e/_c4TnTwq7

🛒 1x KF301 3-Pin Screw Terminal Connector: https://s.click.aliexpress.com/e/_c4TnTwq7

🛒 12x M2×3.2 Heat-Set Threaded Inserts: https://s.click.aliexpress.com/e/_c4VHb5xZ

🛒 4x M2×5mm Pan Head Screws: https://s.click.aliexpress.com/e/_c3EXftEr

🛒 8x M2×5mm Countersunk Screws: https://s.click.aliexpress.com/e/_c33GR4kn

🛒 1x JST XH2.54 Connectors – 3-Pin & 5-Pin Set: https://s.click.aliexpress.com/e/_c4pqG1Zl

🛒 1x JST XH2.54 3-Pin Connector with 10cm Wires: https://s.click.aliexpress.com/e/_c3C8bkgJ

🛒 1x JST XH2.54 5-Pin Connector with 20cm Wires: https://s.click.aliexpress.com/e/_c3C8bkgJ
