Johnson DC Motor Clamp Mount for 40×40 Aluminum Profile

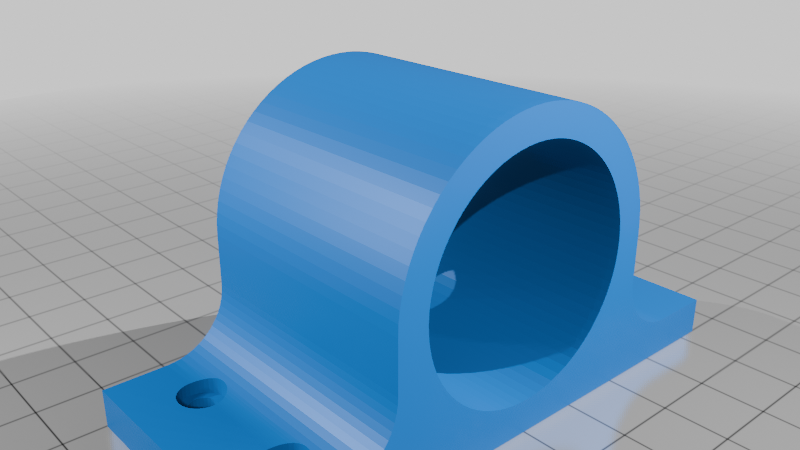

This is a custom-designed clamp mount for a standard Johnson DC motor, specifically made to fit 40×40 aluminum extrusion profiles (industrial T-slot profiles).

The clamp securely holds the motor in place without permanent modification, making it ideal for robotics, DIY projects, mobile robots, conveyors, and automation setups. The design is strong, compact, and easy to assemble using standard nuts and bolts.

Features

Designed for Johnson DC motor

Compatible with 40×40 aluminum extrusion profile

Strong clamp-style mounting

Easy to install and remove

Suitable for robot chassis, rovers, and DIY machines

3D-print friendly design

Printing Notes

Recommended material: PLA+ / PETG / ABS

Print with 30–40% infill for better strength

No supports required (depending on orientation)

Layer height: 0.2 mm suggested

Assembly

Use standard M4 bolts and T-nuts (depending on your profile)

Tighten evenly for proper motor alignment
