6U DIN Enclosure

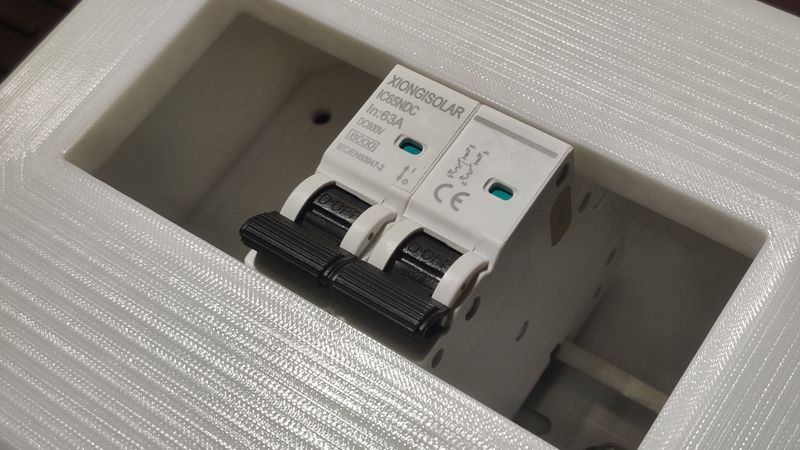

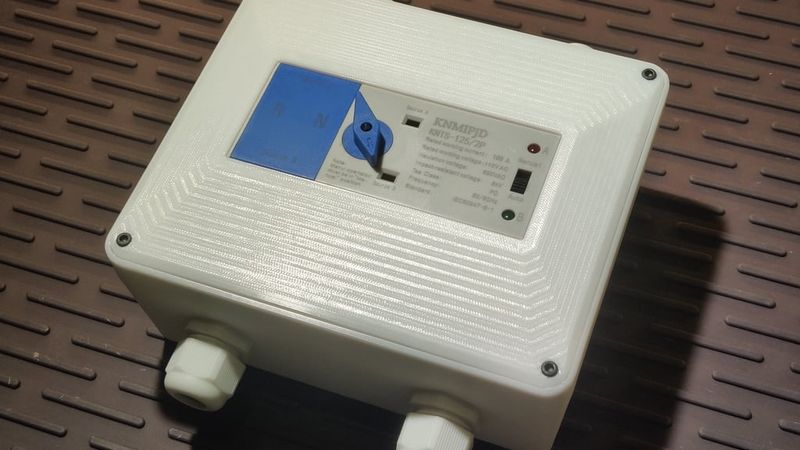

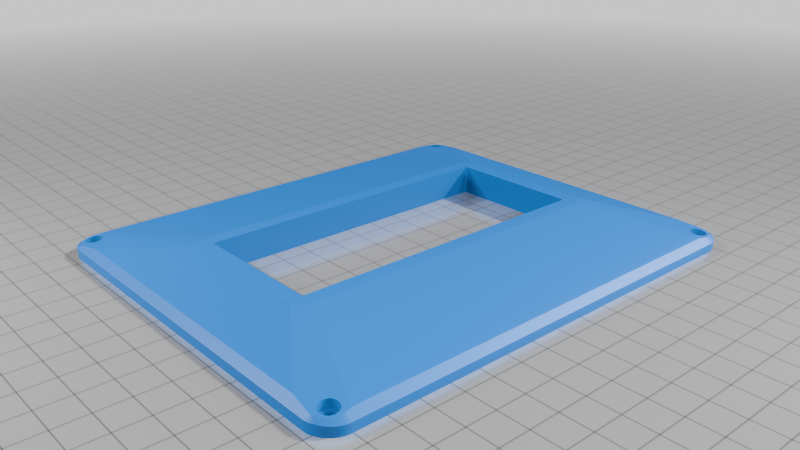

Compact enclosure designed to house up to 6U of DIN rail-mounted devices. Perfect for the usual circuit breakers, relays, etc... but it will also fit larger specialized devices. I designed this to work with a 100A /2P auto transfer switch, which is dimensionally much bulkier than normal, so in theory this should fit almost anything that will mount to a DIN rail.

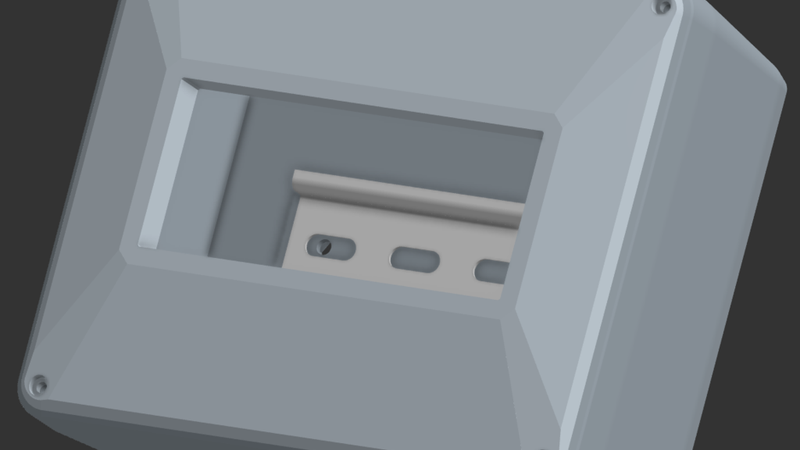

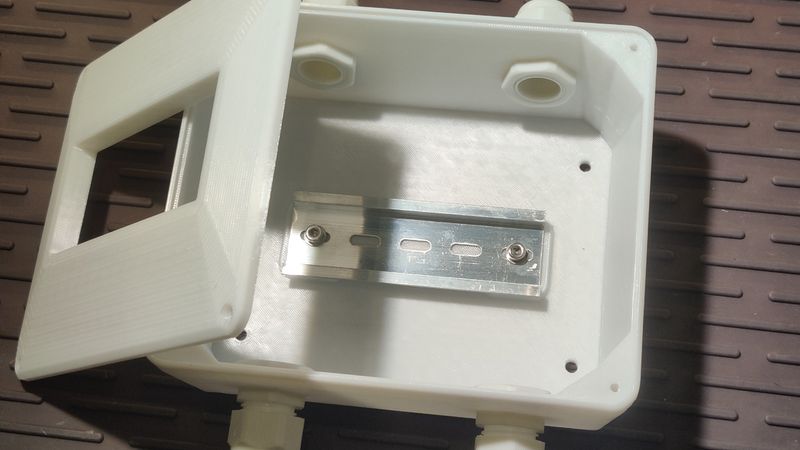

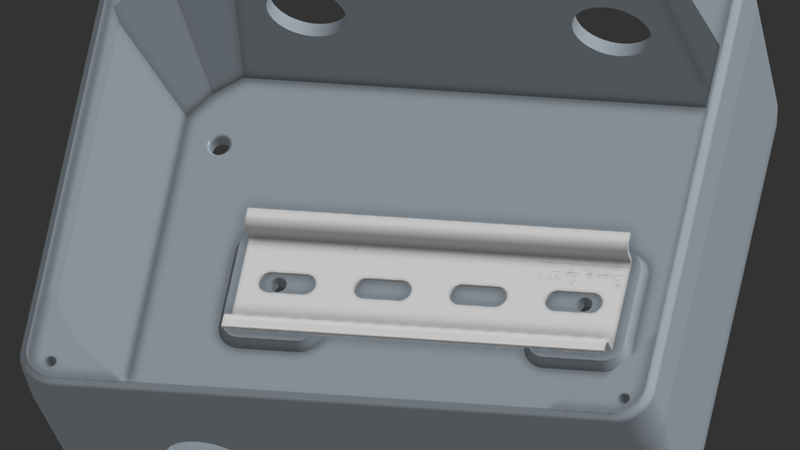

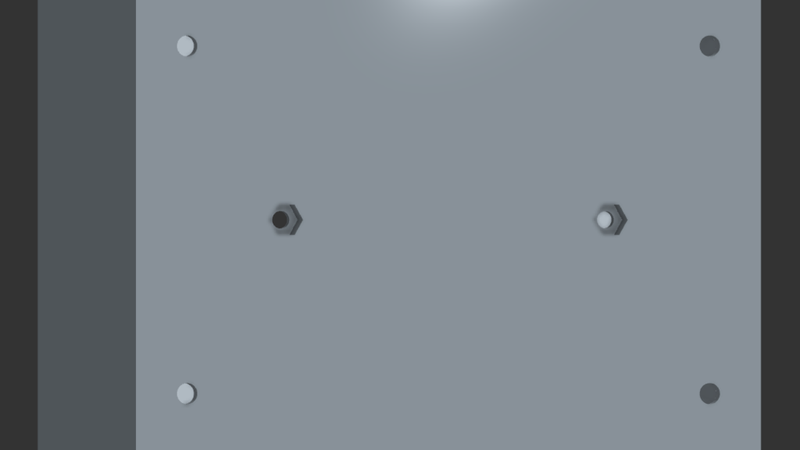

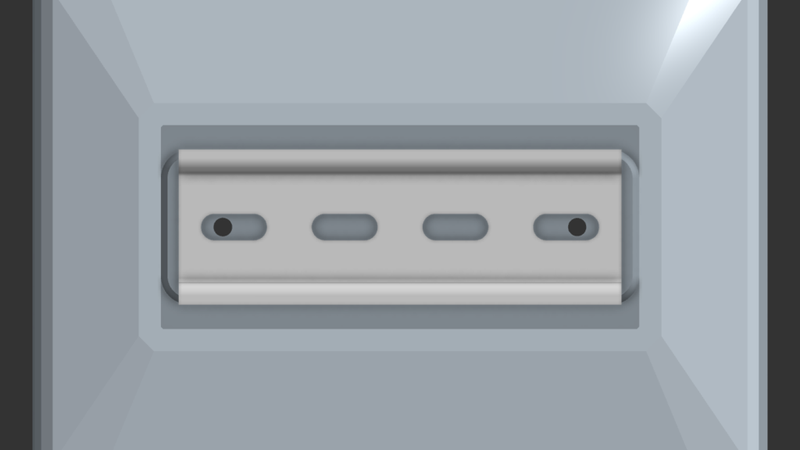

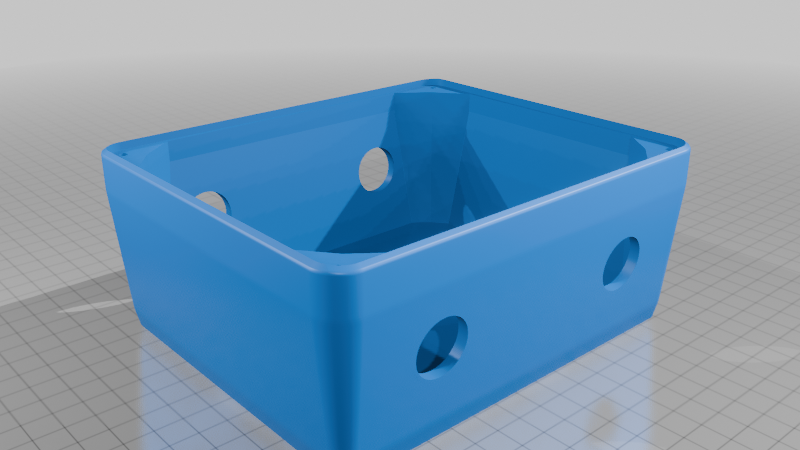

The DIN rail mounts to the case with two M4 x 8mm bolts. There are slots for M4 nuts on the rear. Attach the faceplate to the case with M3 screws - they should self-tap if printing tolerances are correct. The holes on the top and bottom are sized for M20 cable glands to mount on snugly, and at a slight downward angle. There are four 5.0mm mounting holes on the inside of the case if you desire to fasten it to a surface.

I haven't learned parametrization yet, but if there's sufficient interest I may release some alternate enclosure sizes.
