Azimuth OD - Overdrive Guitar Pedal enclosure + DIY PCB Kit

Azimuth OD - The 3D Printable Overdrive Pedal Enclosure + DIY Electronics Kit

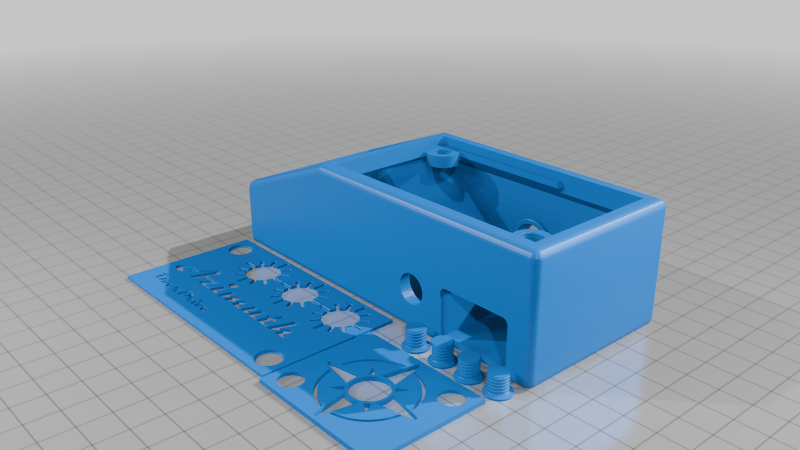

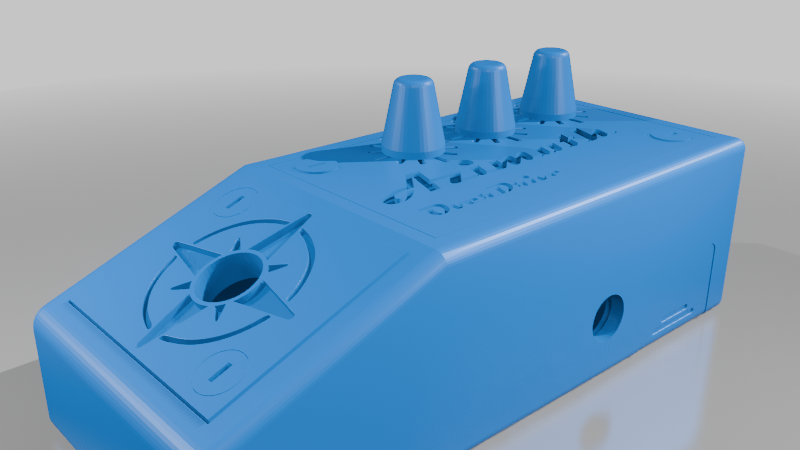

This is the 3D-Printable enclosure for Azimuth OD, a DIY analogue overdrive pedal built for guitarists and makers alike. Get the PCB + electronic components shipped to your door with no parts sourcing pain.

What is Azimuth OD?

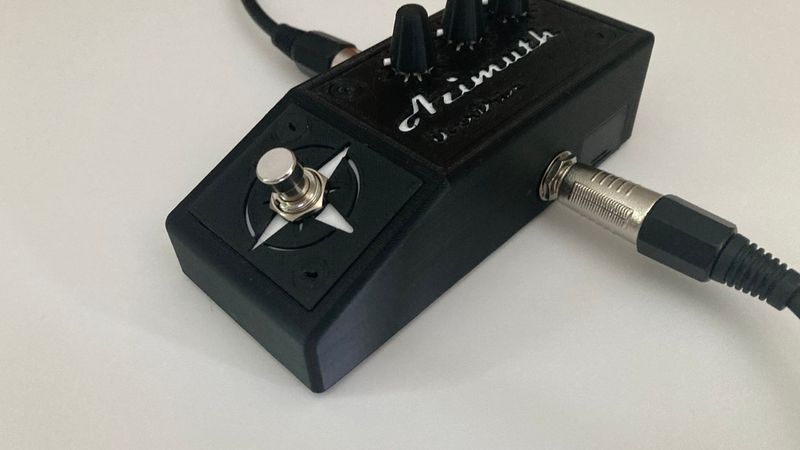

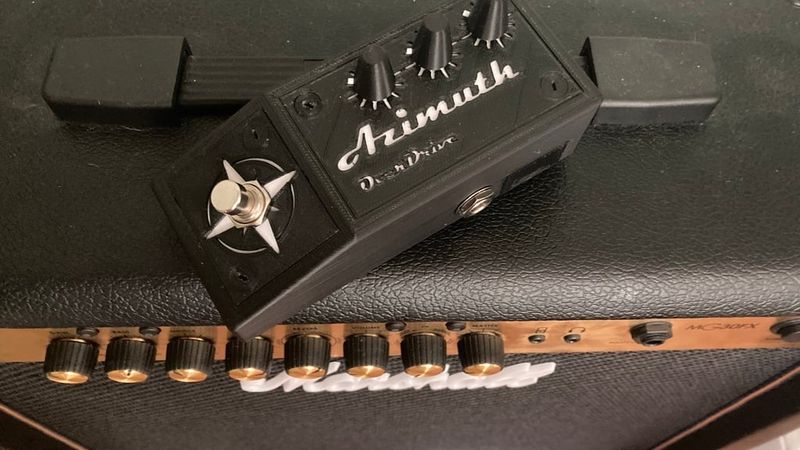

Azimuth OD is a warm, responsive overdrive pedal, inspired by classic analogue circuits that shaped blues and rock for decades. Designed from the ground up to be fully 3D-printable and hobbyist-friendly, Azimuth OD makes it possible to build your own fx pedal with minimum difficulty, maximum satisfaction, and zero part-hunting. To make assembly as simple as possible, a complete assembly guide is provided.

Buy The Complete Electronics Kit:

Our electronics kit is designed to make assembly as simple and enjoyable as possible, available for £24.75 at https://www.ebay.co.uk/itm/358306640149

Included in the kit:

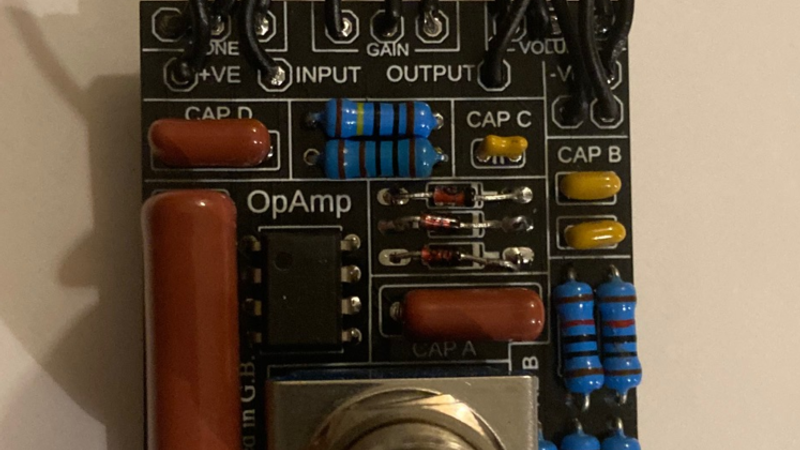

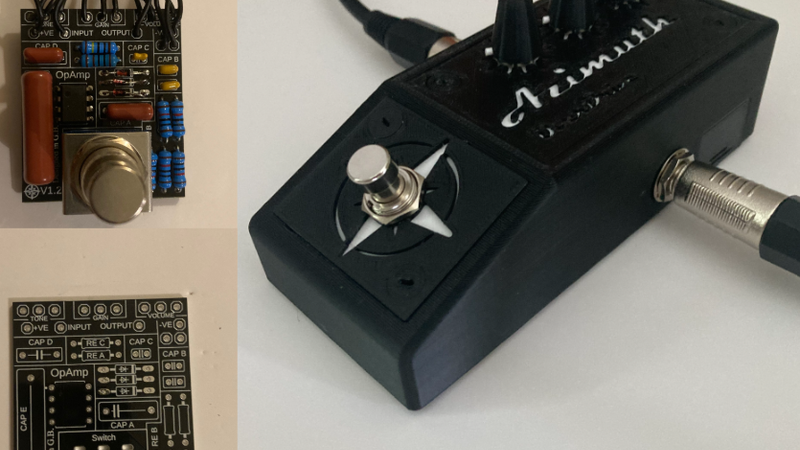

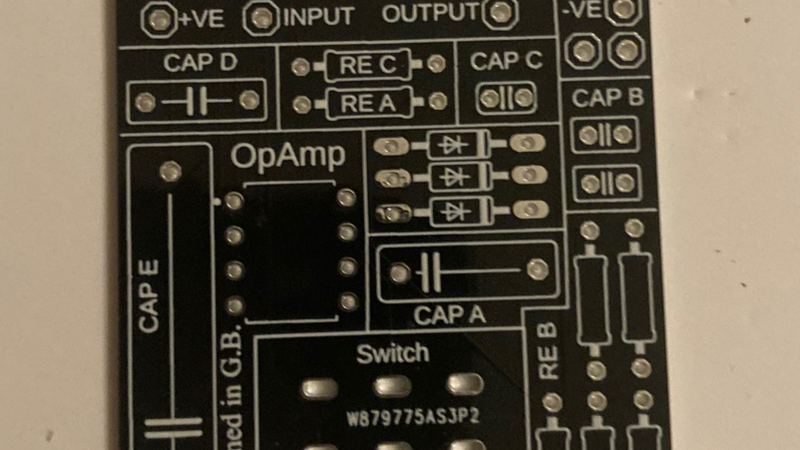

Custom PCB

Resistors

Potentiometers

Capacitors

Footswitch

OpAmp

Diodes

Wiring

Input Jacks

Battery Terminals

Complete Assembly Guide

Demonstration Video:

http://www.youtube.com/shorts/NMQaBe-ImrM?feature=share

Support:

[email protected]

Disclaimer:

This is a DIY electronics kit intended for hobby use. Assembly is required.

Assembly and use are at the user’s own risk.

Compass3DP is not responsible for damage, injury, or loss resulting from assembly or use.
