1:16 Truck/Crawler 4x4 RC Chassis

This 3D-printable model draws heavy inspiration from the WPL C14/C24 and MN78 1:12 and 1:16 scale models. Every component was designed from the ground up specifically for 3D printing.

Features:

• 190mm wheelbase
• full time 4x4
• no printed gears
• multiple motor options
• highly customizable; easy to turn into 4 wheel steering for example
• compatibility with some WPL parts and some MN accessories
• no soldering required (depending on your motor selection)

Compatible RC Bodies

• 1:16 80's Dodge RAM
• 1:16 Toyota Tacoma

Required Hardware

• 47x M2.3x6mm coarse-thread washer-head screws. 4 extra screws needed if using the two pieces frame.
• 20x M2x4mm countersunk screws or ideally flat-head screws.
• 16x M2x16mm screws.
• 4x ~26mm long, 4mm OD, 0.4mm comp springs. (0.5mm is too stiff. 0.3mm is very soft). I buy these longer than needed and cut them to length.
• 4x M3x30mm shoulder screw, 4~8mm of thread recommended.

Required RC products

• WPL Metal Axle: both WPL front and WPL rear kits.
• Digital Servo: 17g or 21g servos in size, choose "JR" plug
• Motor + Electronic Speed Controller:

- WPL 180 Brushed Motor + Brushed ESC (requires soldering a JST plug)

- MN 260 Brushed Motor + Brushed ESC (requires soldering a JST plug)

- WPL 370 Brushed Motor + Brushed ESC + 4x M3x6mm Socket Head Cap Screws (does not require soldering)

- WPL 2-SPD Gearbox + Brushed ESC (requires soldering the JST plug)

• RC Receiver or any other receiver compatible with your transmitter
• 2S Battery: JST plug
• WPL Tires + 3D printed wheels or MN/WPL wheels & tires.

Optional/Alternative Compatible RC products

Note: These products are not required, but are compatible with this model.

• WPL Metal Shocks: replaces 0.4mm compression springs and M3x30mm shoulder screw
• WPL Metal Beams
• WPL Metal Axles + Housing

Print Settings

General Print Settings for all the .stl files

• 0.15mm layer height
• 4 perimeters, 30% infill
• PLA or PETG (tested both but axle-truss_x2.stl may be too fragile in PLA)
• All files should be printed in the orientation they come with

Note:

• Make sure you have excellent bed adhesion and that your printer is tuned correctly.
• If you're having trouble with female driveshafts, try printing them one at a time.

What to Print?

Check if frame-left.stl and frame-right.stl fits your build plate, and print them. Optionally, orient them diagonally for best fitment. If they don't fit, print the following files instead:

• frame-a-front.stl
• frame-a-back.stl
• frame-b-front.stl
• frame-b-back.stl

Print the following files in the amounts indicated at the end of the file:

• axle-diff-cover-front_x2.stl
• axle-diff-cover-rear_x2.stl
• axle-front_x2.stl
• axle-front-steering-knuckle_x2.stl
• axle-front-steering-linkage.stl
• axle-rear_x2.stl
• axle-truss_x2.stl
• axle-truss-servo-mount.stl
• driveshaft-axle-end_x2.stl
• driveshaft-cross-shaft_x4.stl
• frame-brace_x2.stl
• servo-steering-linkage.stl
• suspension-end_x4.stl
• suspension-link_x4.stl
• suspension-tophat_x4.stl

If you bought a WPL 180 motor, print the following extra files:

• driveshaft-14mm-female.stl
• driveshaft-14mm-male.stl
• driveshaft-16mm-female.stl
• driveshaft-16mm-male.stl
• driveshaft-wpl180-end_x2.stl
• motor-bay-wpl180-cover.stl
• motor-bay-wpl180.stl

For a MN 260 motor, print the following extra files:

• driveshaft-10mm-female_x2.stl
• driveshaft-10mm-male_x2.stl
• driveshaft-mn260-end_x2.stl
• motor-bay-mn260-cover.stl
• motor-bay-mn260.stl

For a WPL 370 motor, print the following extra files:

• driveshaft-12mm-female.stl
• driveshaft-12mm-male.stl
• driveshaft-18mm-female.stl
• driveshaft-18mm-male.stl
• driveshaft-wpl370-end_x2.stl

For a WPL 2-spd gearbox, print the following extra files:

• driveshaft-22mm-female.stl
• driveshaft-22mm-male.stl
• driveshaft-16mm-female.stl
• driveshaft-16mm-male.stl
• driveshaft-mn260-end_x2.stl

Optionally print the following files if you don't have a body or just want to run/test the chassis:

• frame-front-base-elecbox.stl
• frame-front-base.stl
• frame-rear-base.stl

I've included extra driveshaft lengths, which could be needed for some modifications or other models

Assembly

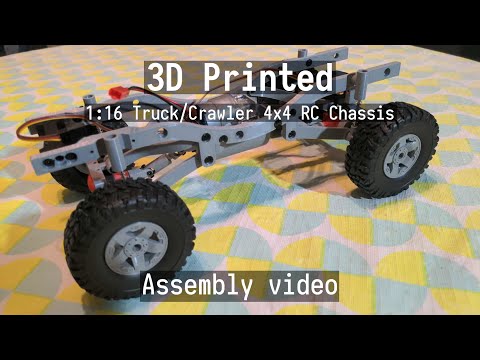

This video covers assembling the chassis


Help and Support

Join our Discord server for help, support, feedback, future releases and more!

History

May 30 2025: Published Extra tolerance parts

Jun 20 2025: Added design reference files: asm_compressed.stl, asm_extended.stl and mounts.step

Jul 13 2025: Added Metal Shock option. Reformatted text for better clarity

Jul 14 2025: Added more motor options

Jan 10 2026: Added frame split into two parts for smaller printers
