Original Project by 3llogical from Instructables.
License: Attribution-NonCommercial-ShareAlike
I did not create this screw organizer just because of the organization competition, I created it because I needed a stylish, effective, and easy way to sort my screws. Whether I am disassembling a RC car or creating something entirely new from scratch, it always comes in handy.
Materials:
• Magnets (https://www.amazon.com/Magnets-Refrigertor-Whitebo...)
• PLA Plastic
Steps
1
Creating the Design:
Creating the Design:
Creating the Design:
Creating the Design:
Creating the Design:
+5

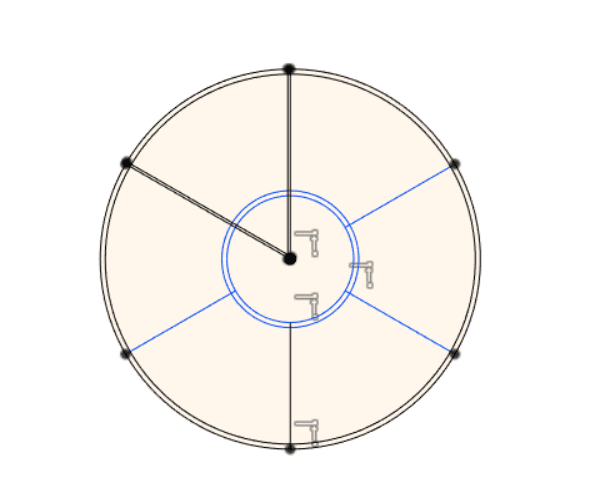

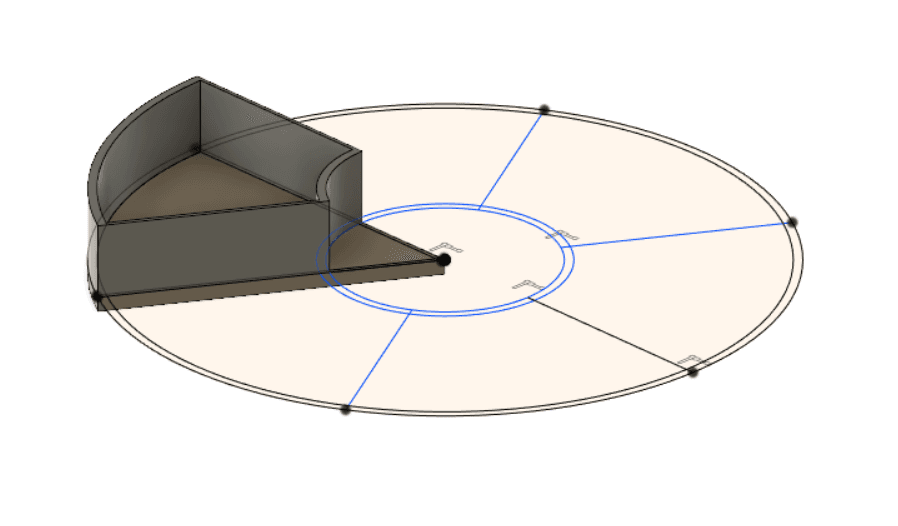

Picture 1: I created a design for 1/6 of the entire circle, but this can be changed if you need more containers for different types of screws.

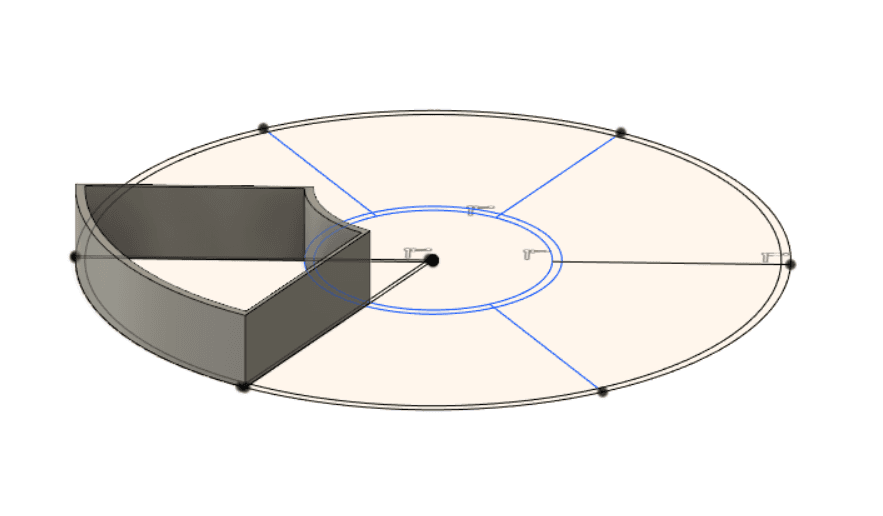

Picture 2: Extruded upwards.
Picture 3:Extruded downwards.

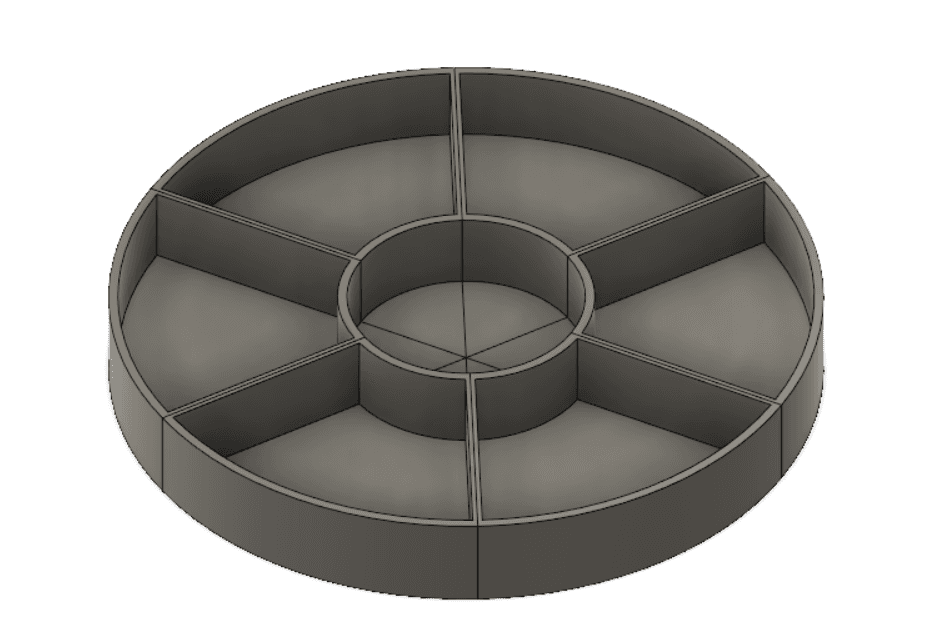

Picture 4: I used the circular pattern tool to create the entire dish.

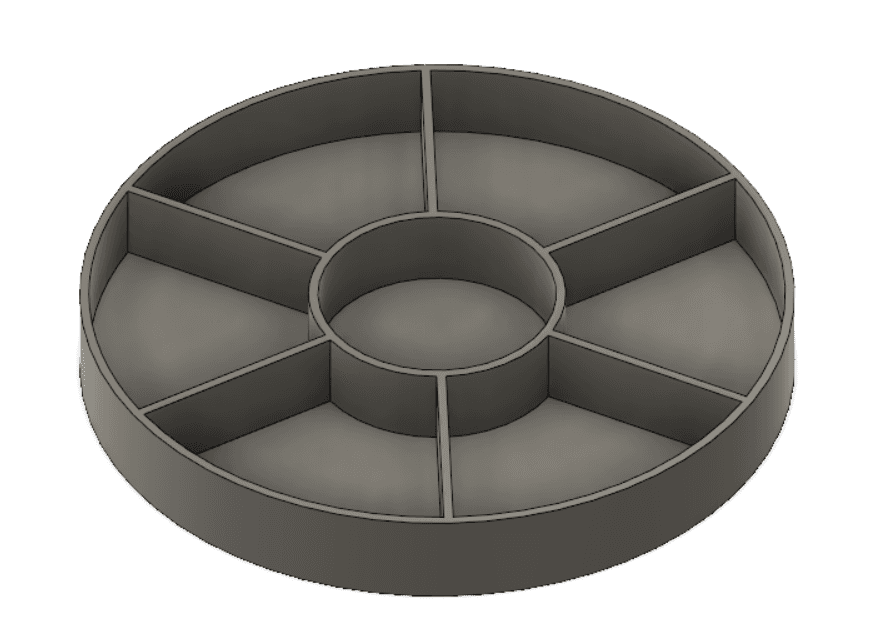

Picture 5: I combined them all using the combine tool.

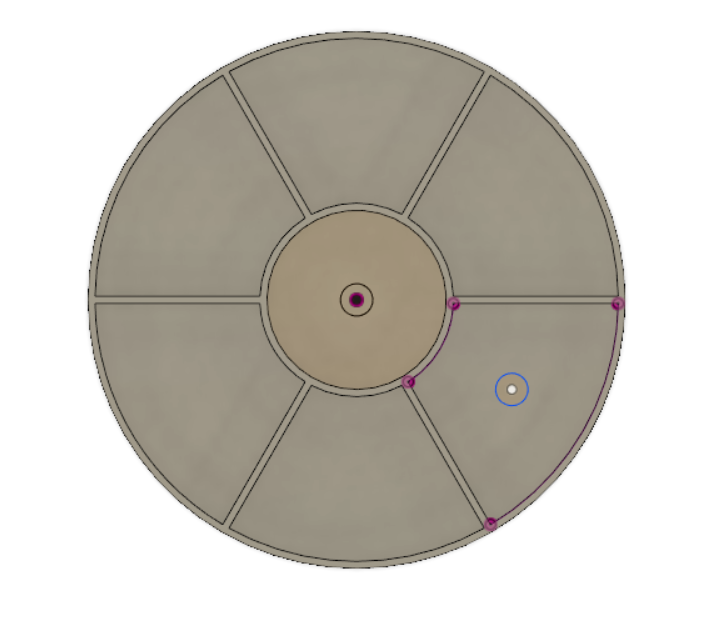

Picture 6: I created a sketch for where the magnets would go.

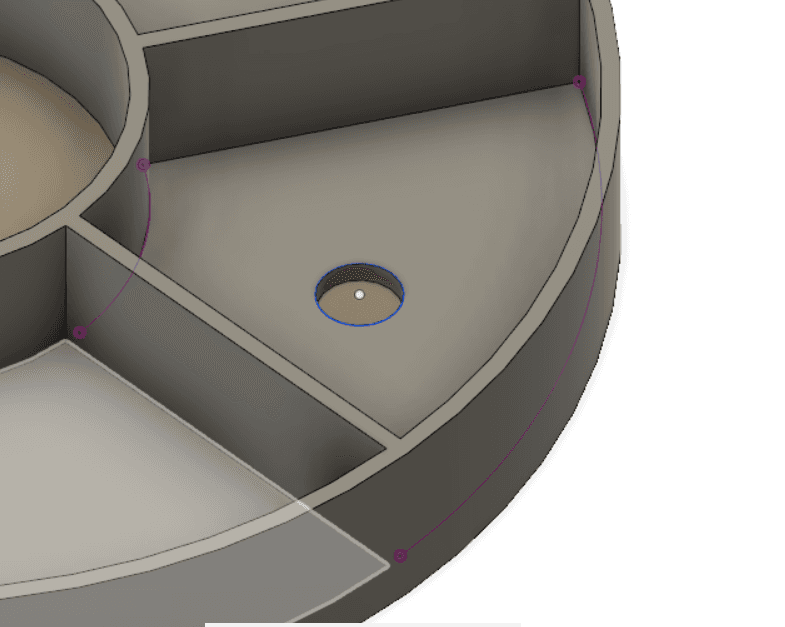

Picture 7: I extruded the outer magnet holes downwards.

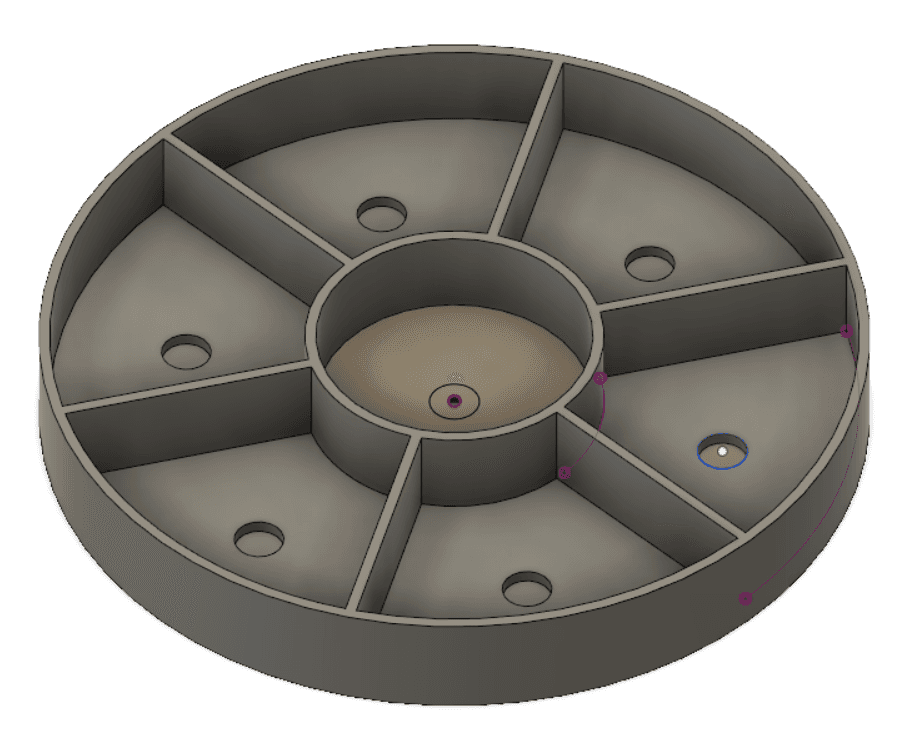

Picture 8: I used the circular pattern tool again to make a magnet hole in every container.

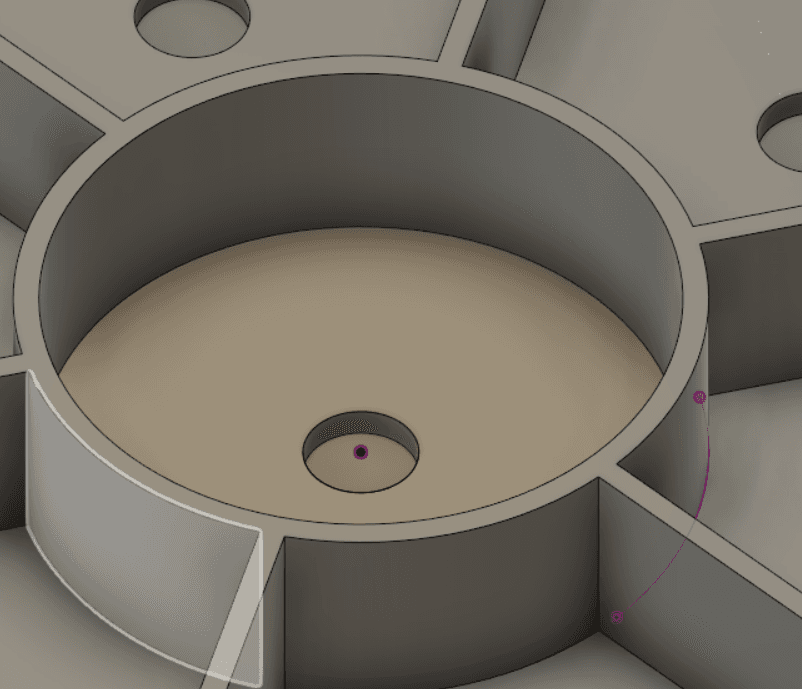

Picture 9: I extruded the center magnet hole downwards.

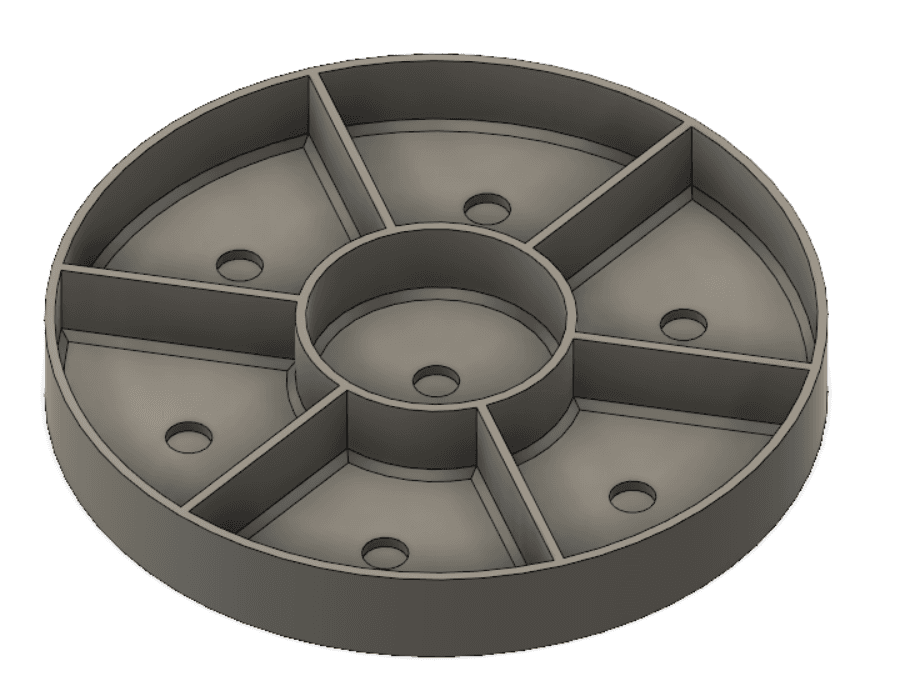

Picture 10: I added chamfers to make everything look even better.
2
3D Printing:
3D Printing:
3D Printing:
3D Printing:

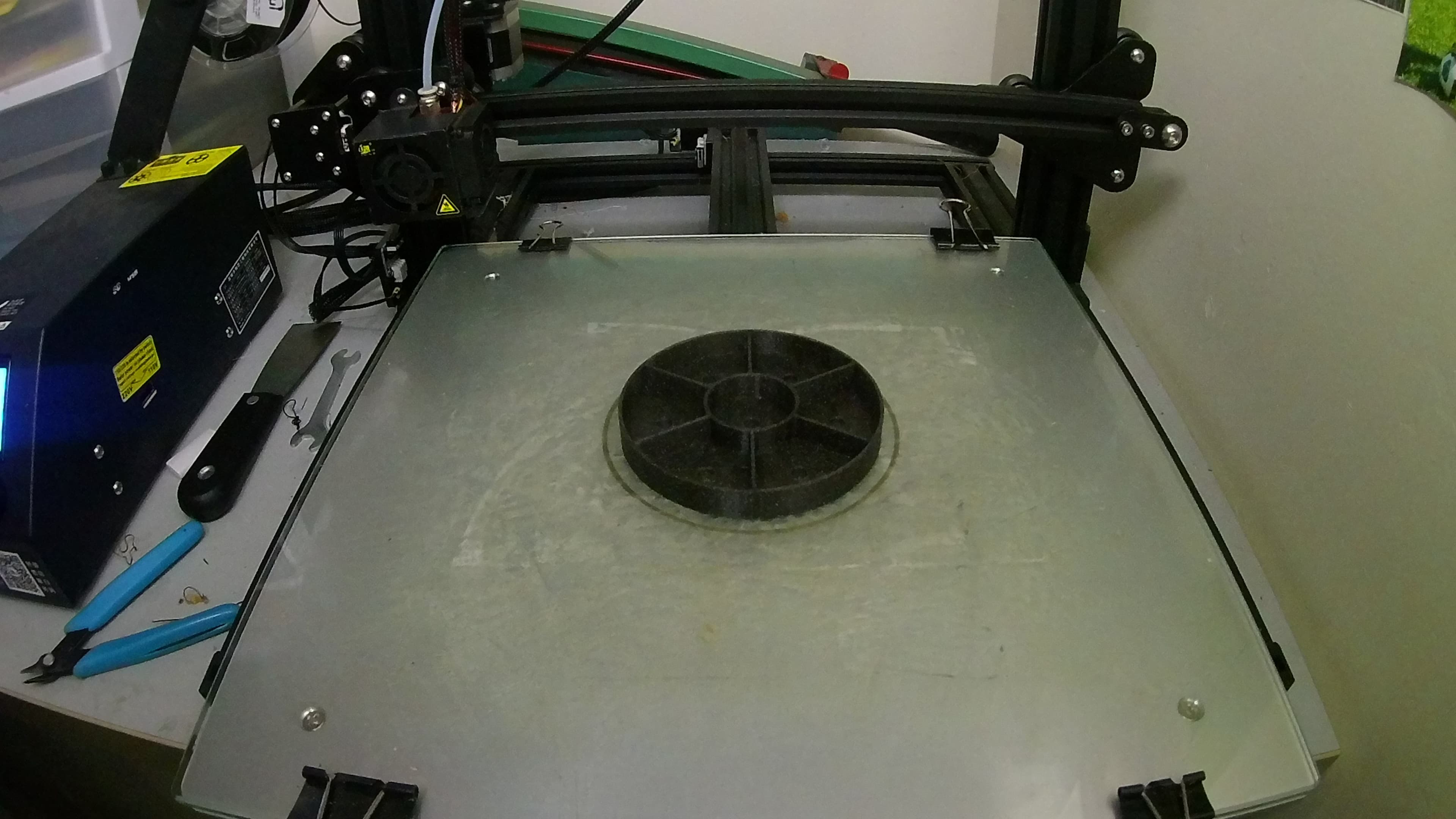

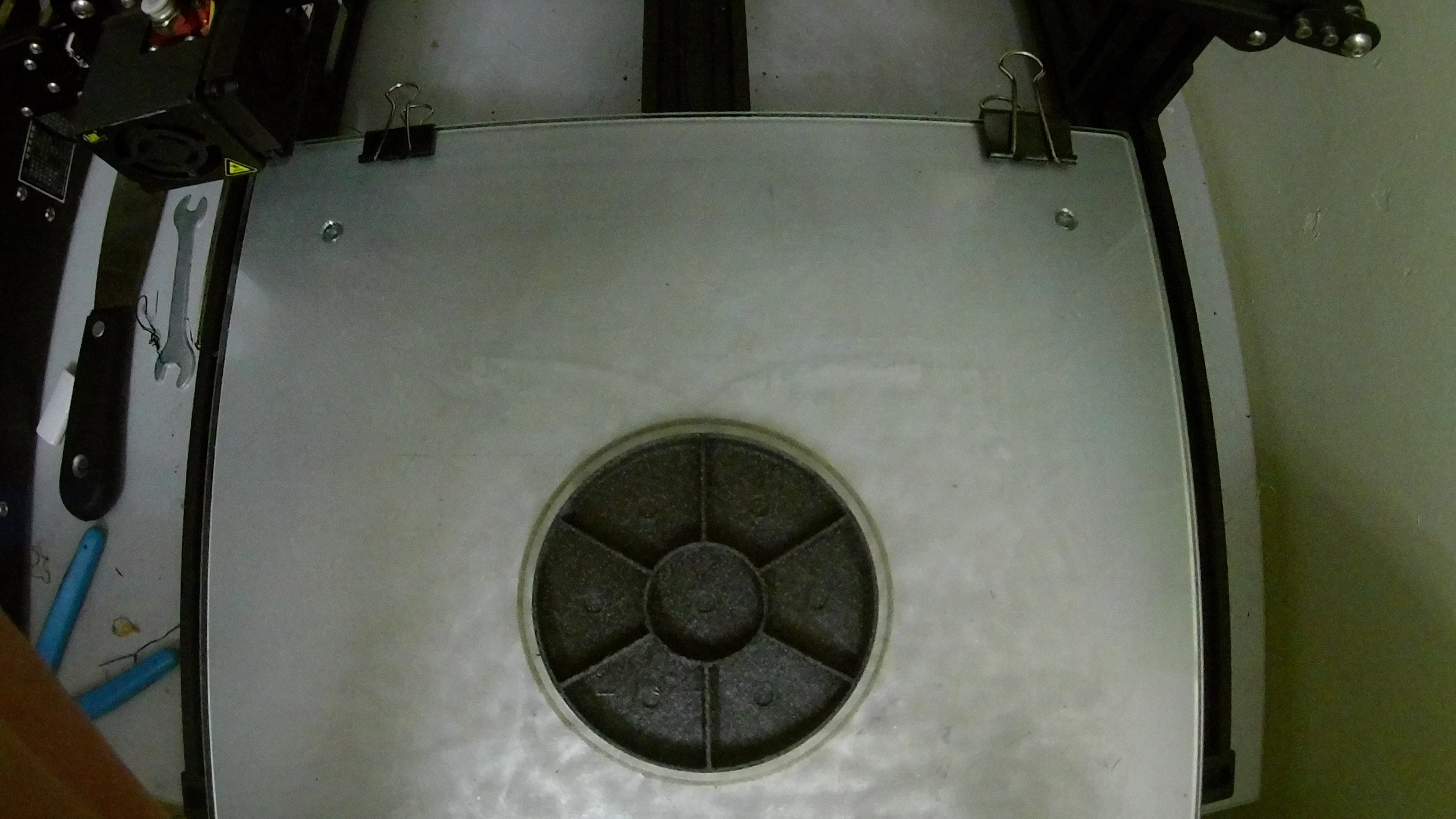

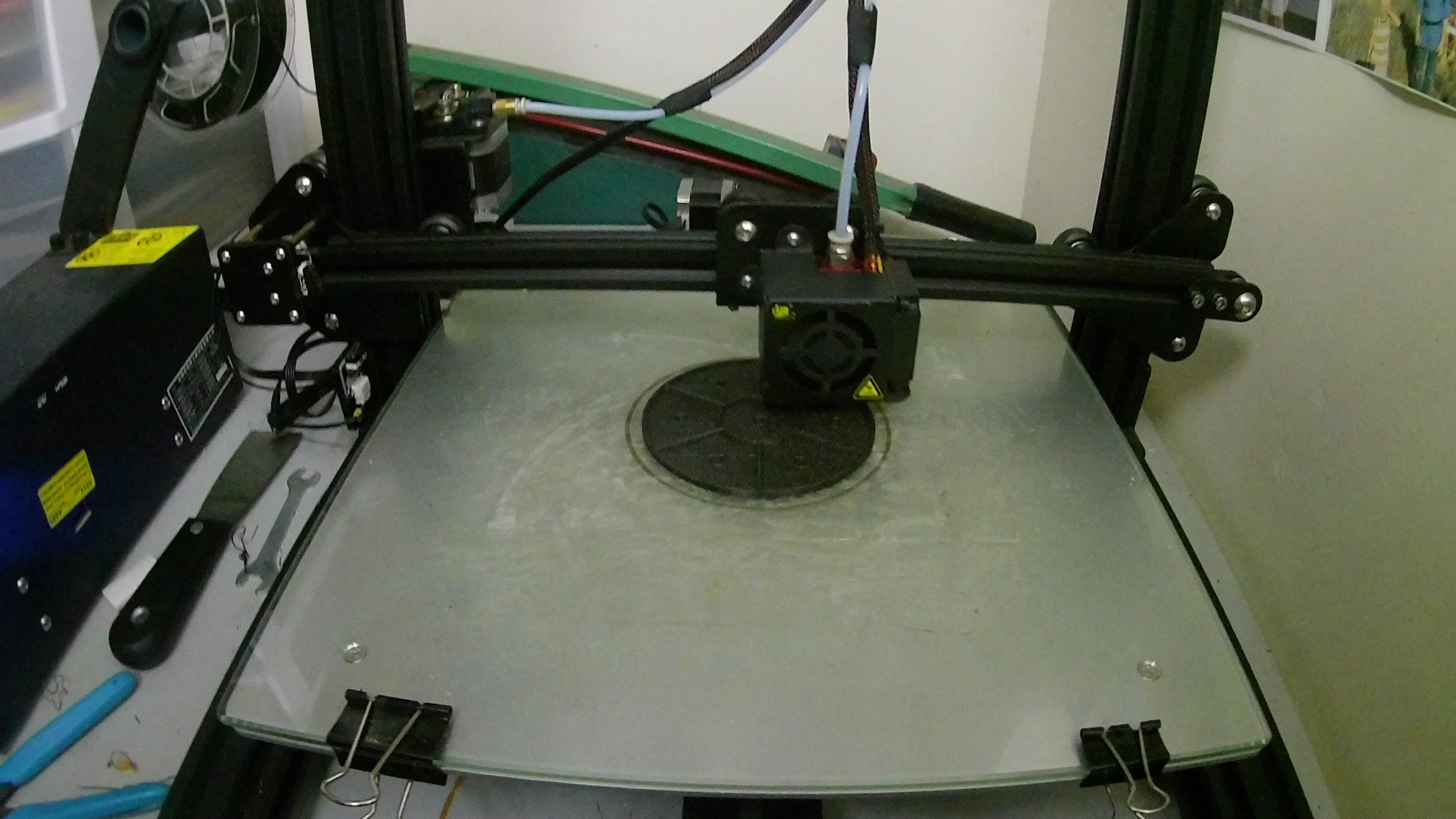

I 3D printed this using my CR-10 printer (very good). I printed at .2 layer height at 80 mm/s and it turned out amazing. Remember to use glue stick to hold it down to the bed.
3

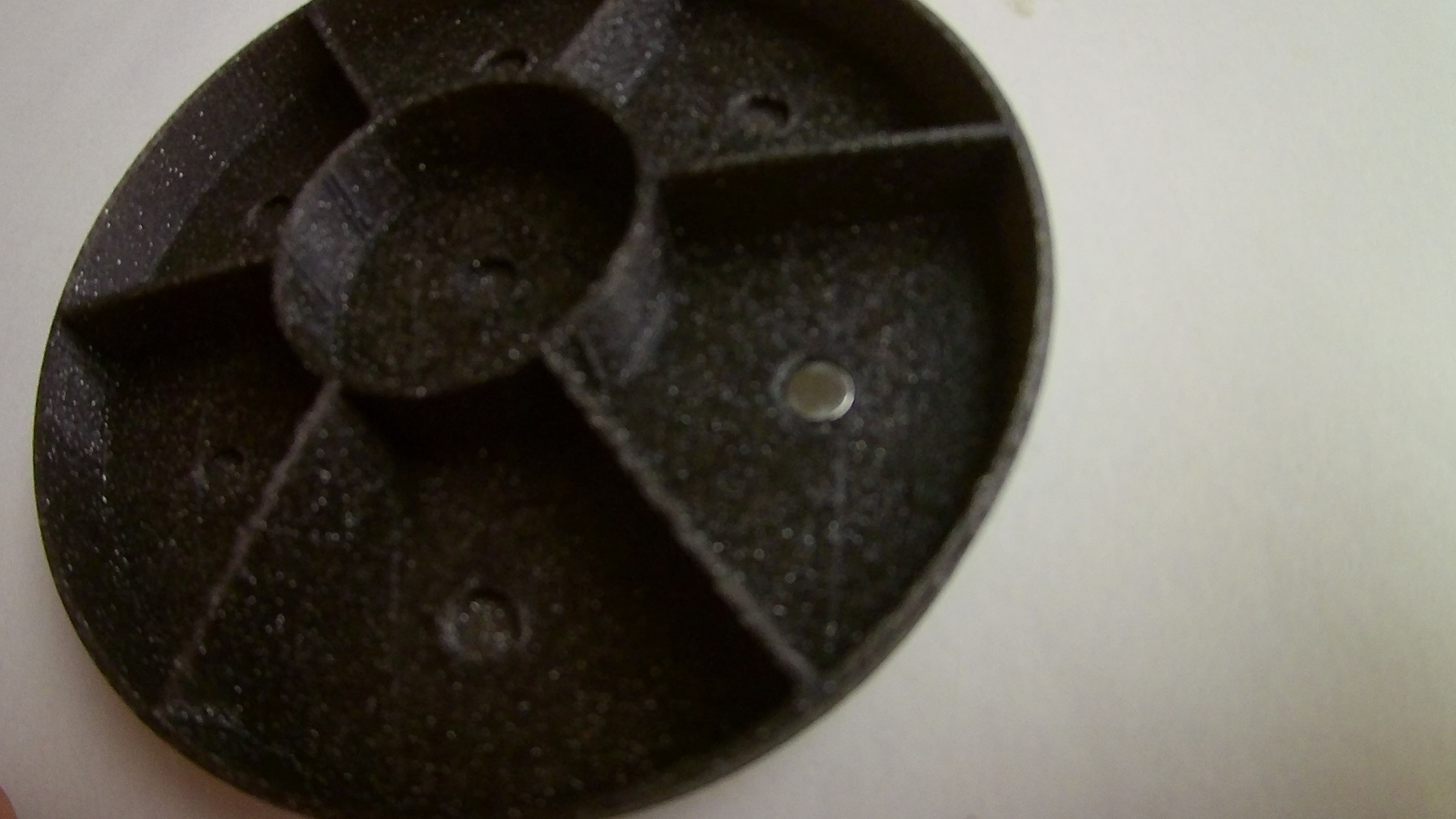

Gluing in the Magnets
Gluing in the Magnets
Gluing in the Magnets
Gluing in the Magnets

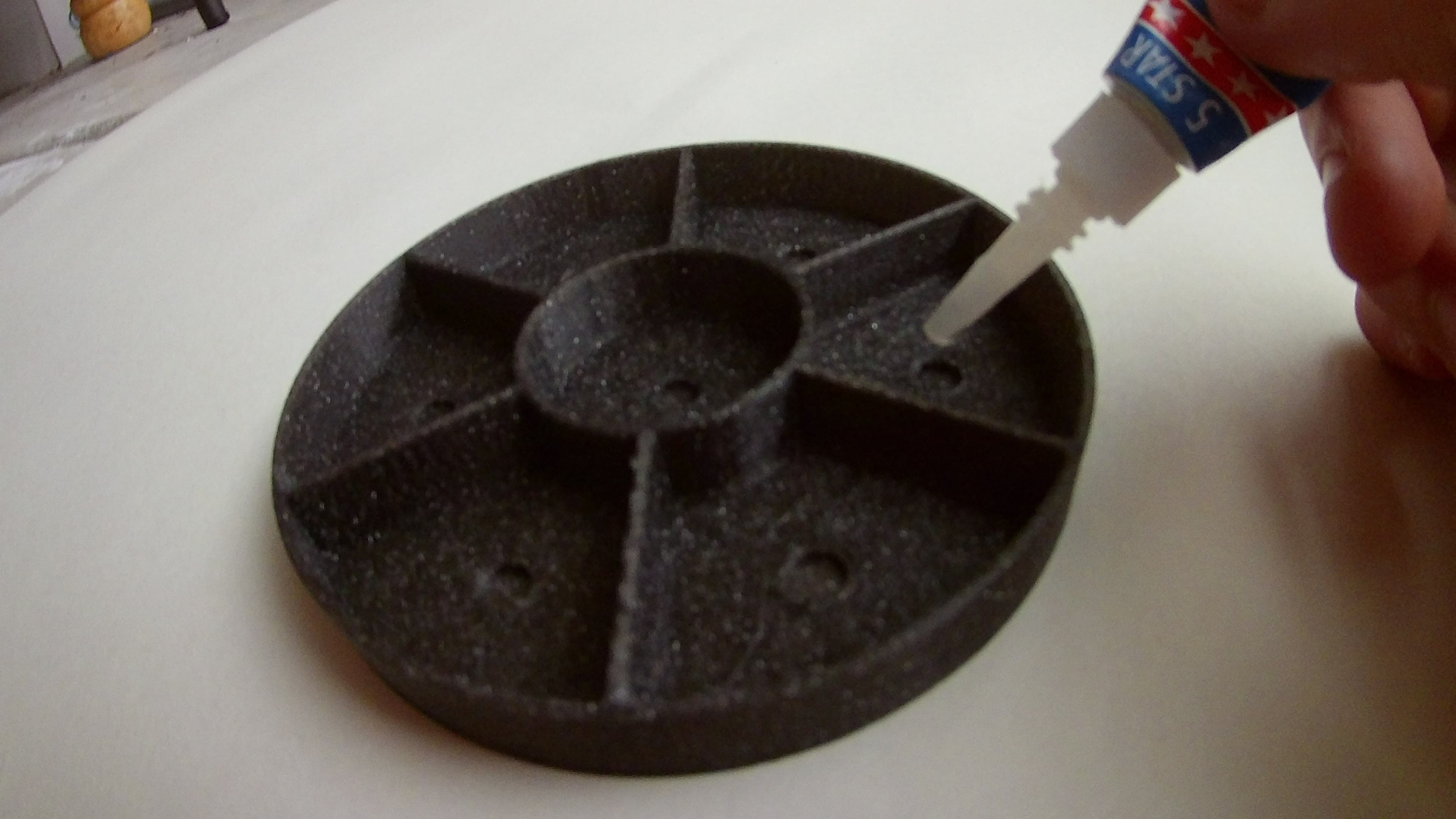

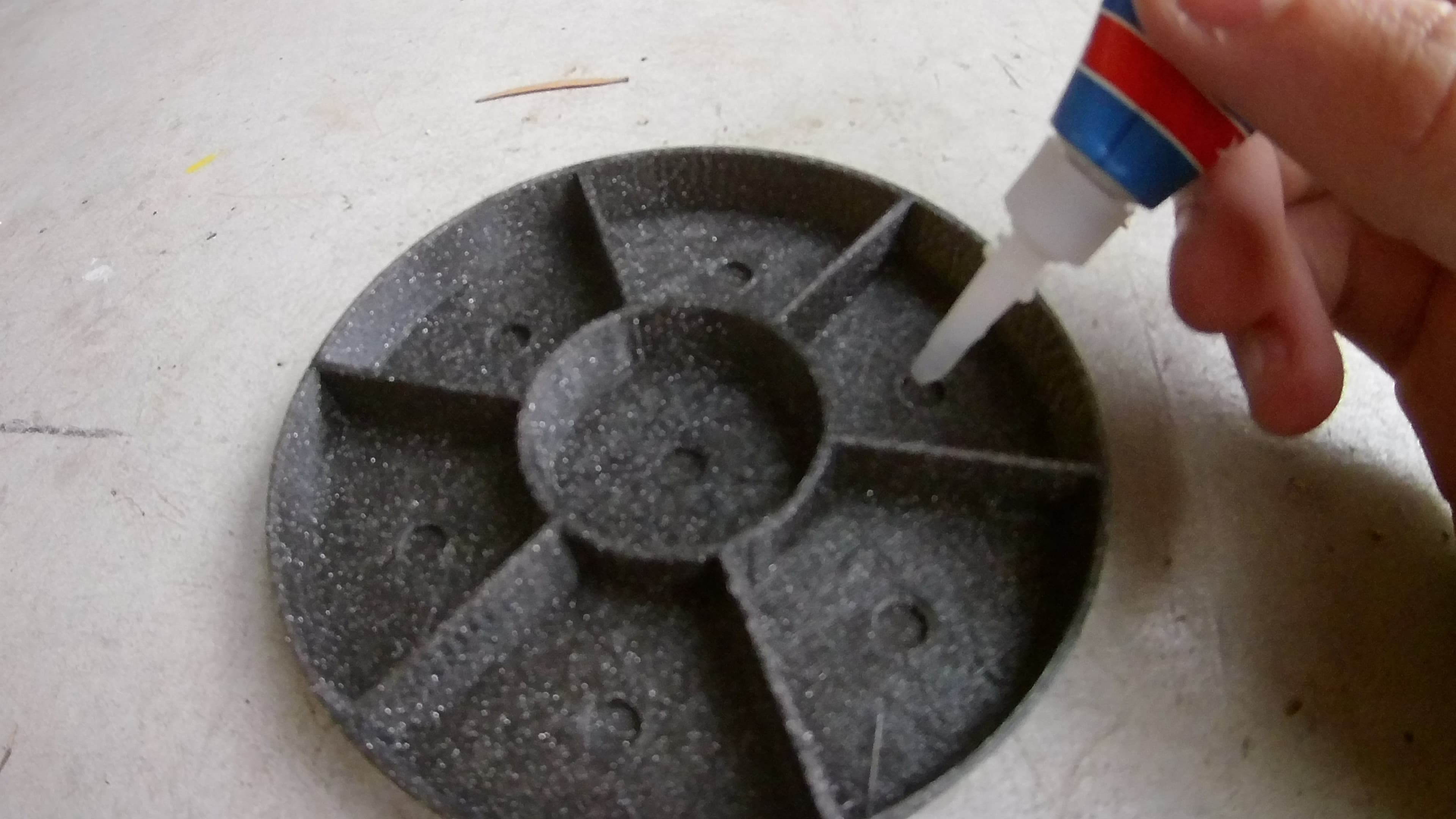

I used super glue to glue in the magnets. I holds really well, so try to do it right the first time. I put glue in all of the holes at the same time, then I put the magnets in. This minimizes the number of times that you have to switch between them.
Conclusion

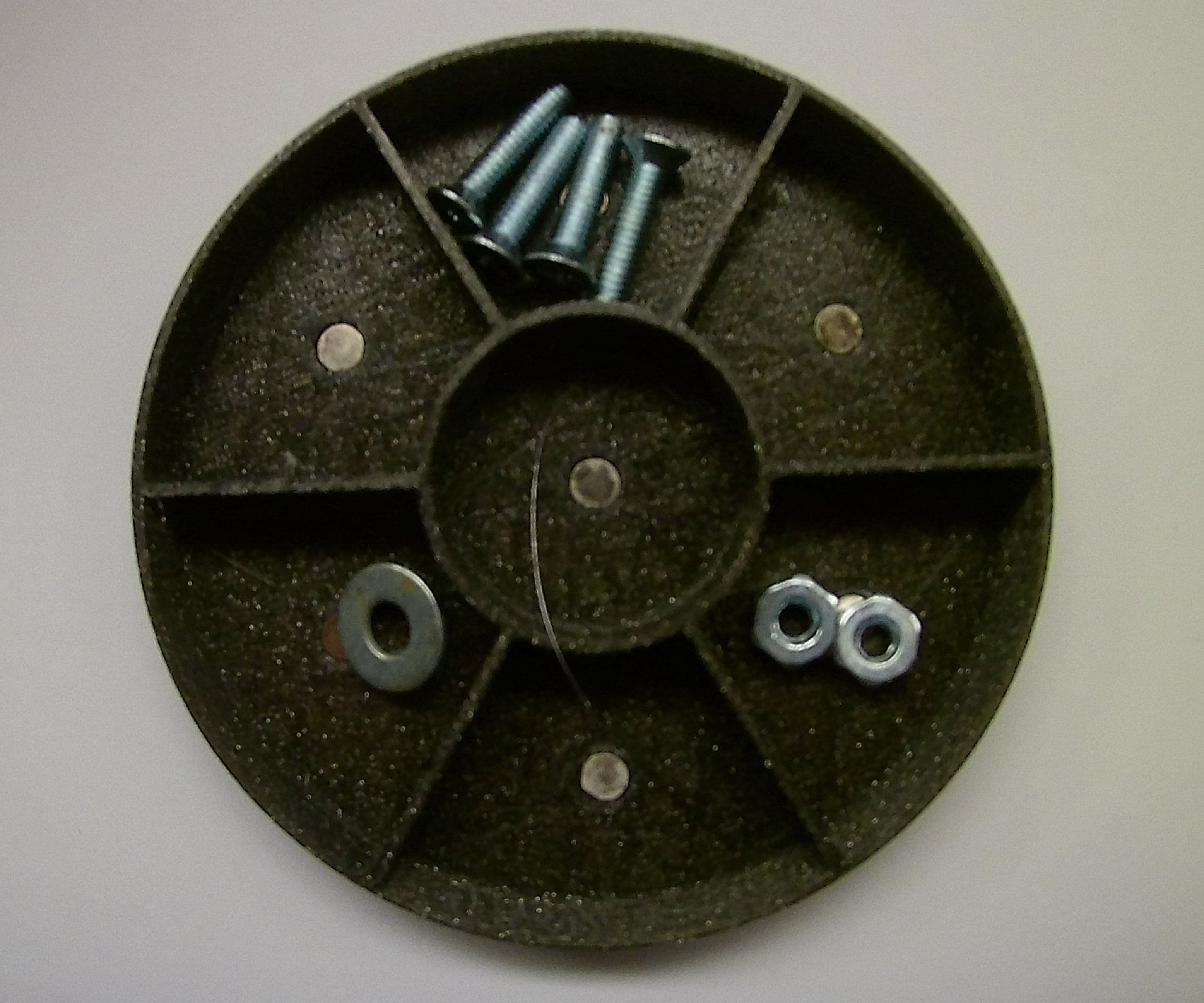

Nice Job! You should now have a stylish and useful screw organizer. Hopefully you like it as much as I do. Thank you for reading.
