Mini Homemade Pyrographic Tool.

TinksterBot

Earth

1-2 hours

$5-15

Original Project by akn1 from Instructables.

Source: https://www.instructables.com/Mini-Homemade-Pyrographic-Tool

License: Attribution-NonCommercial-ShareAlike

This Is a simple wood design tool.

you can use this for designing burnt designs on a wood.

PYROGRAPHY TOOL WOODBURNING is perfect for both novices and users who have long been engaged in burning. This device is used to burn wood, cork and leather surfaces.

Steps

Things You Need to Make This.

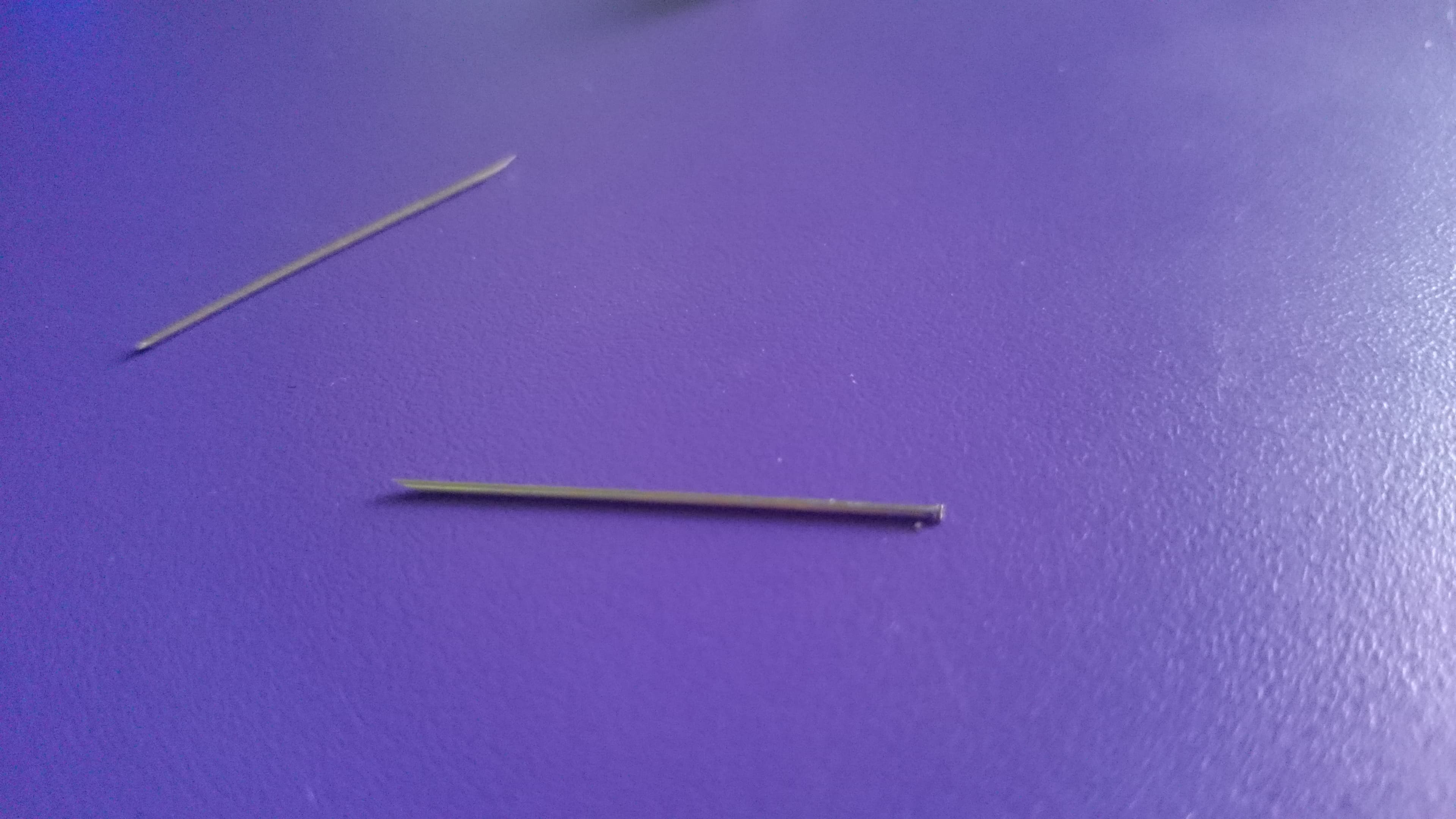

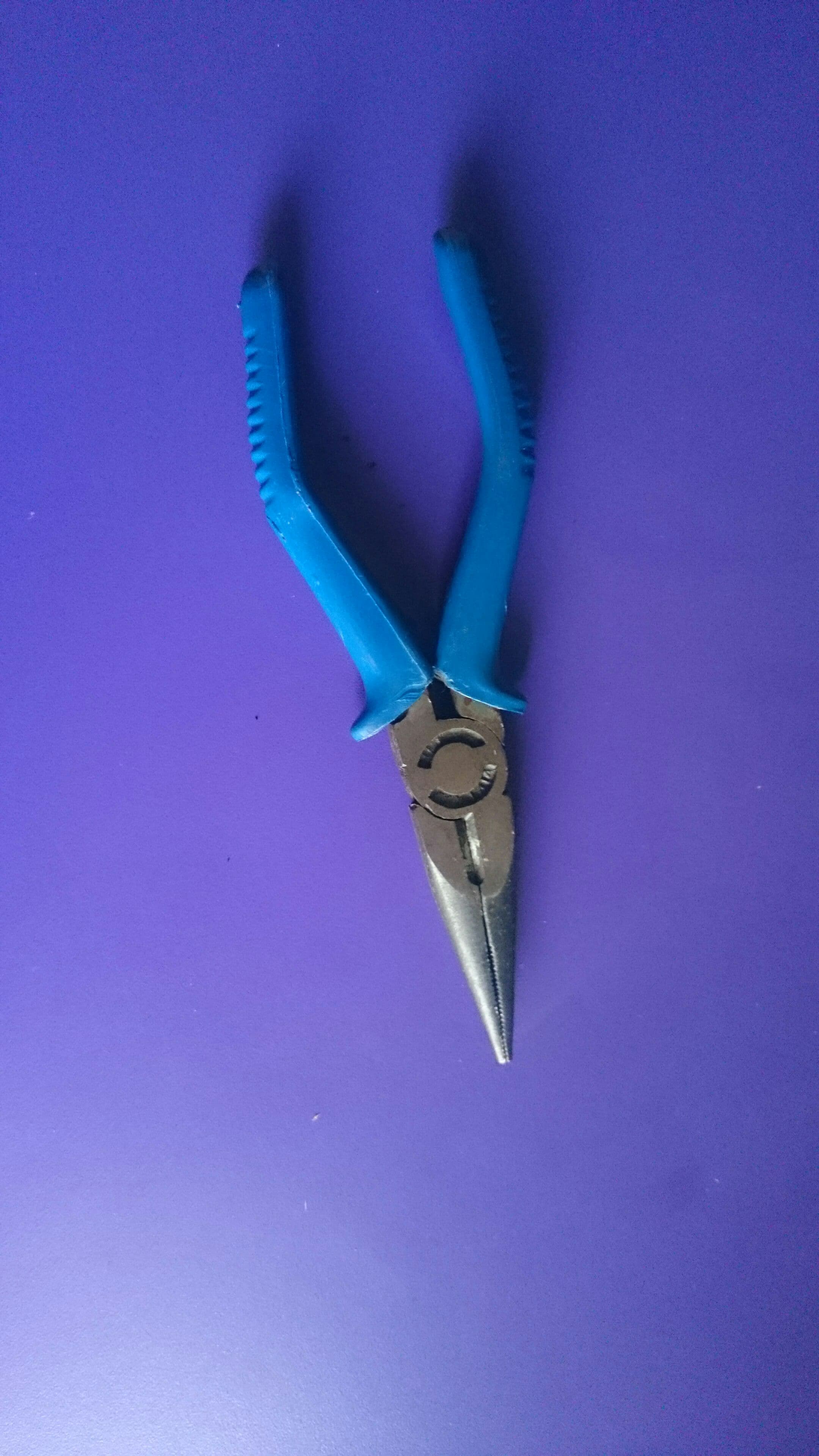

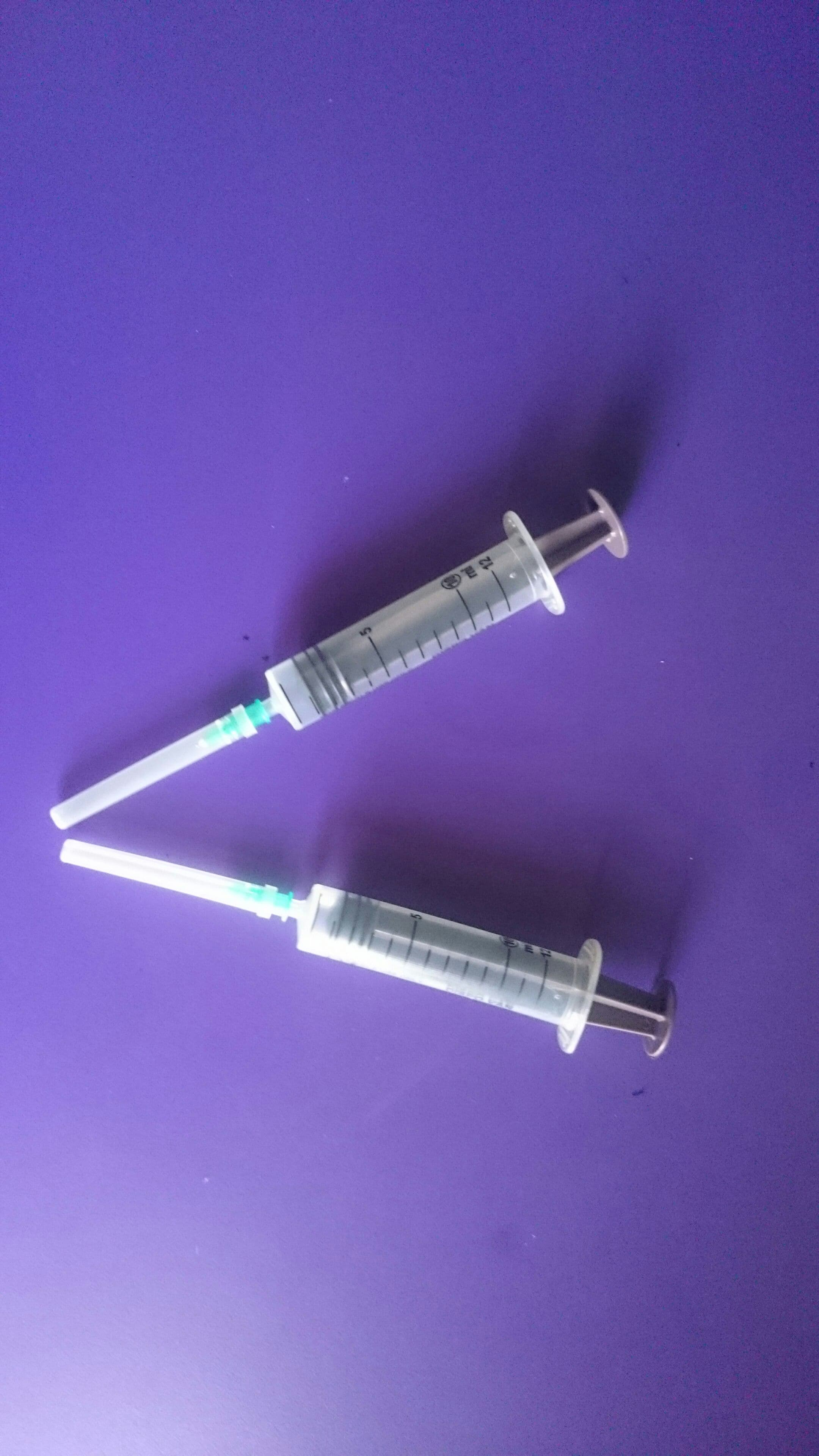

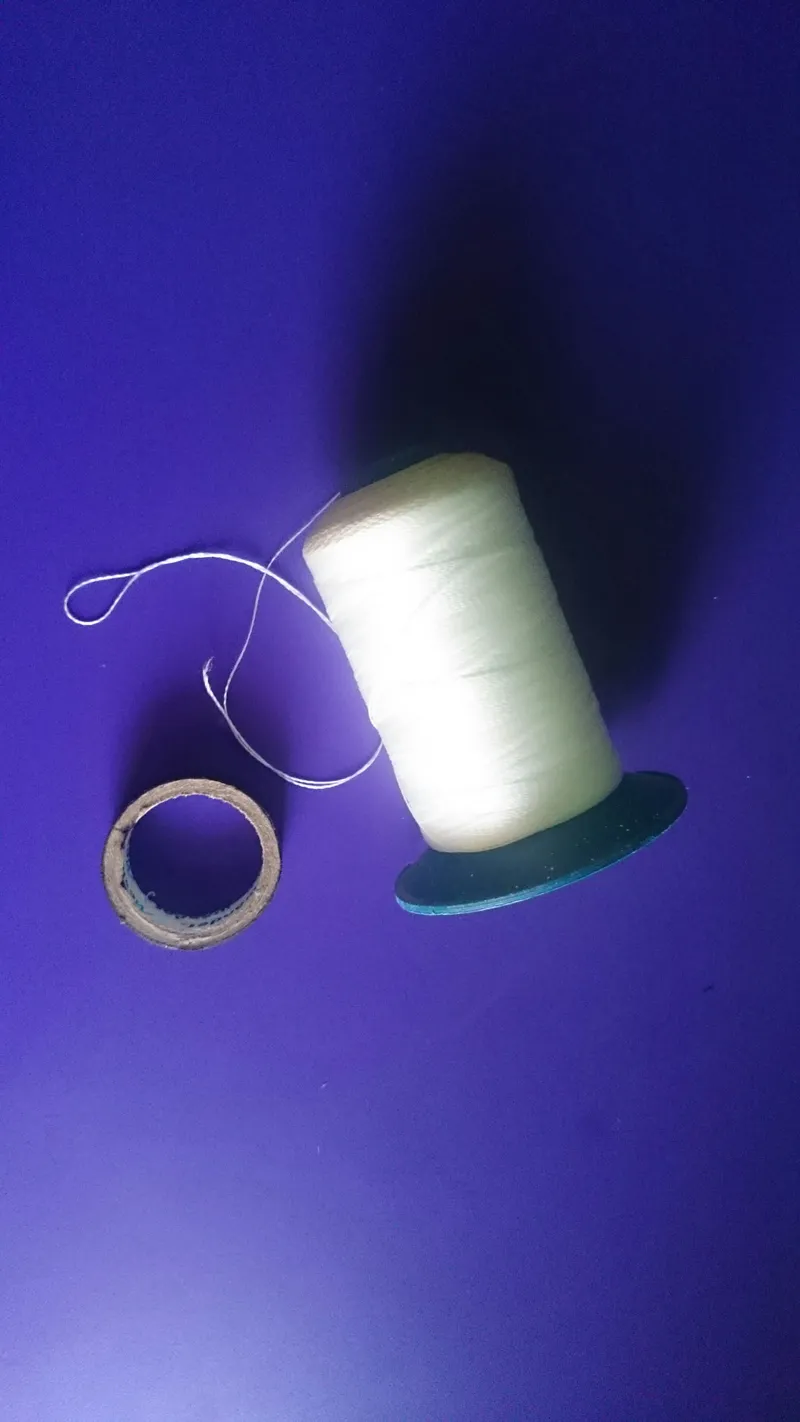

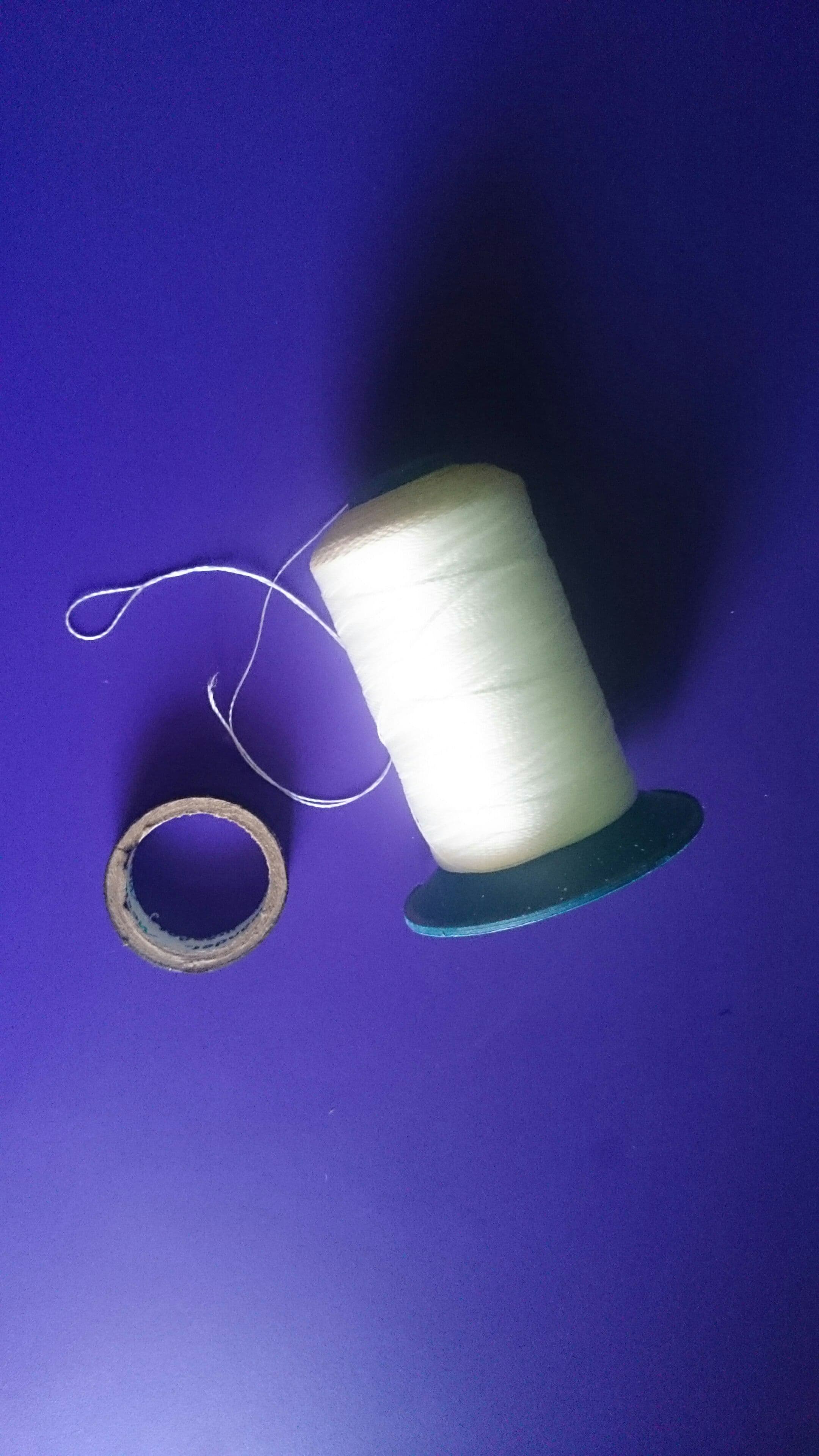

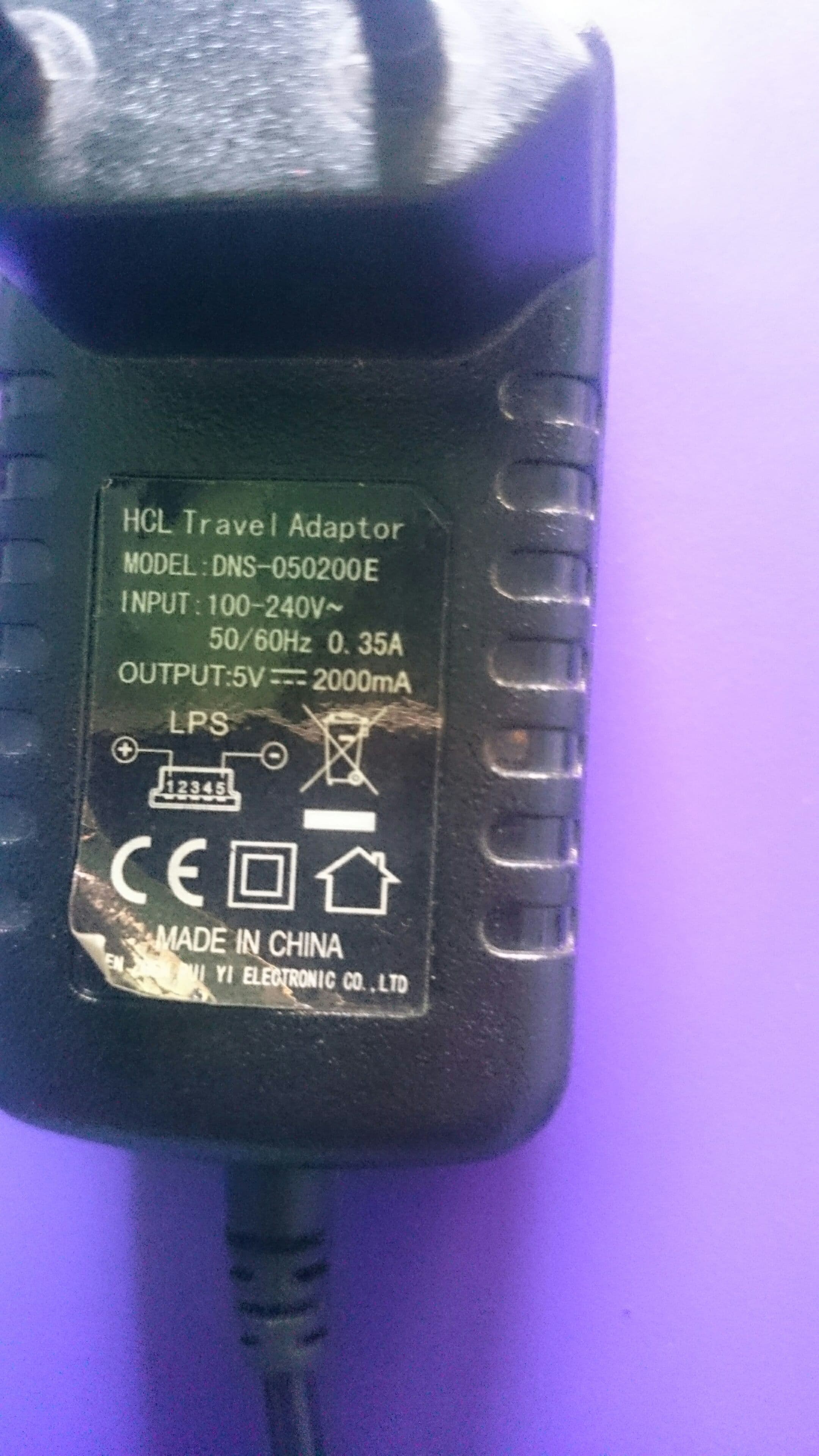

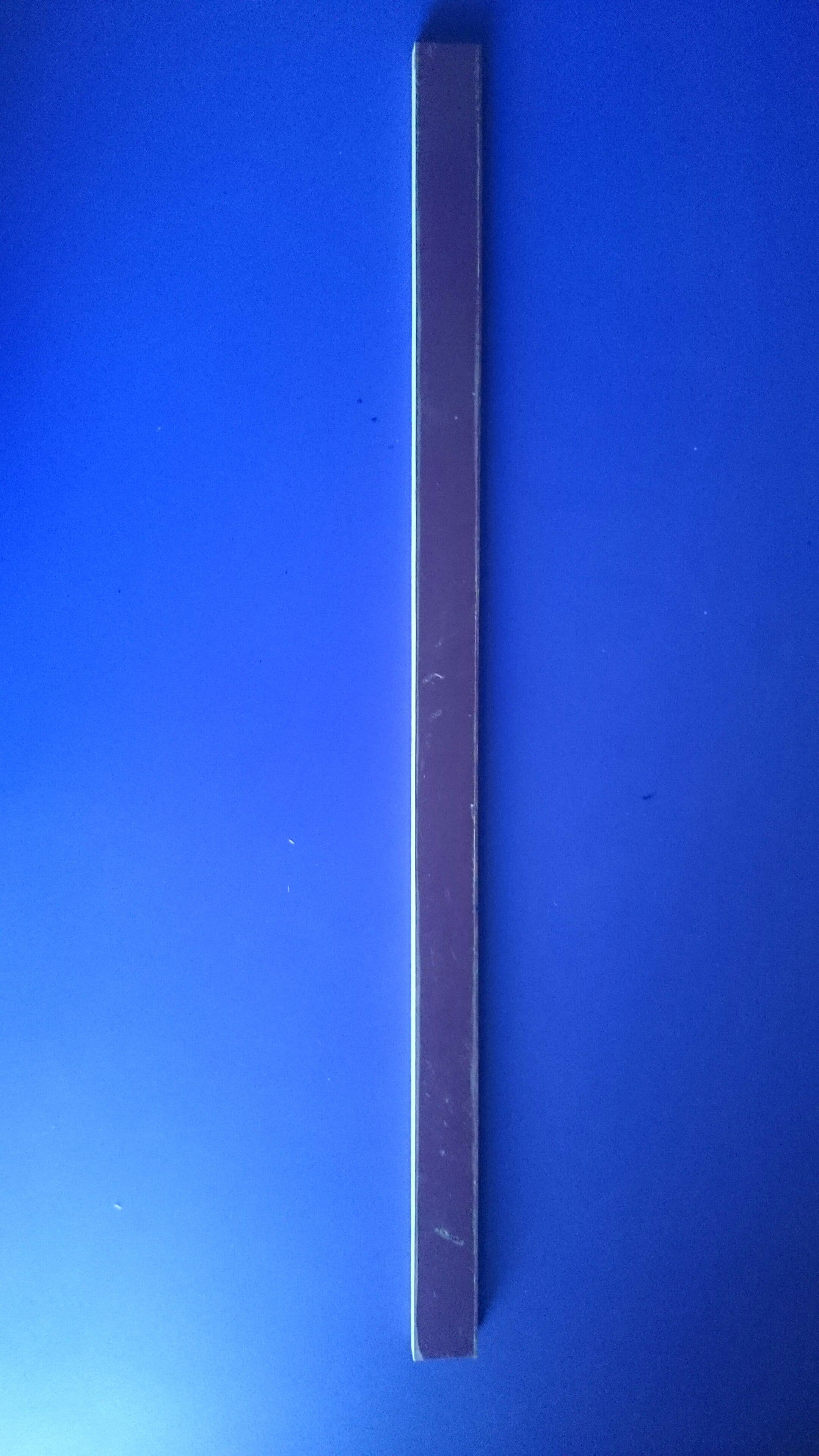

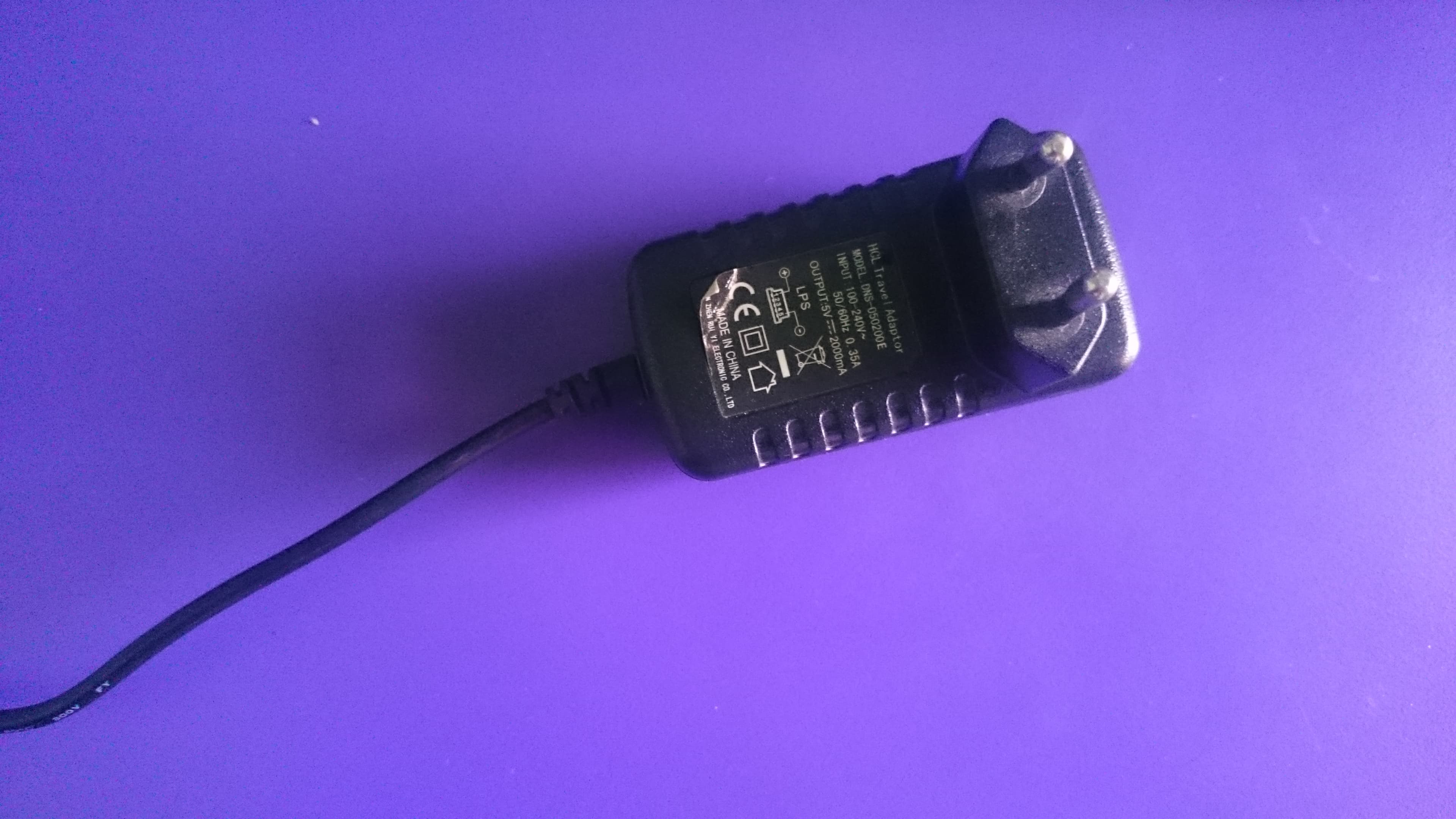

You need 2 numbers of 10ml syringes, and a wooden stick and mobile charger adapter (must have output of not more than 5v and current of 2A, current 2A is must), some nylon thread, hot glue or fast glue, soldering materials.

Get Right Size of Wood Stick

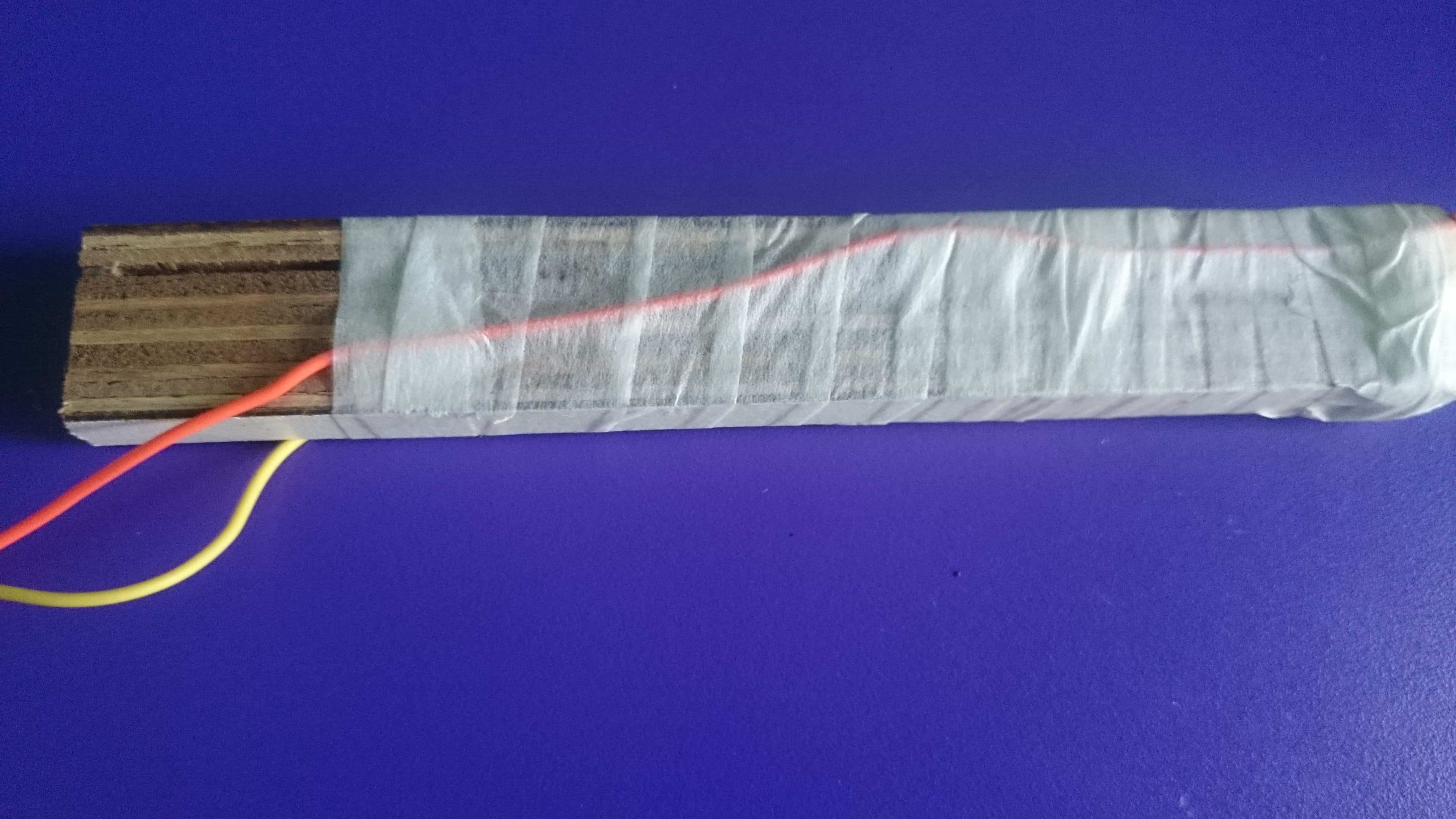

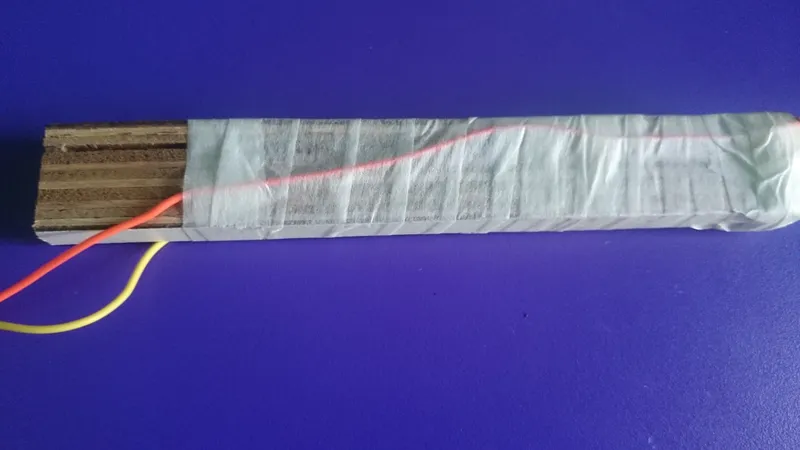

Cut a wooden stick of length 5 or 7inches.

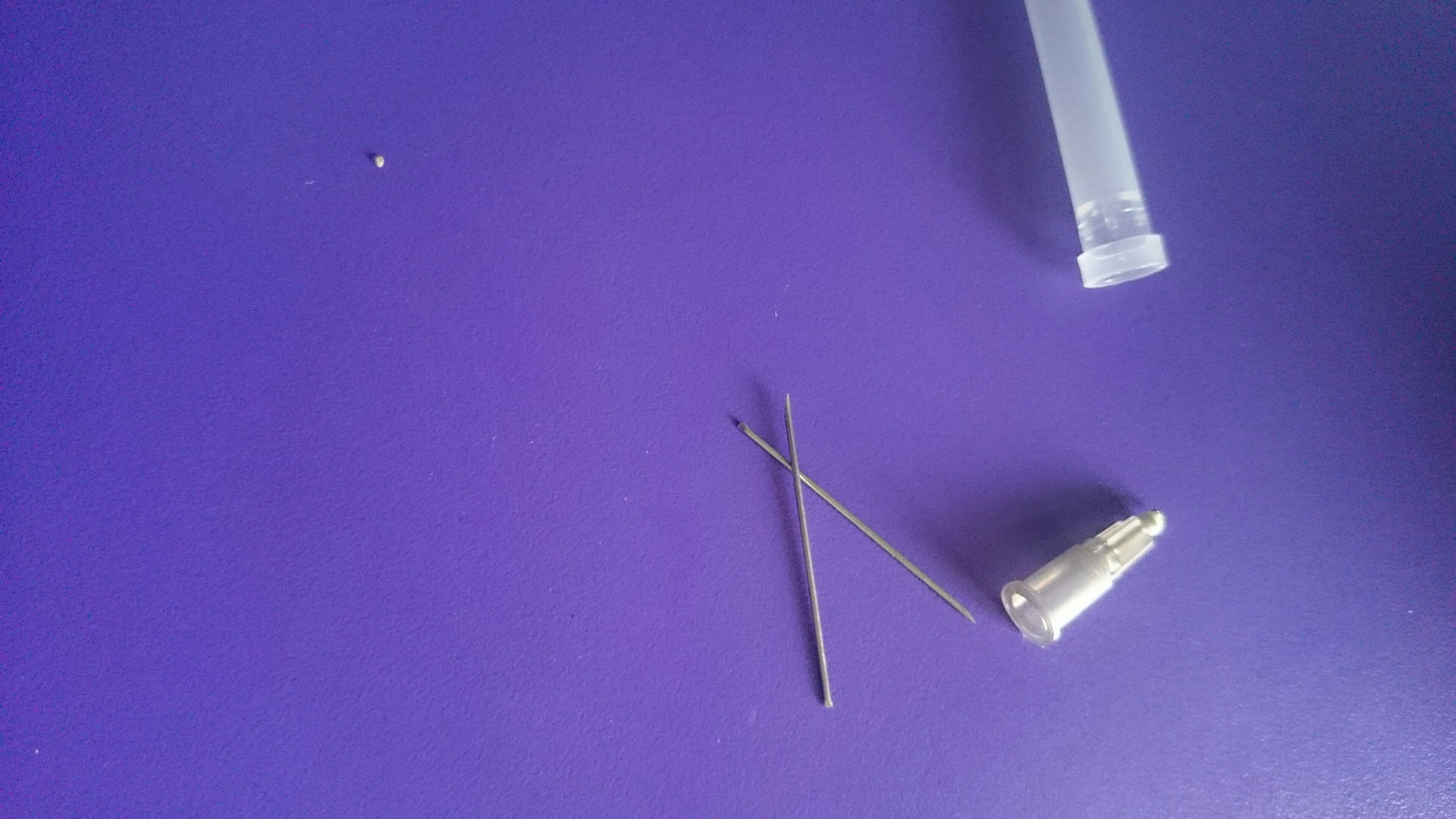

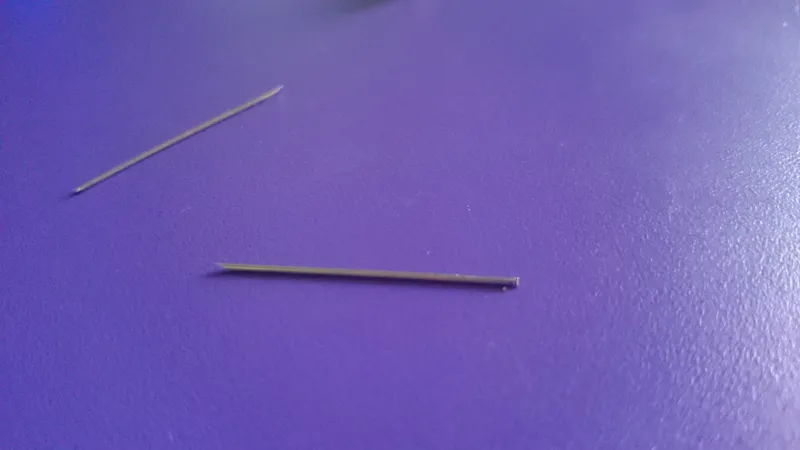

cut out the needles from the syringes using cutter or pliers.

Fixing Needles on Wooden Stick and Bending

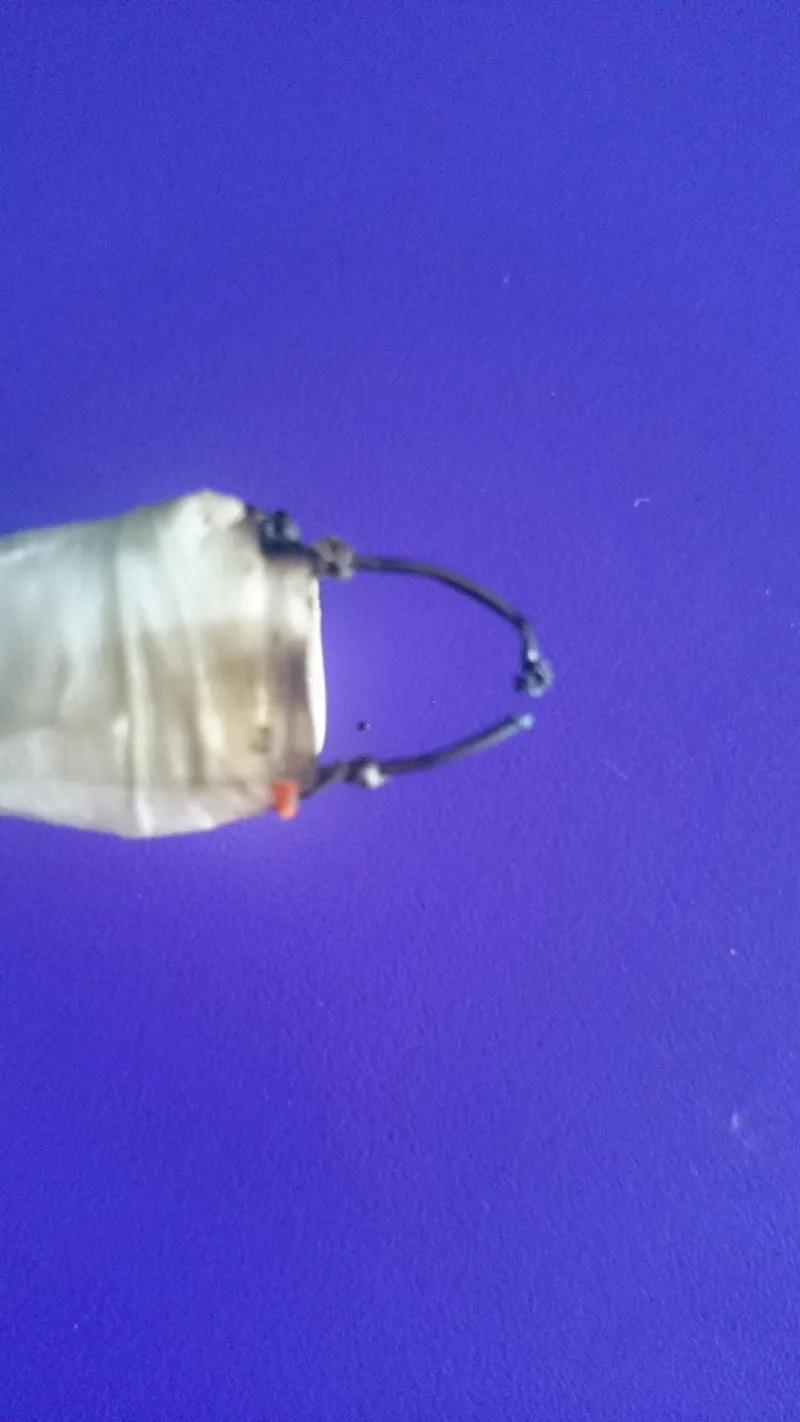

Fix the needles on opposite sides of wooden stick and put some hot glue and run the nylon thread over it to make the needles firmly stick on the wood. Now bend anyone of the needles like an arc or curve shaped. so that it must touch the other one slightly. but in the above image it's not touching but while working with it I will press on slightly to make contact of two pins.

Connecting Mobile Adapter Wires to the Pins

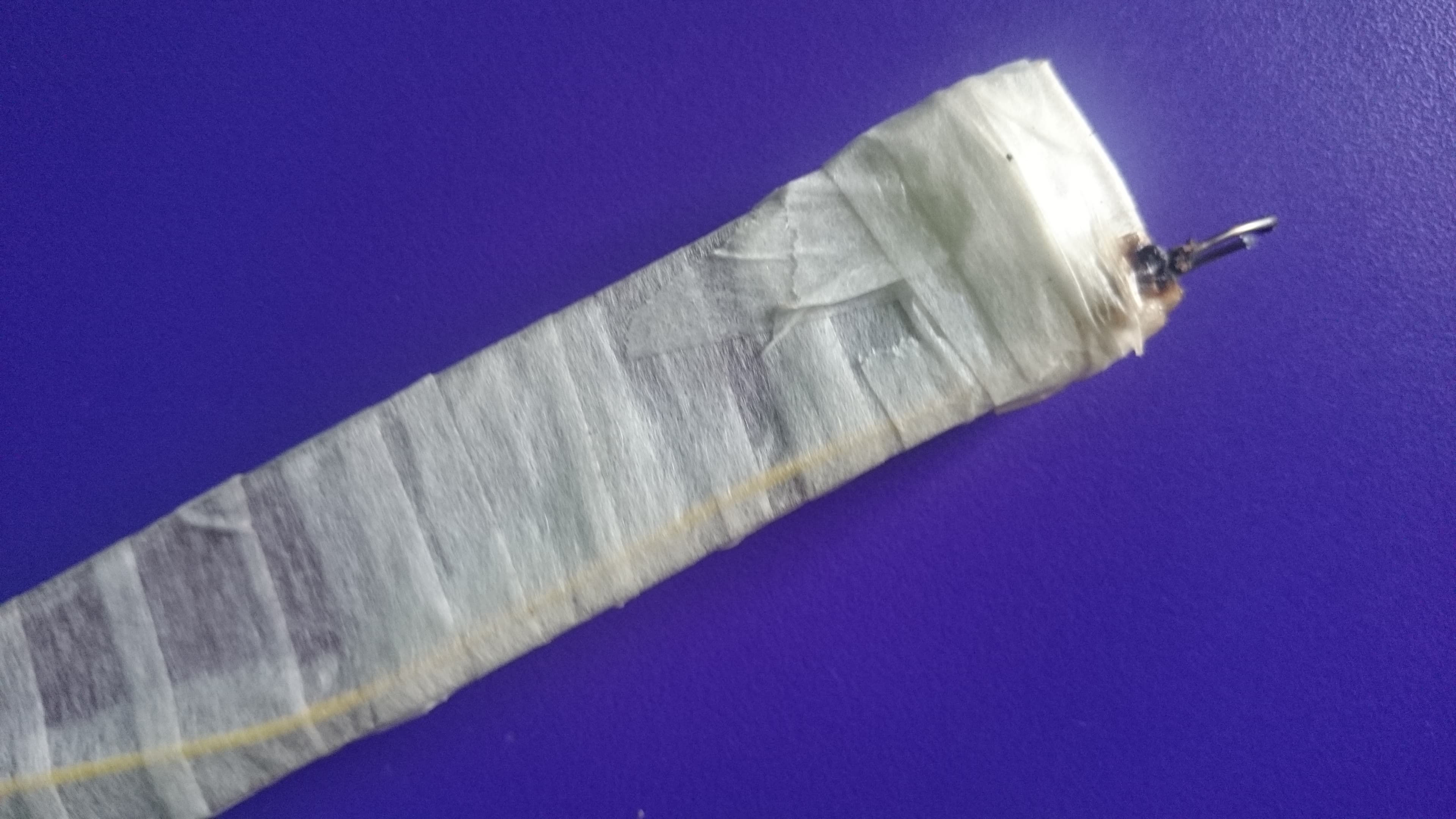

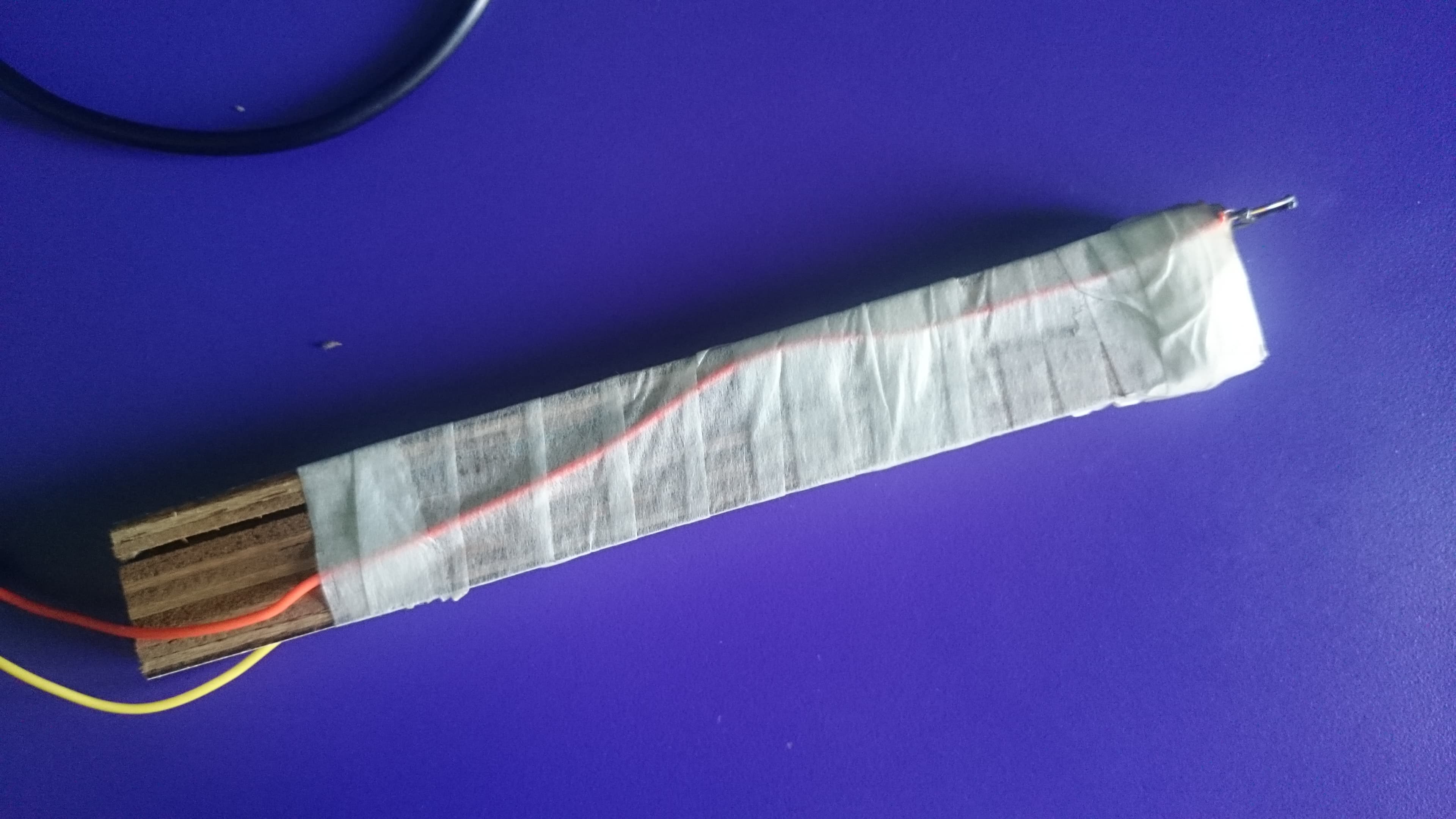

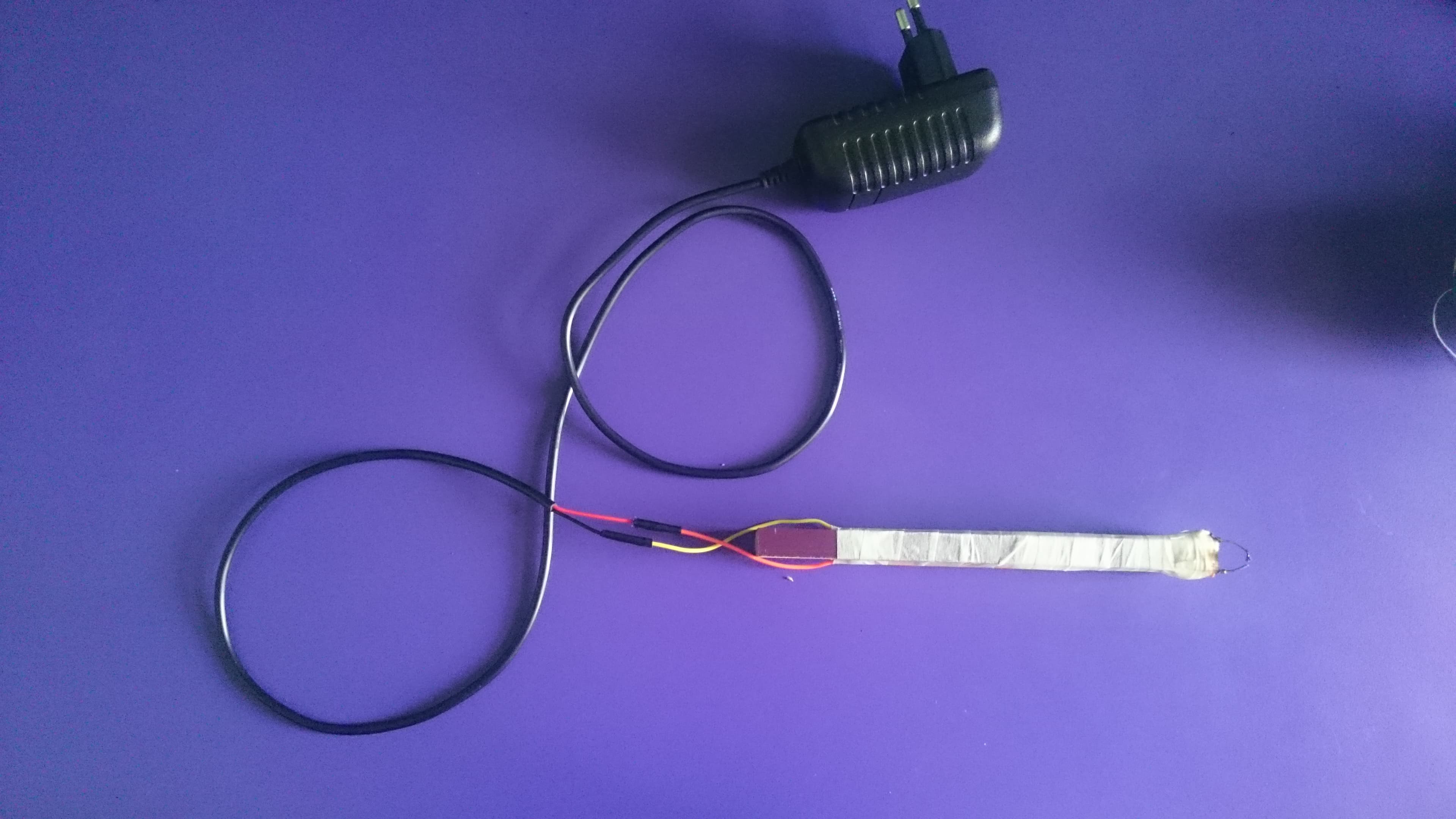

solder the adapter wires directly to the pins, even you can make it better by adding a comfortable switch. Wrap the wires using a tape or heatshrink tubes.

Working

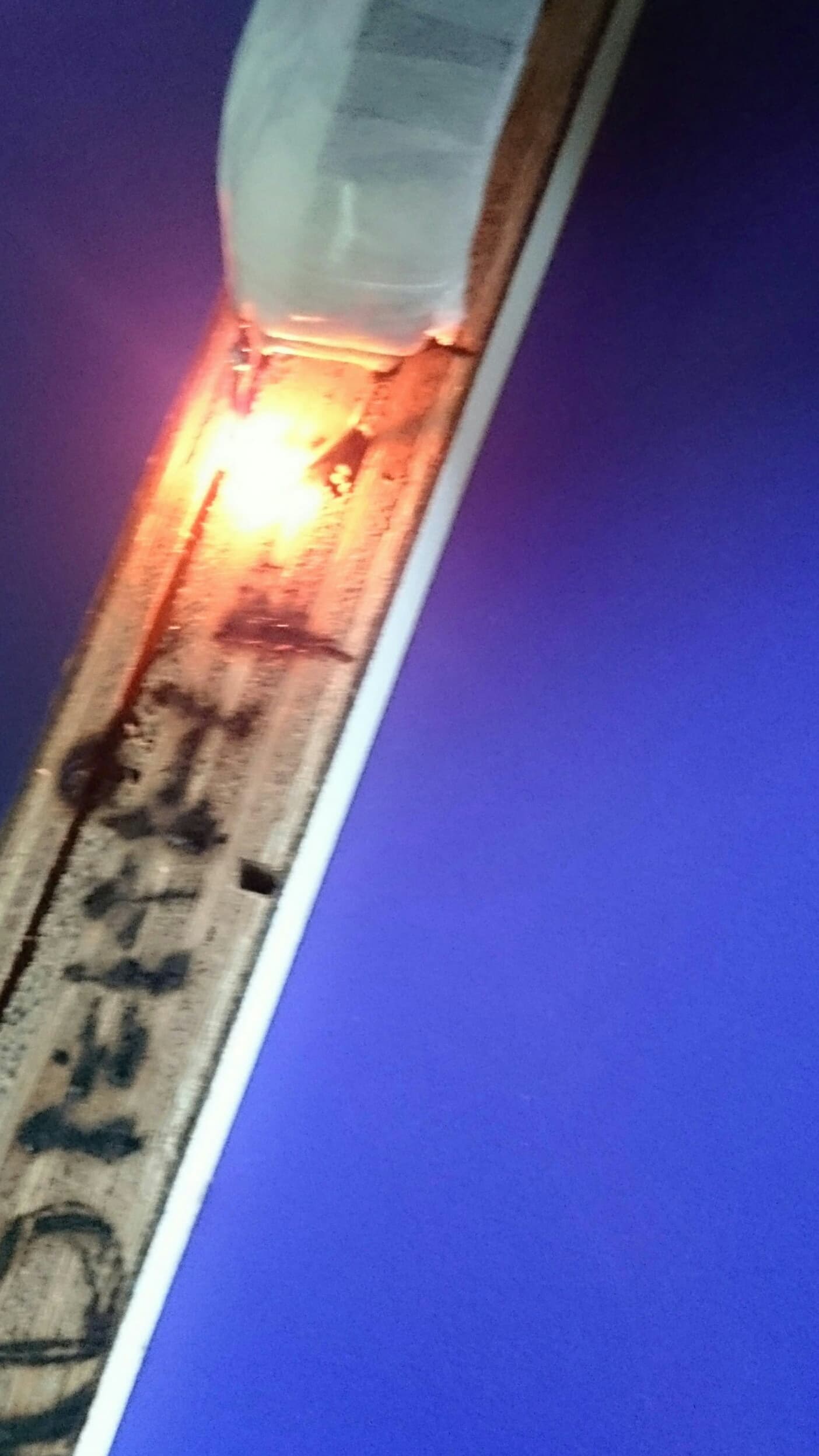

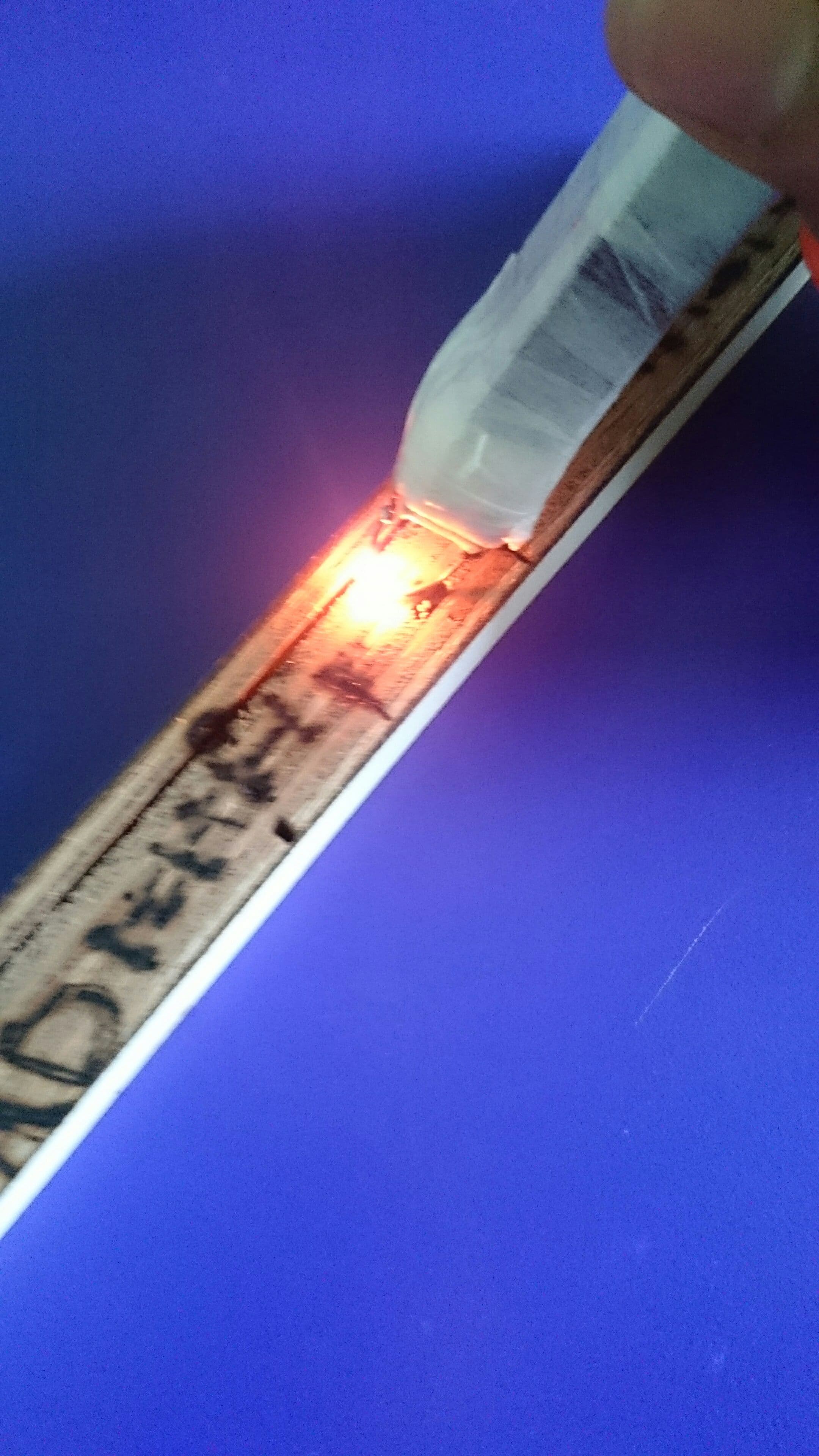

simply plug your adapter in a wall socket and power it on. If the pins are touching then it should start glowing. Because of high current of 2A and high resistance of the syringe ? needles. Hold the wooden stick when it start glowing and draw on a wood whatever you like. it will start burning the wood on specific areas wherever you drag.

Conclusion
