ESP32 Voice Assistant With Gemini AI
TinksterBot
Earth
1 weekend
$20-40
17
Original Project by circuitsmiles from Instructables.
License: Attribution-NonCommercial-ShareAlike
This project combines an ESP32 microcontroller with a Python server (using Google's Gemini AI for smart responses and gTTS for speech) to create a device that talks to you without ever listening. It's a fantastic way to learn about microcontrollers, AI APIs, and text-to-speech, all while keeping your AI token usage super low!
What you'll need
Materials
- ESP32 Dev Kit C1 pc
- 0.96" OLED Display (SSD1306, I2C interface)1 pc
- MAX98357A I2S Class-D Amplifier1 pc
- Small 8-ohm Speaker1 pc
- Tactile Buttons2 pcs
- Red LED1 pc
- Green LED1 pc
- Breadboard1 pc
- Jumper Wires (male-to-male)1 set
- USB Power Supply (at least 1A)1 pc
Tools
- Arduino IDE1 pc
- Python 31 pc
- Google API Key (for Gemini API access)1 pc
Steps
1

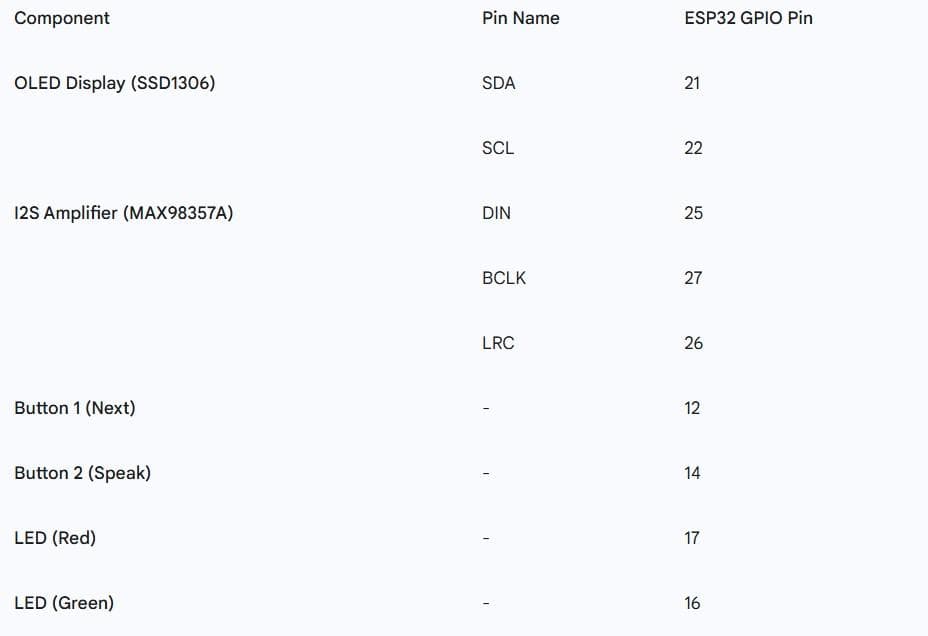

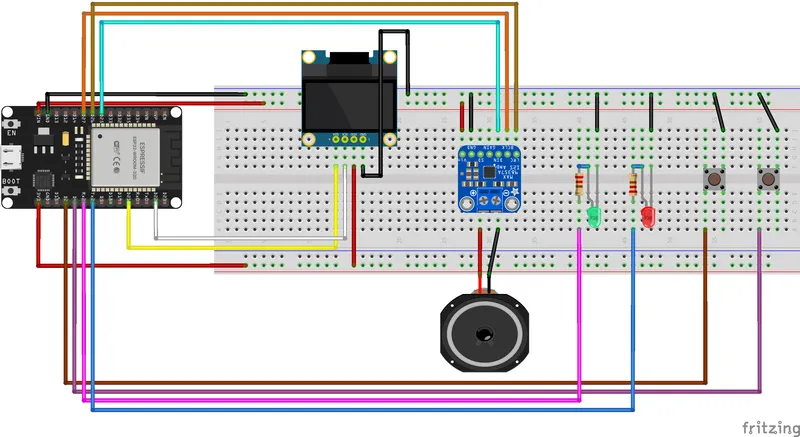

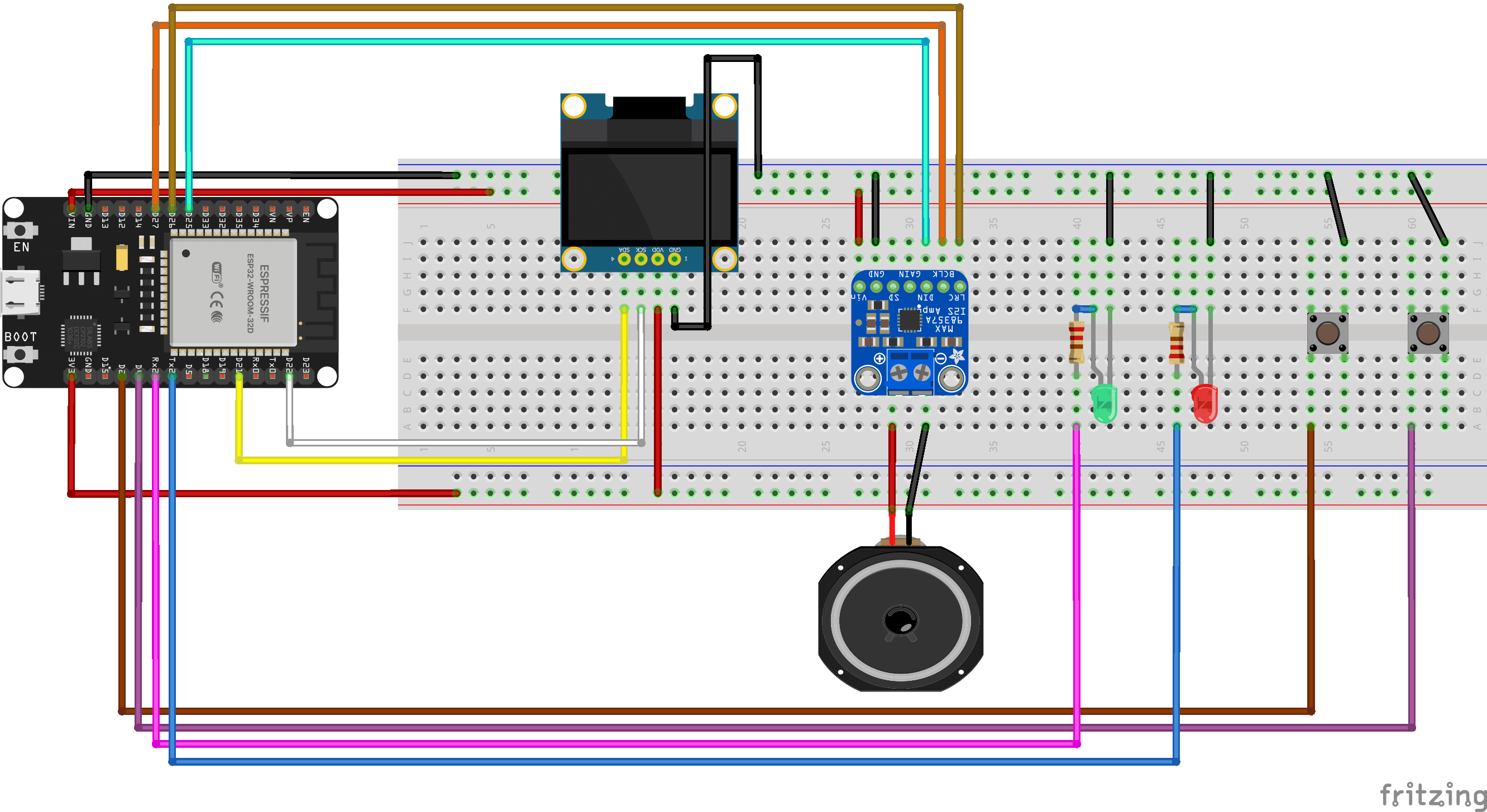

The Wiring - Connecting Everything Up
The Wiring - Connecting Everything Up
The Wiring - Connecting Everything Up
This is where the physical build comes together. Take your time, double-check connections, and ensure your ESP32 is powered off while wiring. All GND pins from components should connect to a common ground rail on your breadboard.
2
Firmware Flash - Programming the ESP32
Important - ensure Wi-Fi credentials are updated
• Install Arduino IDE: If you don't have it, download and install the Arduino IDE.
• Add ESP32 Board: Go to File > Preferences and add this URL to "Additional Boards Manager URLs": https://raw.githubusercontent.com/espressif/arduino-esp32/gh-pages/package_esp32_index.json
• Install Board: Navigate to Tools > Board > Boards Manager, search for "esp32", and install the package.
• Install Libraries: Go to Sketch > Include Library > Manage Libraries, search for and install:
• Adafruit GFX Library
• Adafruit SSD1306 Library
• Open Code: Open the provided ESP32 firmware .ino file.
• Upload: Select your ESP32 board and port (Tools > Board and Tools > Port), then click the "Upload" arrow.
3

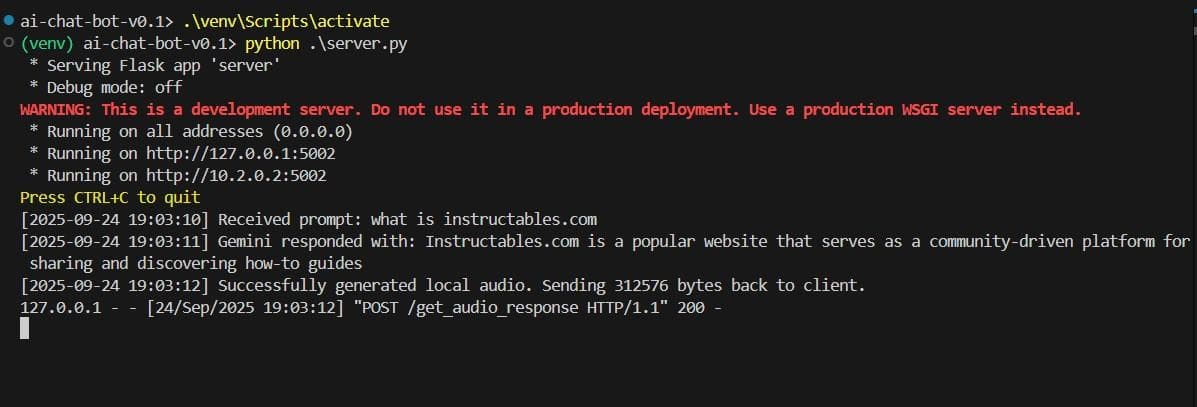

The AI Server - Python & Gemini
The AI Server - Python & Gemini
This Python server runs on your computer (or a Raspberry Pi) and acts as the intelligence hub. Use github repo for code.
• Install Python: Ensure you have Python 3 installed.
• Virtual Environment (Recommended):
• python3 -m venv venv
• source venv/bin/activate (macOS/Linux) or venv\Scripts\activate (Windows)
• Install Dependencies: run - pip install -r requirements.txt
• Get Gemini API Key: Go to the Google AI Studio to get your GEMINI_API_KEY.
• Create .env file: In the same directory as your server.py file, create a new file named .env and add: GEMINI_API_KEY="YOUR_API_KEY_HERE"
• Run the Server: Open a terminal in your server's directory and run: python server.py The server will now be running, waiting for requests from your ESP32!
4

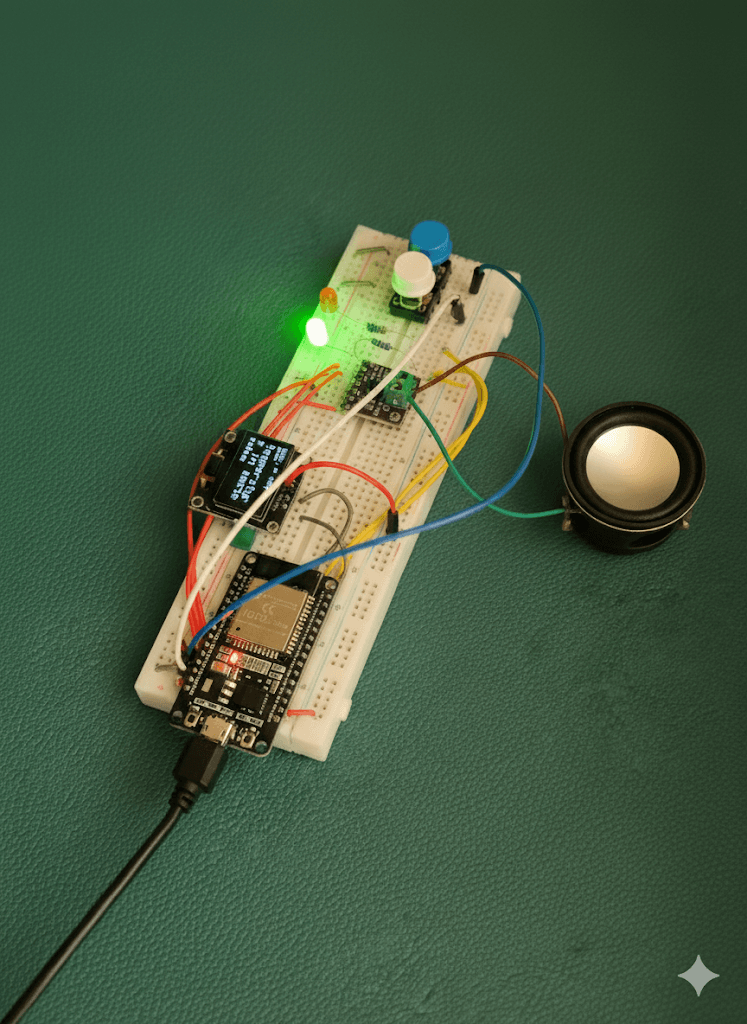

Putting It All Together & How to Use
Putting It All Together & How to Use
Operation: Your Offline AI Is Ready!
• Power Up: Connect power to your ESP32. It should connect to Wi-Fi, and the OLED will display "Ready" with the green LED solid.
• "Next" Button: Press this button to cycle through the predefined phrases on the OLED display.
• "Speak" Button: When you've found the phrase you want, press "Speak."
• The OLED will show "Thinking..." (red LED solid) as the ESP32 contacts the server.
• Once the server responds, it will switch to "Speaking..." (green LED solid, red LED blinks) as the audio plays.
• After playback, it returns to "Ready."
The Token-Saving Trick: Remember, the Python server deliberately limits the length of the Gemini response to keep your API token usage (and potential costs!) down. It's an efficient little system!
Conclusion
Congratulations! You've built a functional, privacy-conscious AI voice assistant. This project demonstrates how versatile the ESP32 is when combined with powerful APIs.
Ideas for improvement:
• Add a local web interface for custom prompt configuration.
• Integrate other sensors or actuators.
• Explore different Text-to-Speech engines or even local voice models.
I hope you enjoyed this build! If you have any questions or run into issues, leave a comment!
