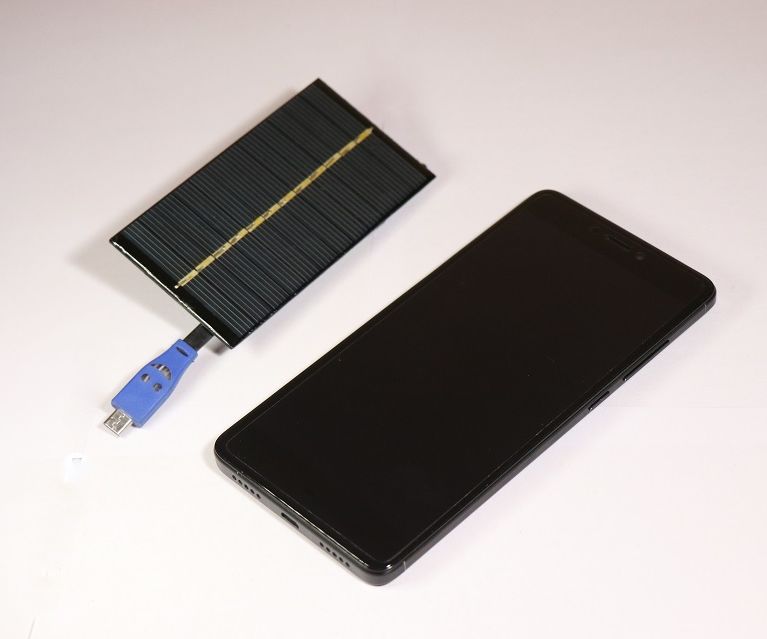

Hello Readers in this instructable i made solar powered phone charger under 5$ which is very easy to make this takes only 4 simple steps which you will come to know soon! Please don't forget to share this instructable with your family and friends
Steps
1
Hate Reading Then This Video Is for You
Please Like and Share it means a lot to me
2
Gather These
Gather These
Gather These
Gather These
Gather These

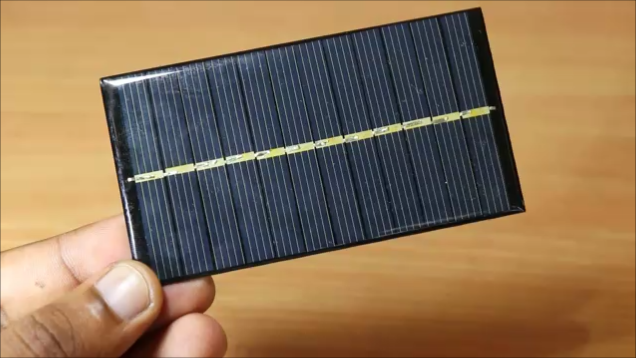

• Solar Panel

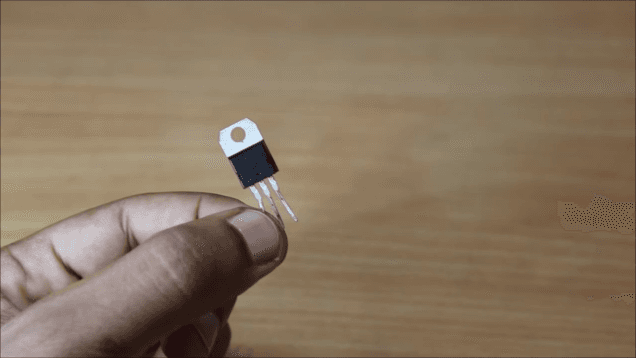

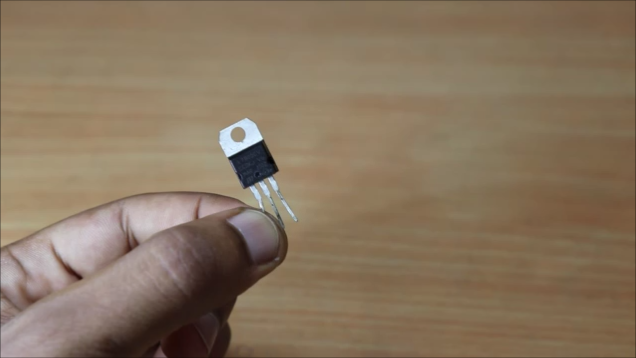

• IC 7805

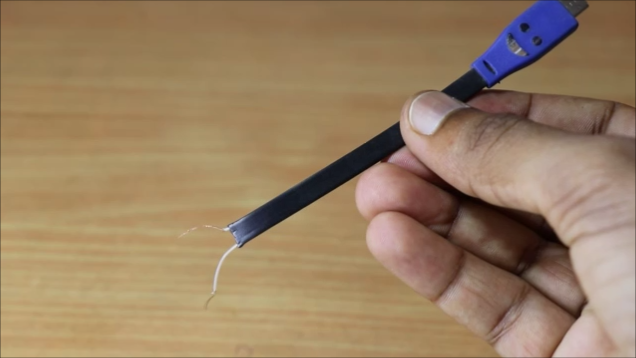

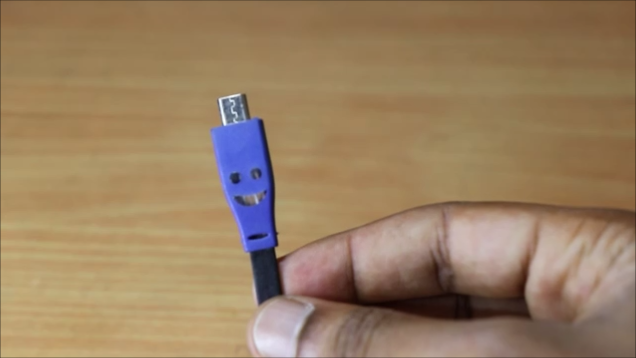

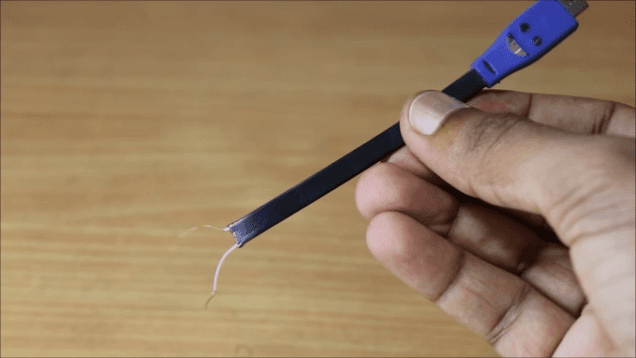

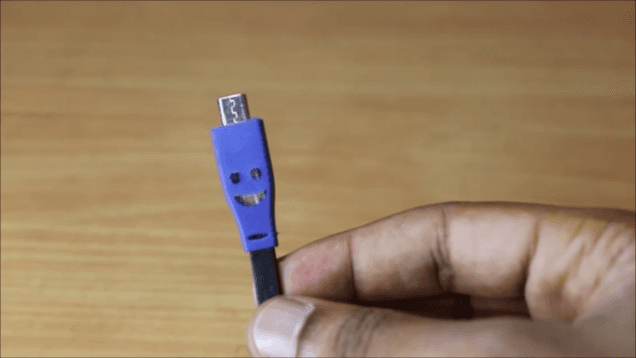

• Charging pin
3
Phase 1
Phase 1
Phase 1
Phase 1
Phase 1

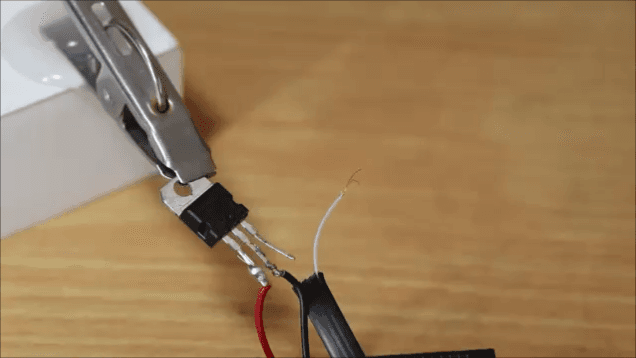

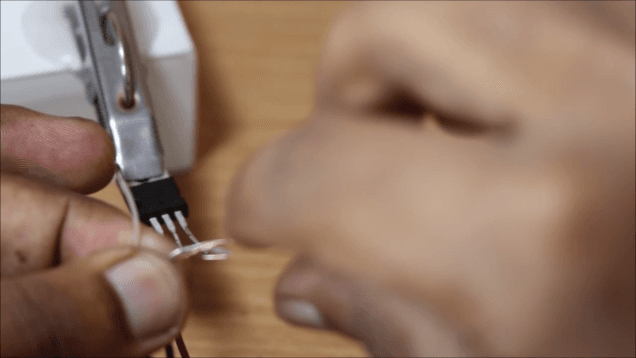

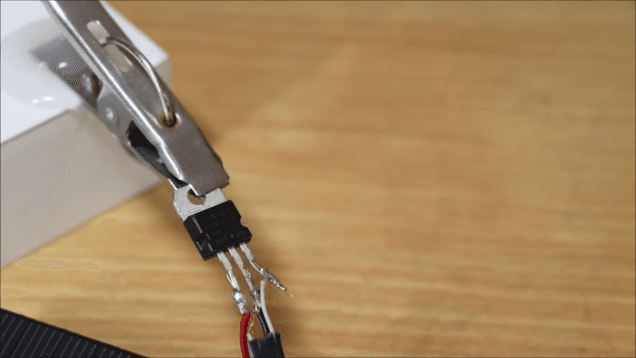

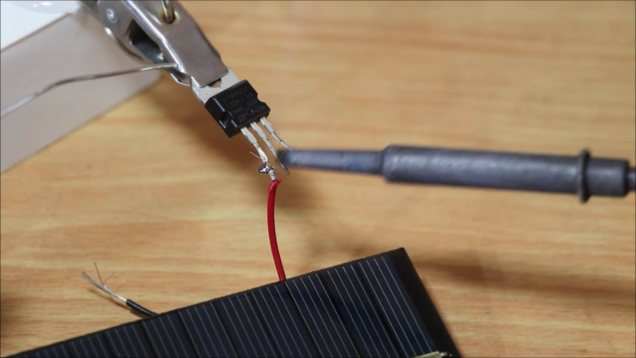

• Solder positive side of solar panel to IC as shown in picture

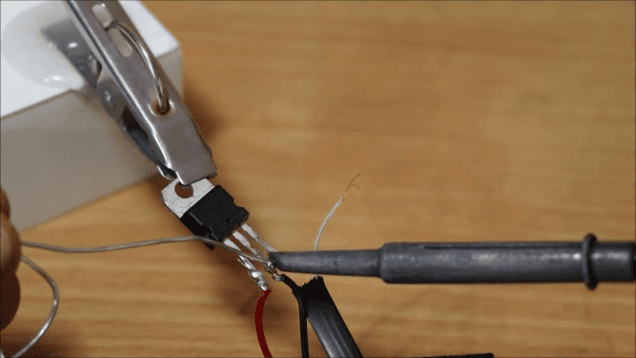

• Negative of both charging pin and solar panel is soldered to middle part of IC

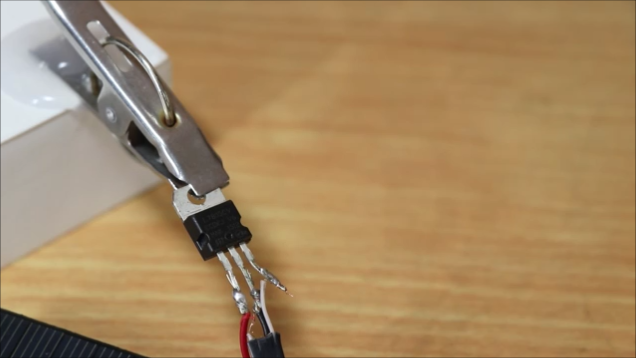

• Positive of Charging pin soldered to remaining pin of IC
Conclusion
• Cover the back side of panel with everything in place
• Go Outside and Test Your Hard Work!!
Thank You
