DIY Smart House 1 - Personal Voice Assistant (based on Raspberry Pi)

TinksterBot

Earth

1 weekend

$50-100

Original Project by Seeed Studio from Instructables.

Source: https://www.instructables.com/DIY-Smart-House-1-Personal-Voice-Assistant-based-o

License: Attribution-NonCommercial-ShareAlike

Brief Intro

Our last few projects posted on instructables have been viewed over 100K times and been liked by thousands of people. You can find them at ReRouter - Make an Extensible IoT Router and Smart router with WiFi Connection Visualization. In fact, they are all about smart controls.

The popularity of these kind of projects has inspired us to move forward and contribute more on it. We decided to make a serial of smart IoT devices that can be used to build a smart house for ANYONE.

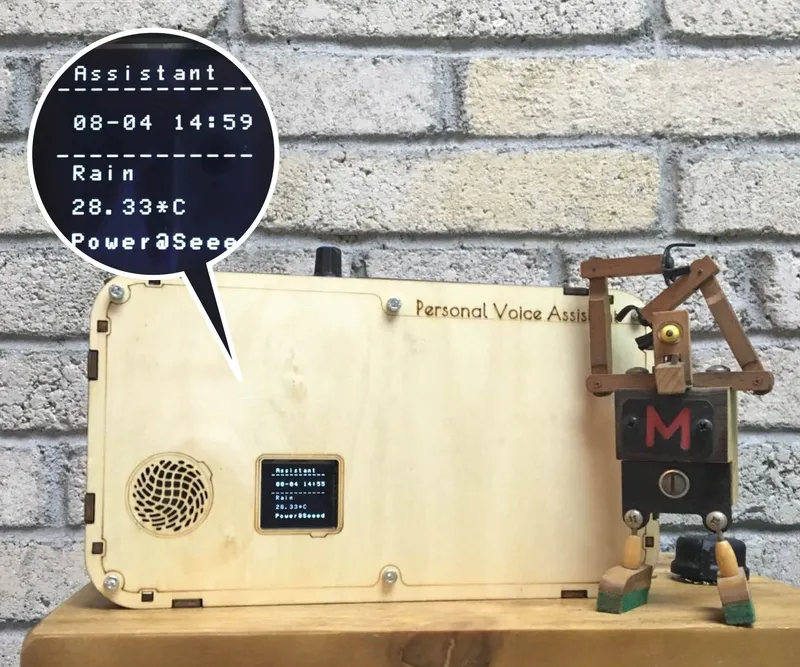

Now we are starting from this one - the DIY Personal Voice Assistant based on Raspberry Pi.

Steps

Prepare the Parts - Electronic

Basically these are what you need for this project:

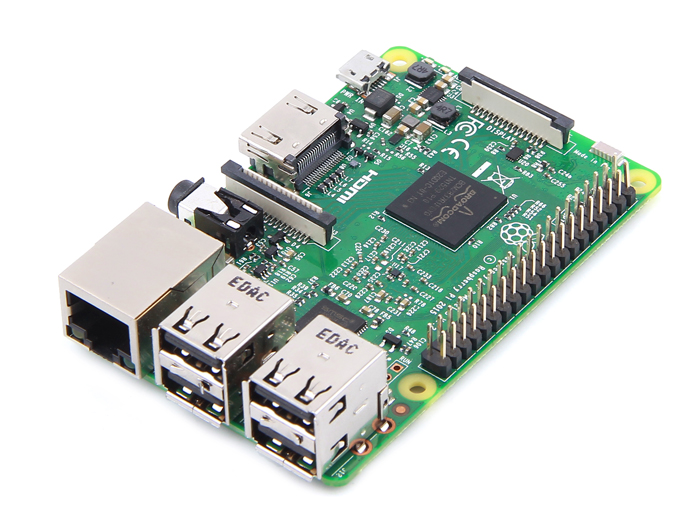

• 1x Raspberry Pi 3 Model B

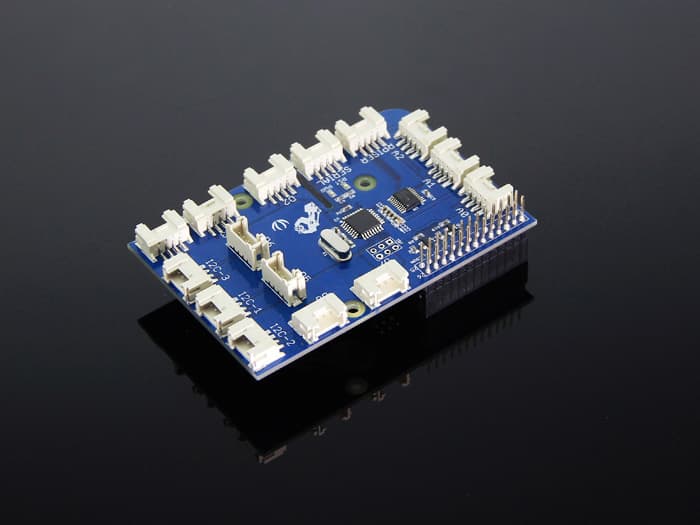

• 1x GrovePi+

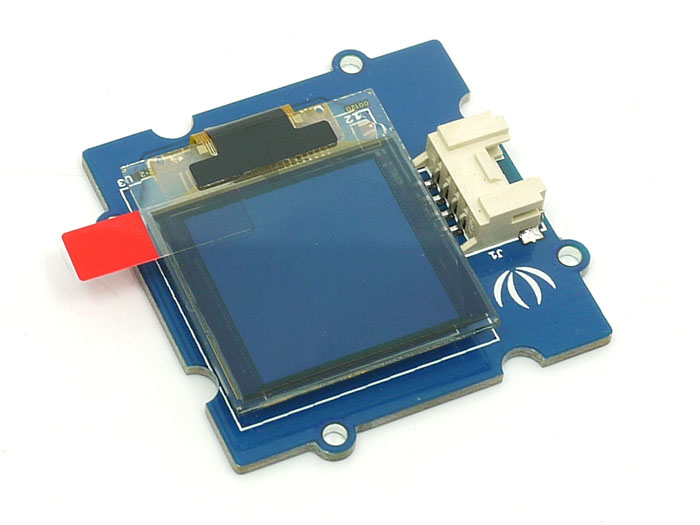

• 1x Grove - OLED Display 1.12''

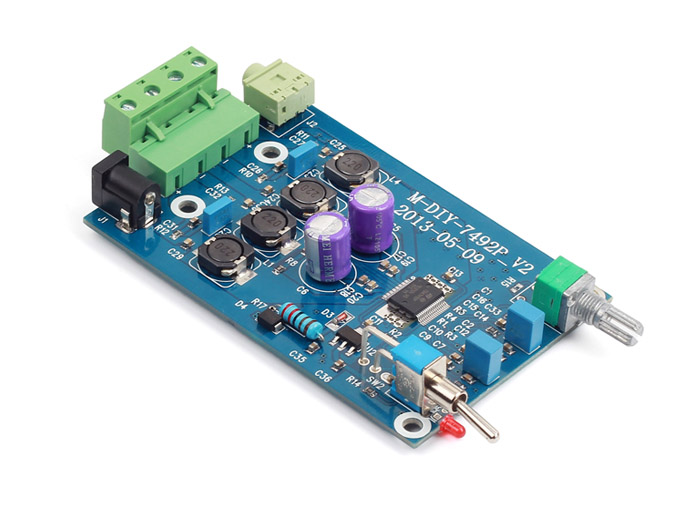

• 1x Audio Amplifier Module B25

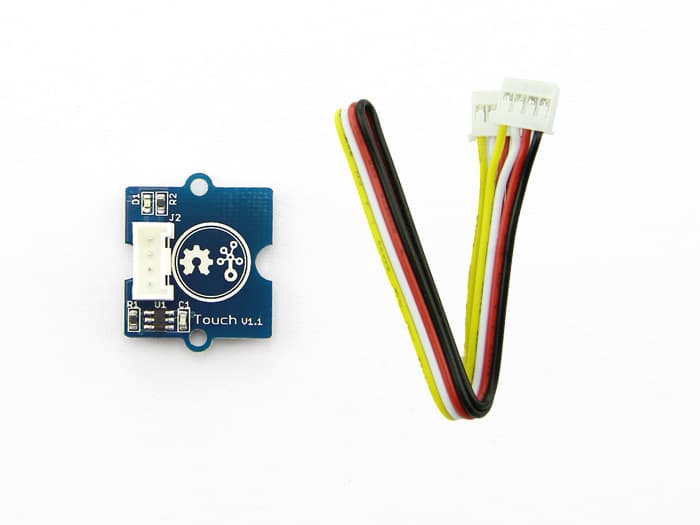

• 1x Grove - Touch Sensor

• 1x Speaker of Grove - Recorder

• 3x Grove Cables

Prepare the Parts - DIY the Enclosure

DIY Enclosure For the Device

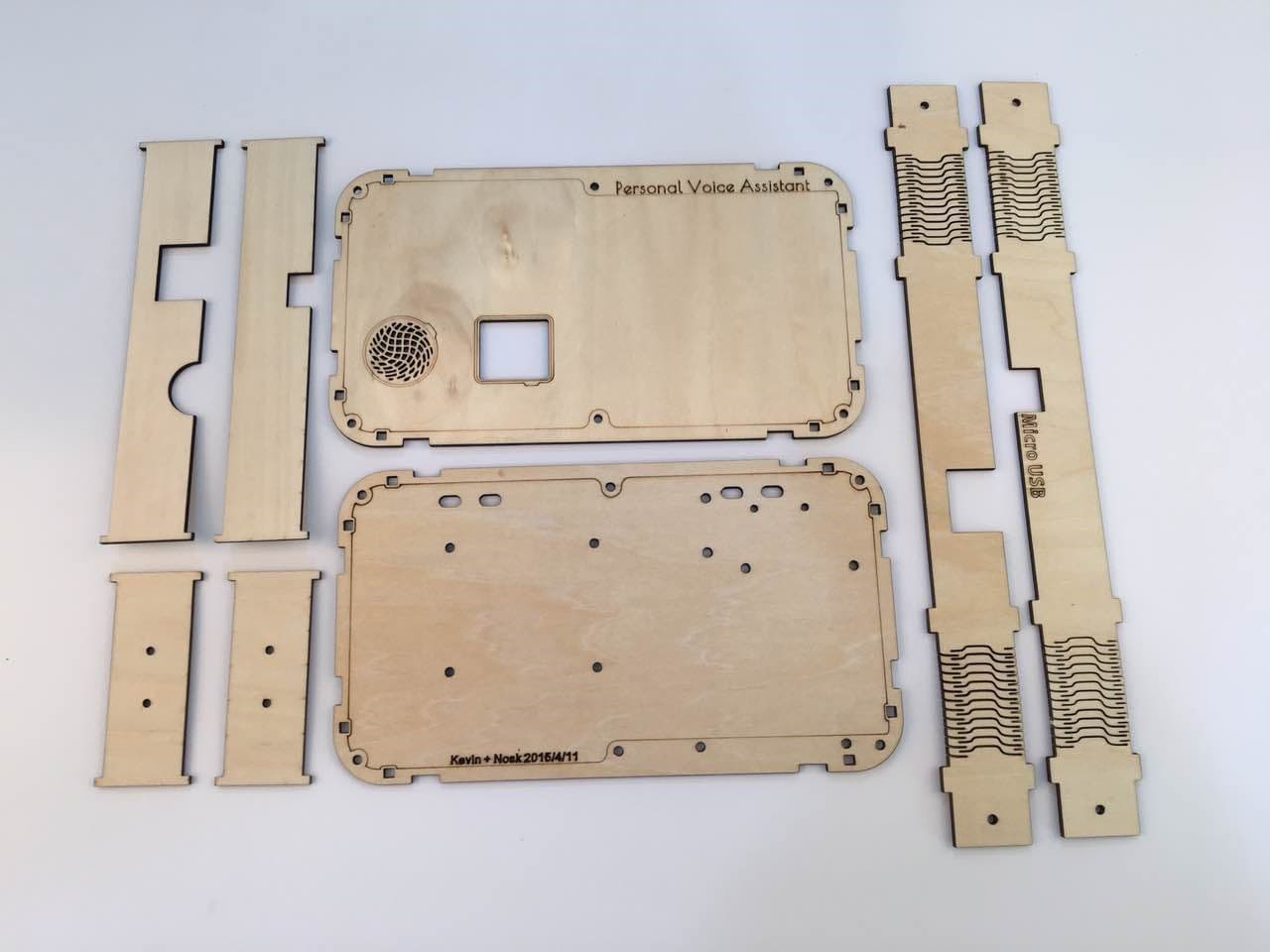

We've designed and laser cut a neat enclosure for this device which you can download it at here (Enclosure laser cut design)

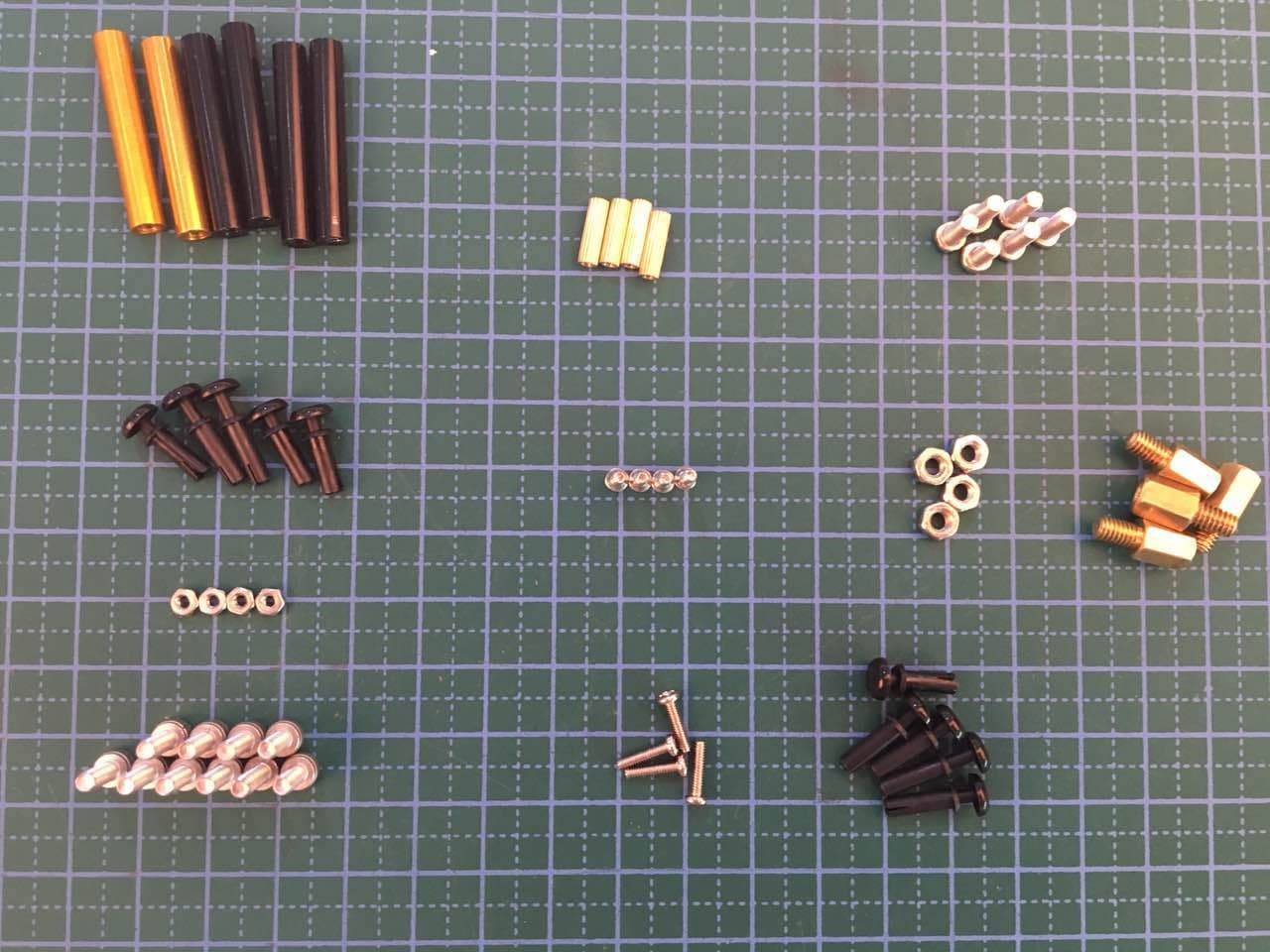

You would need to the following parts for the assembly:

• 6x M3 female-female Aluminum standoff (30 mm)

• 4x M3 brass male-female standoff (7 mm+6 mm)

• 4x M2 brass threaded standoff (10 mm)

• 10x R3 Rivets (9 mm)

• 16x M3 stainless steel screws

• 4x M3 stainless steel nuts

• 8x M2 stainless steel screws

• 4x M2 stainless steel nuts

• 1x Screwdriver

Wiring the Electronics

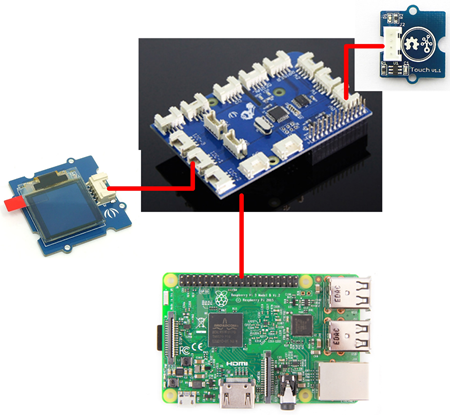

Connects all the electronic parts as instructed in the image of this section.

What Would It Do

This Personal Voice Assistant can do the following jobs:

• Make the Raspberry Pi speak

• Connect the device to my Evernote

• Get the time status over the internet

• Acquire weather information on openweathermap.com

• Update all the data and info on the Grove - OLED

Now the following steps will show how to achieve those functions one by one.

Make the Raspberry Pi Speak

We use espeak to do the TTS work.

• Install Espeak

Open your favourite terminate and excute the following commands

sudo apt-get install python-dev sudo agt-get install espeak

sudo apt-get install python-espeak

• Test it

espeak "hello world"

• Install Talkey

Talkey is a simple Text-To-Speech (TTS) interface library with multi-language and multi-engine support.

pip install talkey

• Test it in python

import talkey tts = talkey.Talkey()

tts.say('Old McDonald had a farm')pip install talkeyTest it in python import talkeytts = talkey.Talkey()tts.say('Old McDonald had a farm')

Connect the Device to My Evernote

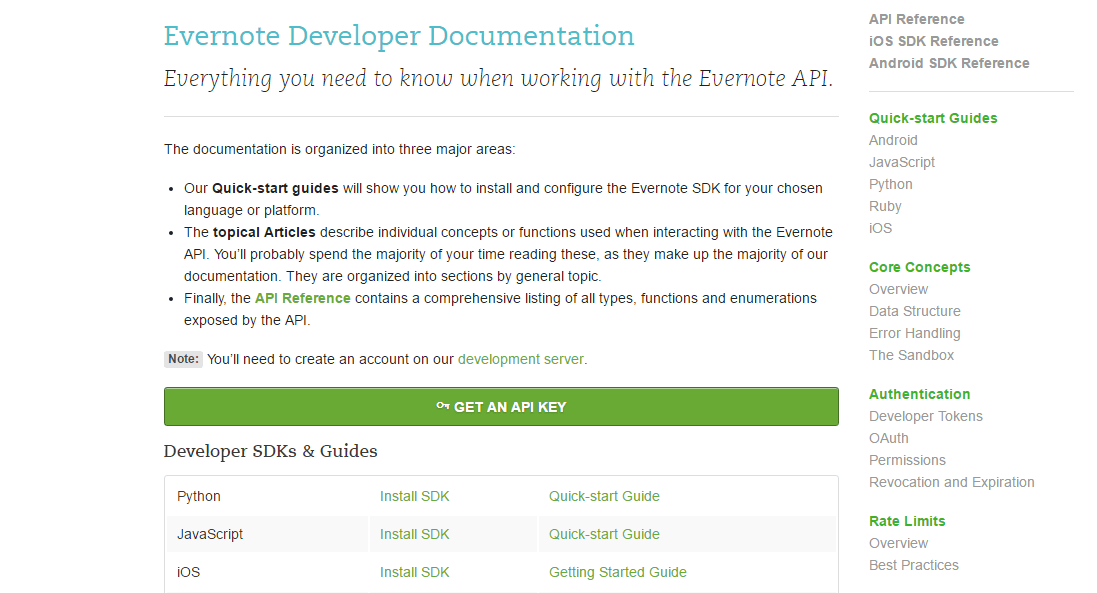

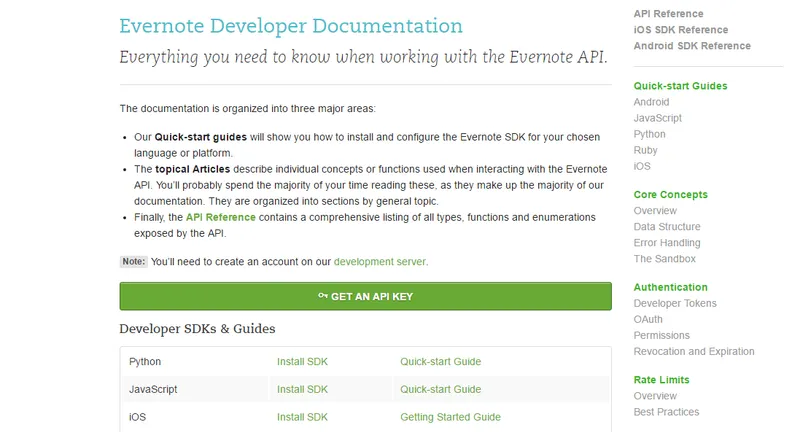

In order to hack the Evernote, you need to be registered as developers or Evernote, Click here to get started.

The Quick-start guides will show you how to install and configure the Evernote SDK for your chosen language or platform. Here we select Python as our develop language.

pip install evernote The topical Articles describe individual concepts or functions used when interacting with the Evernote API. You’ll probably spend the majority of your time reading these, as they make up the majority of the documentation. They are organized into sections by general topic.

Finally, the API Reference contains a comprehensive listing of all types, functions and enumerations exposed by the API.

Download the Code

After you install the required environment, you can download the code from the GitHub.

git clone <a href="https://github.com/Lee-Kevin/VoiceAssistant"> https://github.com/Lee-Kevin/VoiceAssistant </a> Then open the VoiceAssistant.py and change the dev_token and noteGuid to your own.

dev_token = "your own token" noteGuid =

"your note book Guid"And the run the code to have a test

python EvernoteTest.py

Setup the Startup Script

Copy the startup script file 'assistant' to '/etc/init.d'

sudo cp assisant /etc/init.d And then set the file to execute

sudo chmod +x /etc/init.d/assistant Start the app

sudo /etc/init.d/assisant startStop the app

sudo /etc/init.d/assisant stopAt last, you shoud set this app auto run when the system is boot up

sudo update-rc.d assisant defaultsAnd then reboot your Raspberry Pi

Reboot

Assemble the Enclosure

Now we've done all the software part and it's time to make it looking good.

Firstly, laser cut the boards and prepare all the hardware as instructed in the Preparation Section.

Here we've cut a 3 mm thick wood, you can download the drawings by click here.

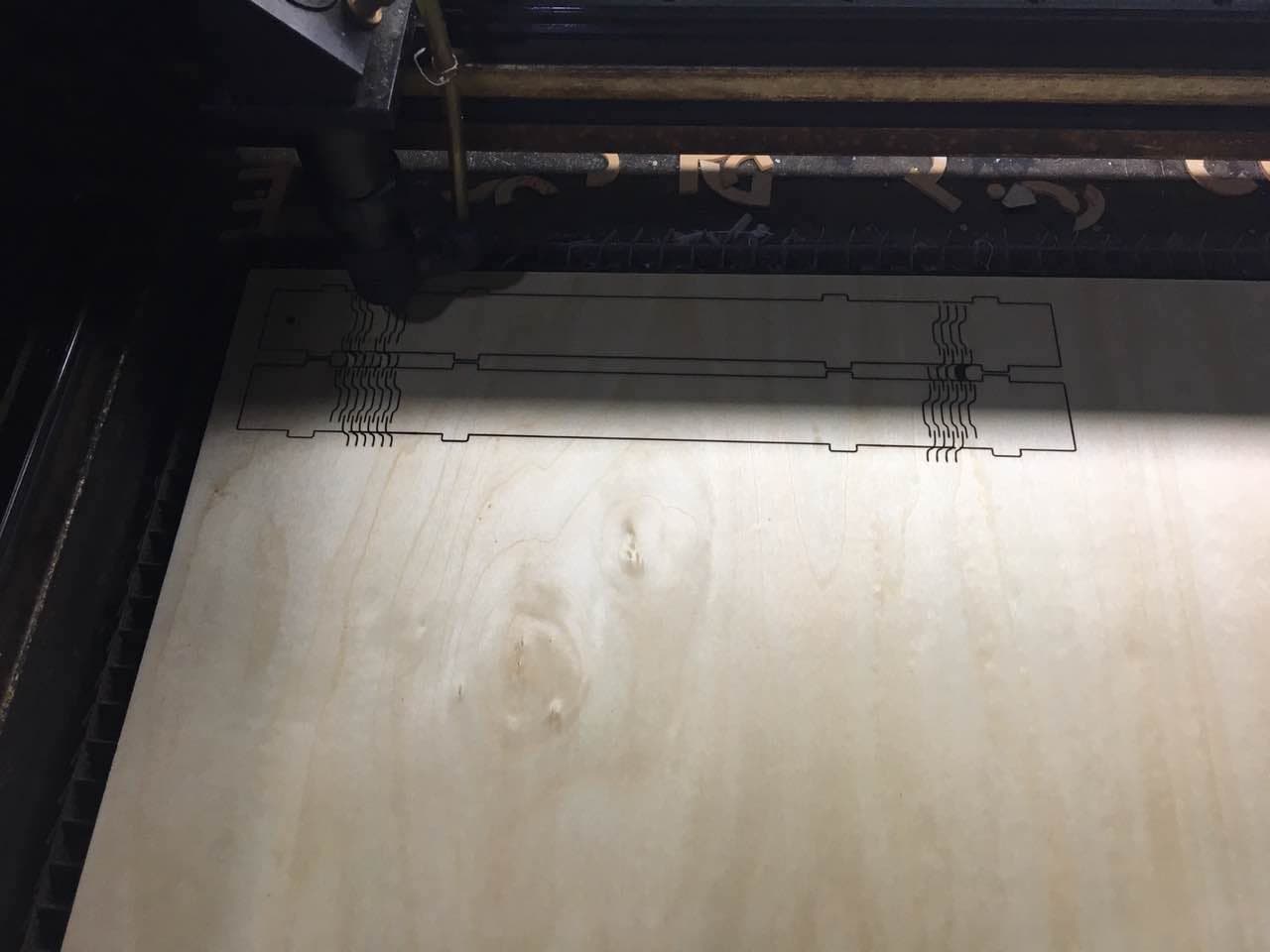

Then we need to cut the the board using laser cutting. I guess you don’t have a laser cutting at home, you can find some in the hacker space near from you easily. If there's no hacker space nearby, you can try the Laser Cutting Service supply from Seeed.

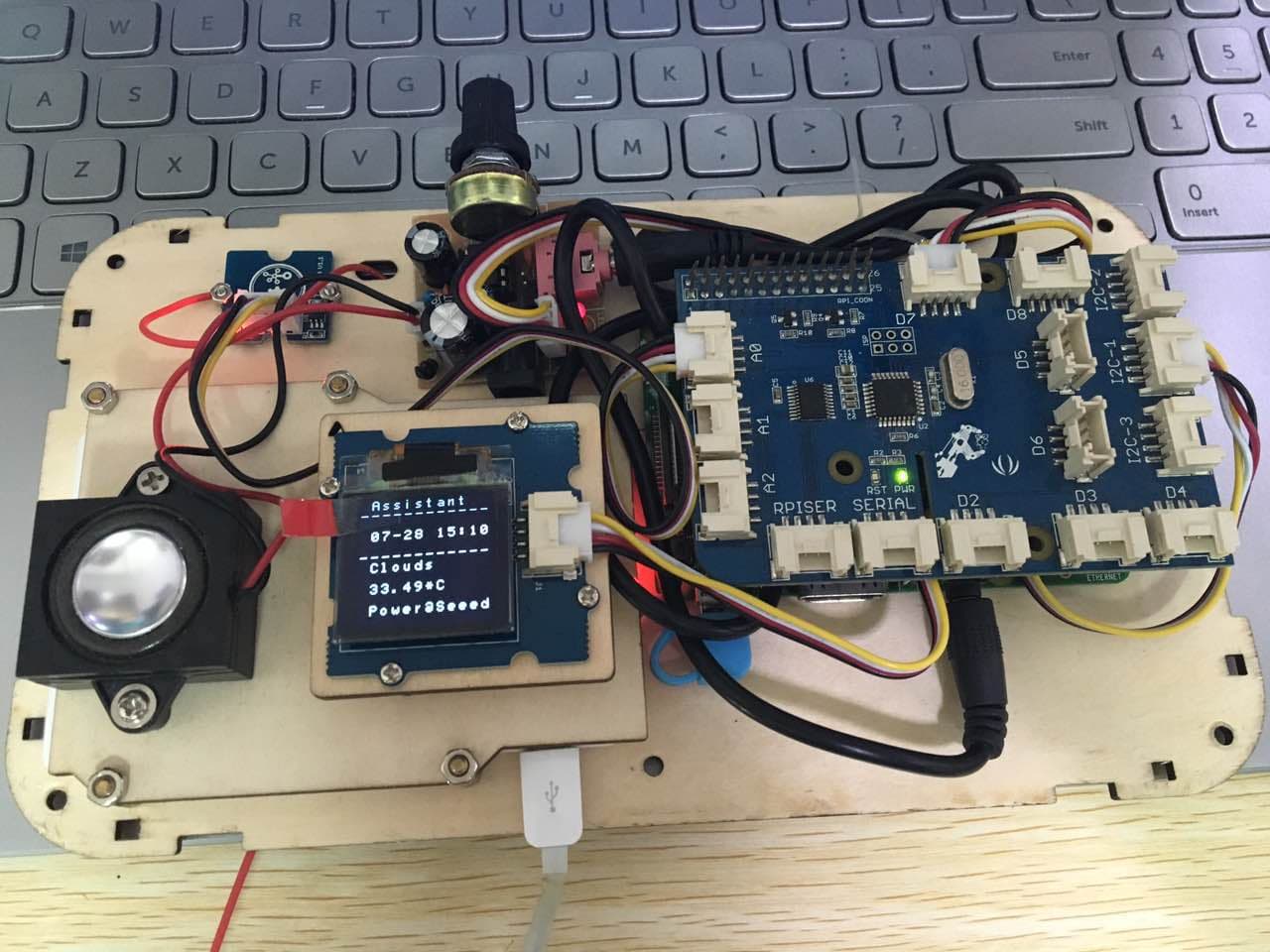

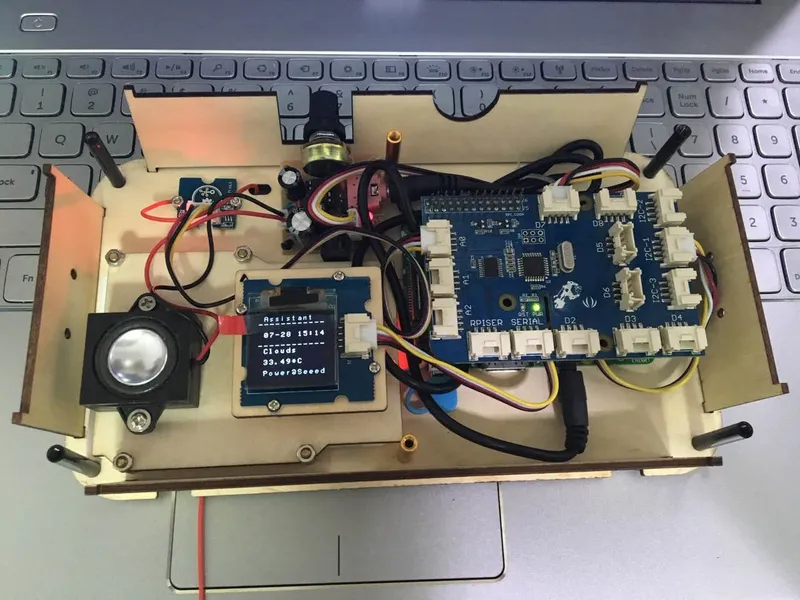

• Fixed the hardware on backplane with Screws and rivets(Image 1)

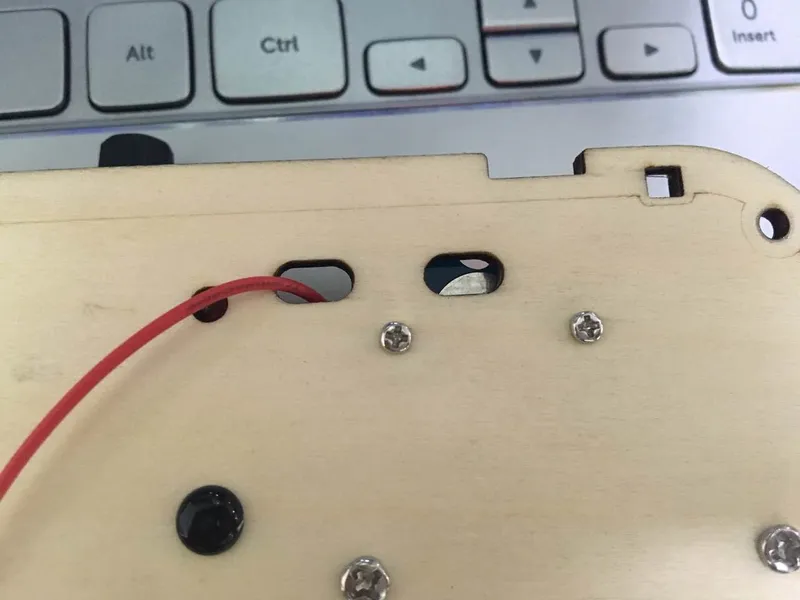

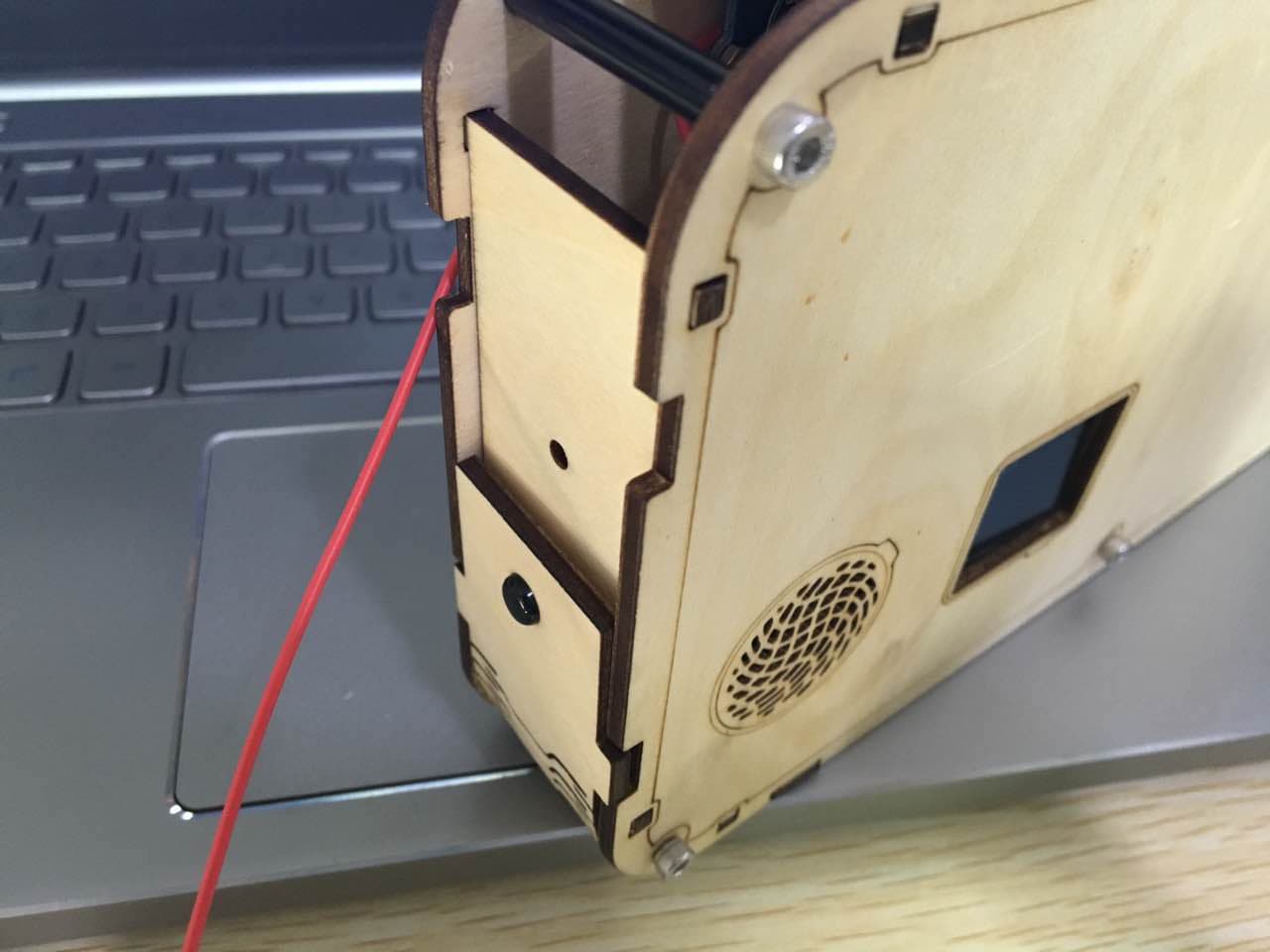

• Attention to through the welding wire to the hole(Image 2)

• Fixed the side panels with standoffs(Image 3)

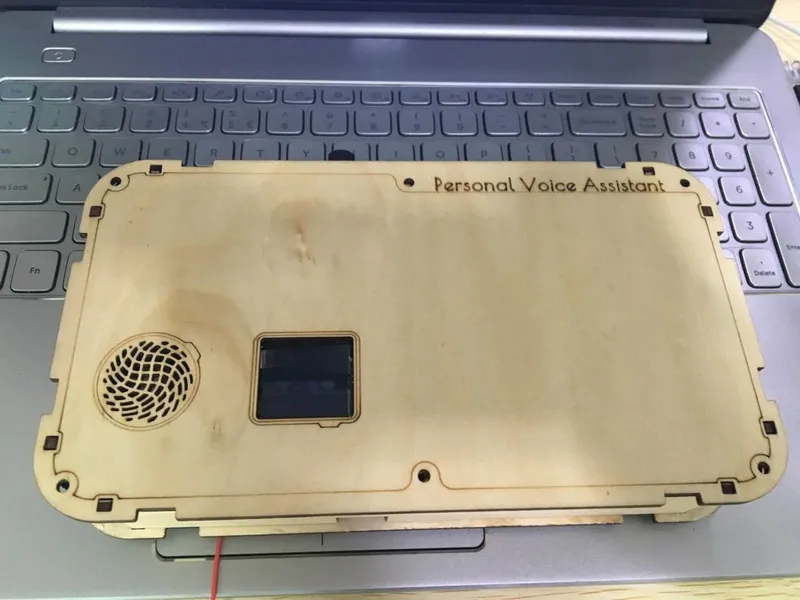

• Then, fixed the top plane(Image 4)

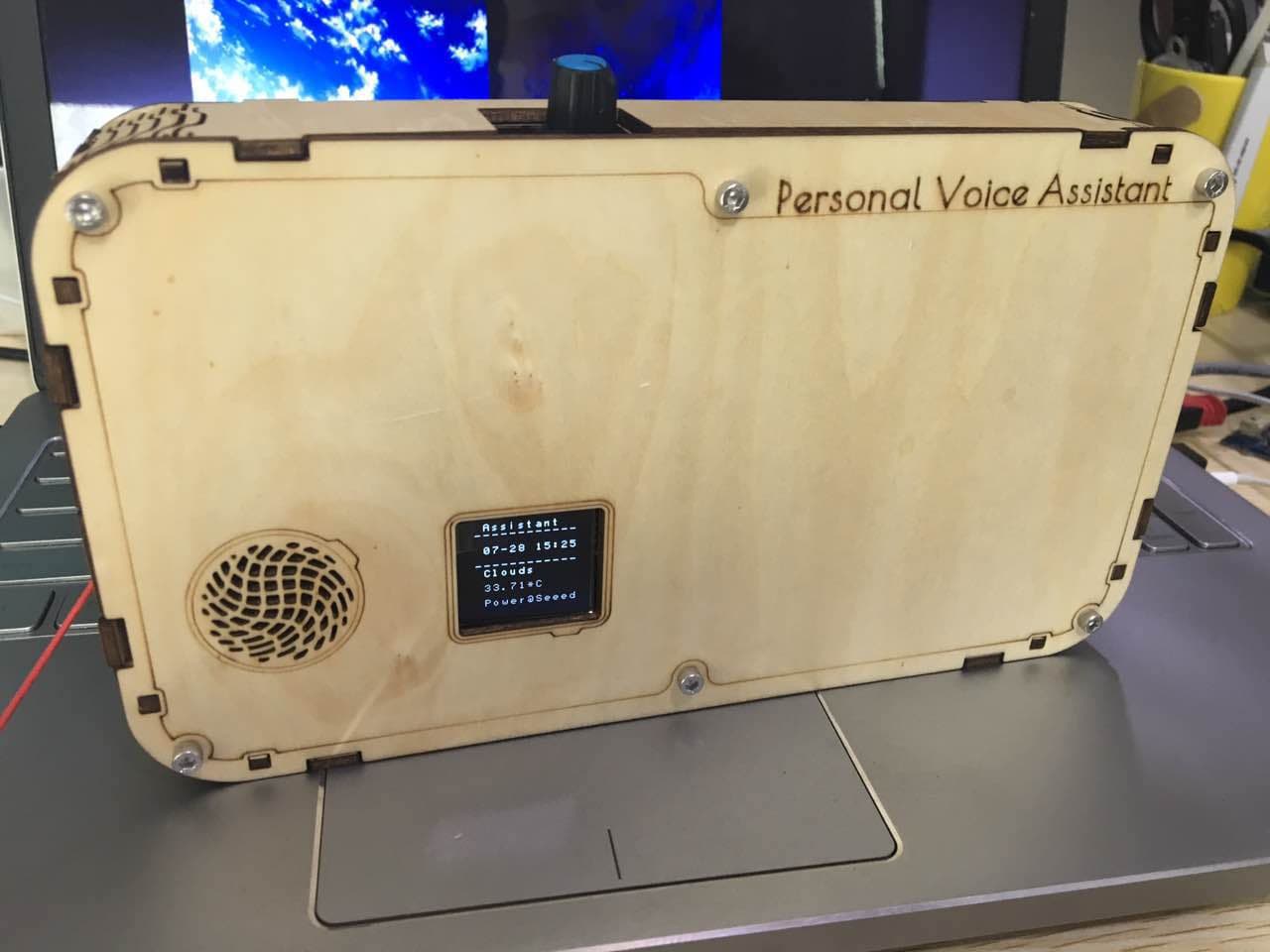

• Finally, riveted outermost wood(Image 5, 6)

See the Final Results

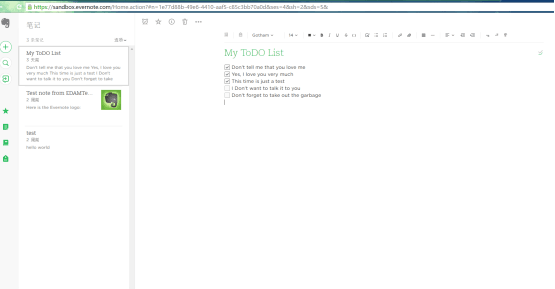

Now, Every time when I touch the door handle, the Raspberry Pi 3 will tell me what the weather like outdoor, and what I should do before I go out. The only thing that I need to do is add items on my ToDo List just as below shows.

Conclusion

Working at Seeed we are encouraged to use open hardware to build projects we love at our free time, and share it to the community.This project is made as an Open Source Project and it's actually just a starting point.

Every one of us are born with unlimited creativity and we want you to let it go wild. Starting from your first project. Make it work, and make it look nice. No matter what what you create, share it with others.

Let us share our experience to the community and make progress together.
